Waveshare Industrial RS232/RS485/RS422 to CAN Isolated Converter

Name: Waveshare Industrial RS232/RS485/RS422 to CAN Isolated Converter with Modbus RTU Support
Brand: Robocraze
SKU: TIFDC0106
Price: 3319 INR
Availability: InStock
Rating: 4.55 (11 reviews)

Waveshare Industrial RS232/RS485/RS422 to CAN Isolated Converter with Modbus RTU Support

Rs 3,319/-

- 33%

Rs 3,319/-

~~Rs 4,979/-~~

Save Rs 1,660/-

🪙

RC REWARDS Earn 33 RC Coins on this order

Incl. GST (No Hidden Charges)

Please hurry! Only 2 left in stock

Quantity:

Free Delivery Above ₹999

Technical Support & Easy Returns

Same-Day Shipping (Order by 3 PM on Business Days)

Earn RC Coins on Every Prepaid Order

COD Available on Order Value Between ₹500 to ₹3,000

SKU: TIFDC0106

Supports bidirectional data conversion between RS232, RS485, RS422, and CAN interfaces.
Supports Modbus RTU protocol conversion along with transparent and format conversion modes.
CAN baud rate is configurable from 10 kbps to 1000 kbps, while RS232/RS485/RS422 supports 1200 bps to 460800 bps.
Provides galvanic power and digital signal isolation for reliable industrial communication.
Includes 15 kV ESD protection and 600 W lightning, surge, and transient protection.
Supports a 5 V–36 V DC wide-range power input and industrial-grade wall/rail mounting.

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here

First Name *

Last Name *

Email *

Phone *

+91

Company / Client

GST *

Materials List

File(s) size limit is 20MB. Max 3 files.

Choose Categories * (select one or more)

Select Categories

STEM Kits Development Boards Electronic Components Drone 3D Printers/Pens Sensors Batteries & Power Supply Tools & Instruments

Enter the Captcha *

Reload Captcha

Waveshare Industrial RS232/RS485/RS422 to CAN Isolated Converter with Modbus RTU Support

~~Rs 4,979/-~~ Rs 3,319/-

Quantity:

Waveshare Industrial RS232/RS485/RS422 to CAN Isolated Converter with Modbus RTU Support

~~Rs 4,979/-~~ Rs 3,319/-

Description
Specifications
Additional Resources
Warranty
Shipping & Return

Description

Waveshare Industrial RS232/RS485/RS422 to CAN Isolated Converter with Modbus RTU Support

The Waveshare Industrial RS232/RS485/RS422 to CAN Isolated Converter is designed to connect conventional serial communication devices with CAN-based industrial networks. It supports data communication and conversion between RS232, RS485, RS422, and CAN, with four operating modes: transparent conversion, transparent conversion with identifiers, format conversion, and Modbus RTU protocol conversion.

The CAN interface supports CAN 2.0B extended frames, is compatible with CAN 2.0A standard frames, and offers configurable baud rates from 10 kbps to 1000 kbps. The RS232/RS485/RS422 interfaces support baud rates from 1200 bps to 460800 bps.

For reliable operation in demanding environments, the converter features onboard power and digital isolation, 15 kV ESD isolation protection, and 600 W lightningproof and anti-surge protection. It also includes a configurable 120 Ω matching resistor, up to 1000 CAN frames of buffer capacity, and a wide 5 V–36 V DC power input.

Features:

Supports data transfer and conversion between the RS232/485/422 and CAN interfaces.
Compliant with CAN 2.0B (extended frame) specification and compatible with CAN 2.0A (standard frame) specification; Compliant with ISO 11898-1/2/3 standard
CAN baud rate: 10kbps to 1000kbps, adjustable.
Supports 14 sets of adjustable filters; can only receive CAN bus data in particular ranges and types.
It supports four operation modes: transparent conversion, transparent with identifiers conversion, format conversion, and Modbus RTU protocol conversion.
CAN buffer has a capacity of up to 1000 frames for preventing data loss during transmission.

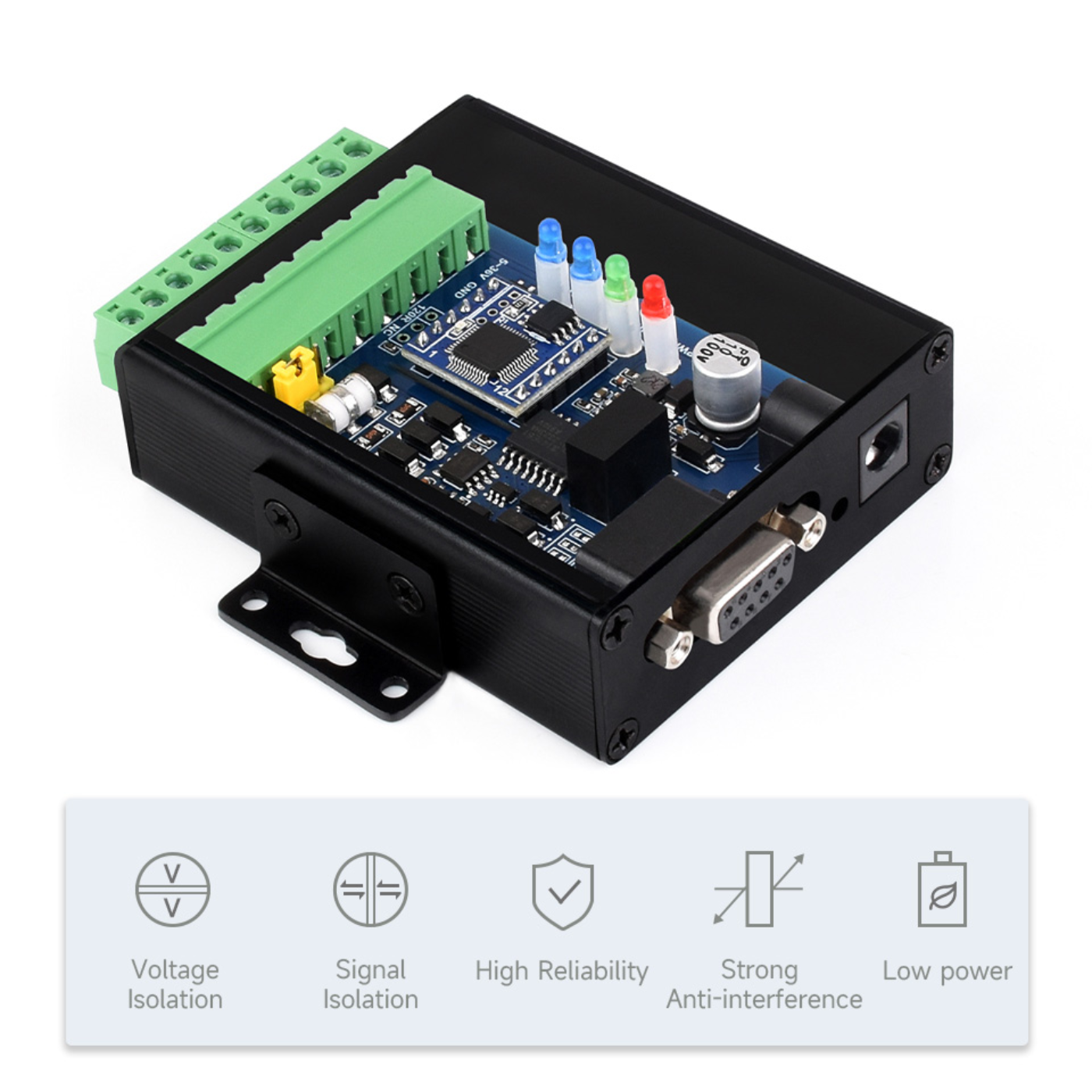

Onboard unibody power supply separation delivers stable isolated voltage and does not require an additional power source for the isolated terminal.
Onboard unibody digital isolation enables signal separation, excellent reliability, robust anti-interference, and low power consumption.
Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit; lightningproof and anti-electrostatic.
Onboard 15KV ESD isolation protection and 600W lightningproof/anti-surge protection.
Onboard 120R terminal resistance on the RS485/RS422 interface, changeable via jumper
Supports firmware upgrades via RS232/485/422, making firmware modification more straightforward.
Supports configuring operation parameters using configuration software or serial commands, with the ability to save settings after power-off.
The onboard power supply screw terminal supports a wide variety of DC input voltages from 5V to 36V.
4 LEDs to show the power and transmitter status. Industrial grade metal case, allows wall-mount and rail-mount installation, solid and elegant, simple to install.

Specifications

Package Includes:

1 x RS232/485/422 TO CAN
1 x Rail-mount buckle
1 x Screwdriver

Specifications:

Specification	Details
Product Type	Active digital isolated RS232/485/422 to CAN converter
Power Supply	5–36 V DC
Power Protection	Anti-reverse protection

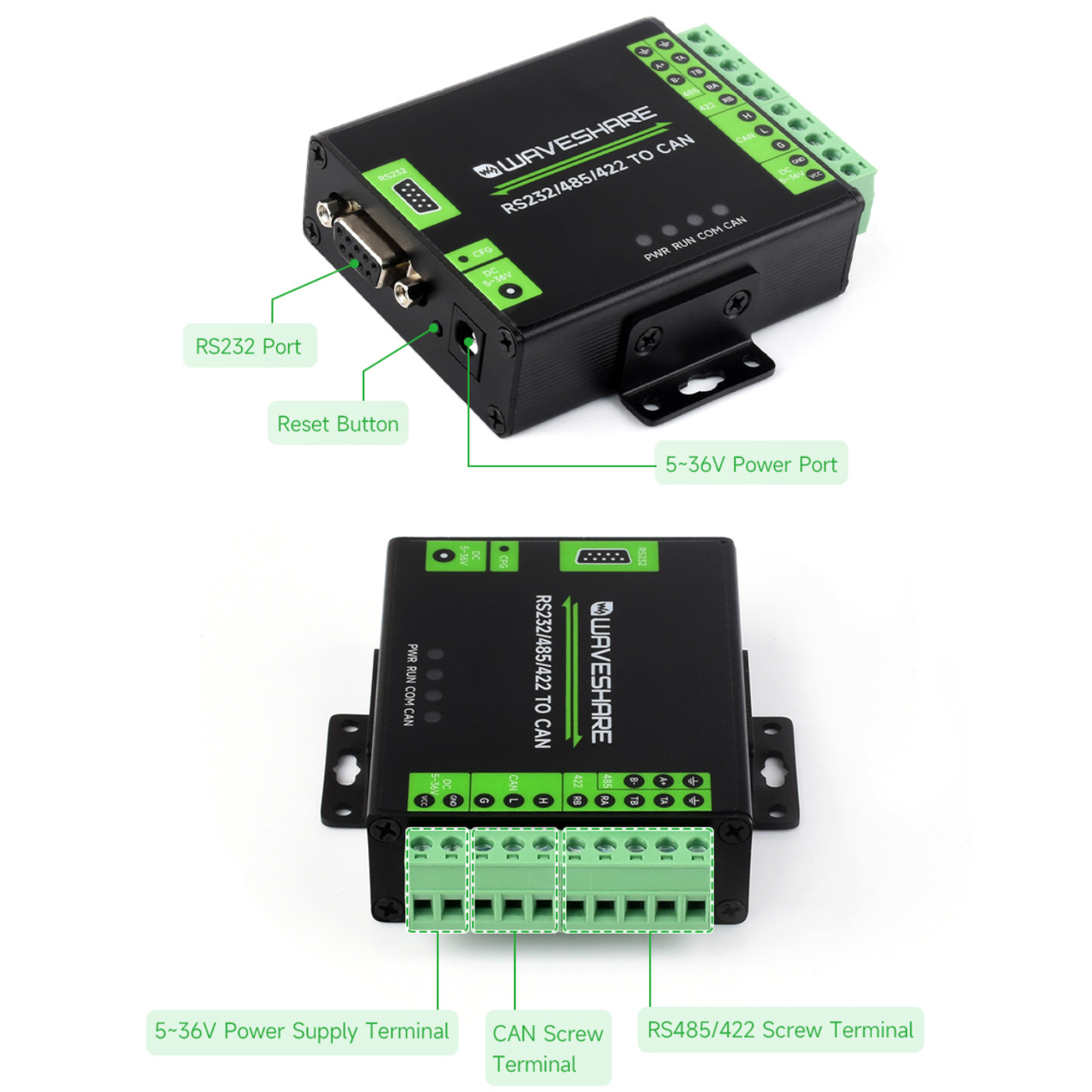

Device Ports	RS232/RS485/RS422, CAN
Isolated CAN Connector	Screw terminal
CAN Direction Control	Hardware automatic control
CAN Matching Resistor	Onboard 120 Ω matching resistor
CAN Baud Rate	10 kbps–1000 kbps
Isolated RS232 Connector	DB9 female
RS232 Transmission Distance	About 15 m
RS232 Transmission Mode	Point-to-point
RS232 Baud Rate	1200 bps–460800 bps
Isolated RS485/RS422 Connector	Screw terminal
RS485/RS422 Direction Control	Hardware automatic control
RS485/RS422 Protection	TVS diode, surge protection, ESD protection, power isolation and signal isolation
RS485/RS422 Matching Resistor	Onboard reserved 120 Ω matching resistor; NC by default, enabled via jumper
RS485 Transmission Mode	Point-to-multipoints, up to 32 nodes
RS422 Transmission Mode	Point-to-multipoints, up to 256 nodes
Recommended Repeater Usage	For 16 nodes or more in RS485/RS422 mode
RS485/RS422 Baud Rate	1200 bps–460800 bps
PWR Indicator	Red power indicator; lights up when voltage is detected
RUN Indicator	System operating indicator; turns off if CAN bus is abnormal
COM Indicator	RS232/RS485/RS422 RX indicator; lights up when the corresponding port receives data
CAN Indicator	CAN RX indicator; lights up when the CAN port receives data
Operating Temperature	-15 to 70 °C
