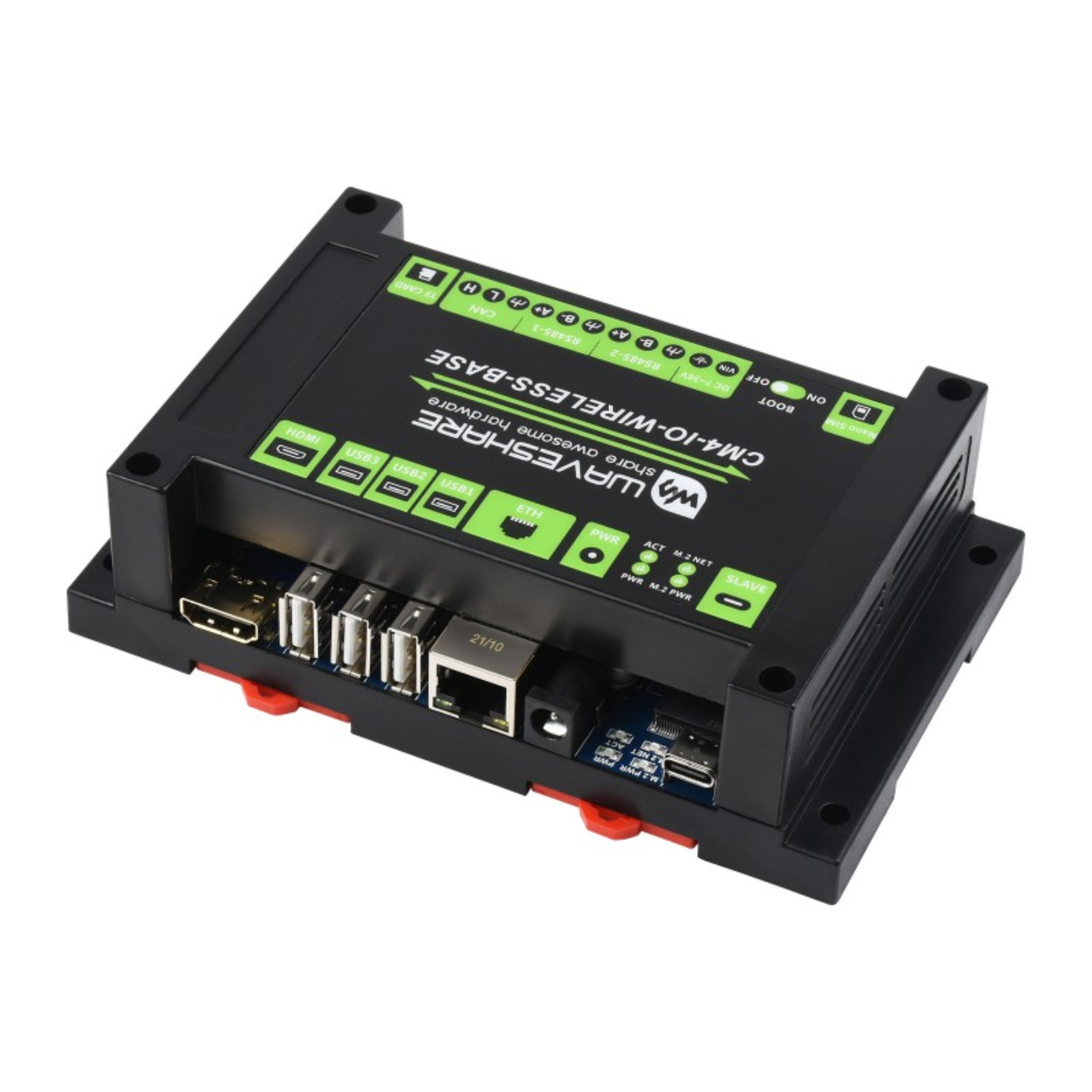

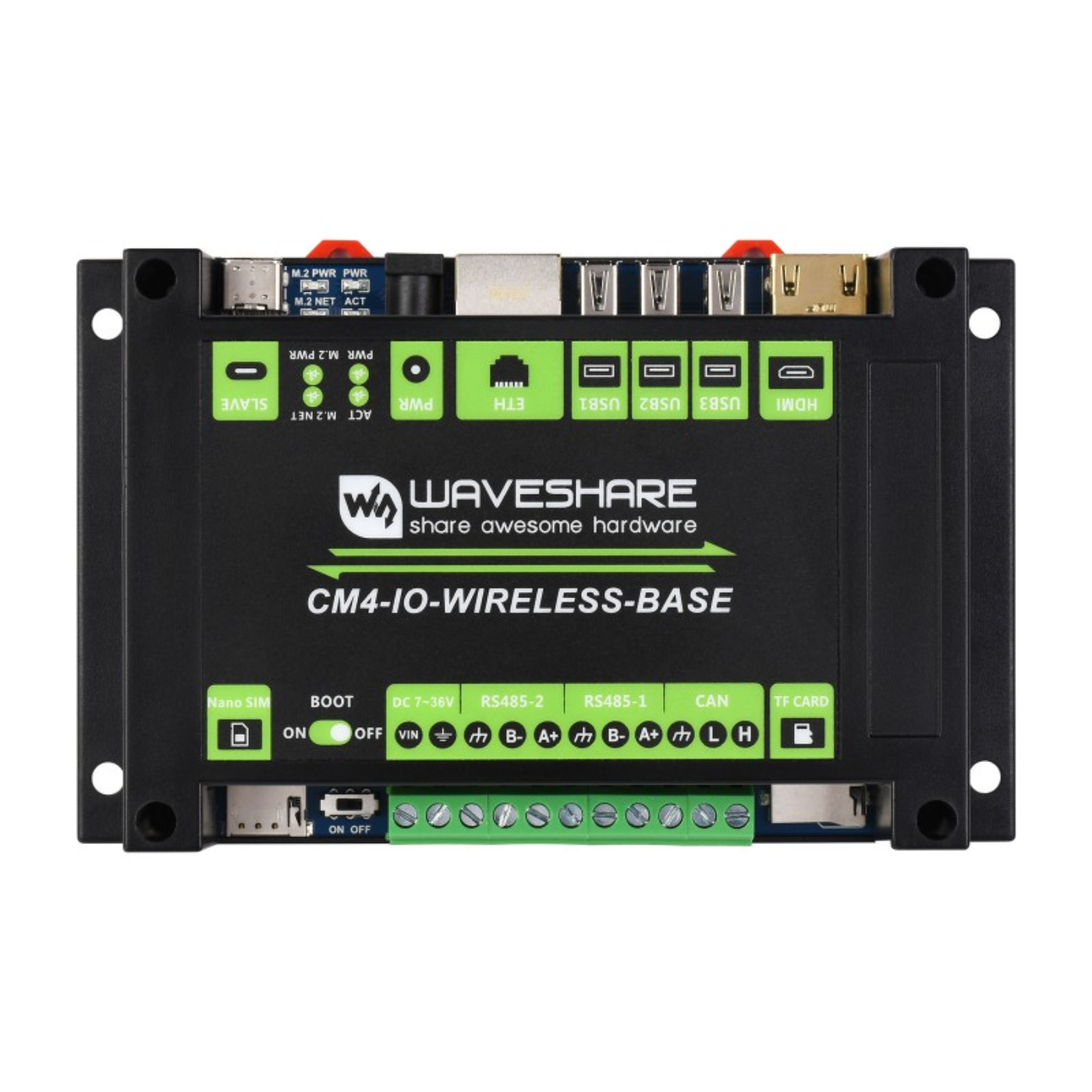

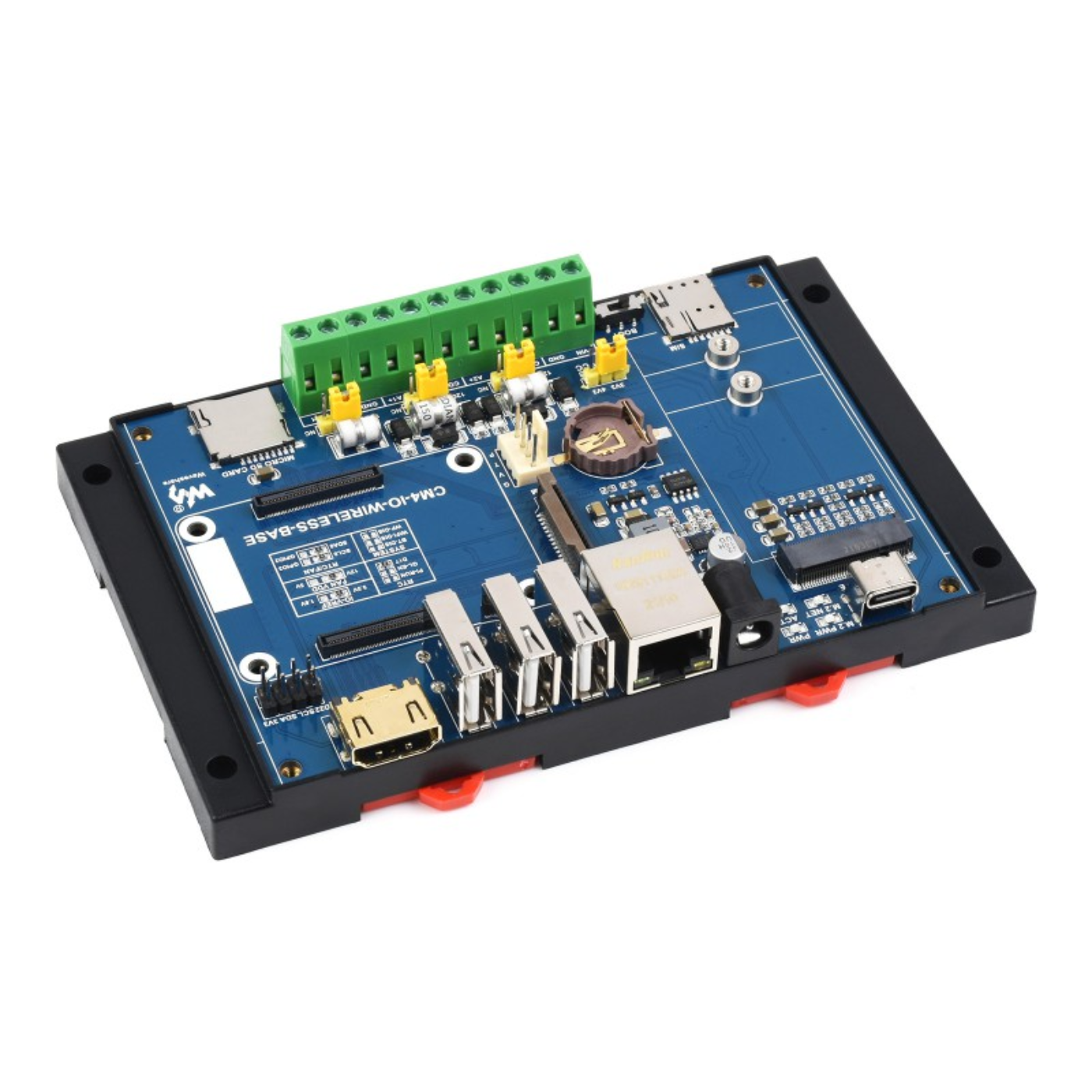

Waveshare Industrial IoT Wireless Expansion Module Compatible with Raspberry Pi CM4
Waveshare Industrial IoT Wireless Expansion Module Compatible with Raspberry Pi CM4
Waveshare Industrial IoT Wireless Expansion Module Compatible with Raspberry Pi CM4
The Waveshare Industrial IoT Wireless Expansion Module is a robust, purpose-built carrier board designed to transform the Raspberry Pi Compute Module 4 (CM4) into a powerful industrial IoT gateway or edge computing device. At its core, this wireless expansion module bridges the gap between accessible single-board computing and rugged industrial automation by providing critical, hardened connectivity options.
It features dedicated M.2 and Mini-PCIe slots, allowing for the seamless integration of 4G/5G connectivity or LoRaWAN modules to ensure reliable, remote data acquisition and telemetry even in off-grid locations. Equipped with ruggedized RS485 and CAN bus interfaces, Gigabit Ethernet, and a wide 7V–36V DC power input, it guarantees stable communication across demanding factory floors or outdoor installations.
Housed in a durable, DIN rail mount ABS protection case, this all-in-one IoT router solution serves as the ideal, scalable foundation for building secure and highly adaptable smart factory, PLC, or remote monitoring systems.
Features:
- Universal CM4 Compatibility: Works seamlessly with all Raspberry Pi Compute Module 4 variants.
- Expandable Wireless Connectivity: Ready for 4G, 5G, or LoRa modules via onboard M.2 and Mini-PCIe slots.
- Industrial-Grade Interfaces: Features protected RS485 and CAN bus ports for reliable machine-to-machine communication.

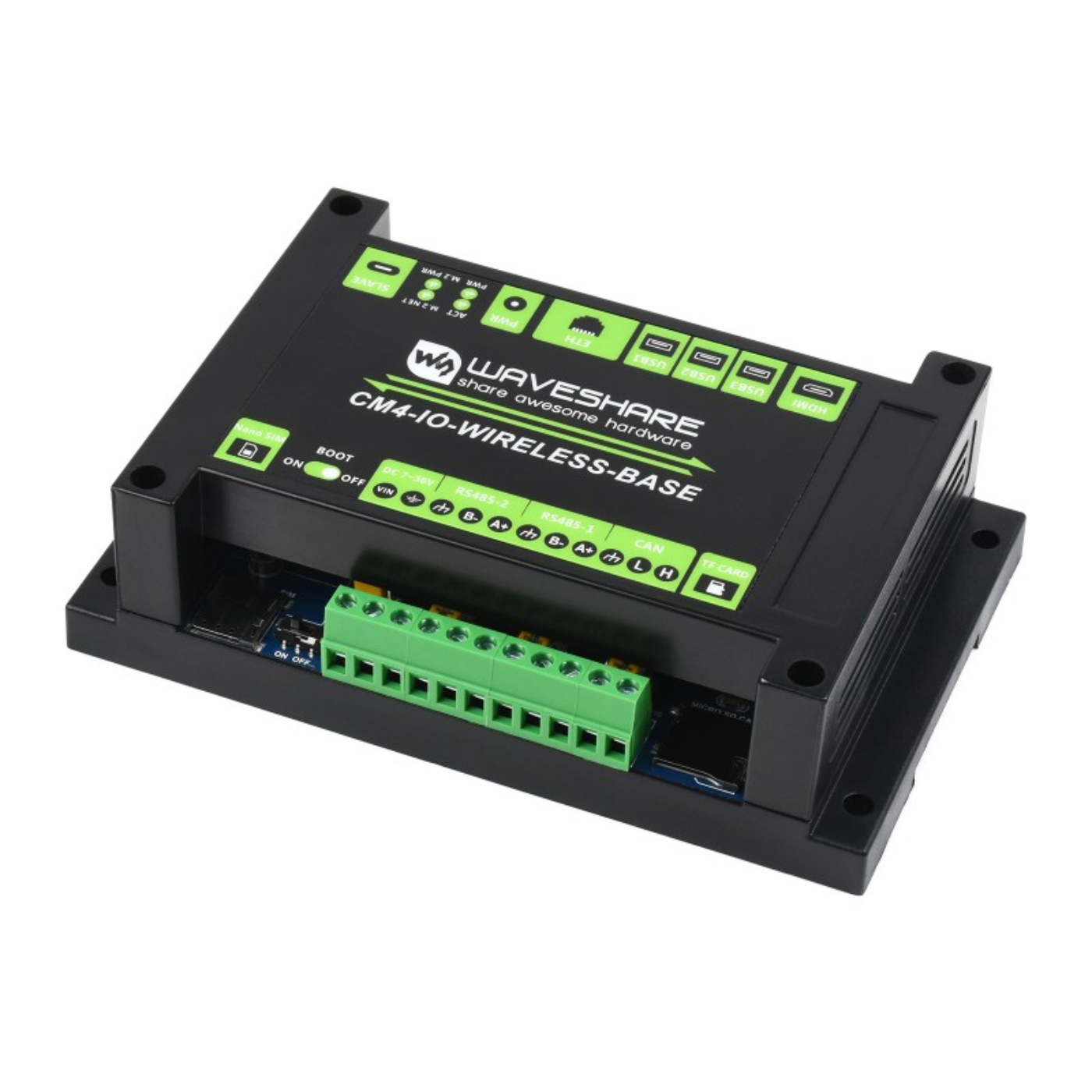

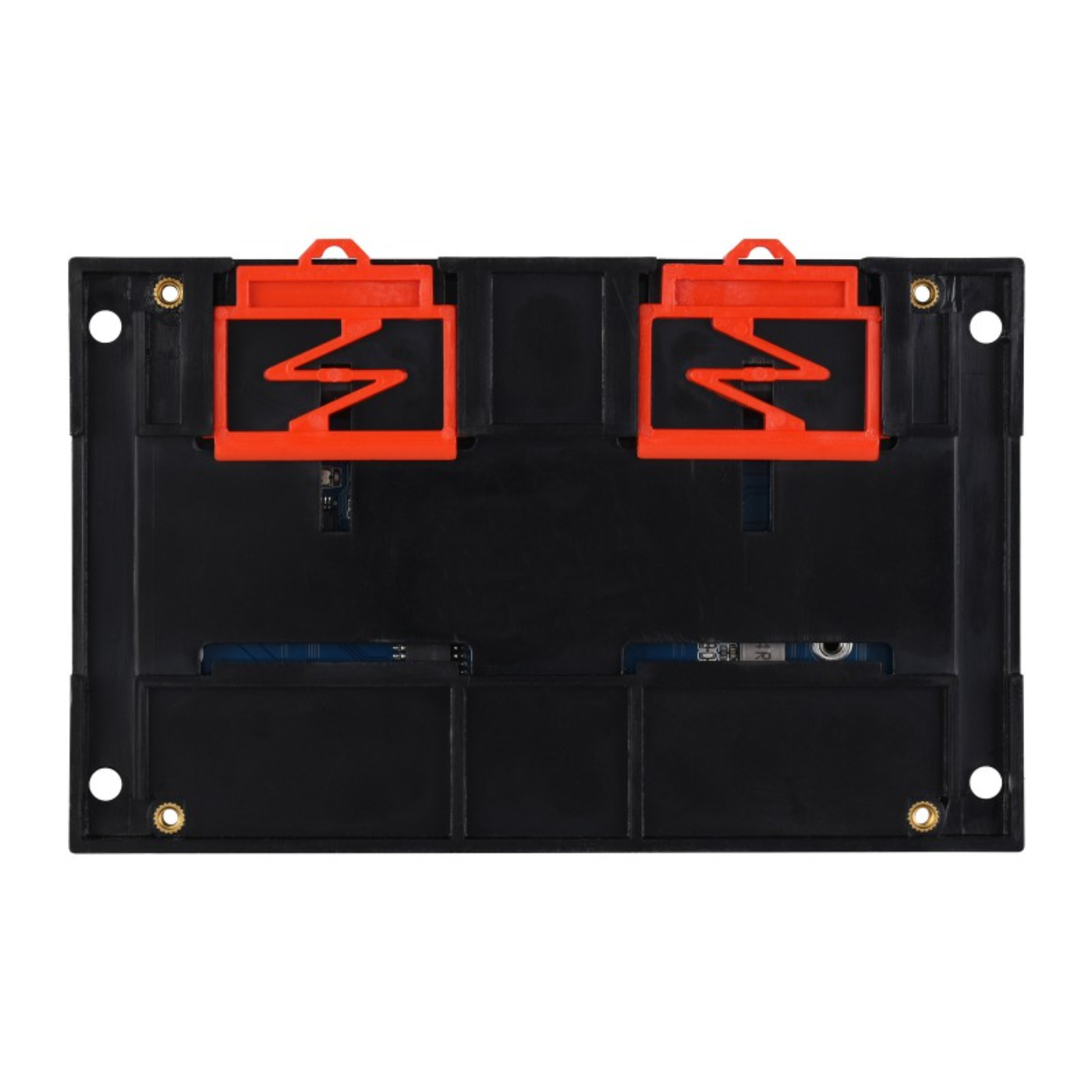

- Rugged DIN Rail Design: Includes a durable ABS case for secure, space-saving mounting in control panels.
- Flexible Power Input: Supports a wide 7V–36V DC range for diverse deployment environments.
- Comprehensive I/O Expansion: Equipped with Gigabit Ethernet, USB 2.0, HDMI, camera (CSI) support, and a battery-backed RTC.
Package Includes:
- 1 x CM4-IO-WIRELESS-BASE
- 1 x PCIe to 4G/LoRa adapter
- 1 x Screwdriver
- 1 x Screws pack

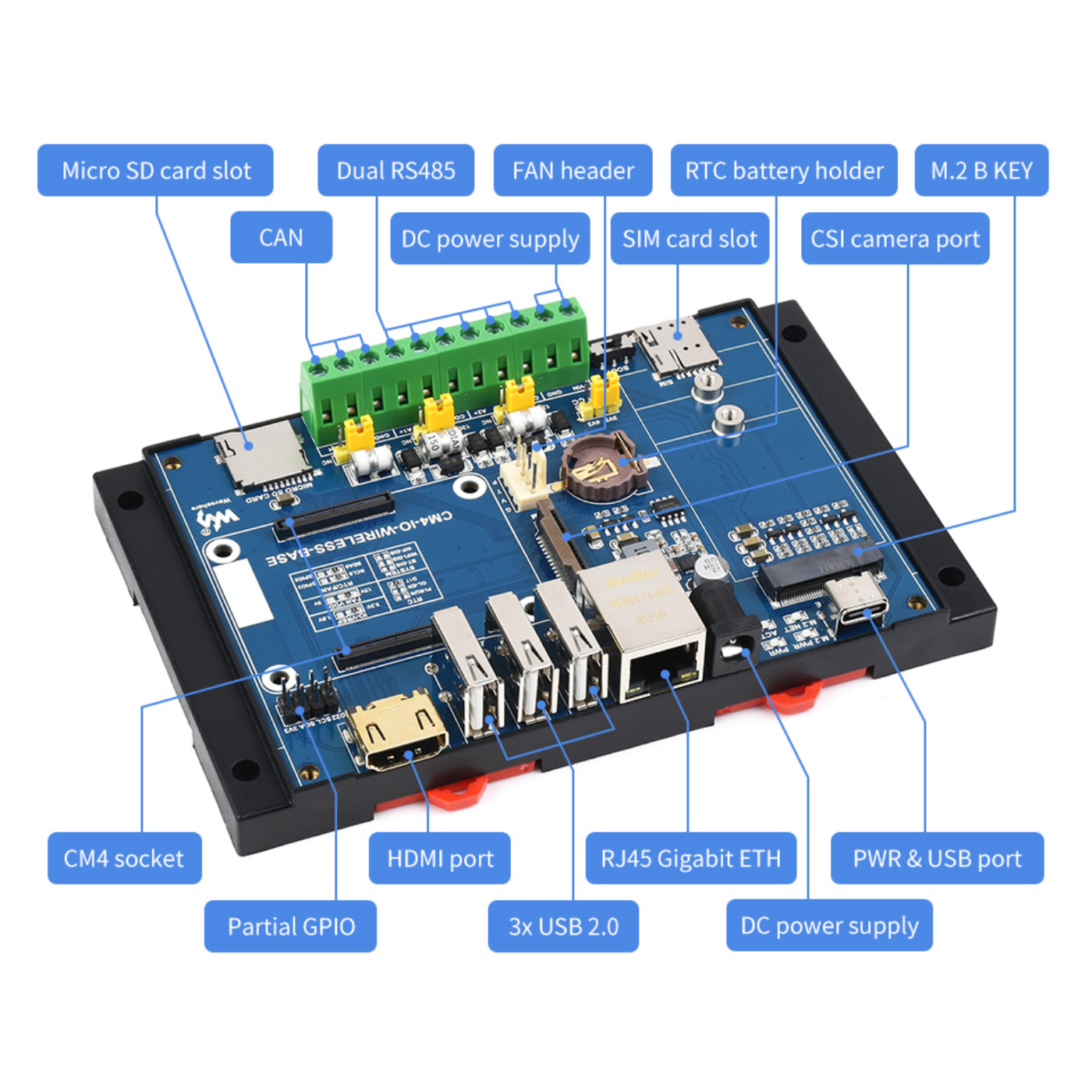

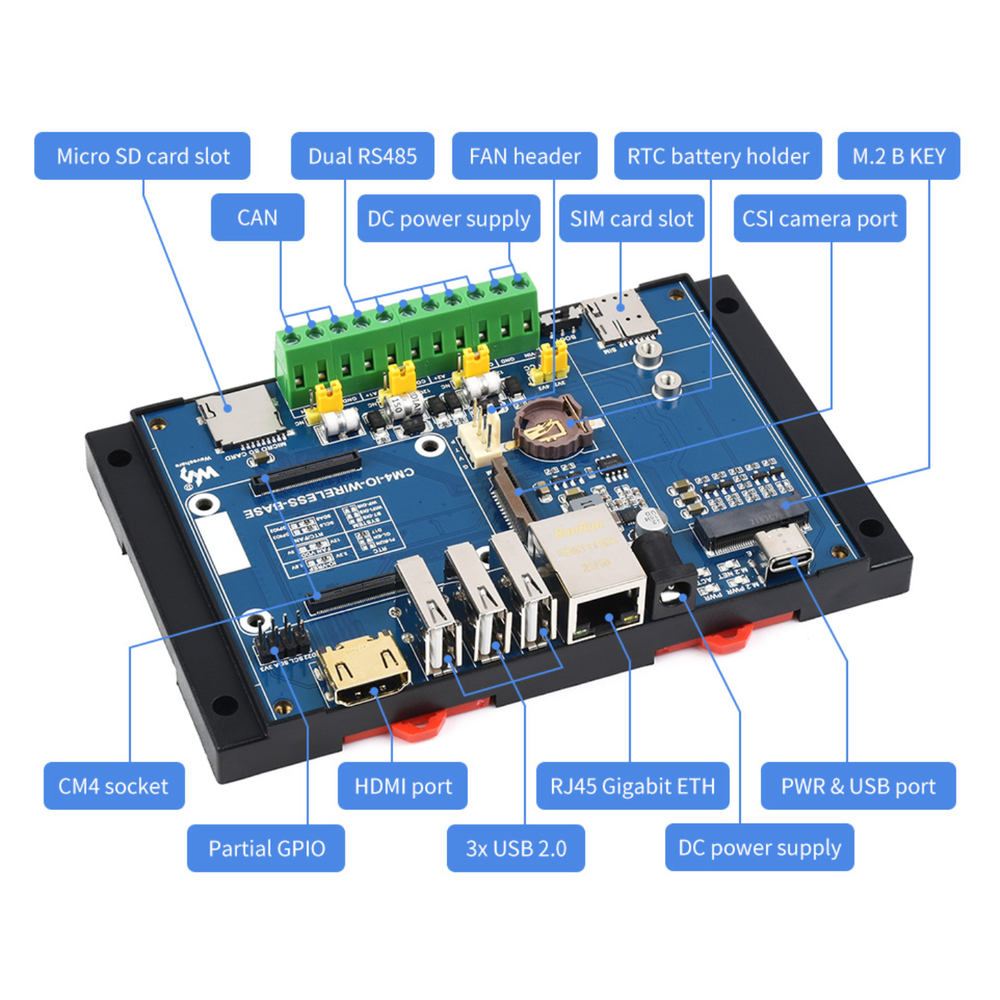

Specifications:
| Specification | Details |
|---|---|
| CM4 Socket | Suitable for all variants of Compute Module 4 |
| Networking | Gigabit Ethernet RJ45 |
| Wireless Interface | M.2 B KEY / Mini-PCIe (via adapter), for connecting 5G / 4G / LoRa wireless module |
| SIM Card Slot | Nano-SIM card slot, supports standard Nano-SIM card for 5G/4G/3G/2G communication |
| USB | USB 2.0 × 3 |
| Pin Header | Non-isolated RS485 × 2, Non-isolated CAN × 1, Partial GPIO pins |
| Camera | MIPI CSI-2 × 1 (15pin 1.0mm FPC connector) |
| Video | HDMI × 1, supports 4K 30fps output |
| RTC | Real-time clock with battery socket and ability to wake Compute Module 4 |
| Storage | MicroSD card socket for Compute Module 4 Lite (without eMMC) variants |
| Fan Header | 5V/12V, allows speed adjustment and measurement |
| Power Input | 5V or 7~36V |

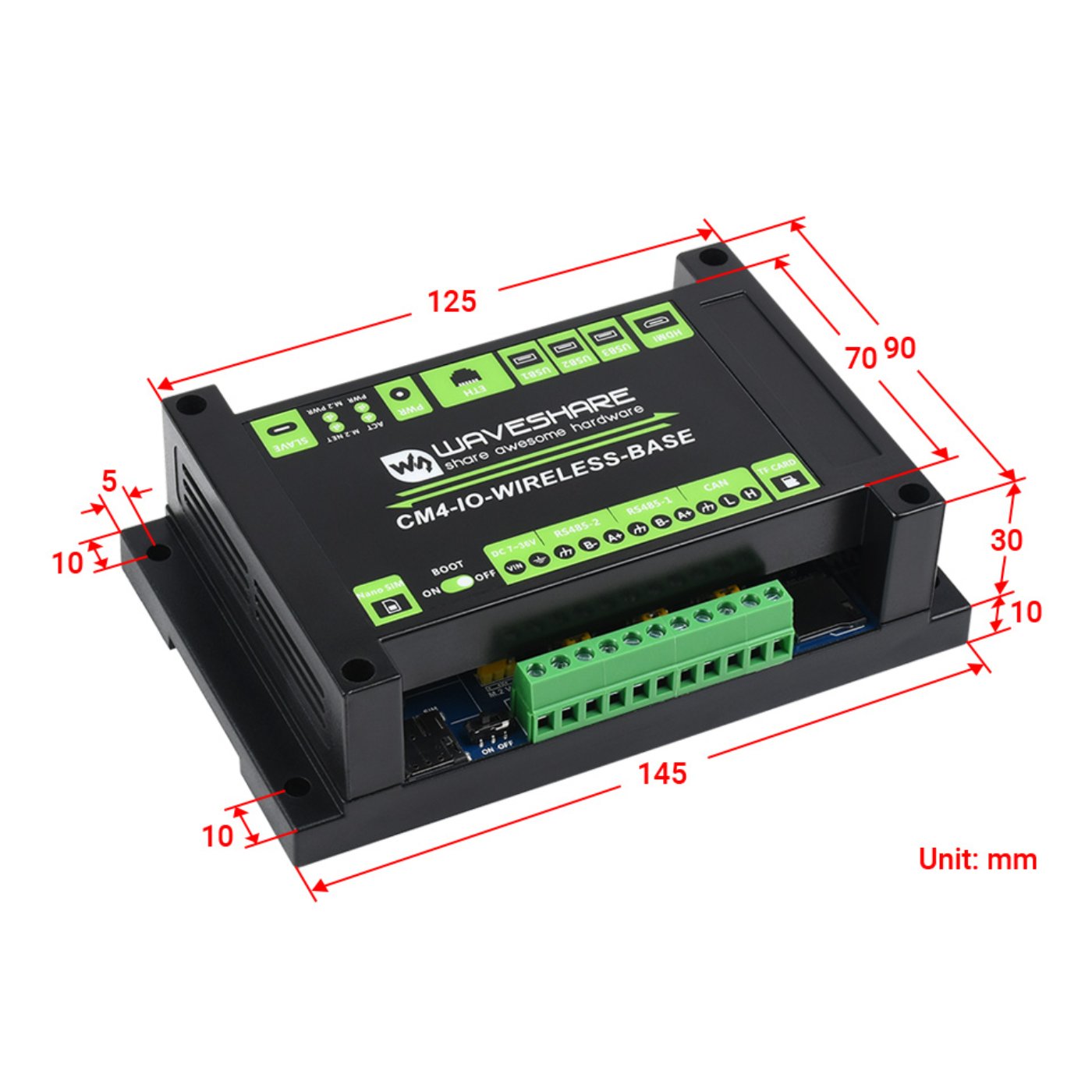

| Dimensions | 145 × 90 × 40mm |
