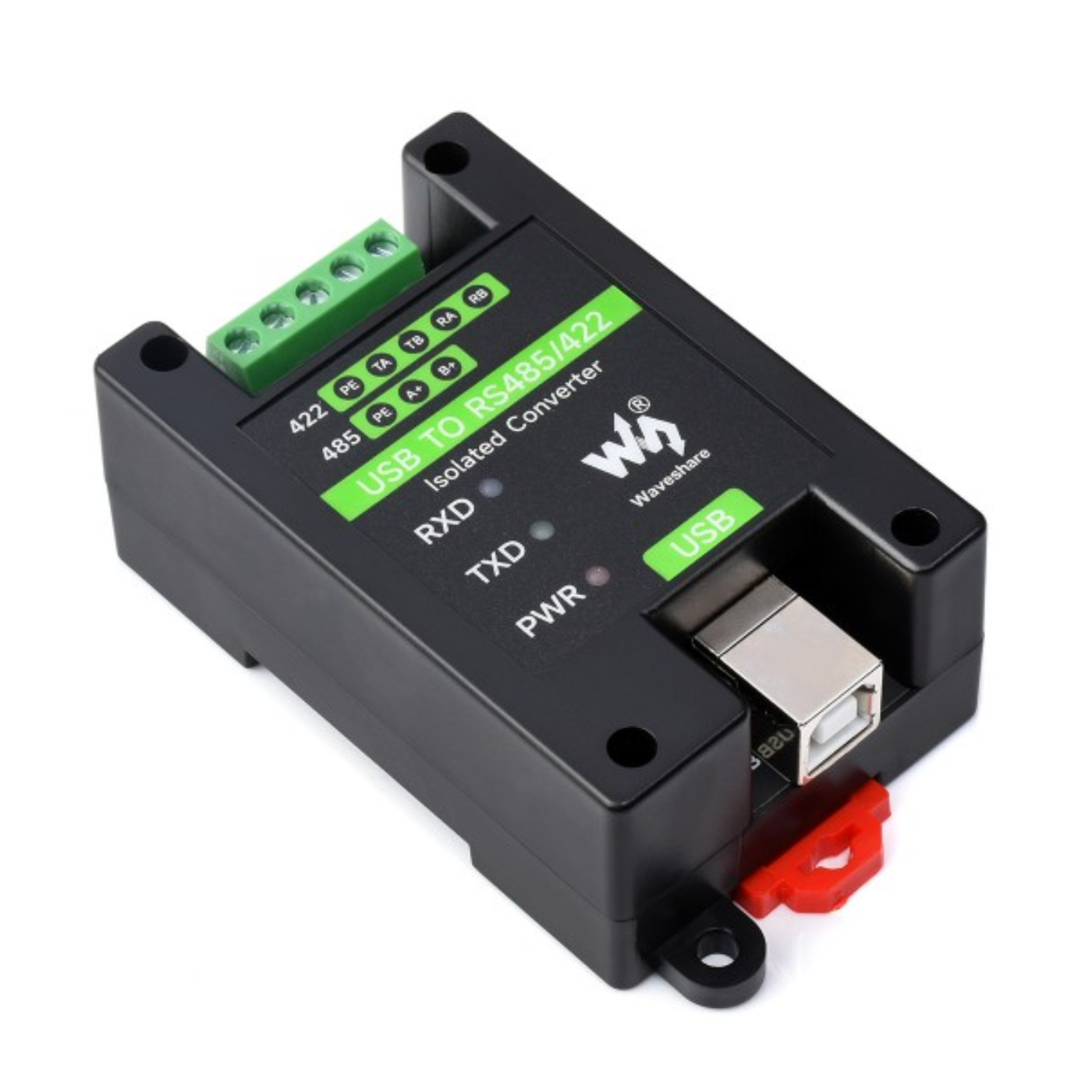

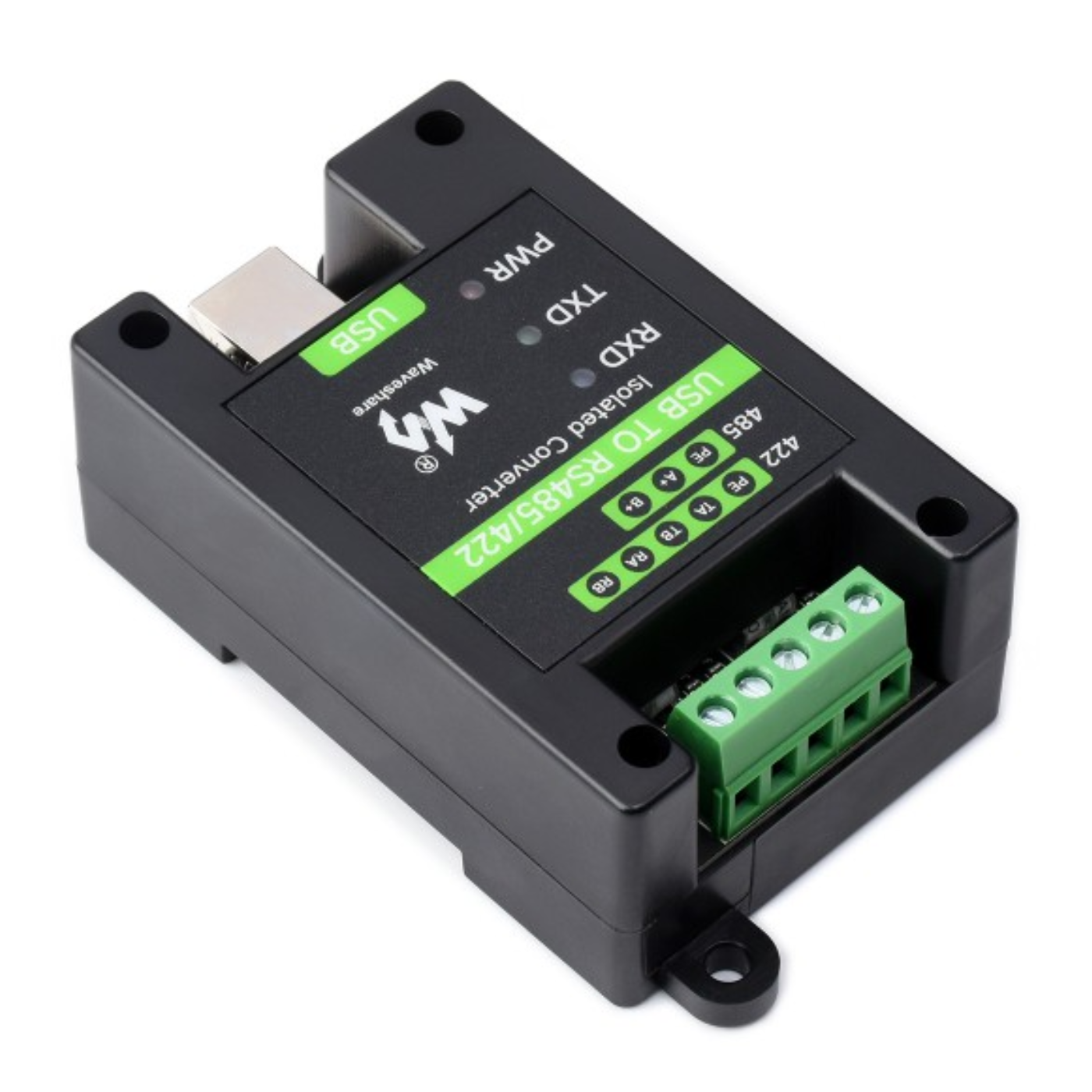

Waveshare Industrial Grade USB to RS485/RS422 Isolated Converter
Let us know!
We'll try to match the price for you
We’ll notify you once the product is back in stock.
For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below
Couldn't load pickup availability
The Waveshare Industrial Grade USB to RS485/RS422 Isolated Converter provides a dependable way to connect a USB host to RS485 or RS422 industrial communication equipment. Built with original FT232RL and SP485EEN chips, it supports communication speeds from 300 bps to 3 Mbps and offers automatic hardware direction control for smooth data transmission.
The converter features galvanic power and digital isolation, along with 600W surge/lightning protection, 15KV ESD protection, a 200mA self-recovery fuse, and protection diodes for safer operation in electrically noisy environments. It supports RS485/RS422 transmission distances of approximately 1.2 km at low data rates, while USB transmission is approximately 5 m. The RS485 interface supports point-to-multipoint communication with up to 32 nodes, and the onboard 120Ω termination resistor can be enabled through a jumper.
With a 5V USB operating voltage, USB-B connector, screw-terminal RS485/RS422 interface, and compatibility with Windows 11/10/8.1/8/7, Linux, Mac, Android, and WinCE, this industrial USB to RS485/RS422 converter is well suited for industrial control, equipment communication, serial device interfacing, and long-distance RS485/RS422 applications. Its compact 81.9 × 54.0 × 32.0 mm ABS rail-mount enclosure also makes it convenient for installation in industrial control panels.
| Specification | Details |
|---|---|
| Product Type | Industrial Grade Isolated USB to RS485/RS422 Converter |
| Baud Rate | 300 bps ~ 3 Mbps |
| Host Port | USB |
| Device Port | RS485/RS422 |
| USB Operating Voltage | 5V |
| USB Connector | USB-B |
| USB Protection | 200mA Self-Recovery Fuse, ESD Protection |
| USB Transmission Distance | About 5m |
| RS485/RS422 Connector | Screw Terminal |
| RS485/RS422 Pins | A+, B-, PE |
| Direction Control | Hardware Automatic Control |
| RS485/RS422 Protection | 600W Lightningproof & Surge Suppression, 15KV ESD Protection |
| Balancing Resistor | Onboard 120Ω |
| RS485/RS422 Transmission Distance | About 1.2km (Low Rate) |
| Transmission Mode | Point-to-Multipoint, Up to 32 Nodes |
| Recommended Node Configuration | Repeater recommended for 16 nodes or more |

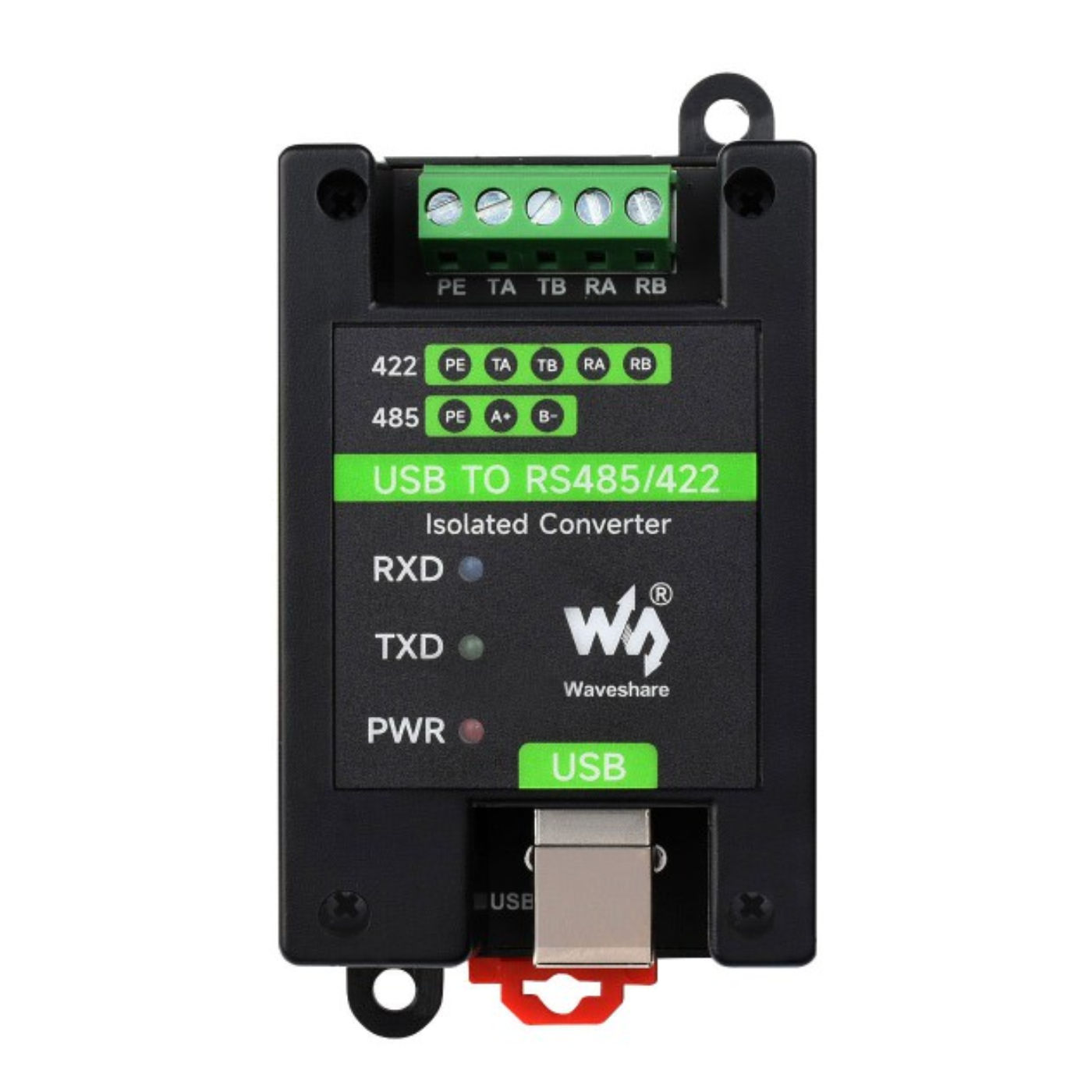

| PWR LED | Red Power Indicator – Lights when USB connection and voltage are detected |
| TXD LED | Green TX Indicator – Lights when the USB port sends data |
| RXD LED | Blue RX Indicator – Lights when the device port sends data back |
| Operating Temperature | -15℃ ~ 70℃ |
| Operating Humidity | 5%RH ~ 95%RH |
| Operating Systems | Mac, Linux, Android, WinCE, Windows 11 / 10 / 8.1 / 8 / 7 |

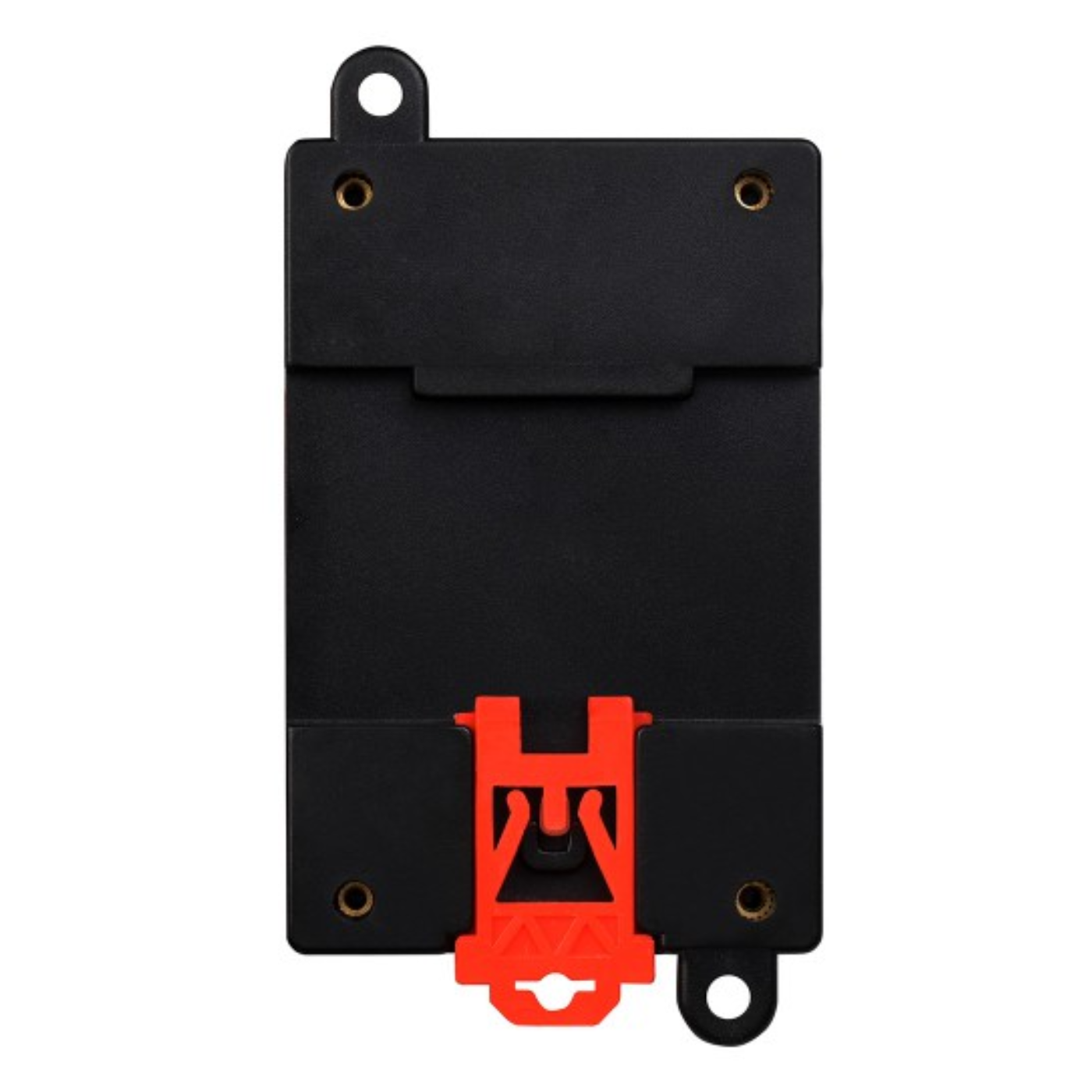

| Enclosure | Rail-Mount ABS Case |
| DIN Rail Compatibility | 35mm DIN Rail |

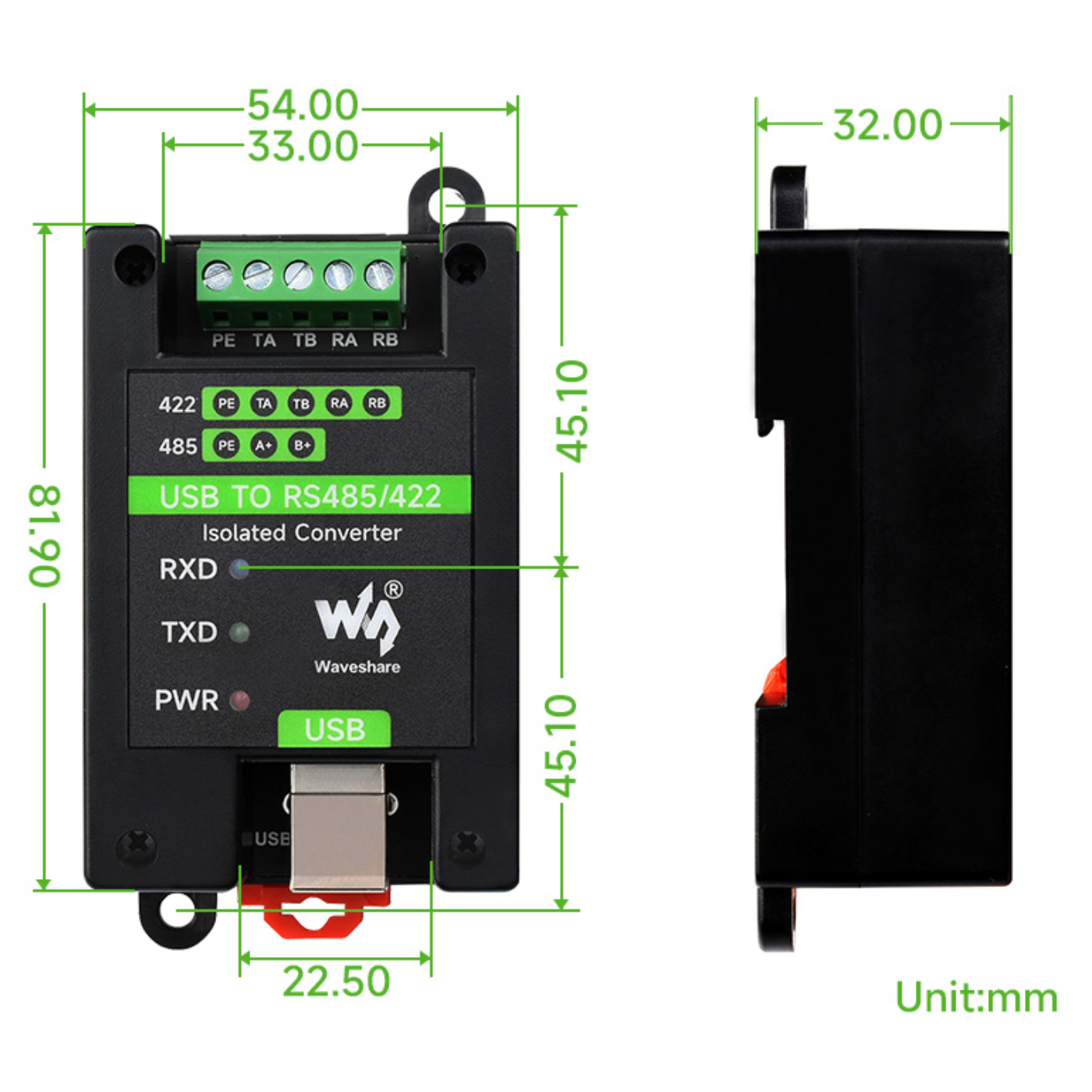

| Dimensions | 81.9 × 54.0 × 32.0mm |
