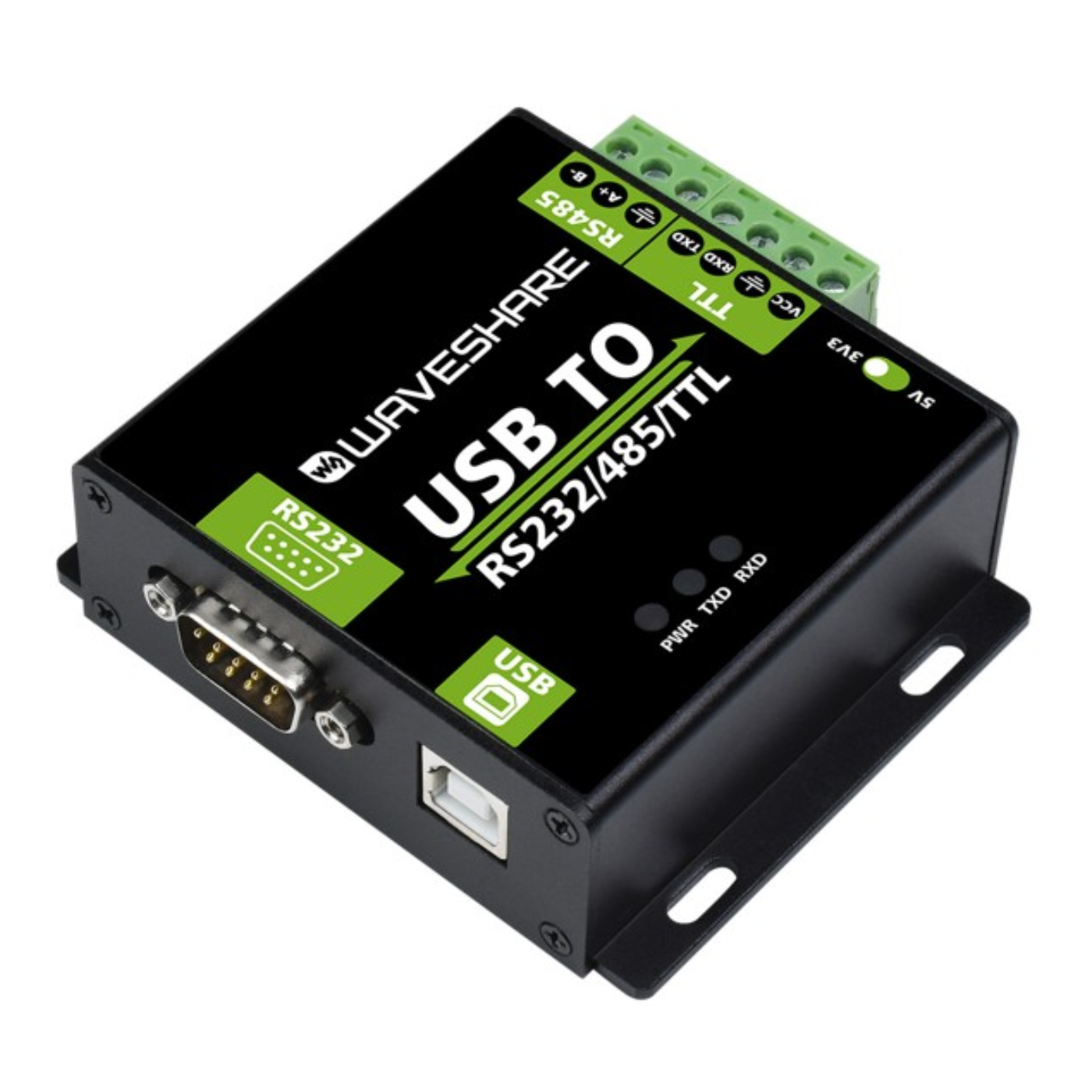

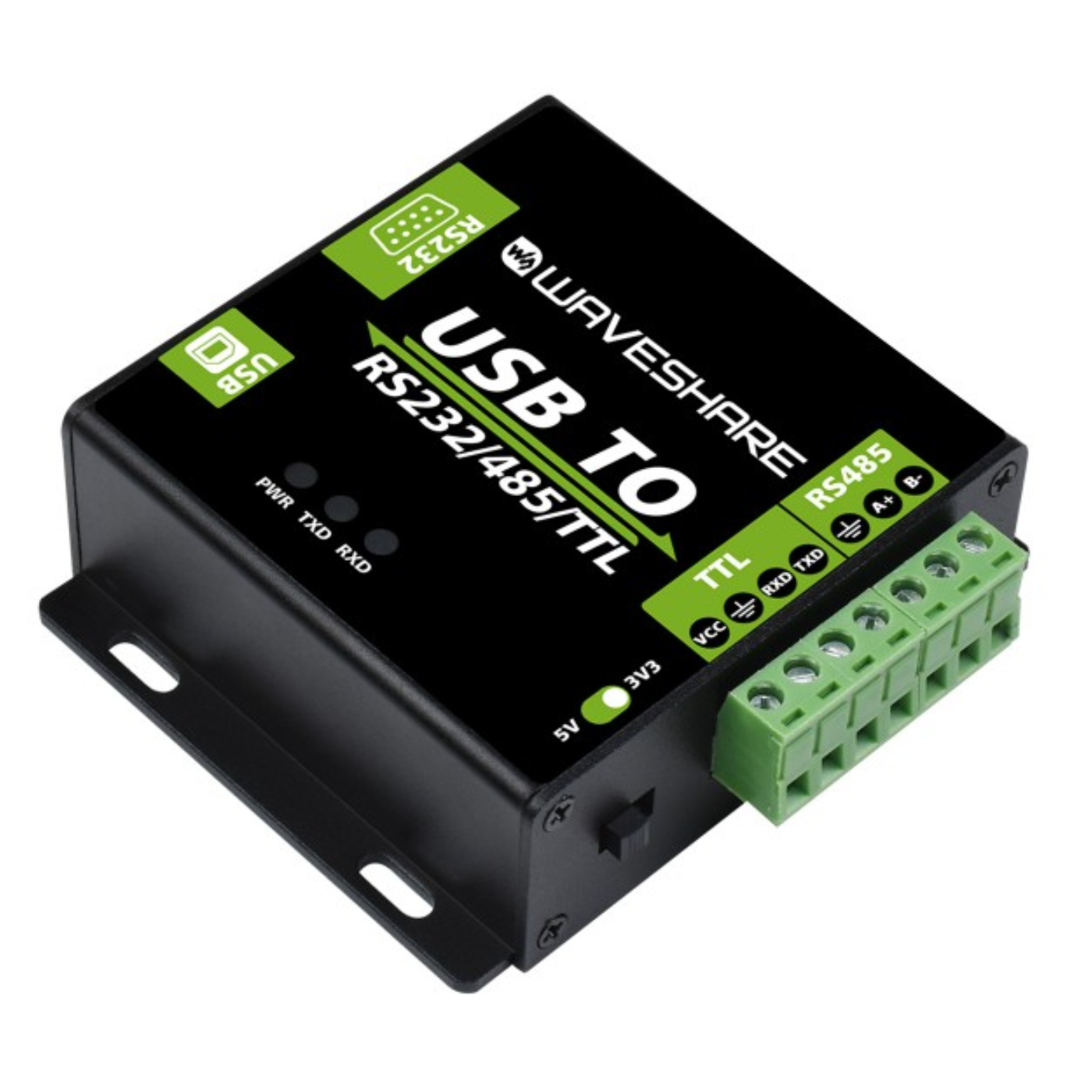

Waveshare Industrial CH343G USB to RS232/RS485/TTL Isolated Interface Converter
Let us know!
We'll try to match the price for you
For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below
Couldn't load pickup availability
The Waveshare Industrial CH343G USB to RS232/RS485/TTL Isolated Interface Converter is designed to provide reliable communication between computers, industrial controllers, and serial devices using USB, RS232, RS485, and TTL/UART interfaces. It uses an original CH343G chip for stable USB communication and supports a data rate of 300bps to 921600bps, while the USB interface operates at 5V through a USB-B connector.

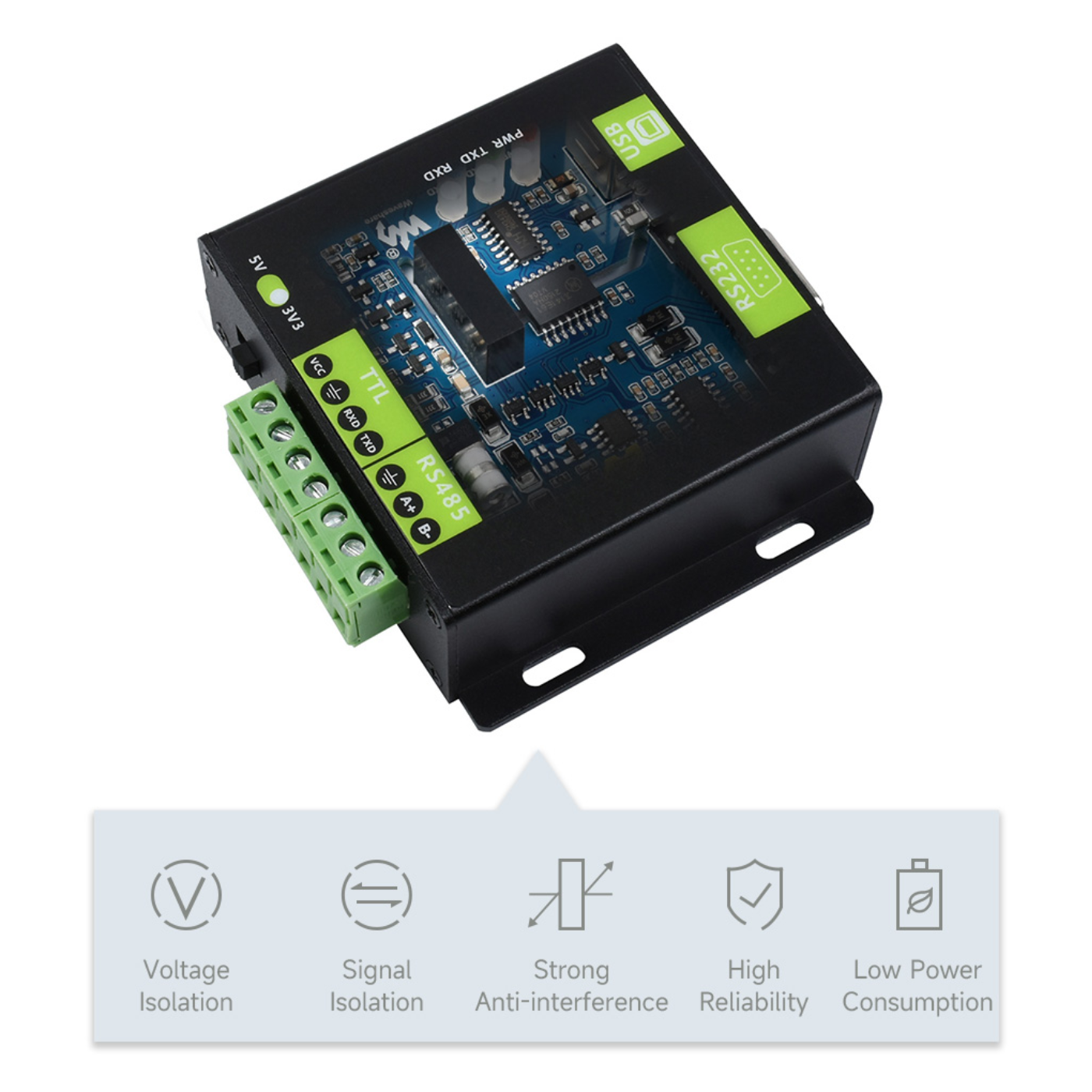

The converter features built-in power supply isolation and digital isolation, helping reduce interference between connected devices. Its RS485 interface uses A+, B-, and GND terminals with hardware-based automatic direction control and supports point-to-multipoint communication for up to 32 nodes.
The TTL interface supports 3.3V and 5V levels, with TXD, RXD, GND, and 5V/3.3V connections. For added protection in demanding environments, the converter incorporates TVS protection, ESD protection, surge suppression, a 200mA resettable fuse, and protection diodes.

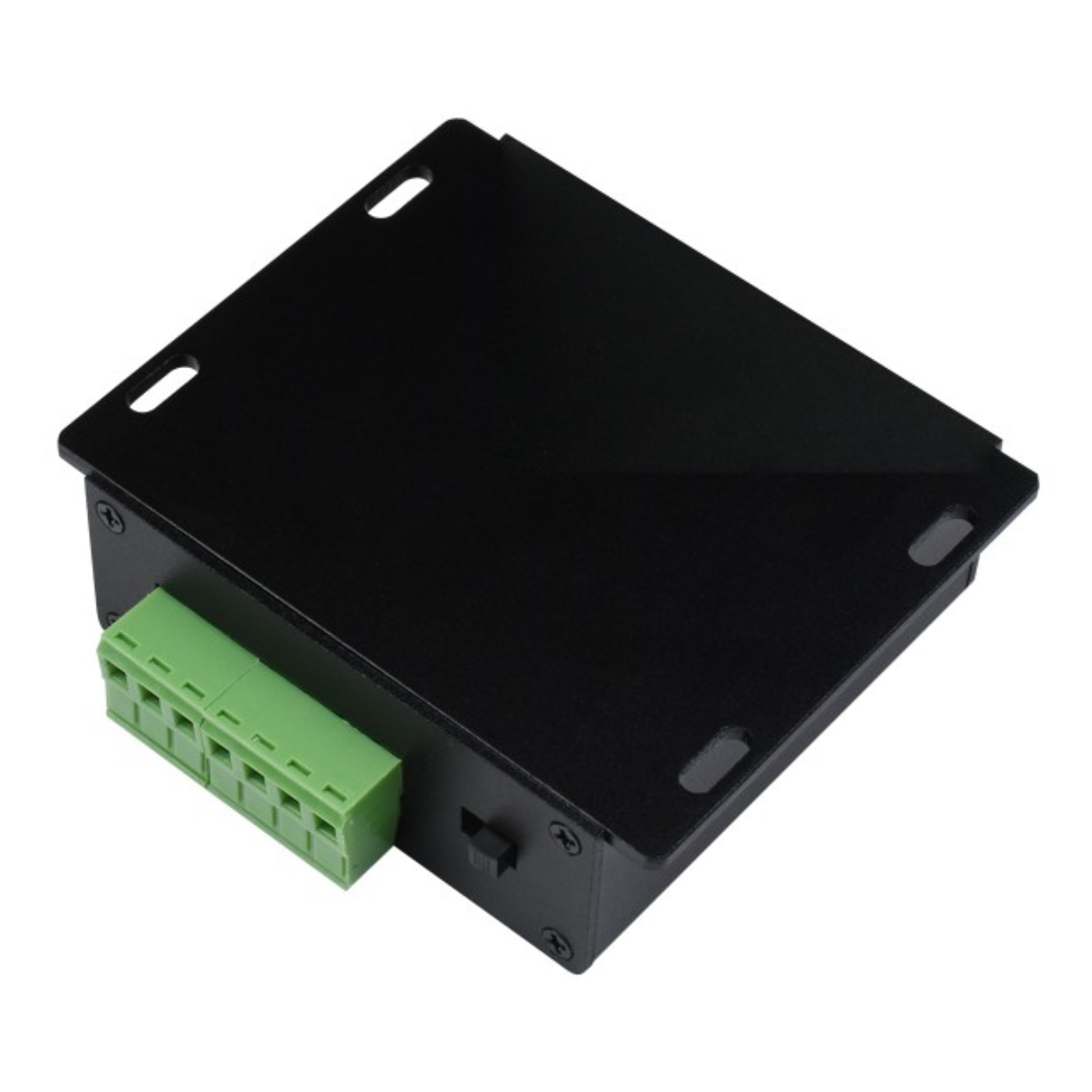

Its aluminium alloy enclosure provides a sturdy solution for industrial control, serial communication, equipment debugging, and other applications requiring an isolated USB to RS232, RS485, or TTL converter.
| Category | Specification | Details |
|---|---|---|
| Product Type | — | Industrial-grade digital isolated converter |
| USB | Operating Voltage | 5V |
| Connector | USB-B | |
| Protection | 200mA self-recovery fuse, isolated output | |

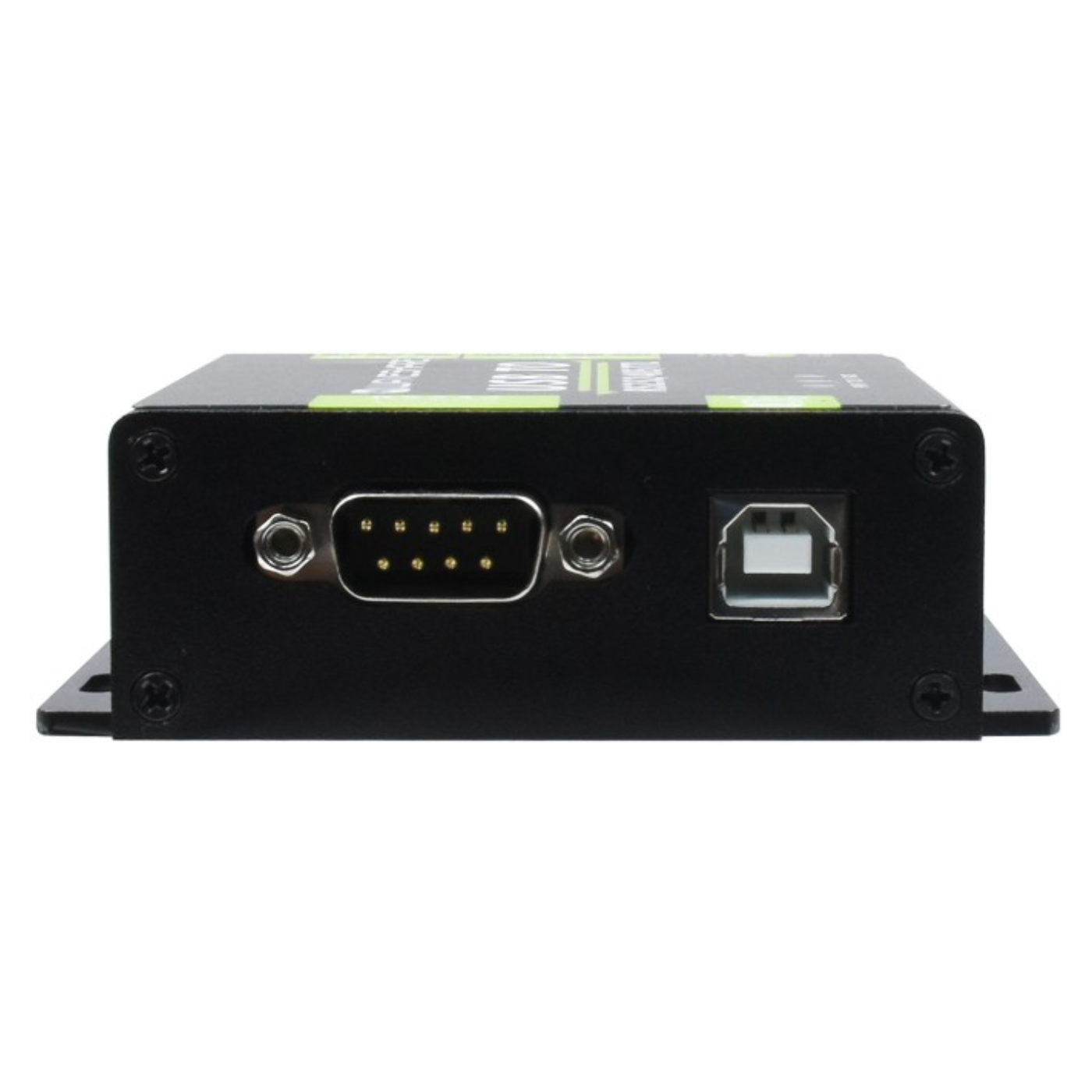

| RS232 | Connector | DB9 Male |
| Protection | TVS diode, surge protection & ESD protection | |
| Transmission Mode | Point-to-point | |
| Baud Rate | CH343G: Up to 600000bps (not full band) | |
| RS485 | Connector | Screw terminal |
| Pins | A+ / B- / GND | |
| Direction Control | Hardware automatically discriminates and controls the direction of data transmission | |
| Protection | 600W lightning and surge suppression, 15KV ESD protection; reserved 120R balancing resistor solder pads | |
| Transmission Mode | Point-to-multipoint, up to 32 nodes; repeaters recommended for 16 nodes or more | |
| Baud Rate | CH343G: Up to 2Mbps (not full band) | |
| TTL (UART) | Operating Voltage | 3.3V / 5V |
| Connector | Screw terminal | |
| Pins | TXD, RXD, GND, 5V | |
| Protection | Clamp protection diode, over-voltage/negative-voltage protection, shock protection | |
| Transmission Mode | Point-to-point | |
| TTL (UART) | Baud Rate | CH343G: Up to 2Mbps (not full band) |
| Indicators | PWR | Red power indicator; lights up when USB connection and voltage are detected |
| TXD | Green TX indicator; lights up when the USB port sends data | |
| RXD | Blue RX indicator; lights up when the device ports send data back | |
| Operating Environment | Temperature | -15°C ~ 70°C |
| Humidity | 5%RH ~ 95%RH | |
| Operating System | Compatibility | Mac, Linux, Android, Windows 11 / 10 / 8.1 / 8 / 7 |
