Waveshare USB to CAN FD Adapter | Dual CAN Analyzer

Name: Waveshare Industrial CAN/CAN FD Bus Data Analyzer – USB to CAN FD Adapter & Communication Interface
Brand: Robocraze
SKU: TIFDC0108
Price: 10069 INR
Availability: InStock
Rating: 4.4 (10 reviews)

Waveshare Industrial CAN/CAN FD Bus Data Analyzer – USB to CAN FD Adapter & Communication Interface

Rs 10,069/-

- 33%

Rs 10,069/-

~~Rs 14,954/-~~

Save Rs 4,885/-

🪙

RC REWARDS Earn 100 RC Coins on this order

Incl. GST (No Hidden Charges)

Please hurry! Only 3 left in stock

Quantity:

Free Delivery Above ₹999

Technical Support & Easy Returns

Same-Day Shipping (Order by 3 PM on Business Days)

Earn RC Coins on Every Prepaid Order

COD Available on Order Value Between ₹500 to ₹3,000

SKU: TIFDC0108

Industrial-grade USB to CAN FD adapter for CAN/CAN FD bus communication and data analysis
Supports dual independent CAN FD channels with full electrical isolation up to 3000V DC
Supports CAN2.0A, CAN2.0B, ISO 11898-1, and CAN FD Protocol Specification V1.0
Configurable CAN/CAN FD baud rate from 100Kbps to 5Mbps
Supports data transmission speeds of up to 20,000 frames/s receiving and 5,000 frames/s sending per channel
USB-powered at 5V, requiring no external power supply
Built-in 120Ω terminal resistors on each CAN/CAN FD channel
Supports standard and extended CAN frames for flexible bus monitoring and debugging
Compact 104 × 70 × 25 mm aluminum-alloy enclosure designed for industrial applications

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here

First Name *

Last Name *

Email *

Phone *

+91

Company / Client

GST *

Materials List

File(s) size limit is 20MB. Max 3 files.

Choose Categories * (select one or more)

Select Categories

STEM Kits Development Boards Electronic Components Drone 3D Printers/Pens Sensors Batteries & Power Supply Tools & Instruments

Enter the Captcha *

Reload Captcha

Waveshare Industrial CAN/CAN FD Bus Data Analyzer – USB to CAN FD Adapter & Communication Interface

~~Rs 14,954/-~~ Rs 10,069/-

Quantity:

Waveshare Industrial CAN/CAN FD Bus Data Analyzer – USB to CAN FD Adapter & Communication Interface

~~Rs 14,954/-~~ Rs 10,069/-

Description
Specifications
Additional Resources
Warranty
Shipping & Return

Description

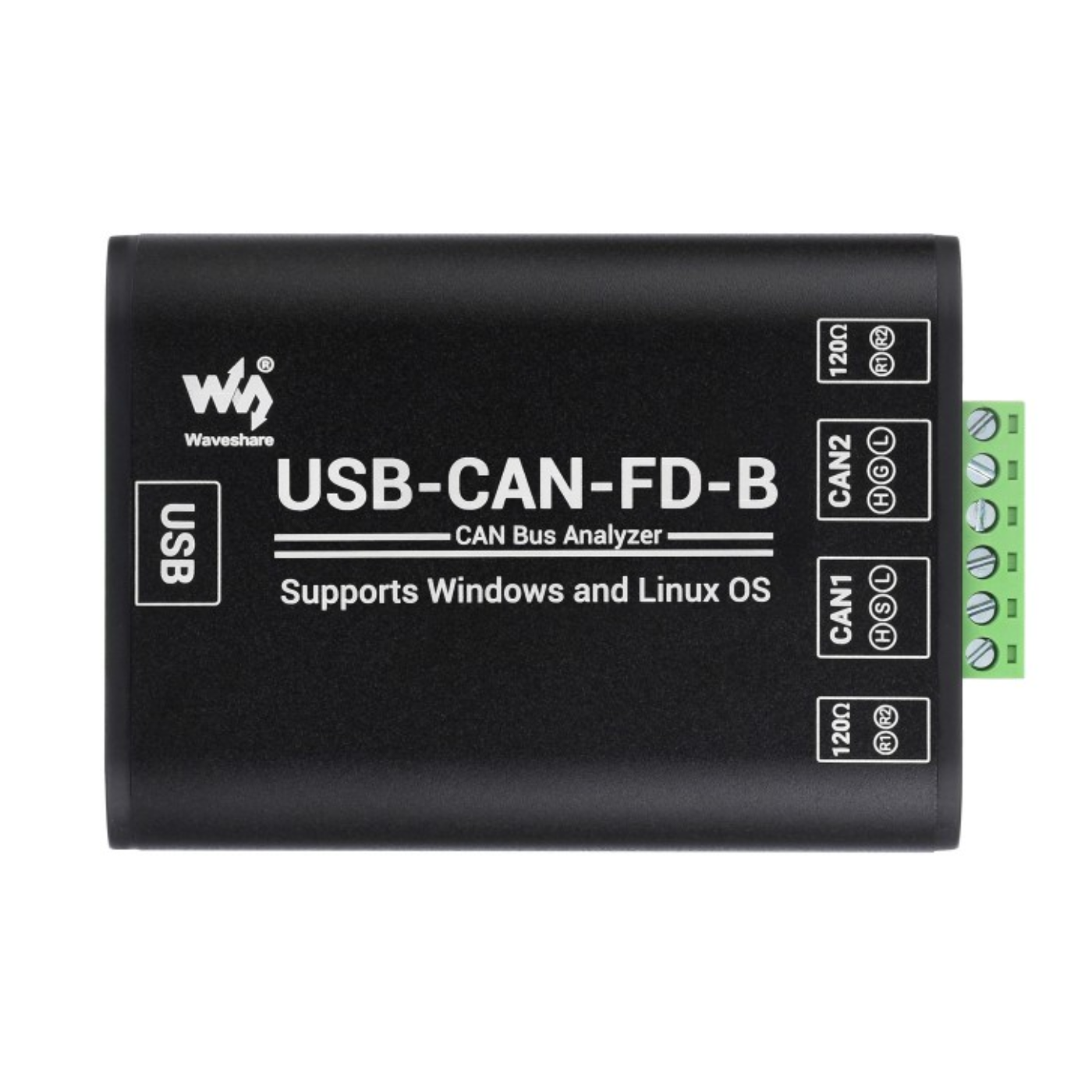

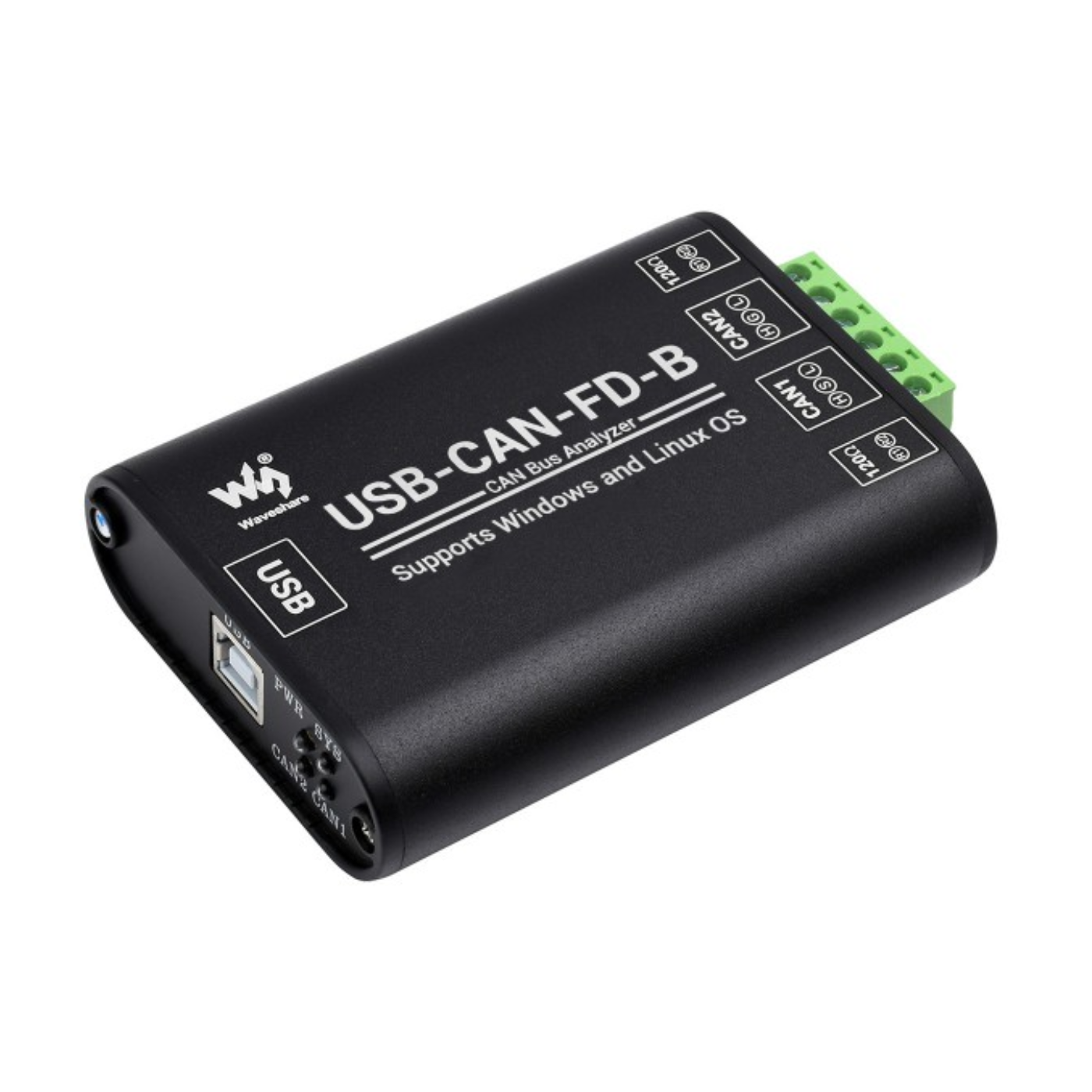

Waveshare Industrial CAN/CAN FD Bus Data Analyzer – USB to CAN FD Adapter & Communication Interface

The Waveshare Industrial CAN/CAN FD Bus Data Analyzer is a high-performance USB to CAN FD adapter, CAN/CAN FD bus communication interface card, and protocol data analyzer designed for reliable CAN network communication, monitoring, testing, and debugging. It features two independent and fully isolated CAN FD channels (CAN1 and CAN2) with an isolation voltage of 3000V DC, helping improve communication stability and protection in industrial environments.

The adapter supports CAN2.0A, CAN2.0B, ISO 11898-1, and CAN FD Protocol Specification V1.0, with a configurable baud rate from 100Kbps to 5Mbps. Each channel can achieve up to 20,000 frames/s receiving speed and 5,000 frames/s sending speed, while the 1500-frame receiving buffer and 64-frame sending buffer help handle continuous CAN bus traffic. The device operates directly from a 5V USB connection, uses a USB-B interface, and includes switchable 120Ω termination resistors for each CAN/CAN FD channel.

With support for Windows XP/7/8/10/11 and, for the USB-CAN-FD-B version, Linux systems including Raspberry Pi OS and Ubuntu, it is suitable for CAN bus testing, vehicle electronics development, industrial automation, power communication, intelligent control, and secondary development projects.

Features:

Industrial-Grade USB to CAN FD Adapter for reliable CAN/CAN FD communication and data analysis.
Dual Independent CAN FD Interfaces with electrical isolation and multiple protection circuits.
CAN/CAN FD Data Analysis & Monitoring for real-time bus data collection, transmission, and debugging.
Plug-and-Play USB Connectivity allows easy connection to a PC or industrial control host.
Complete Software Support with drivers, CAN FD Tools, development examples, and tutorials.
Compact & Easy to Use design suitable for learning, testing, debugging, and development.
Built for Industrial Applications including power communication, intelligent control, and CAN/CAN FD system integration.
Secondary Development Ready for customized applications and seamless integration into CAN/CAN FD projects.

Specifications

Package Includes:

1 x USB-CAN-FD-B
1 x USB type A plug to type B plug cable
1 x 4pin cable
1 x Screwdriver

Specifications:

Specification	Details

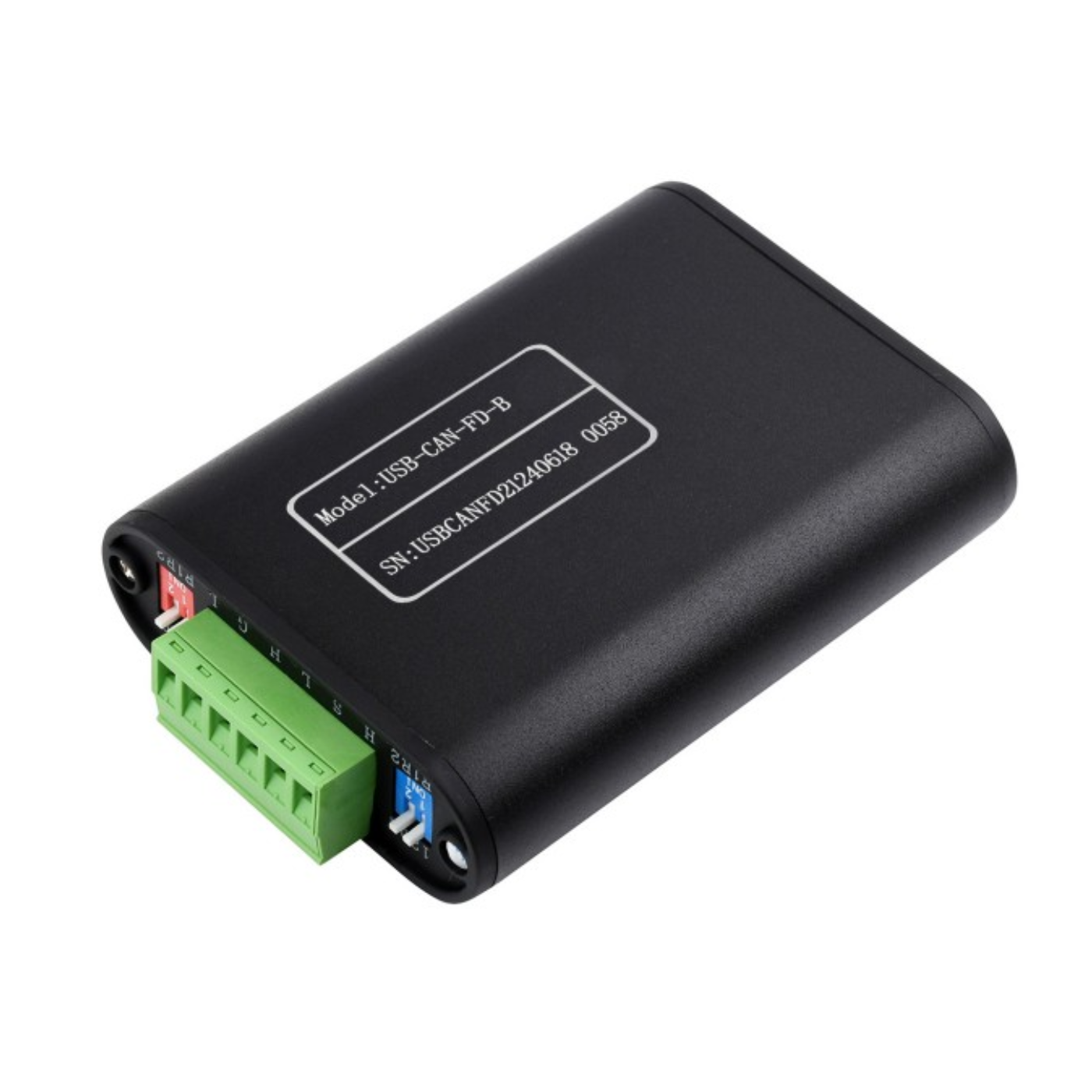

Model	USB-CAN-FD-B
Type	Industrial-grade USB to CAN FD interface converter, CAN/CAN FD bus communication interface card, and CAN/CAN FD protocol data analyzer
Operating Voltage	5V (directly powered by USB port without external power supply)
USB Connector	USB-B
CAN/CAN FD Channel	Dual-channel: CAN1 and CAN2 (independent and fully isolated)
Isolation Voltage	3000V DC

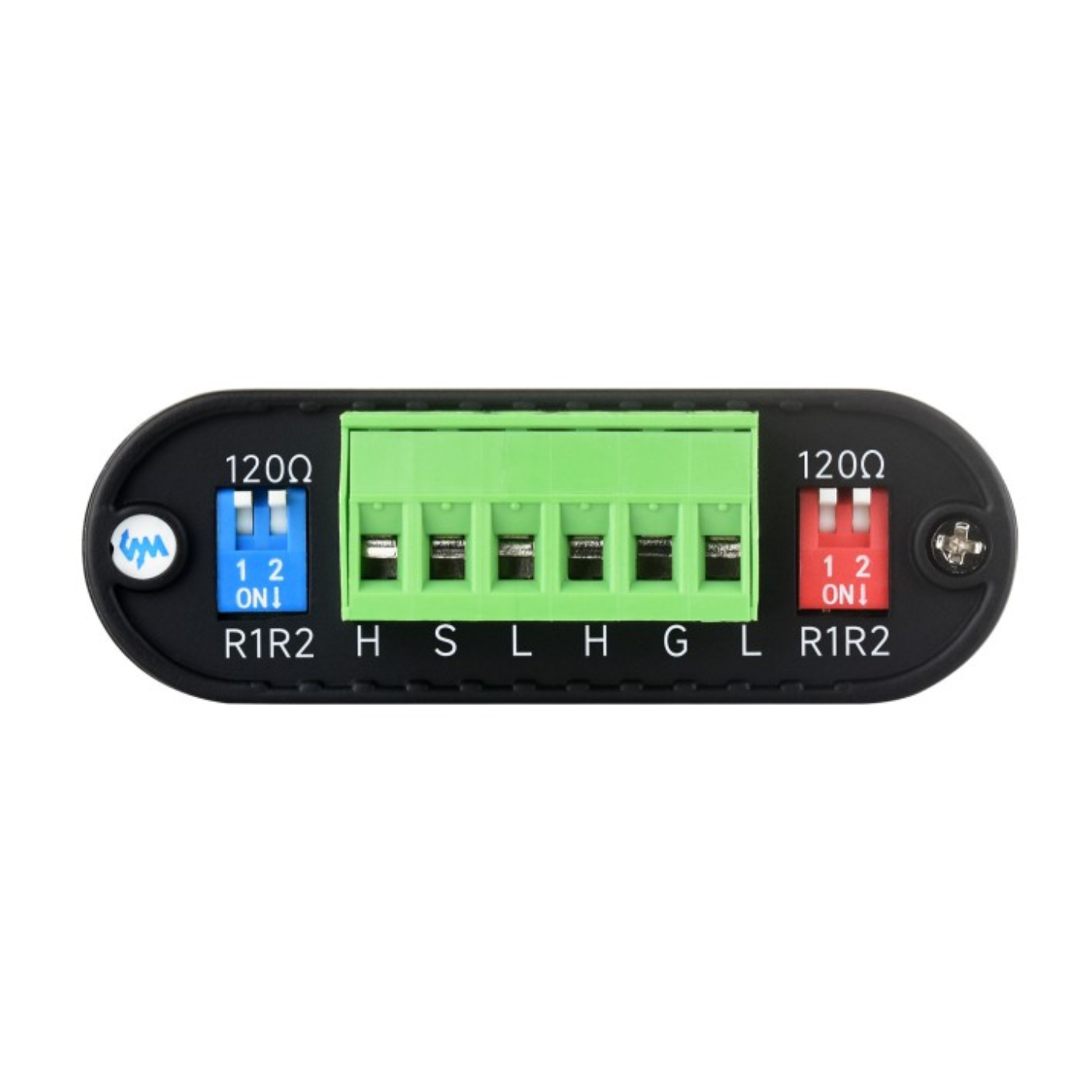

CAN Connector	CAN bus screw terminal (OPEN6, 5.08mm pitch)

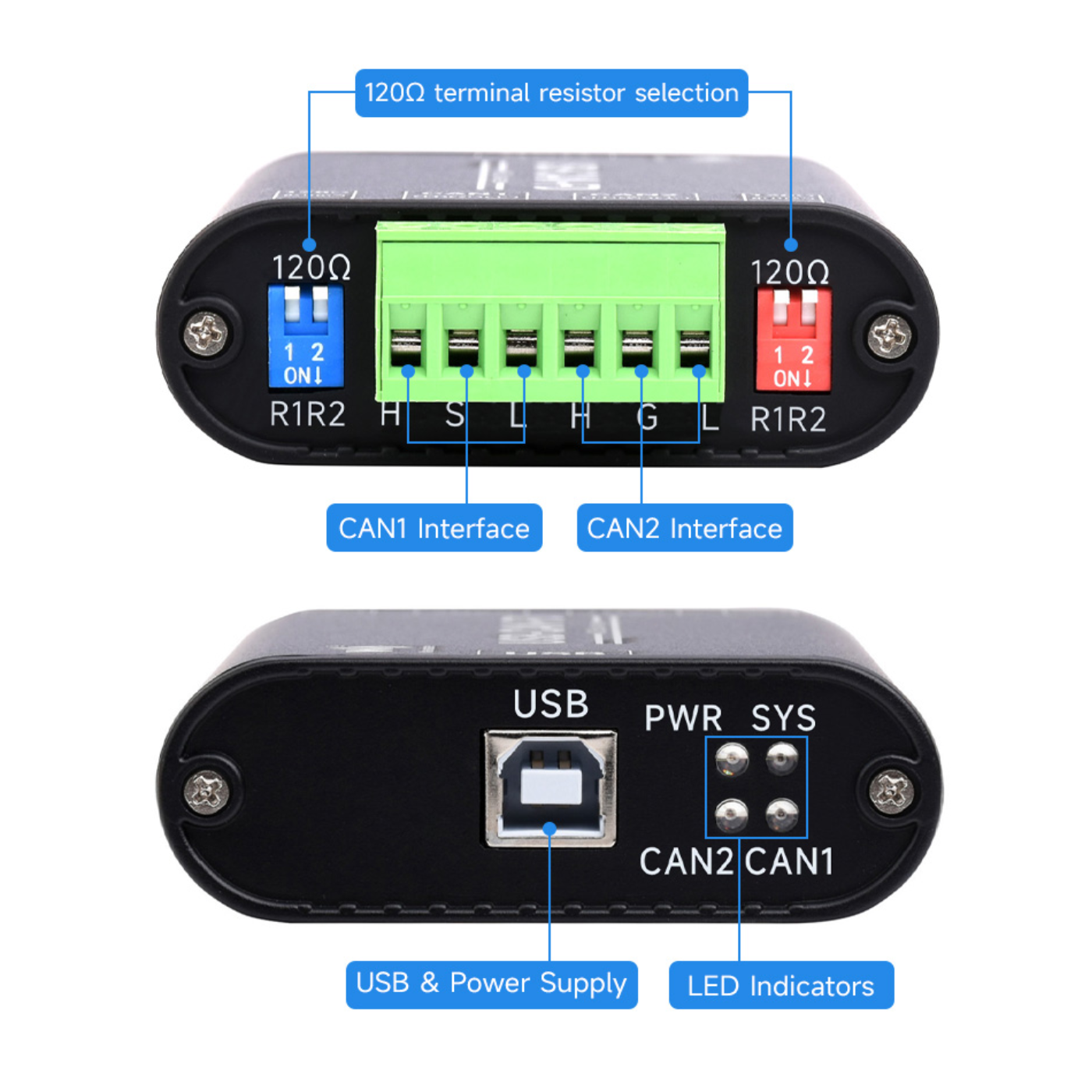

Terminal Resistor	2 × built-in 120Ω terminal resistors per CAN/CAN FD channel, enabled by switch
Baud Rate	100Kbps–5Mbps (configurable via software)
Protocol Support	CAN2.0A, CAN2.0B, ISO 11898-1, CAN FD Protocol V1.0
Receiving Speed	Up to 20,000 frames/s per CAN/CAN FD channel
Sending Speed	Up to 5,000 frames/s per CAN/CAN FD channel
Transmit Buffer	1500-frame receiving buffer and 64-frame sending buffer per channel
Retransmission	Automatic retransmission when transmission fails

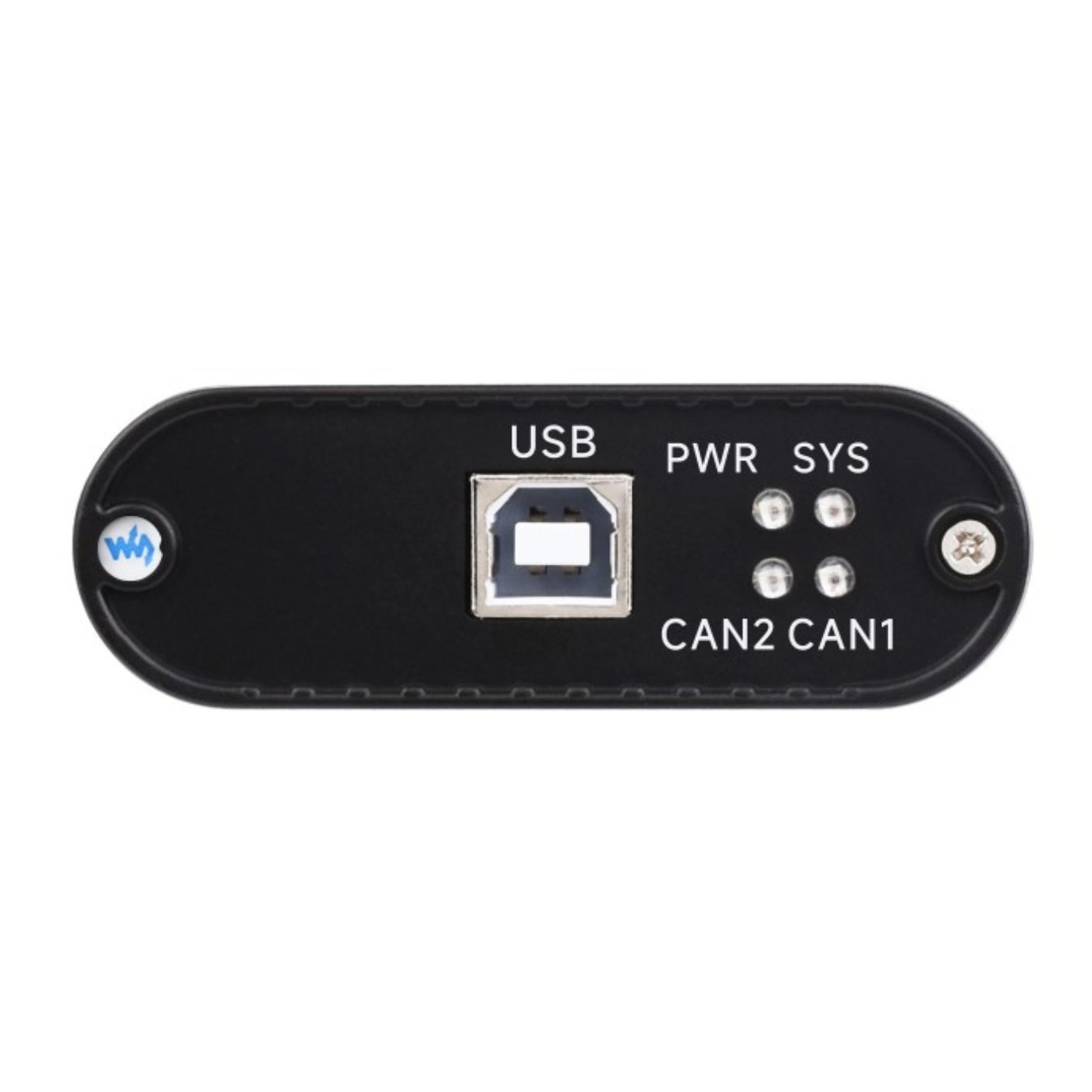

Indicators	PWR, SYS, CAN1, CAN2 status indicators
Windows Support	Windows XP/7/8/10/11 (32/64-bit)

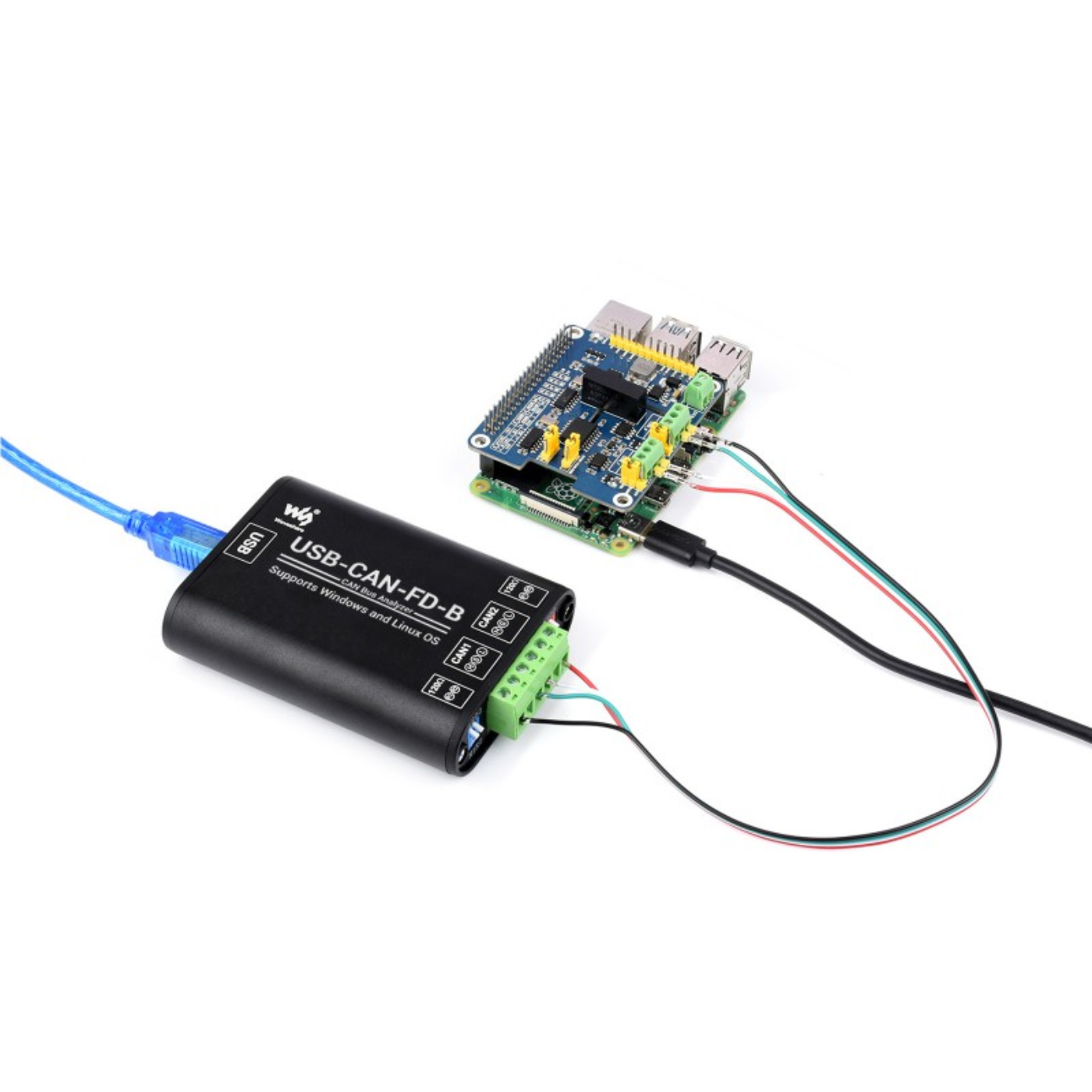

Linux Support	Raspberry Pi OS, Ubuntu for Jetson Nano, Linux on VMware virtual machines, etc.
Operating Temperature	-40°C to 85°C
Case Material	Aluminum alloy case with 3D flame-retardant insulating sheets on both sides
Dimensions	104 × 70 × 25 mm
