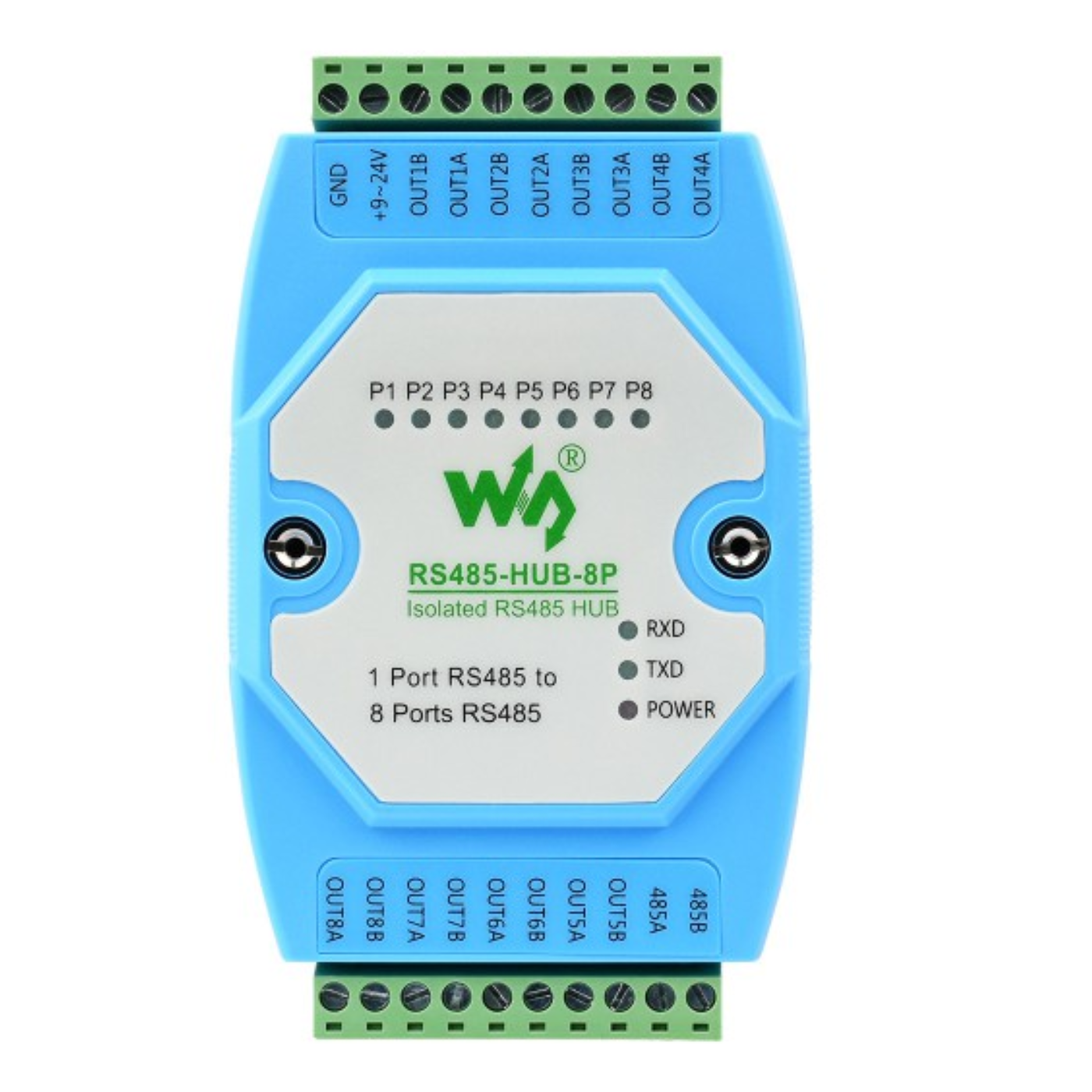

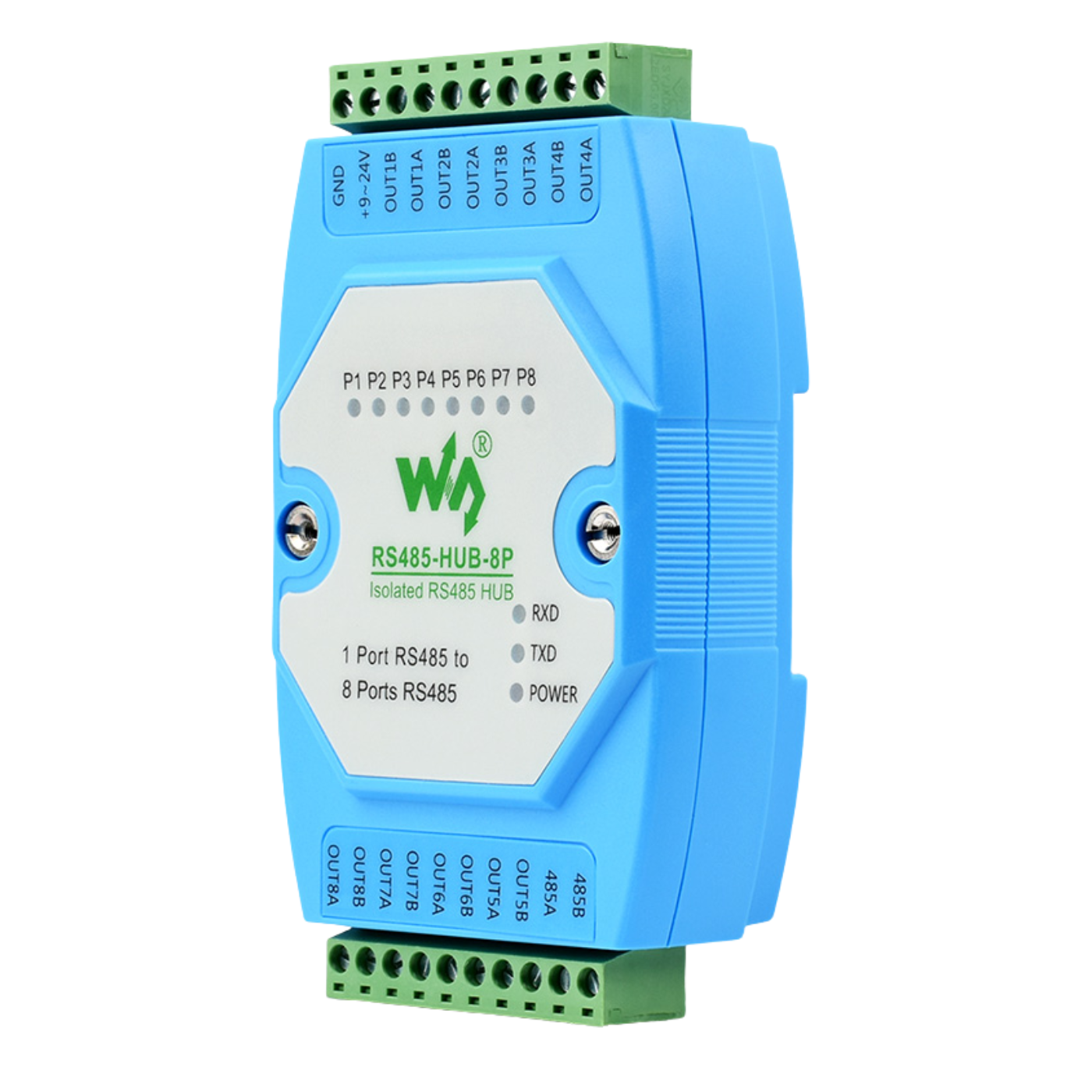

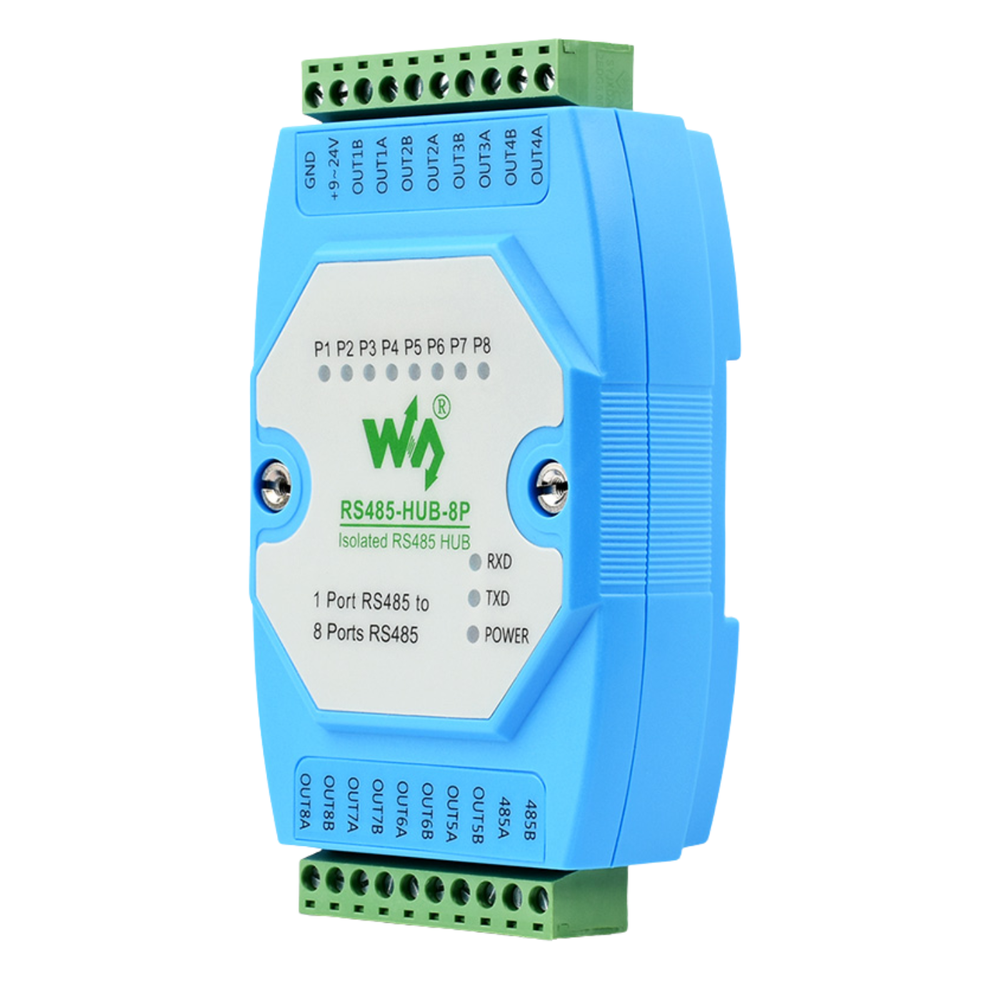

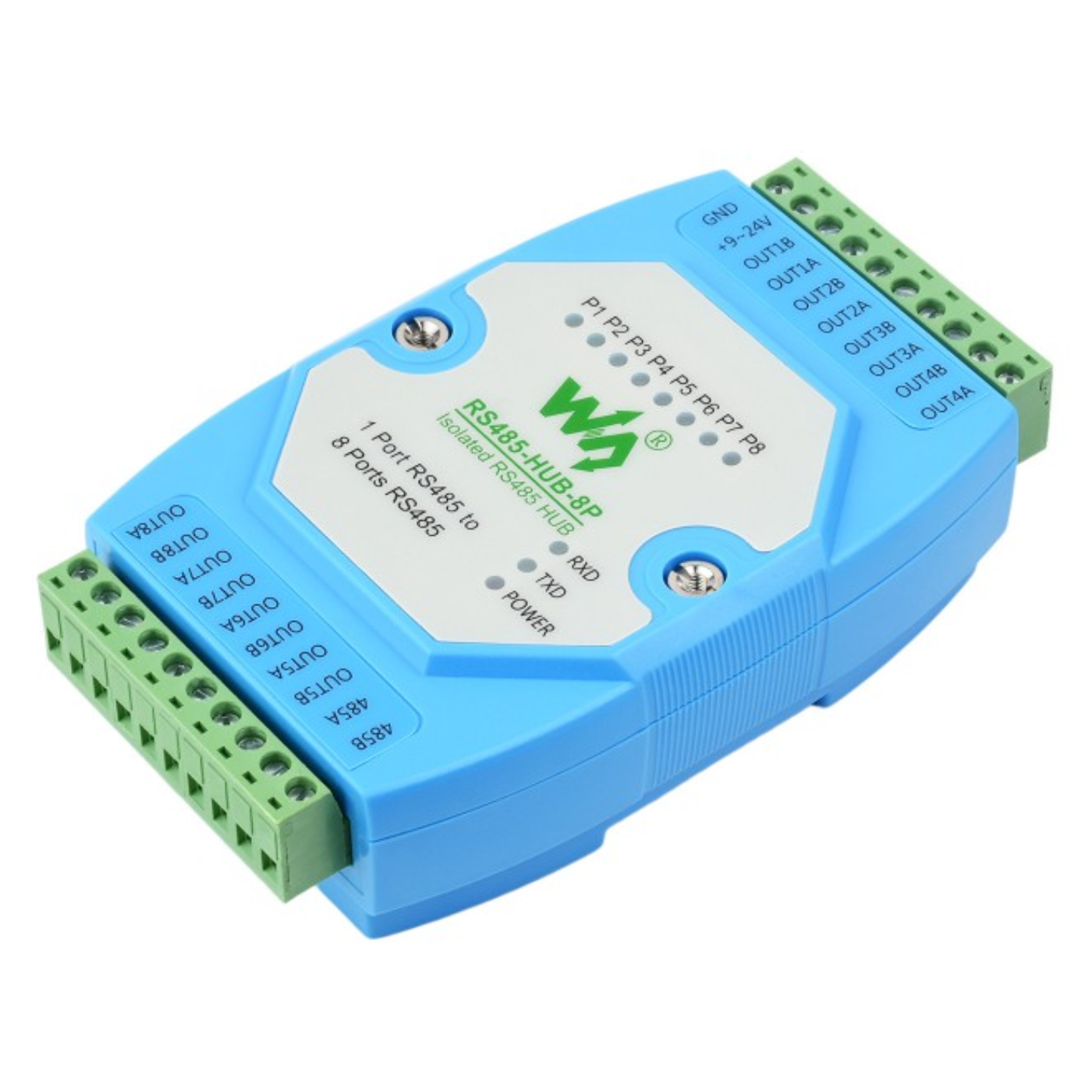

Waveshare Industrial 8-Channel Isolated RS485 Hub with Rail-Mount Support
Waveshare Industrial 8-Channel Isolated RS485 Hub with Rail-Mount Support
Waveshare Industrial 8-Channel Isolated RS485 Hub with Rail-Mount Support
The Waveshare Industrial 8-Channel Isolated RS485 Hub (RS485-HUB-8P) is designed to expand and organize RS485 networks where multiple devices need reliable serial communication. It provides 1 RS485 master port and 8 isolated RS485 slave ports, allowing a single RS485 host device to communicate with multiple RS485 sensors, meters, controllers, and other industrial devices.
The hub supports 300–460800bps self-adaptive baud rates, while each RS485 port can support up to 32 nodes. For long-distance communication, it can reach up to 1200m at 9600bps, with the achievable distance decreasing as the baud rate increases. The device uses RS485 two-wire (A, B), half-duplex transparent transmission and accepts DC 9–24V power through screw terminals.
Its built-in photoelectric isolation helps separate the master and slave sides, reducing the effects of ground potential differences and providing protection against electrostatic interference, lightning, and surge conditions. With a 35mm standard rail-mount design, the Waveshare RS485 hub is well suited for industrial control panels, data acquisition systems, IoT gateways, safety and security IoT applications, and intelligent instrument monitoring.
Features:
- Expands 1 RS485 master port into 8 RS485 slave ports for connecting multiple devices.
- Provides electrical isolation between RS485 channels for stable and reliable communication.
- Supports relay, extension, and isolation of RS485 networks.
- Features a convenient screw terminal for secure power connections.

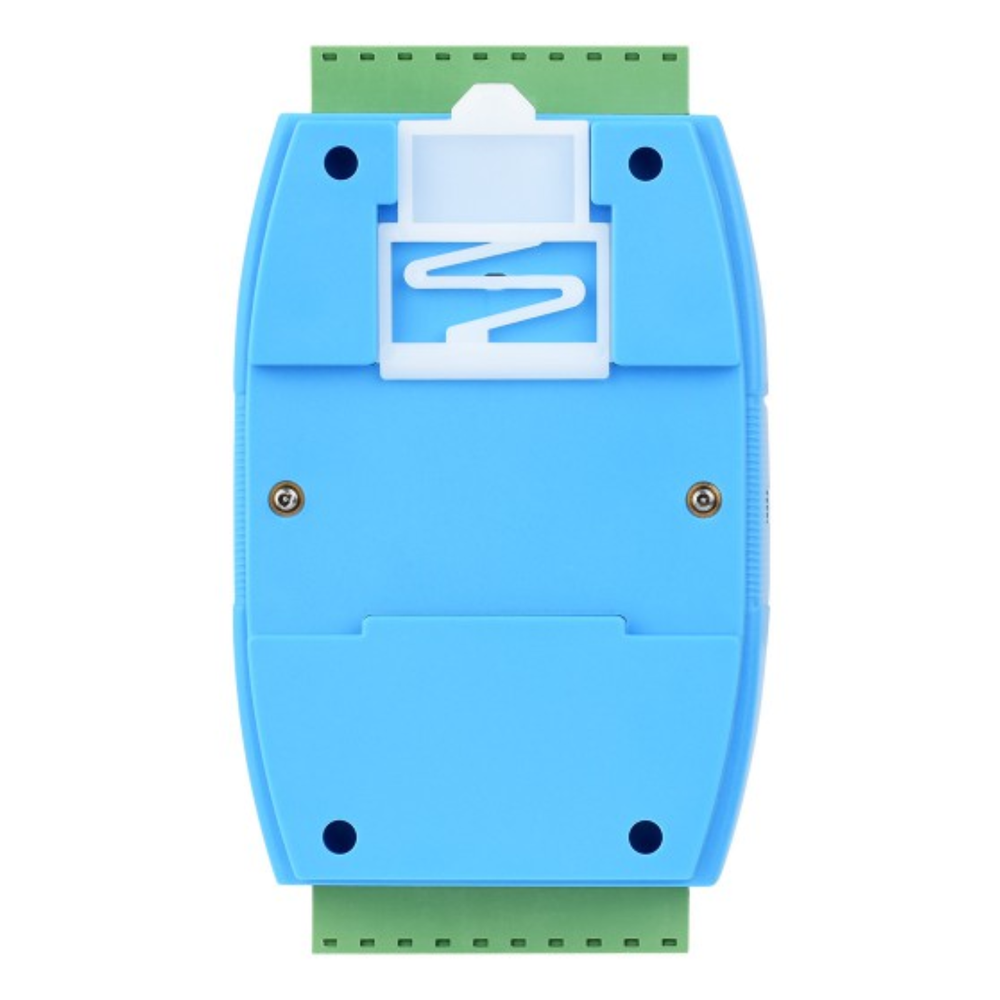

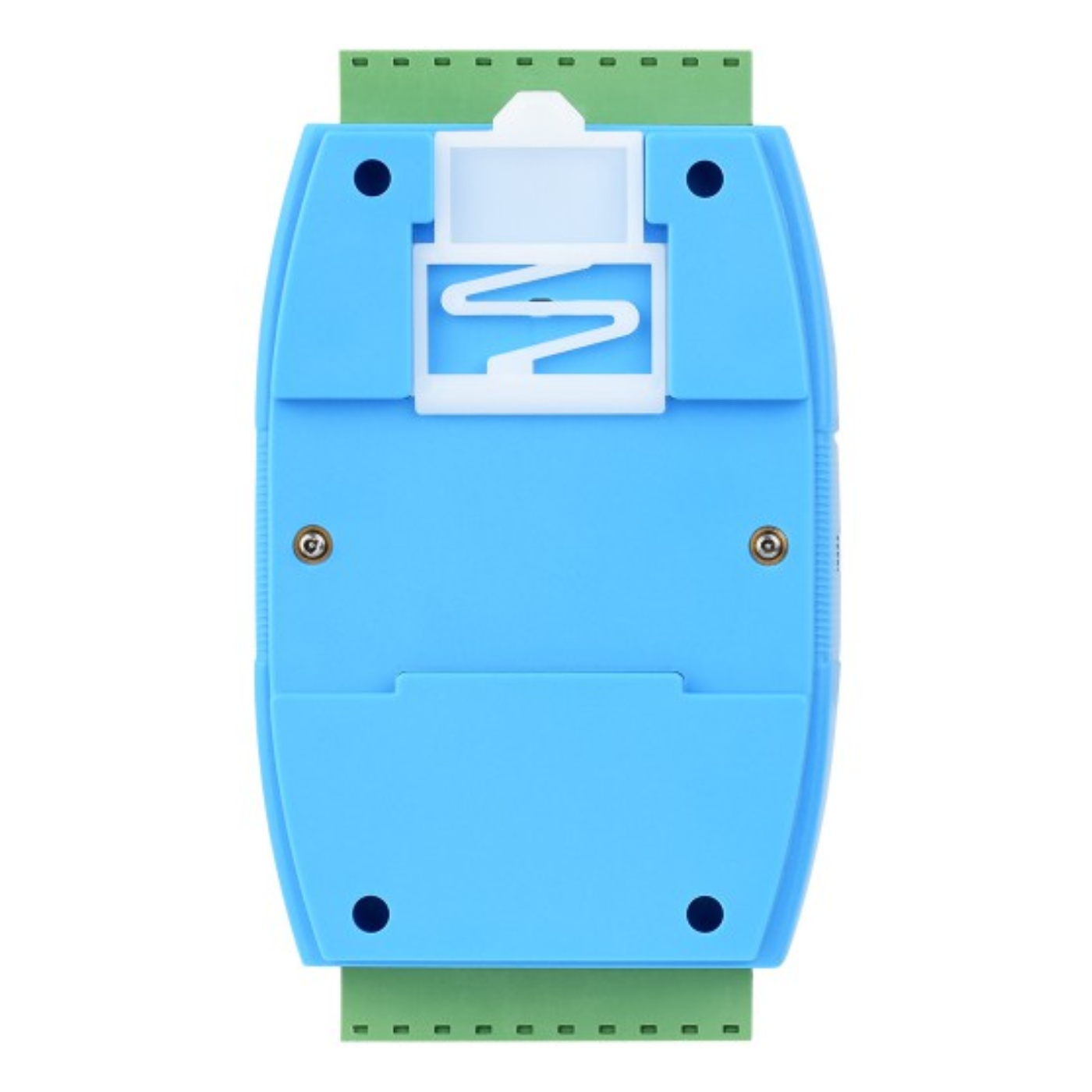

- Compact rail-mount enclosure makes installation quick and convenient in industrial control panels.
- Provides an efficient and economical way to expand RS485 communication networks.
- Suitable for data acquisition, IoT gateways, safety & security IoT, and intelligent instrument monitoring.
Package Includes:
- 1 x Waveshare Industrial 8-Channel Isolated RS485 Hub with Rail-Mount Support
Specifications:
| Specification | Details |
|---|---|
| Interface Standard | Compliant with RS485 standard |
| Physical Interface | RS485 screw terminals |
| Baud Rate | 300–460800bps (self-adaptive) |
| Supported Nodes | Each RS485 port supports up to 32 nodes |
| Communication Distance | Up to 1200m at 9600bps; higher baud rates result in shorter distances |
| Operating Mode | RS485 two-wire (A, B), half-duplex transparent transmission |
| Power Supply | DC 9–24V |
| Operating Temperature | -45 to +85°C |
| Environment Humidity | <95% RH |
| Transmission Medium | Normal parallel cables / twisted-pair cables |
