Waveshare Industrial 8-Ch Analog Acquisition Module
Waveshare Industrial 8-Ch Analog Acquisition Module with 12-Bit High-Precision Voltage & Current
- Rs 2,289/-
- Rs 2,289/-
-
Rs 3,662/-
- 37%
Save Rs 1,373/-
RC REWARDS
Earn
22
RC Coins
on this order
Incl. GST (No Hidden Charges)
Found a better price?
Let us know!
We'll try to match the price for you
Please hurry! Only 0 left in stock
We’ll notify you once the product is back in stock.
SKU:
TIFPS0687
Couldn't load pickup availability

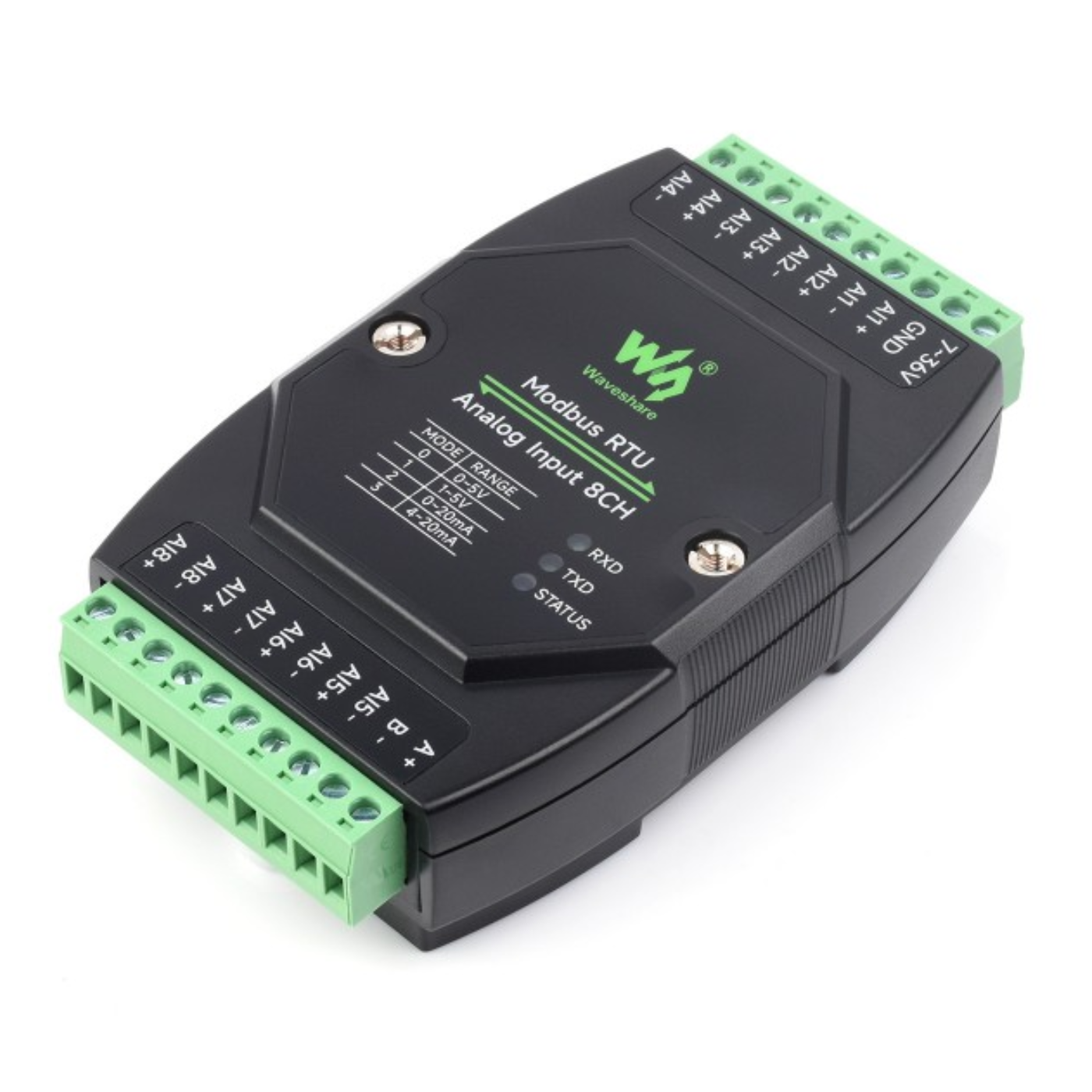

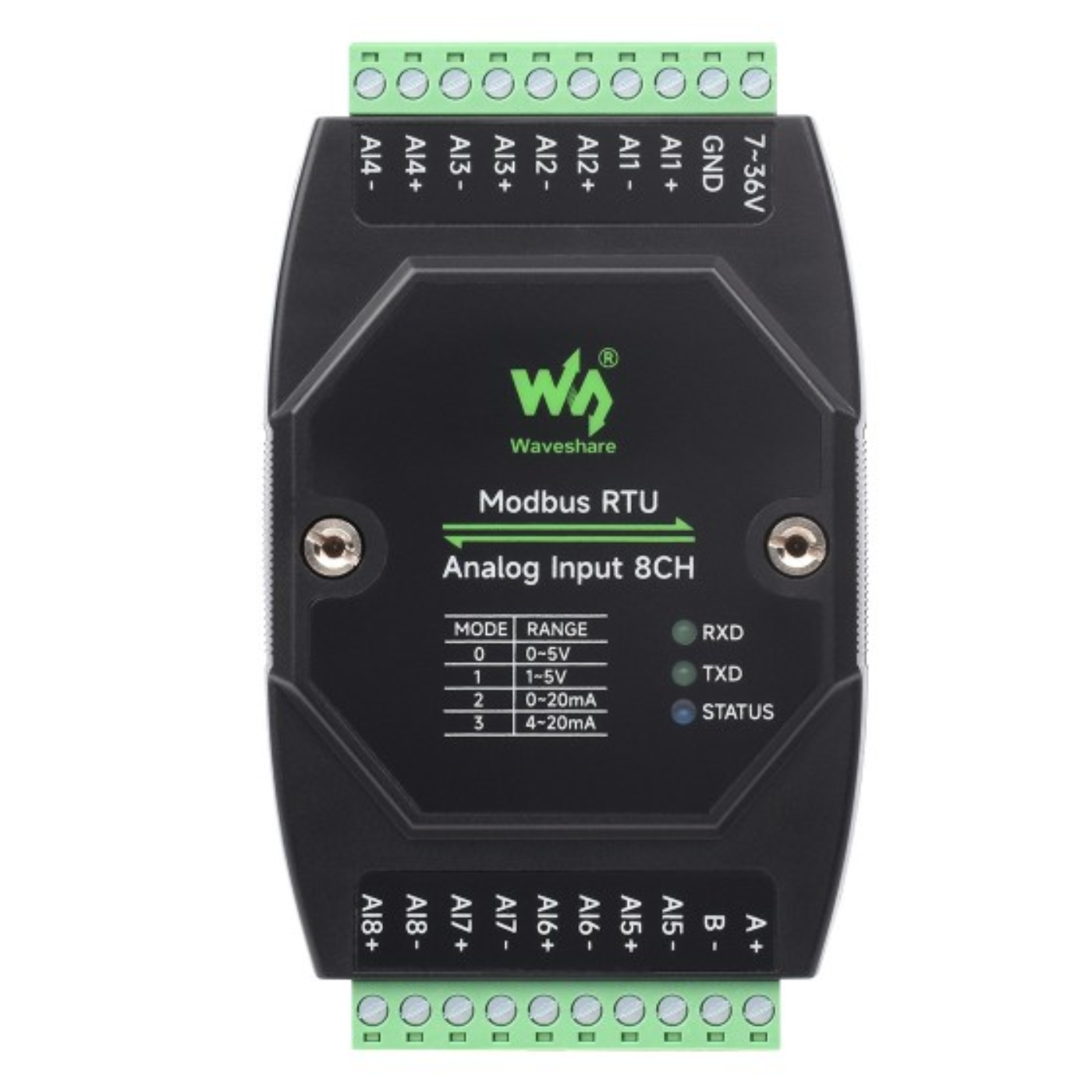

Waveshare Industrial 8-Ch Analog Acquisition Module with 12-Bit High-Precision Voltage & Current
Waveshare Industrial 8-Ch Analog Acquisition Module with 12-Bit High-Precision Voltage & Current
Waveshare Industrial 8-Ch Analog Acquisition Module with 12-Bit High-Precision Voltage & Current
The Waveshare 8-Ch Analog Acquisition Module is an industrial-grade 8-channel analog input module designed for accurate monitoring and data collection from voltage and current sensors. It provides 12-bit resolution, a sampling accuracy of ≤3%, and an update rate of 25Hz, allowing all 8 channels to be acquired simultaneously. The module supports configurable input ranges of 0–5V, 1–5V, 0–20mA, and 4–20mA, with both single-ended and differential input modes.
Communication is handled through RS485 using the standard Modbus RTU protocol, with baud rates from 4800 to 256000 bps and a default setting of 9600, N, 8, 1. It operates from a wide DC 7–36V power supply and supports device addresses from 1–255, making it suitable for multi-device RS485 networks. Built-in power isolation, magnetic signal isolation, TVS protection, a resettable fuse, and protection circuitry improve reliability in industrial environments.
Features:
- Cascade several devices on the RS485 bus with configurable device addresses (1-255).
- Onboard voltage regulator supports 7-36V power supply.
- Onboard unibody power supply separation delivers stable isolated voltage and does not require an additional power source for the isolated terminal.
- Onboard unibody magnetic isolation provides signal separation, great dependability, and powerful anti-interference.

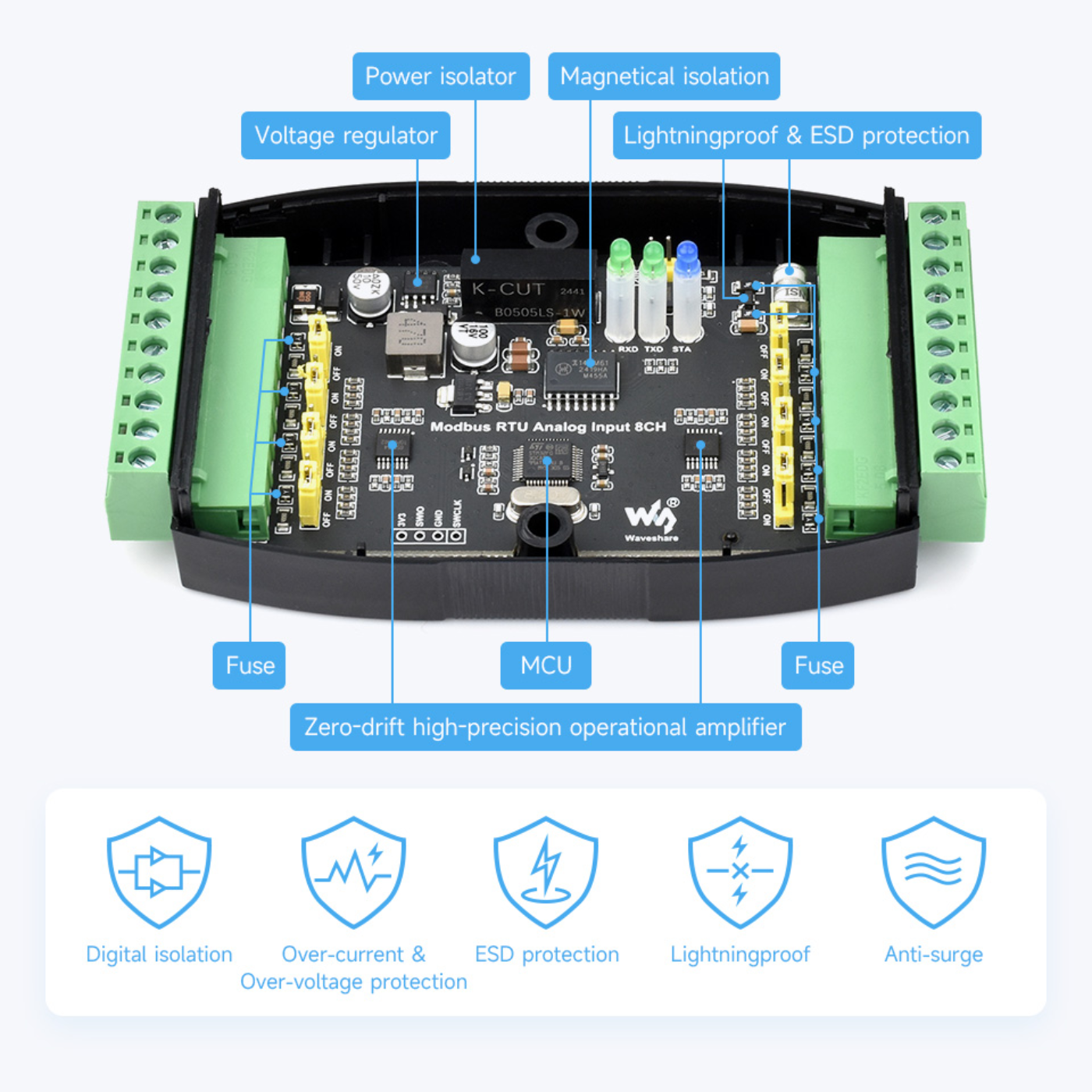

- Onboard resettable fuse and TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, providing over-current/over-voltage proof, lightningproof, and anti-electrostatic
- Supports 12-bit high-precision acquisition with numerous range input modes, single-ended/differential input, and simultaneous acquisition of voltage and current.
- Uses high-precision resistors and a zero-drift high-precision operational amplifier for more precise data gathering.
- Onboard watchdog and built-in oversampling digital filtering technology ensure reliable output without crashing.

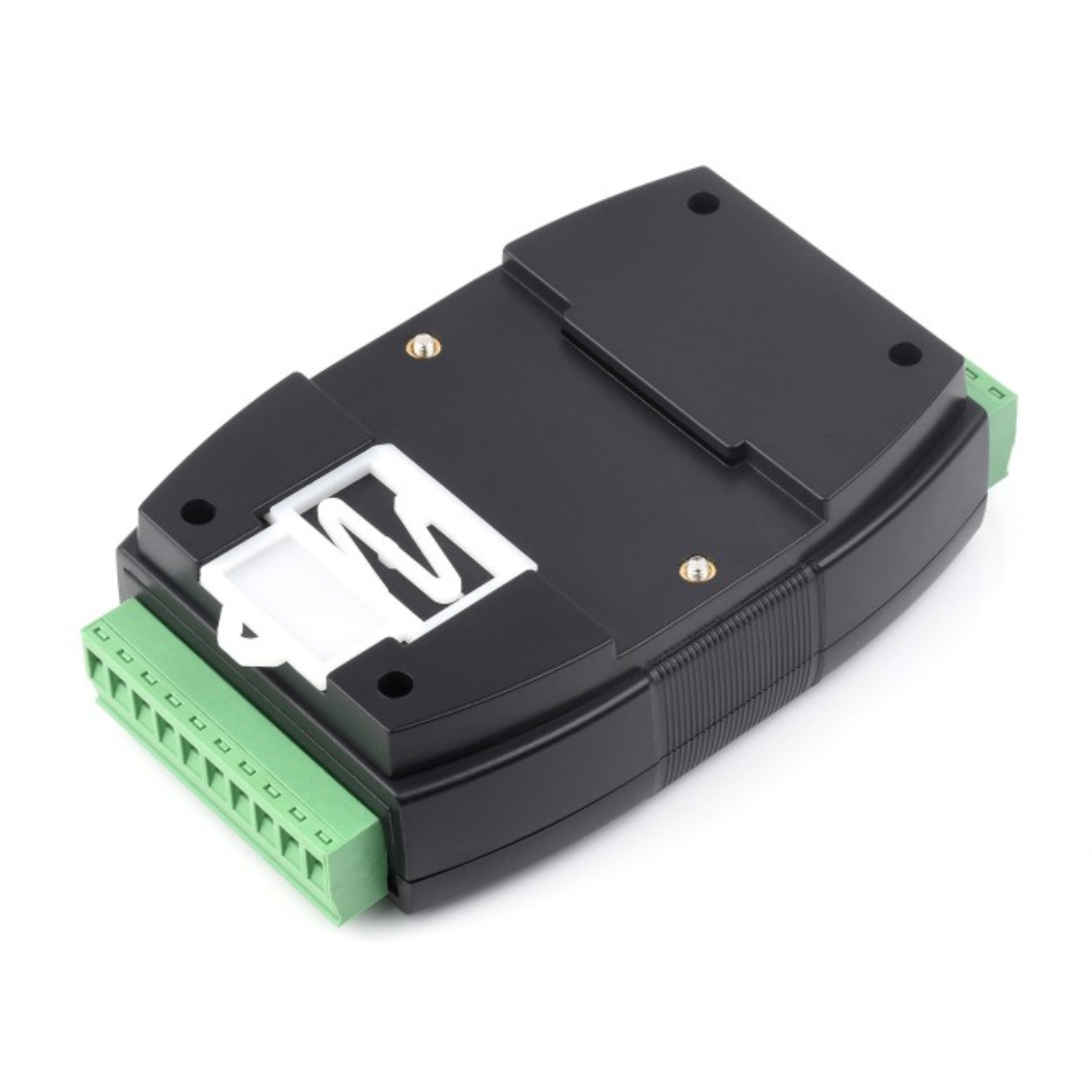

- Rail-mount case design, supports stacking combinations, is simple to install and safer to use.
- 3x LEDs to indicate the MCU and signal transceiving status.
Package Includes:
- 1 x Modbus RTU Analog Input 8CH
- 1 x Power supply terminal adapter

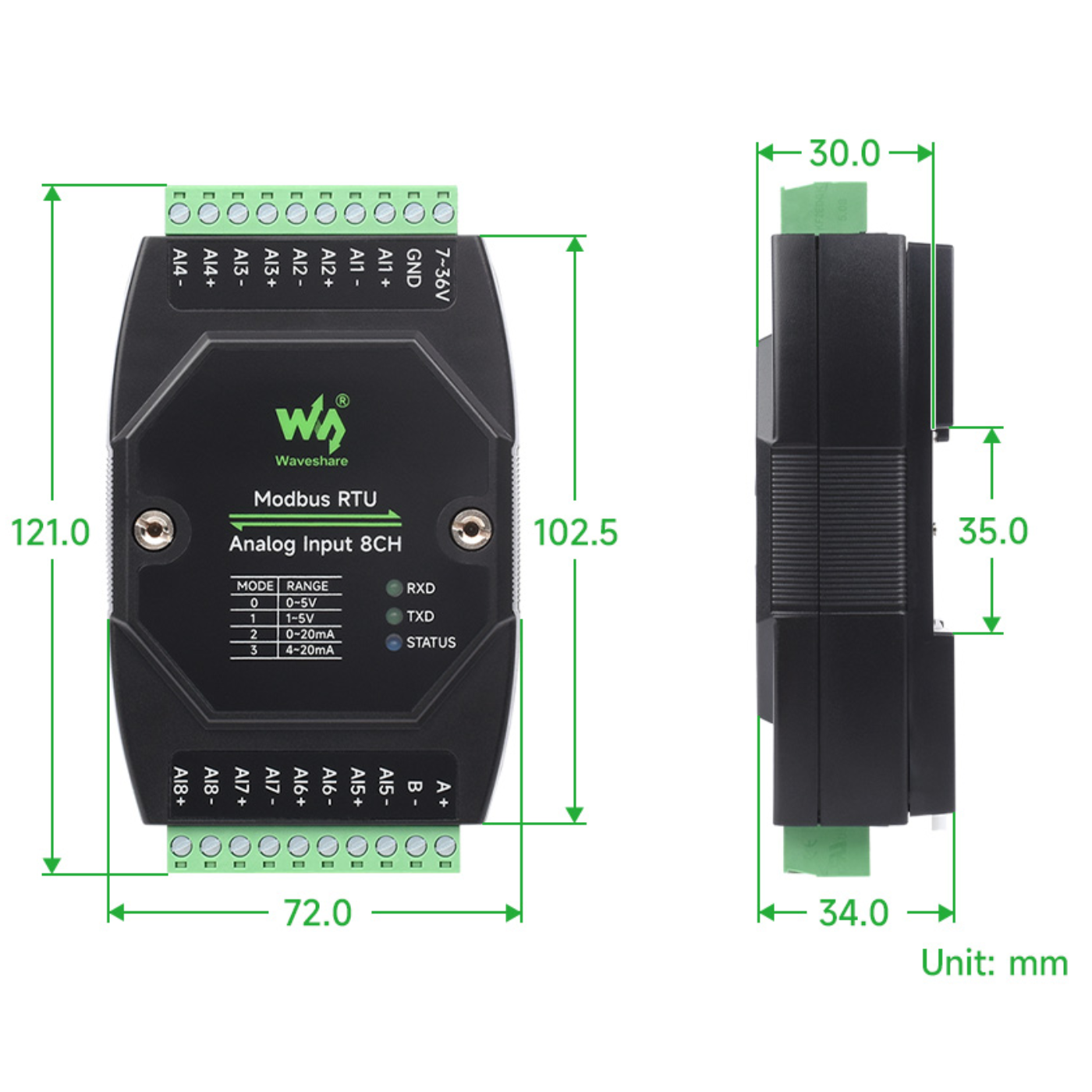

Specifications:
| Specification | Details |
|---|---|
| Model | Modbus RTU Analog Input 8CH |
| Communication Interface | RS485 |
| Baud Rate | 4800, 9600, 19200, 38400, 57600, 115200, 128000, 256000 bps |
| Default Communication Format | 9600, N, 8, 1 |
| Modbus Protocol | Standard Modbus RTU Protocol |
| Power Supply | DC 7–36V |
| Sampling Accuracy | 12-bit resolution, accuracy ≤3% |
| Data Update Rate | 25Hz |
| Input Mode | Single-ended/differential input; supports simultaneous voltage and current acquisition |
| Default Mode | 8-channel current mode, 0–20mA |
| Input Range | 0–5V / 1–5V / 0–20mA / 4–20mA |
| Current Sampling Resistor | 249Ω |
Warranty Coverage:
This product comes with a 1-year manufacturer warranty from the date of purchase, covering manufacturing defects only.
Warranty Void If:
The product shows signs of physical damage, mishandling, exposure to water/moisture, fire, natural calamities, unauthorized repairs, improper storage near heat or direct sunlight, or alteration in any way.
