Waveshare Industrial 5-Port Gigabit Ethernet Switch

Name: Waveshare Industrial 5-Port Gigabit Ethernet Switch – 10/100/1000Mbps Full-Duplex, DIN Rail Mount
Brand: Robocraze
SKU: TIFPS0683
Price: 2659 INR
Availability: OutOfStock

Waveshare Industrial 5-Port Gigabit Ethernet Switch – 10/100/1000Mbps Full-Duplex, DIN Rail Mount

Rs 2,659/-

- 33%

Rs 2,659/-

~~Rs 3,989/-~~

Save Rs 1,330/-

🪙

RC REWARDS Earn 26 RC Coins on this order

Incl. GST (No Hidden Charges)

Please hurry! Only 0 left in stock

We’ll notify you once the product is back in stock.

Quantity:

Free Delivery Above ₹999

Technical Support & Easy Returns

Same-Day Shipping (Order by 3 PM on Business Days)

Earn RC Coins on Every Prepaid Order

COD Available on Order Value Between ₹500 to ₹3,000

SKU: TIFPS0683

Supports 10/100/1000Mbps full-duplex connectivity with a non-blocking switching architecture.
Durable alloy enclosure with support for 25mm standard DIN rail mounting.
Operates from 5–36V DC with both DC jack and screw-terminal power inputs.
Includes over-voltage and reverse-polarity protection for safer operation in industrial environments.
Auto MDI/MDI-X support eliminates the need for additional network configuration.

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here

First Name *

Last Name *

Email *

Phone *

+91

Company / Client

GST *

Materials List

File(s) size limit is 20MB. Max 3 files.

Choose Categories * (select one or more)

Select Categories

STEM Kits Development Boards Electronic Components Drone 3D Printers/Pens Sensors Batteries & Power Supply Tools & Instruments

Enter the Captcha *

Reload Captcha

Waveshare Industrial 5-Port Gigabit Ethernet Switch – 10/100/1000Mbps Full-Duplex, DIN Rail Mount

~~Rs 3,989/-~~ Rs 2,659/-

Quantity:

Waveshare Industrial 5-Port Gigabit Ethernet Switch – 10/100/1000Mbps Full-Duplex, DIN Rail Mount

~~Rs 3,989/-~~ Rs 2,659/-

Description
Specifications
Additional Resources
Warranty
Shipping & Return

Description

Waveshare Industrial 5-Port Gigabit Ethernet Switch – 10/100/1000Mbps Full-Duplex, DIN Rail Mount

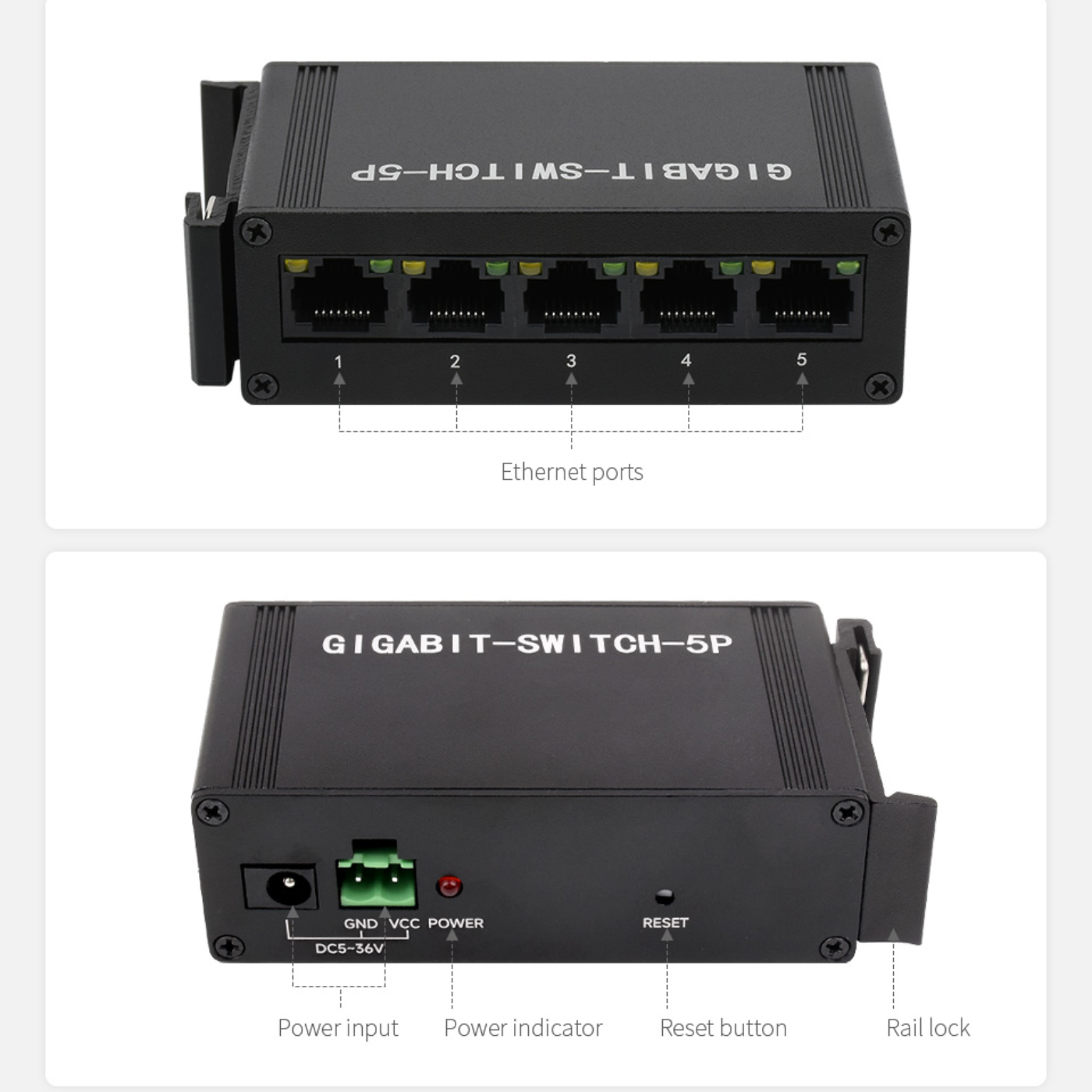

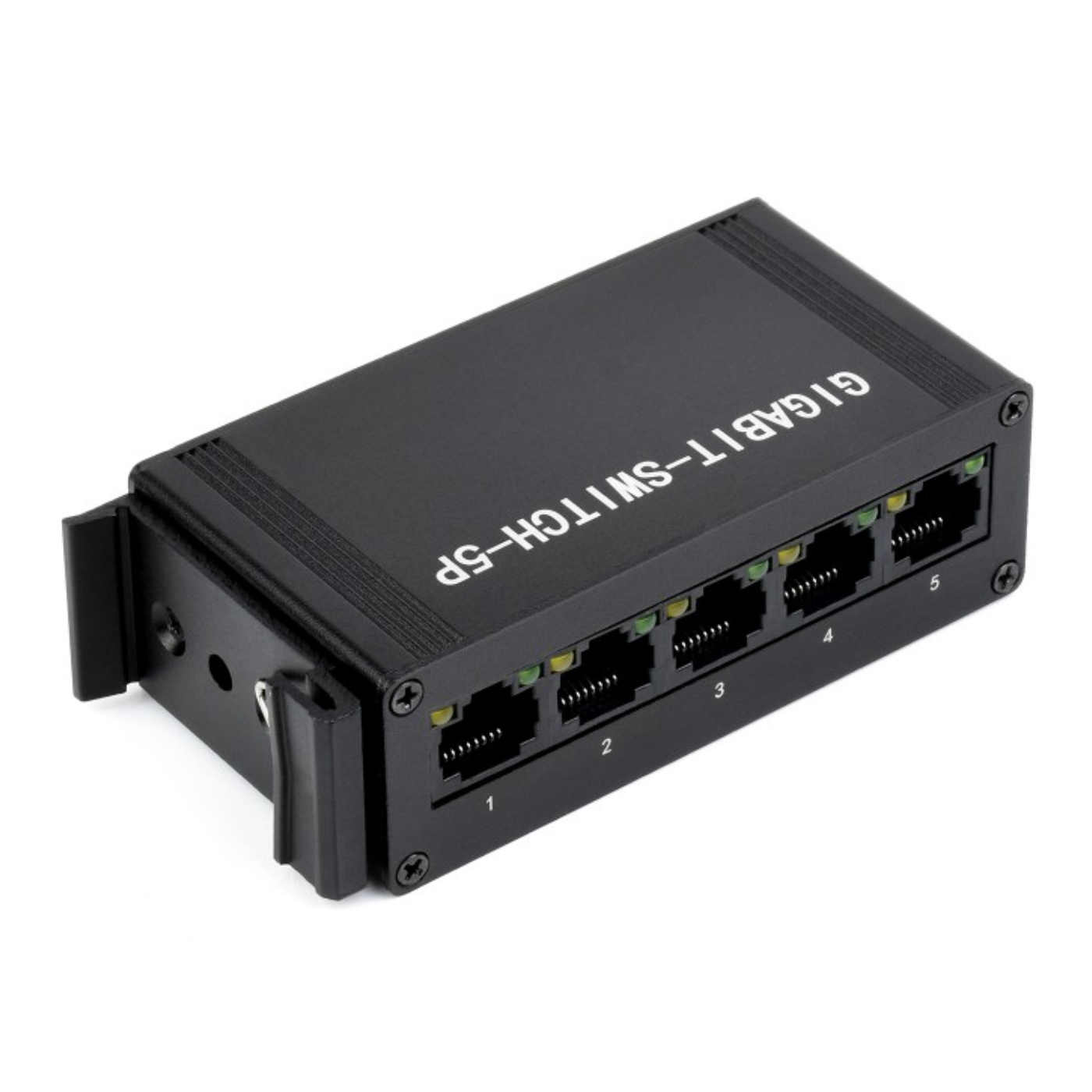

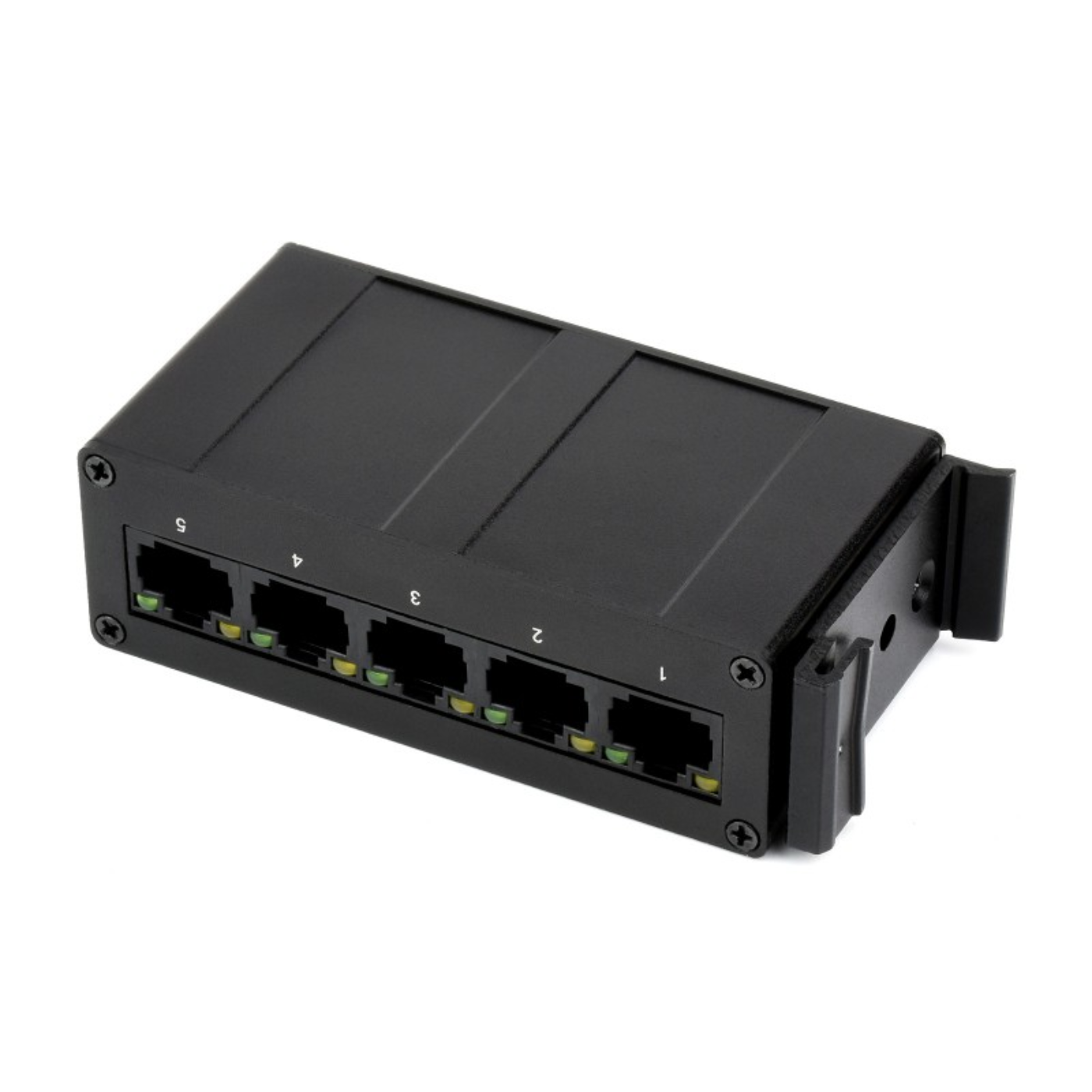

The Waveshare Industrial 5-Port Gigabit Ethernet Switch is a compact and reliable networking solution designed for industrial automation, embedded systems, control panels, and other applications that require stable wired Ethernet connectivity. It provides 5 × 10/100/1000Mbps Ethernet ports, with each port supporting full-duplex Gigabit communication and a non-blocking switching architecture for efficient data transmission.

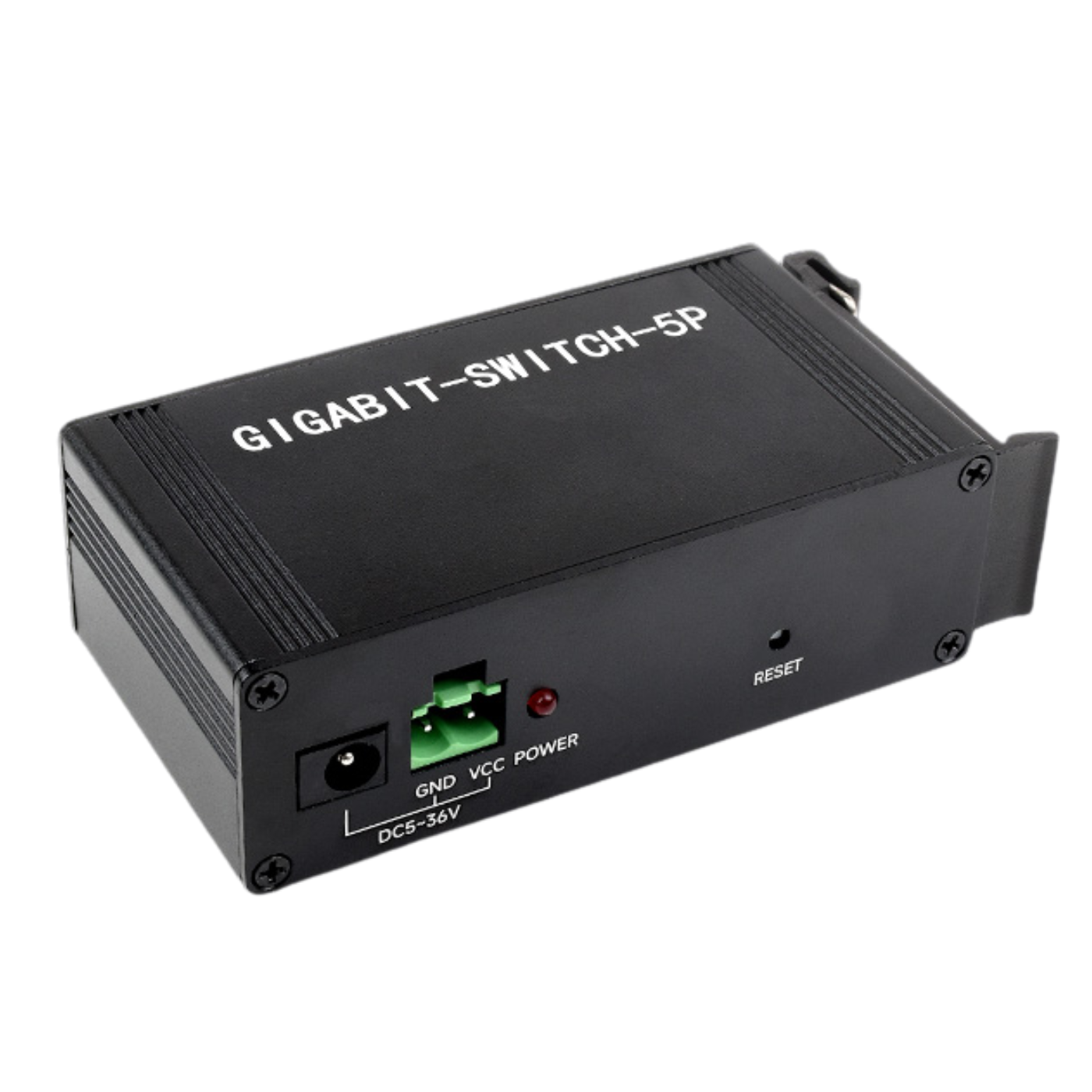

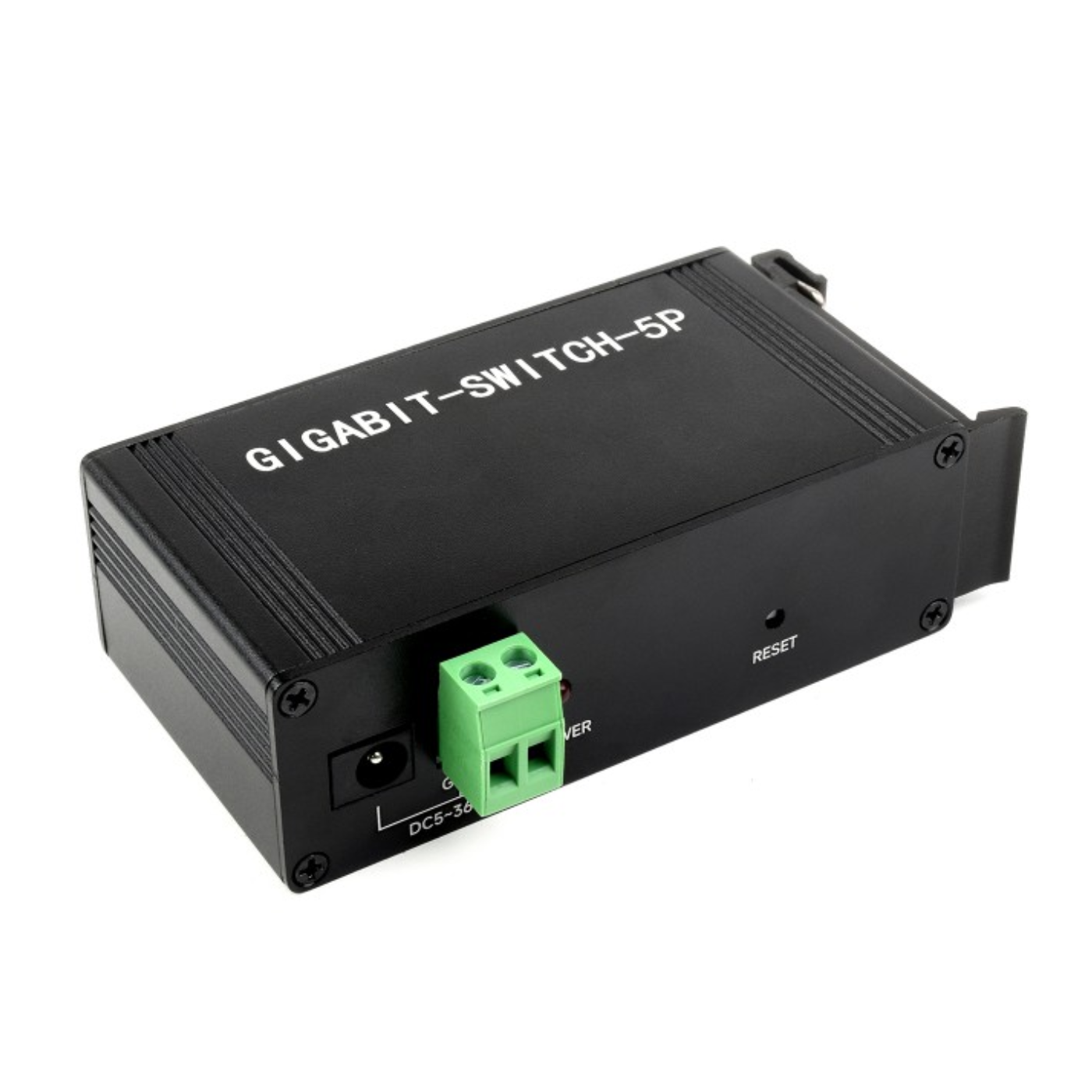

The switch supports IEEE 802.3x flow control and back pressure, while allowing 9216-byte large data packet forwarding at linear speed. Its 5–36V DC wide-voltage power supply, dual power interfaces through a DC jack and screw terminal, and built-in over-voltage and reverse-connection protection make it suitable for flexible industrial installations.

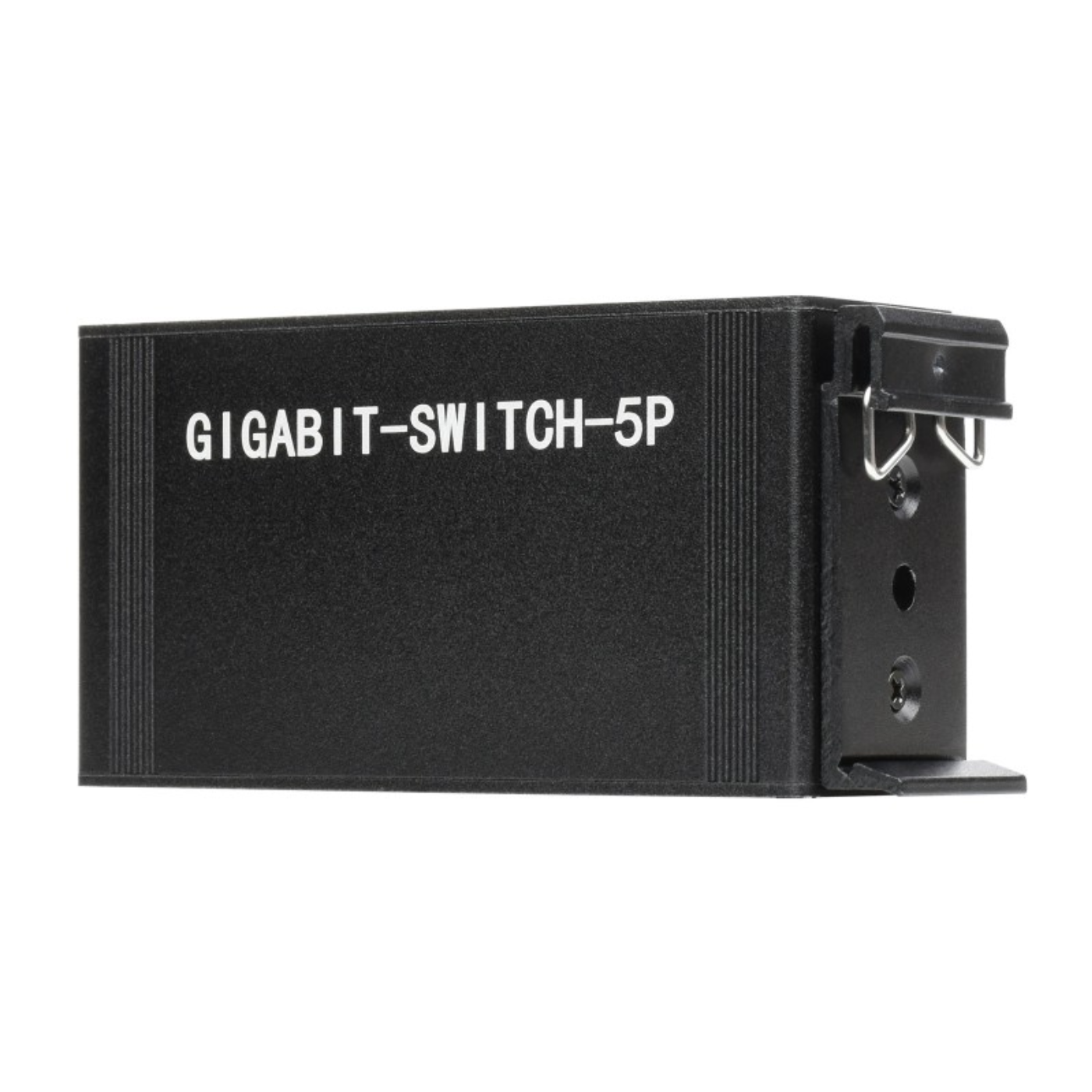

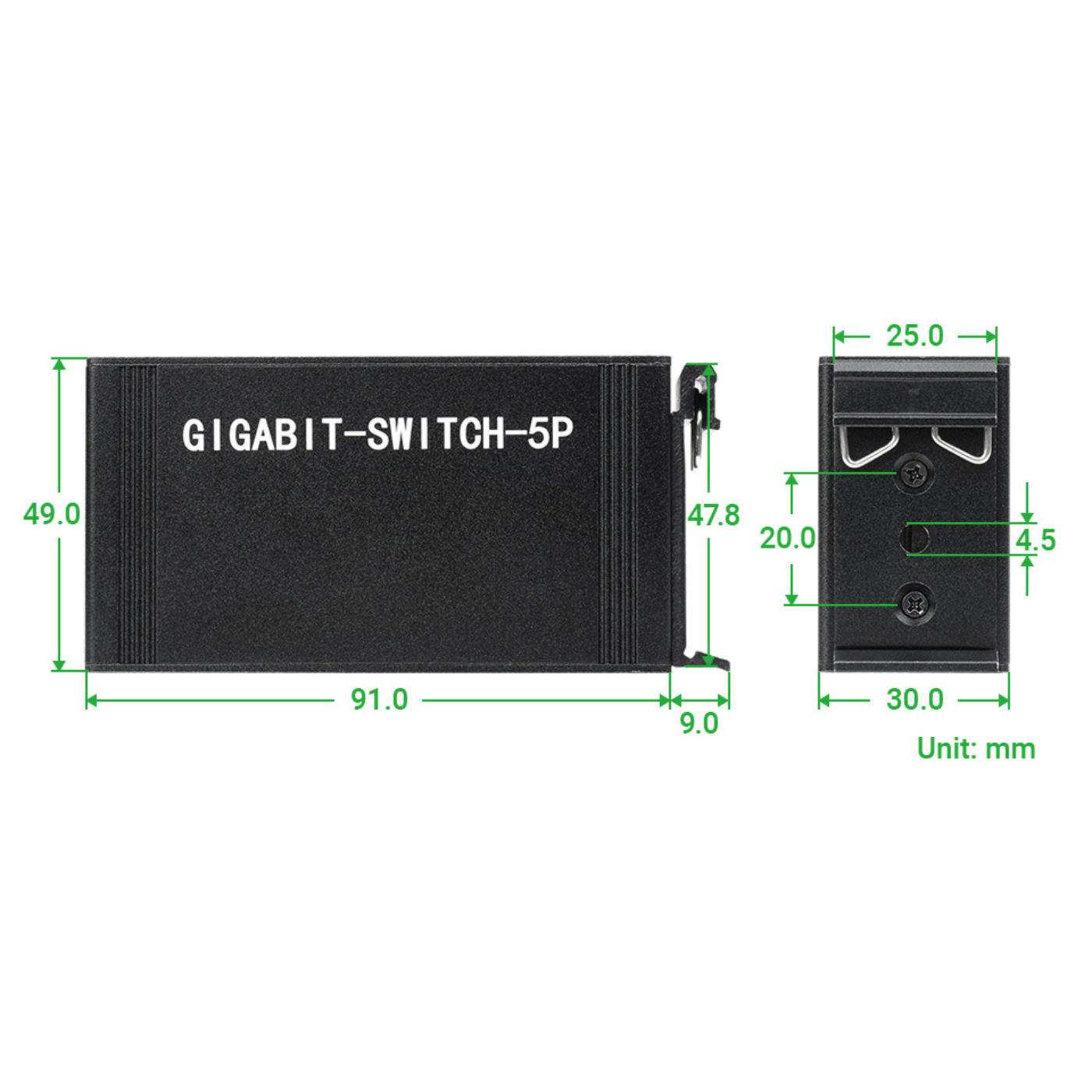

The robust alloy enclosure supports 25mm standard DIN rail mounting, allowing convenient installation inside control cabinets and equipment panels. With Auto MDI/MDI-X and plug-and-play operation, the Waveshare Gigabit Ethernet Switch requires no additional network configuration, making it a practical choice for industrial Ethernet networks, automation projects, IoT systems, and embedded networking applications.

Features:

Onboard switch chip, 5x ports; 10/100/1000M non-blocking switch design.
Full-duplex 10/100/1000M capability for each port (half-duplex 100M connection is only available in 10/100M mode).
Full or half-duplex operations with IEEE 802.3x flow control and back pressure support.
Allow forwarding 9216 bytes big data packets with linear speed.
Over-voltage protection successfully prevents harm caused by other high voltage power supplies.
Industrial grade alloy case is strong and sturdy, with DIN rail mount support for easy installation.

Specifications

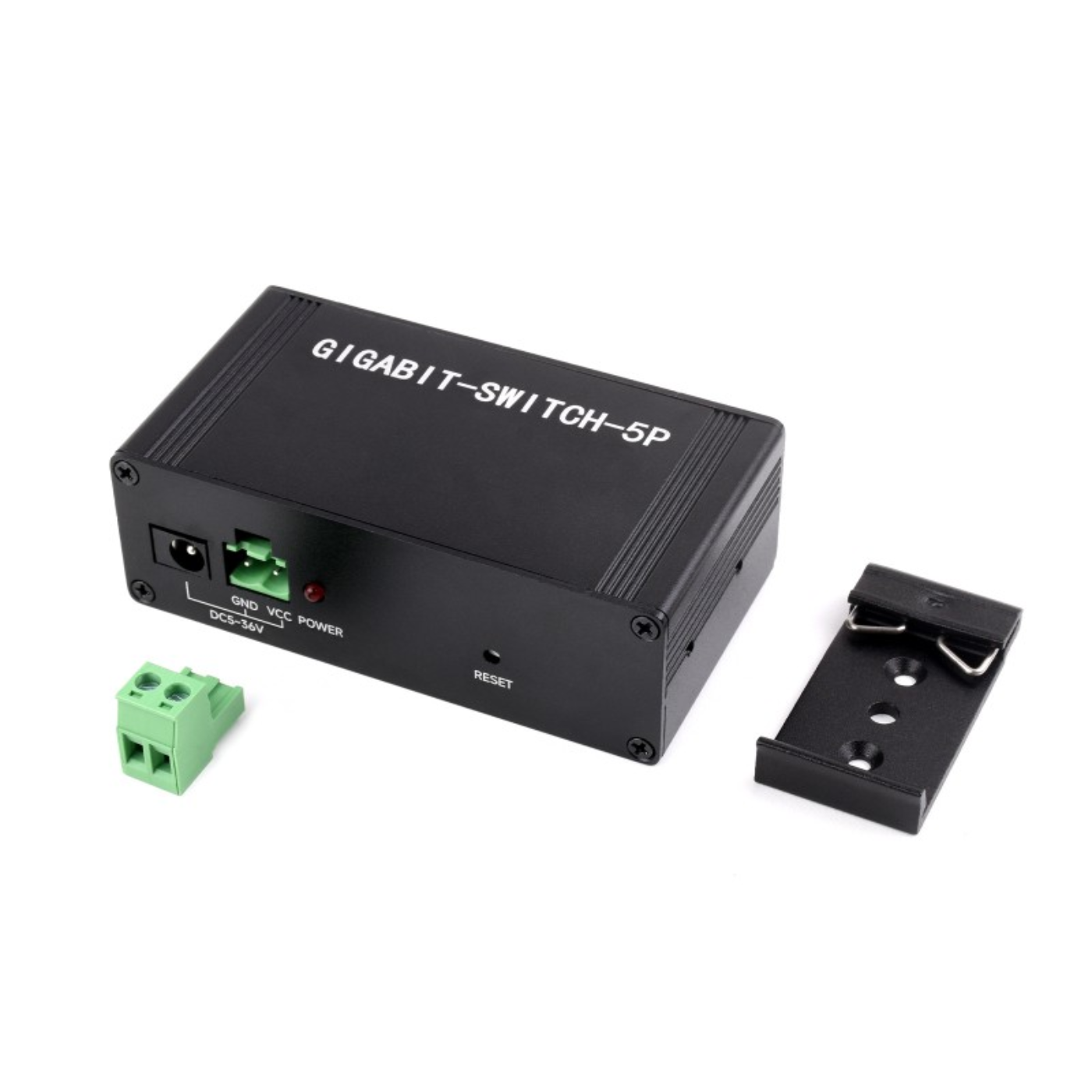

Package Includes:

1 x Gigabit-Switch-5P
1 x Power supply screw terminal
1 x 12V 1A power adapter

Specifications:

Specification	Details
Product Type	Industrial Gigabit Ethernet Switch
Ethernet Ports	5 × RJ45
Data Speed	10/100/1000Mbps
Duplex Mode	Full-Duplex
Power Input	5–36V DC
Mounting	25mm DIN Rail
Switching Architecture	Non-Blocking
Packet Size	Up to 9216 Bytes
Flow Control	IEEE 802.3x
Protection	Over-Voltage & Reverse Polarity
Installation	Plug and Play
