Waveshare ESP32-S3 7 Inch LCD Display Board | 800×480
Waveshare ESP32-S3 7-Inch LCD Display Development Board with 800×480 Screen, 32-bit LX7 Dual-Core LX7 Processor, WiFi & Bluetooth
- Rs 4,464/-
- Rs 4,464/-
-
Rs 6,696/-
- 33%
Save Rs 2,232/-
RC REWARDS
Earn
44
RC Coins
on this order
Incl. GST (No Hidden Charges)
Found a better price?
Let us know!
We'll try to match the price for you
Please hurry! Only 0 left in stock
We’ll notify you once the product is back in stock.
SKU:
TIFDP0126
Couldn't load pickup availability
Waveshare ESP32-S3 7-Inch LCD Display Development Board with 800×480 Screen, 32-bit LX7 Dual-Core LX7 Processor, WiFi & Bluetooth
Waveshare ESP32-S3 7-Inch LCD Display Development Board with 800×480 Screen, 32-bit LX7 Dual-Core LX7 Processor, WiFi & Bluetooth
Waveshare ESP32-S3 7-Inch LCD Display Development Board with 800×480 Screen, 32-bit LX7 Dual-Core LX7 Processor, WiFi & Bluetooth

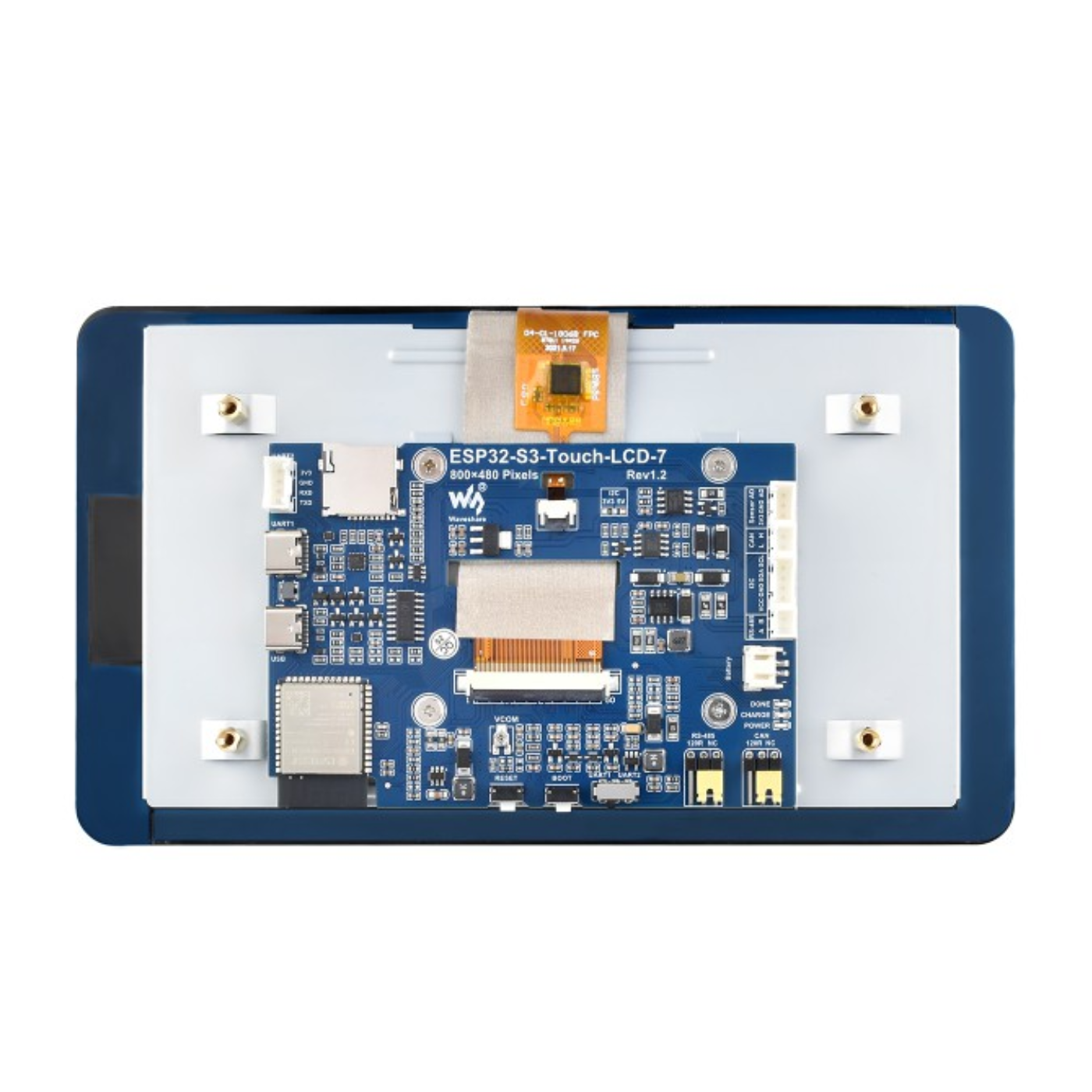

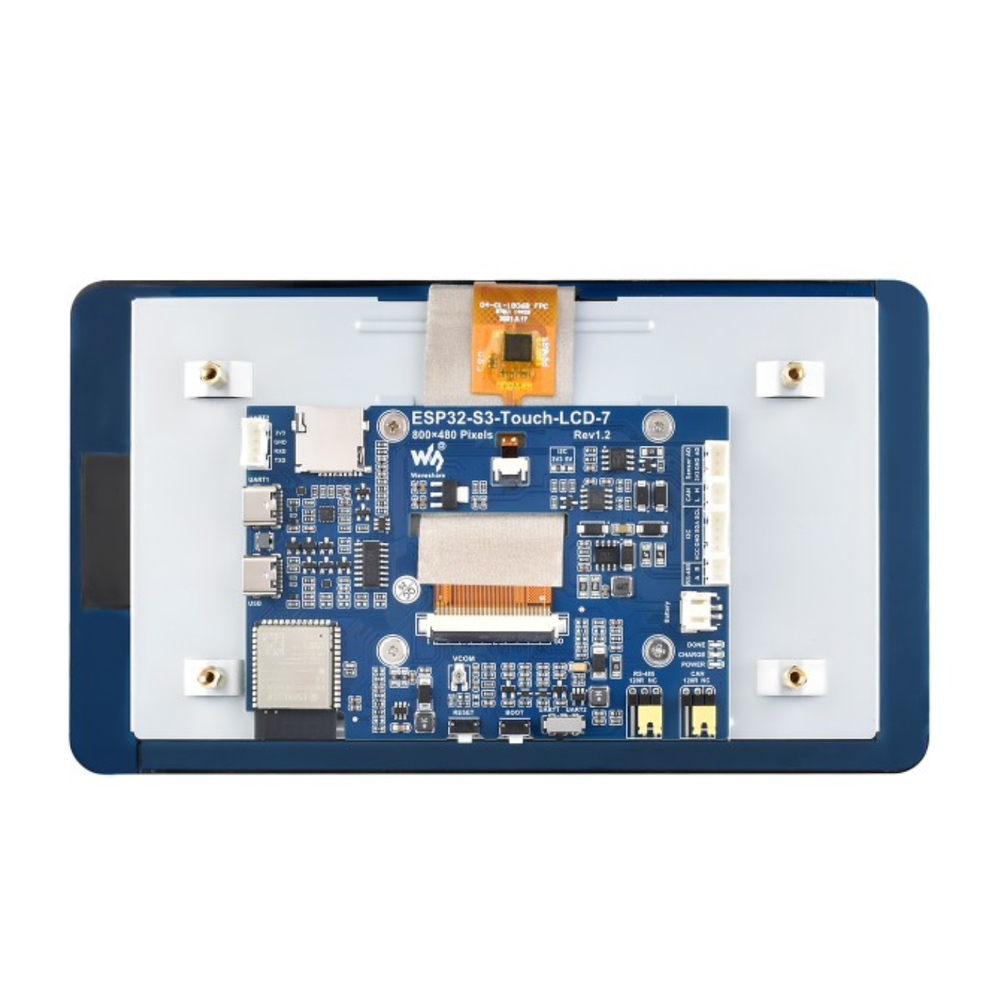

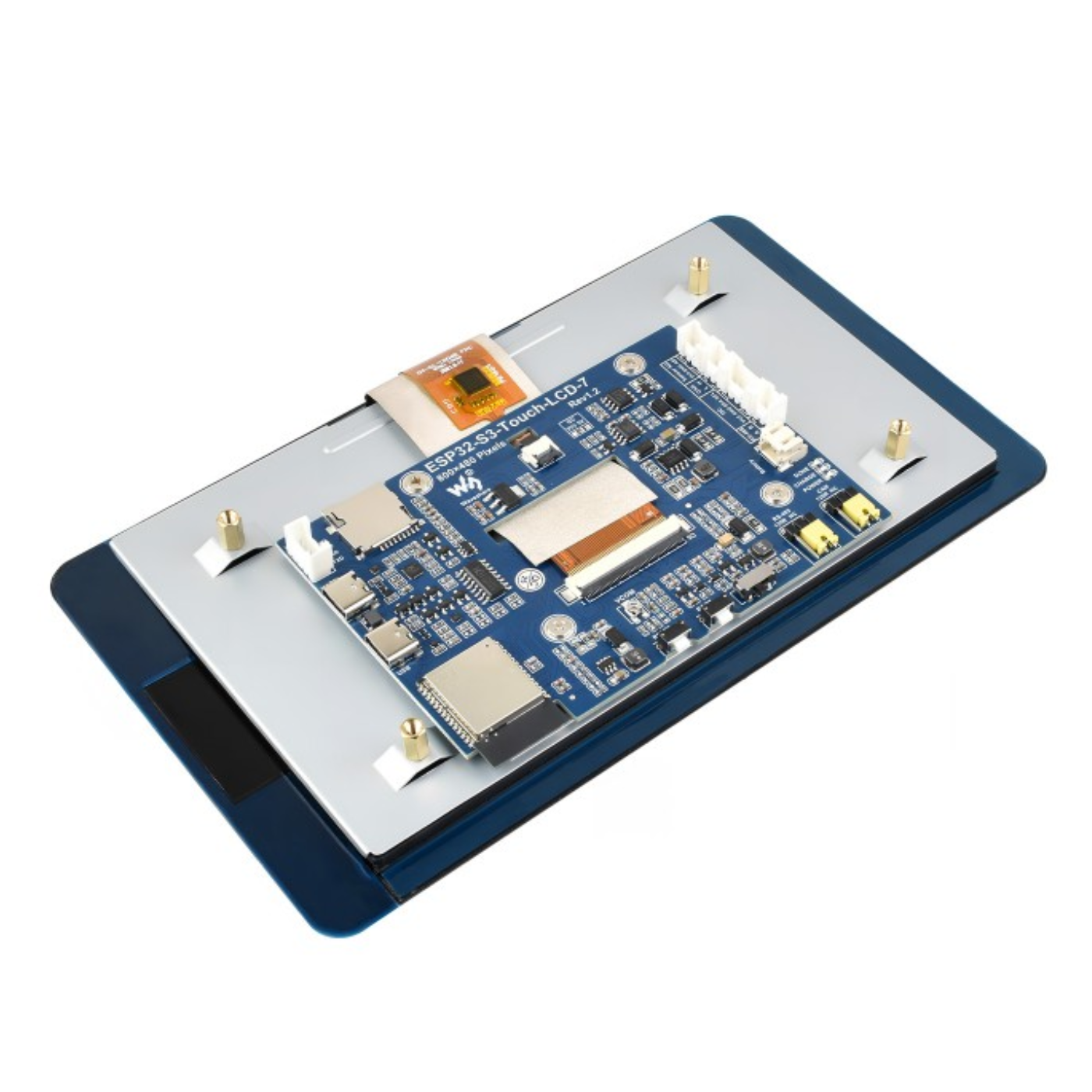

The Waveshare ESP32-S3 7-Inch LCD Display Development Board combines a powerful ESP32-S3 microcontroller, a large 7-inch 800 × 480 IPS LCD display, and wireless connectivity in a compact development platform. Its 32-bit Xtensa LX7 dual-core processor operates at up to 240 MHz, while 16 MB Flash and 8 MB PSRAM provide sufficient resources for responsive embedded applications and graphical interfaces.

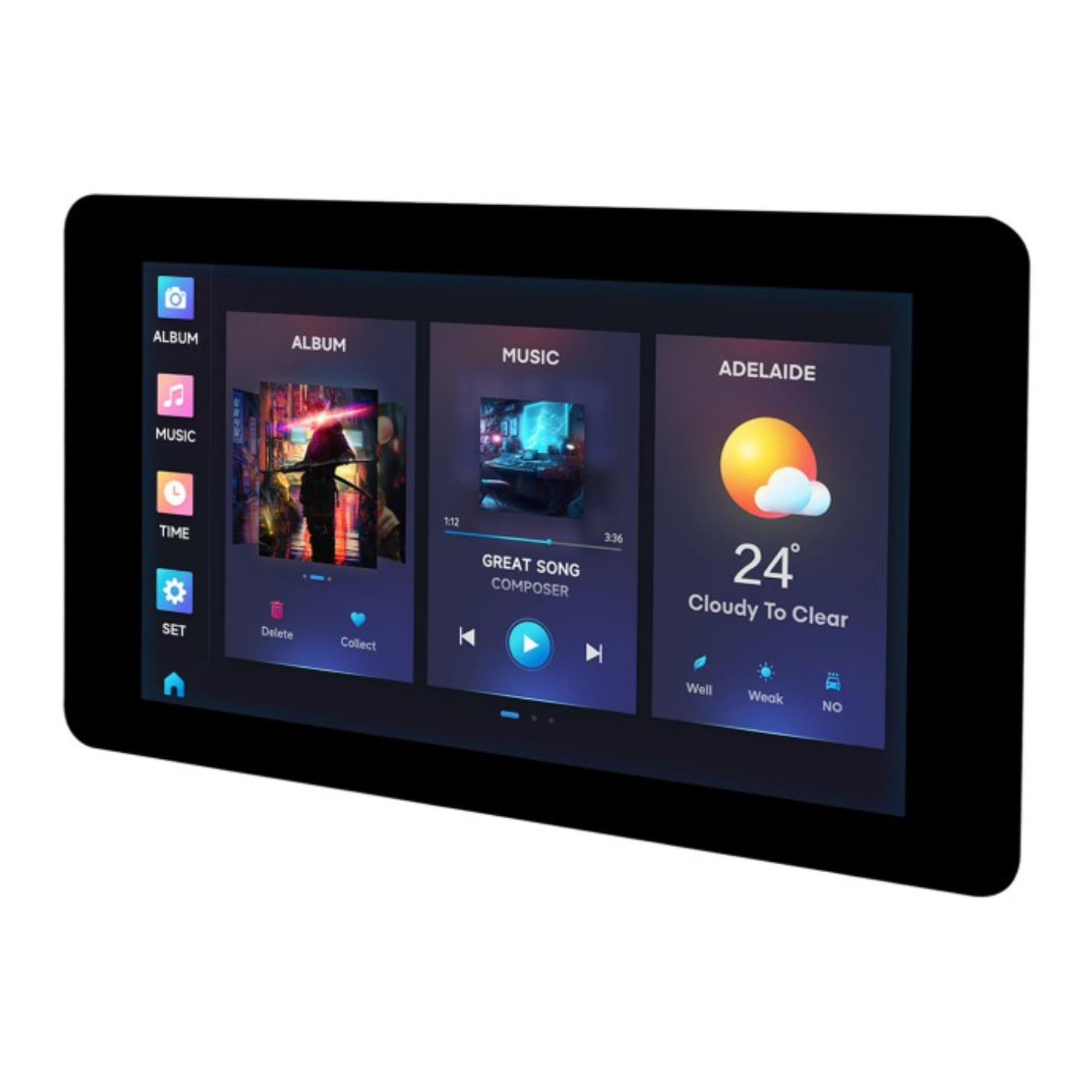

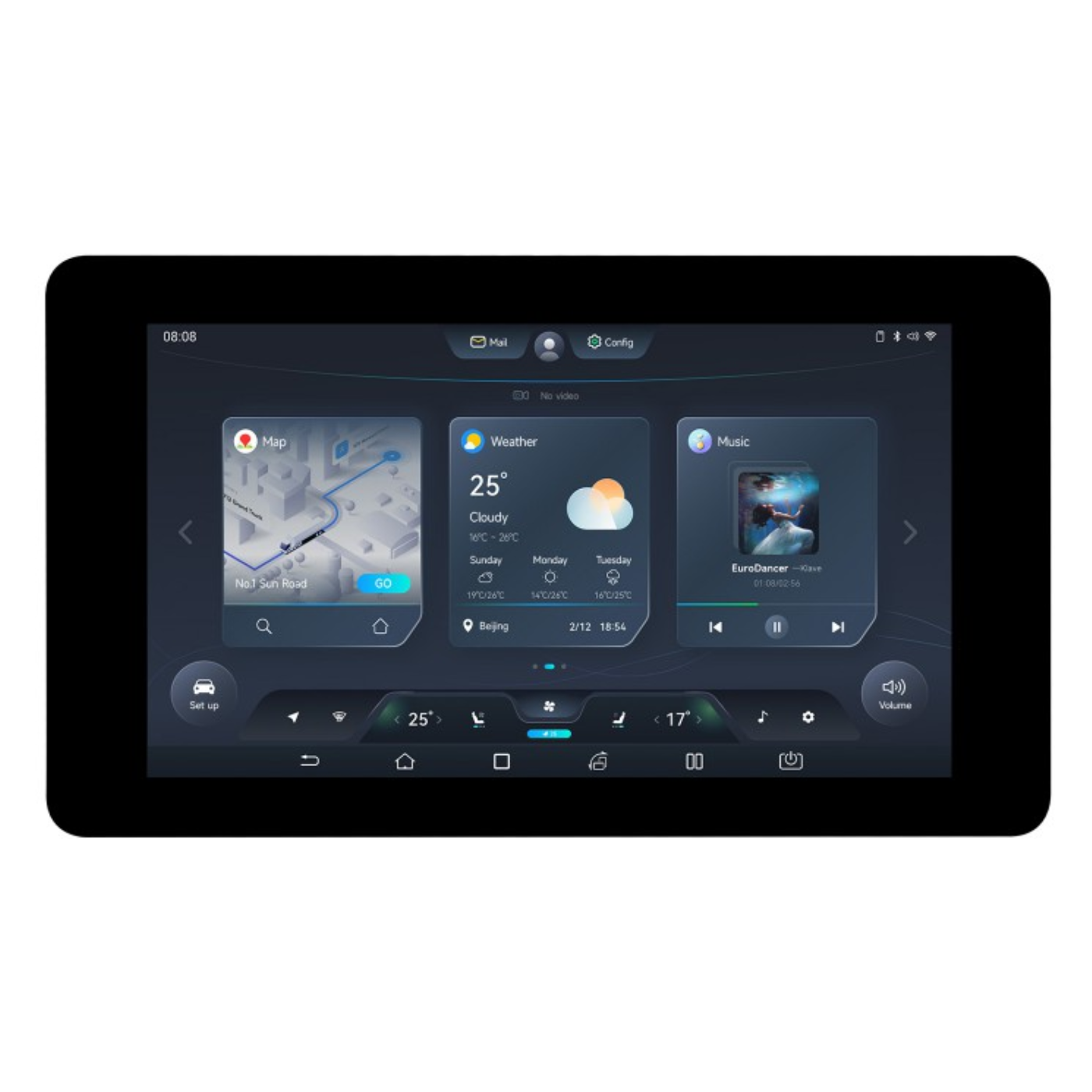

The display offers 65K colors, a 170° viewing angle, and 345 cd/m² brightness, making it suitable for interactive dashboards and visual control interfaces. The touch version adds 5-point capacitive touch for intuitive user interaction.
With 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (BLE), along with CAN, RS485, I²C, USB, TF card, and UART connectivity, this ESP32-S3 development board with display is well suited for IoT projects, HMI development, smart home systems, industrial control panels, and GUI applications using LVGL. It operates from Type-C 5 V power with a typical power consumption of 5 V / 450 mA.
Features:
- Equipped with an Xtensa 32-bit LX7 dual-core CPU, up to 240MHz main frequency.
- Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with an integrated antenna.
- Built-in 512KB SRAM and 384KB ROM, plus onboard 8MB PSRAM and 16MB Flash.

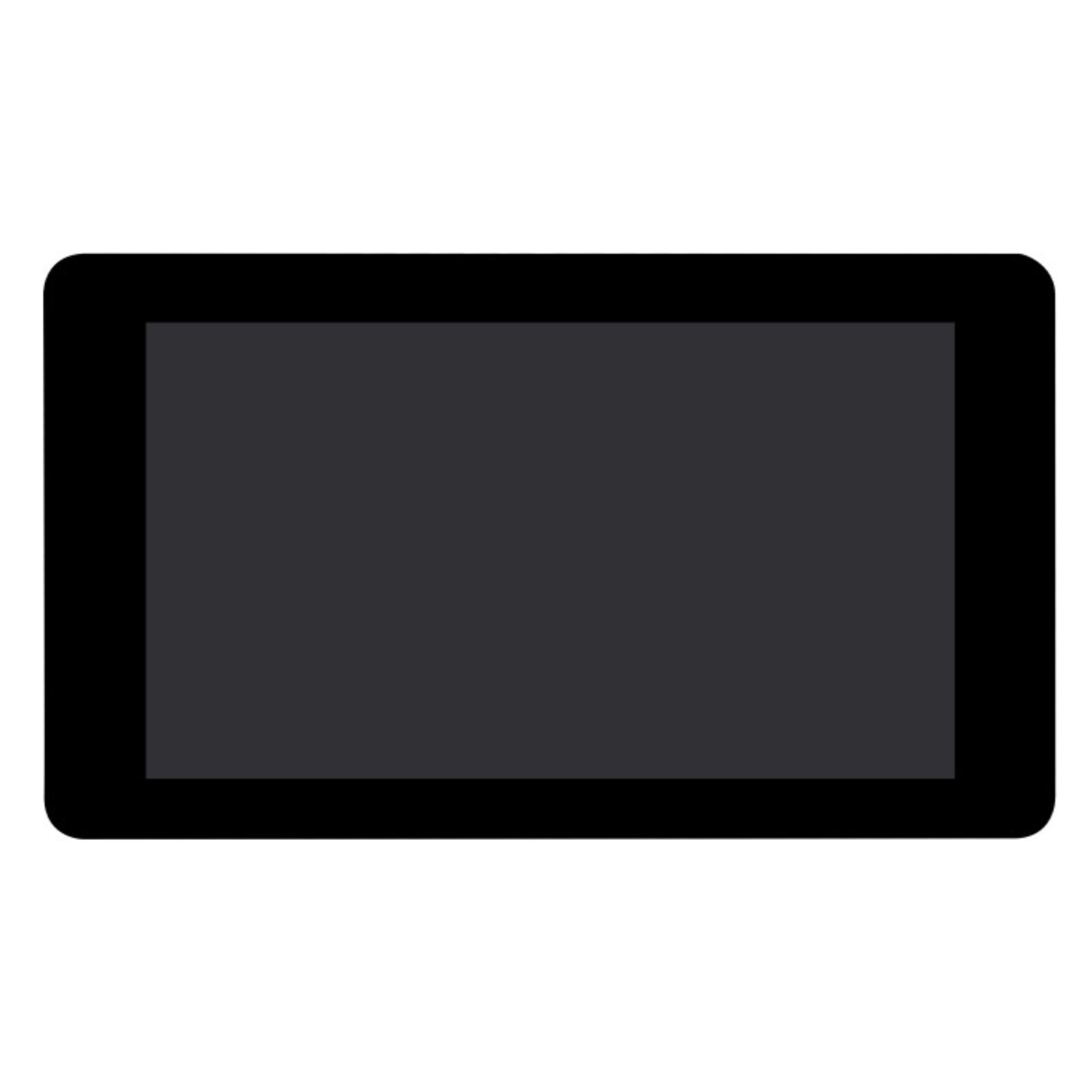

- Onboard 7inch LCD panel with 800×480 resolution and 65K color.
Supports 5-point capacitive touch control via I2C interface, with interrupt support (touch version only). - Onboard CAN, RS485, I2C interface, and TF card slot, integrated full-speed USB port.
- Supports flexible clock, module power supply independent setup, and other controls to achieve low power consumption in various settings.
Package Includes:
- 1 x ESP32-S3-Touch-LCD-7
- 2 x HY2.0 2P to 2PIN male cable 10cm
- 1 x HY2.0 3P to 3PIN male cable 10cm
- 2 x HY2.0 4P to 4PIN male cable 10cm
- 1 x Screws pack
Specifications:
| Specification | Details |
|---|---|
| Processor | High-performance Xtensa 32-bit LX7 dual-core processor, main frequency up to 240 MHz |
| Wi-Fi / Bluetooth | Supports 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), onboard antenna |
| Flash | 8 MB |
| PSRAM | 8 MB |
| Power Supply Range | Type-C 5 V |
| Resolution | 800 × 480 |
| Display Interface | RGB |
| Display Panel | IPS |
| Viewing Angle | 170° |
| Screen Brightness | 345 cd/m² |
| Touch Type | Capacitive |
| Touch Panel | Tempered Glass |
| Communication Interfaces | CAN, RS485, I²C, USB |
| Power Consumption | 5 V 450 mA |
| Operating Temperature | 0 ℃ - 65 ℃ |

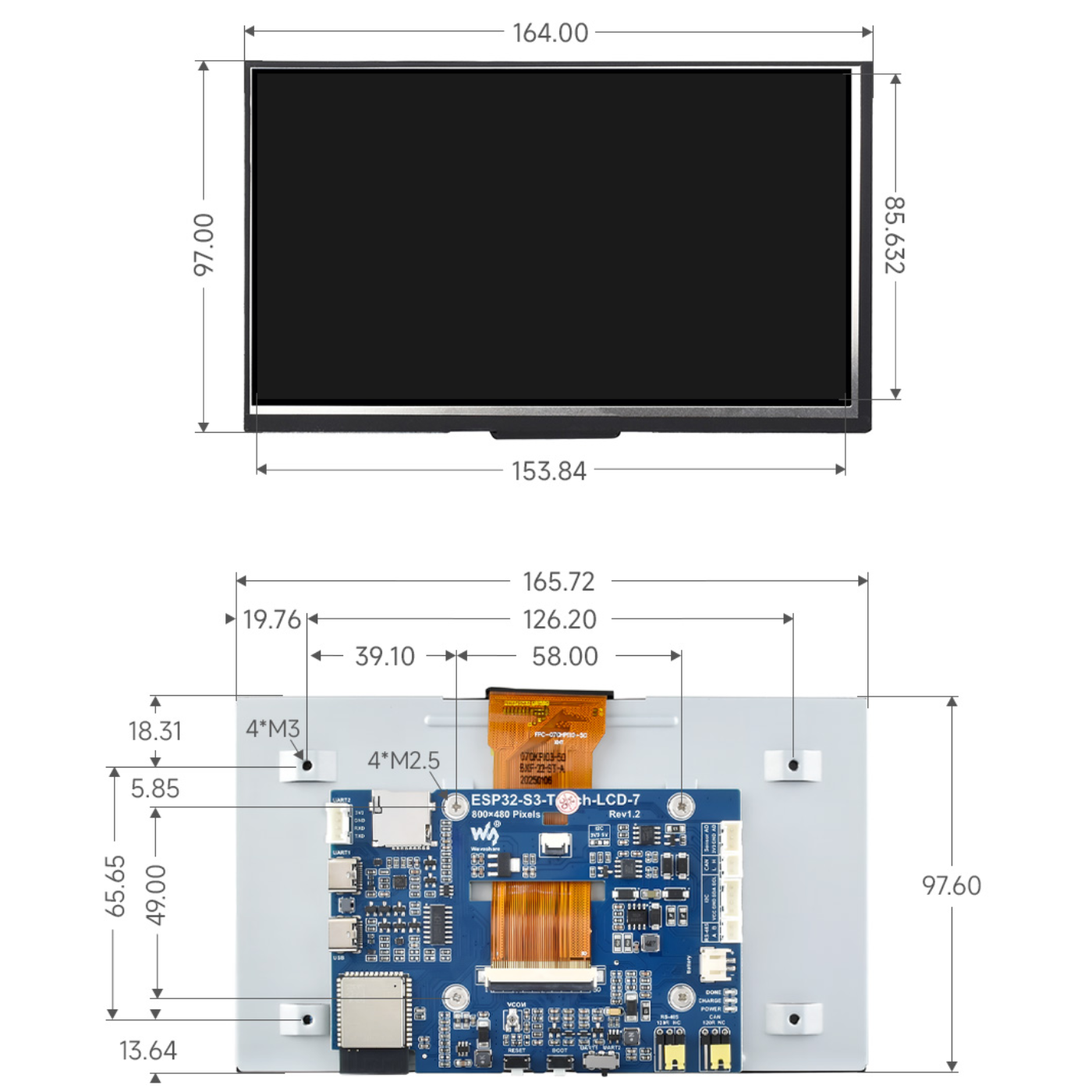

| Product Dimensions | Without Touch Version: 164 × 97 mm |
| Product Dimensions | With Touch Version: 192.96 × 110.76 mm |
