Waveshare ESP32-S3 1.69 Inch 240×280 Touch LCD Development Board

Name: Waveshare ESP32-S3 1.69 Inch 240×280 Touch LCD Development Board with Accelerometer & Gyroscope
Brand: Robocraze
SKU: TIFDP0134
Price: 2249 INR
Availability: OutOfStock

Waveshare ESP32-S3 1.69 Inch 240×280 Touch LCD Development Board with Accelerometer & Gyroscope

Rs 2,249/-

- 37%

Rs 2,249/-

~~Rs 3,598/-~~

Save Rs 1,349/-

🪙

RC REWARDS Earn 22 RC Coins on this order

Incl. GST (No Hidden Charges)

Please hurry! Only 0 left in stock

We’ll notify you once the product is back in stock.

Quantity:

Free Delivery Above ₹999

Technical Support & Easy Returns

Same-Day Shipping (Order by 3 PM on Business Days)

Earn RC Coins on Every Prepaid Order

COD Available on Order Value Between ₹500 to ₹3,000

SKU: TIFDP0134

ESP32-S3R8 Dual-Core Processor: Runs at up to 240 MHz for responsive embedded applications.

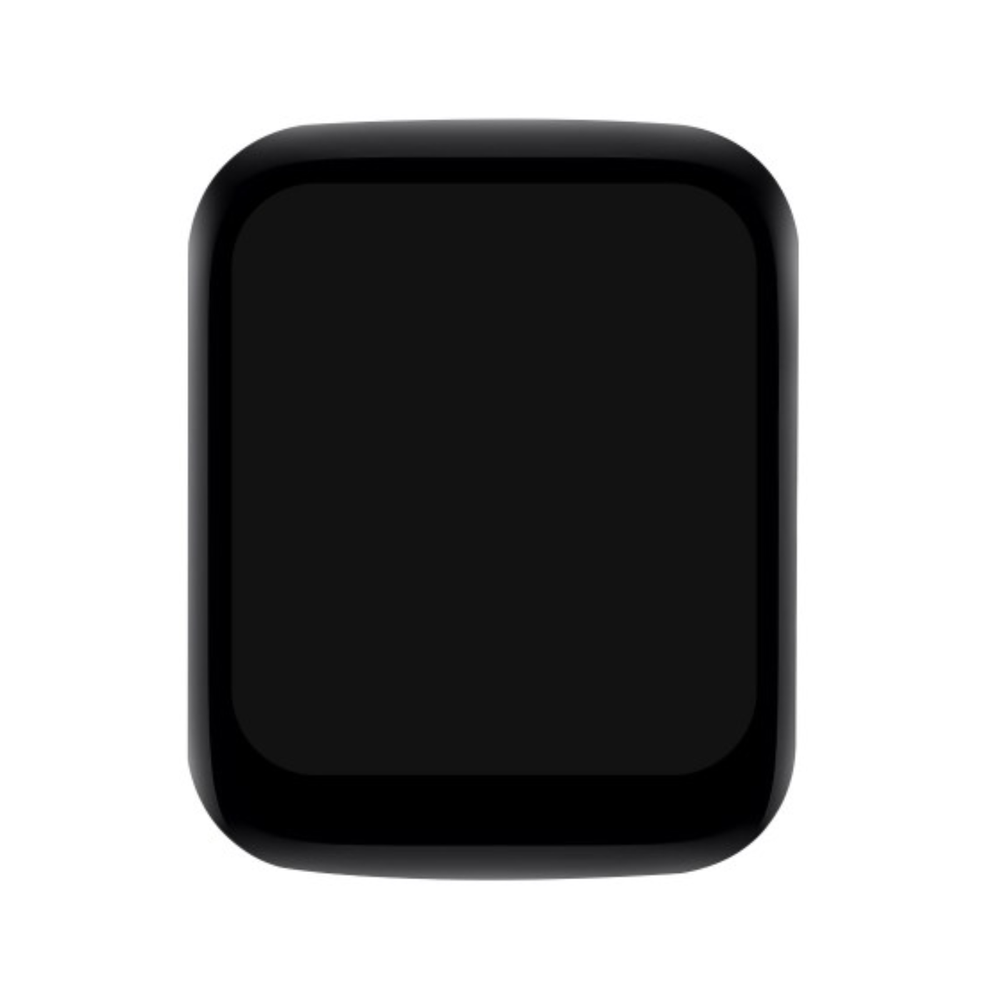

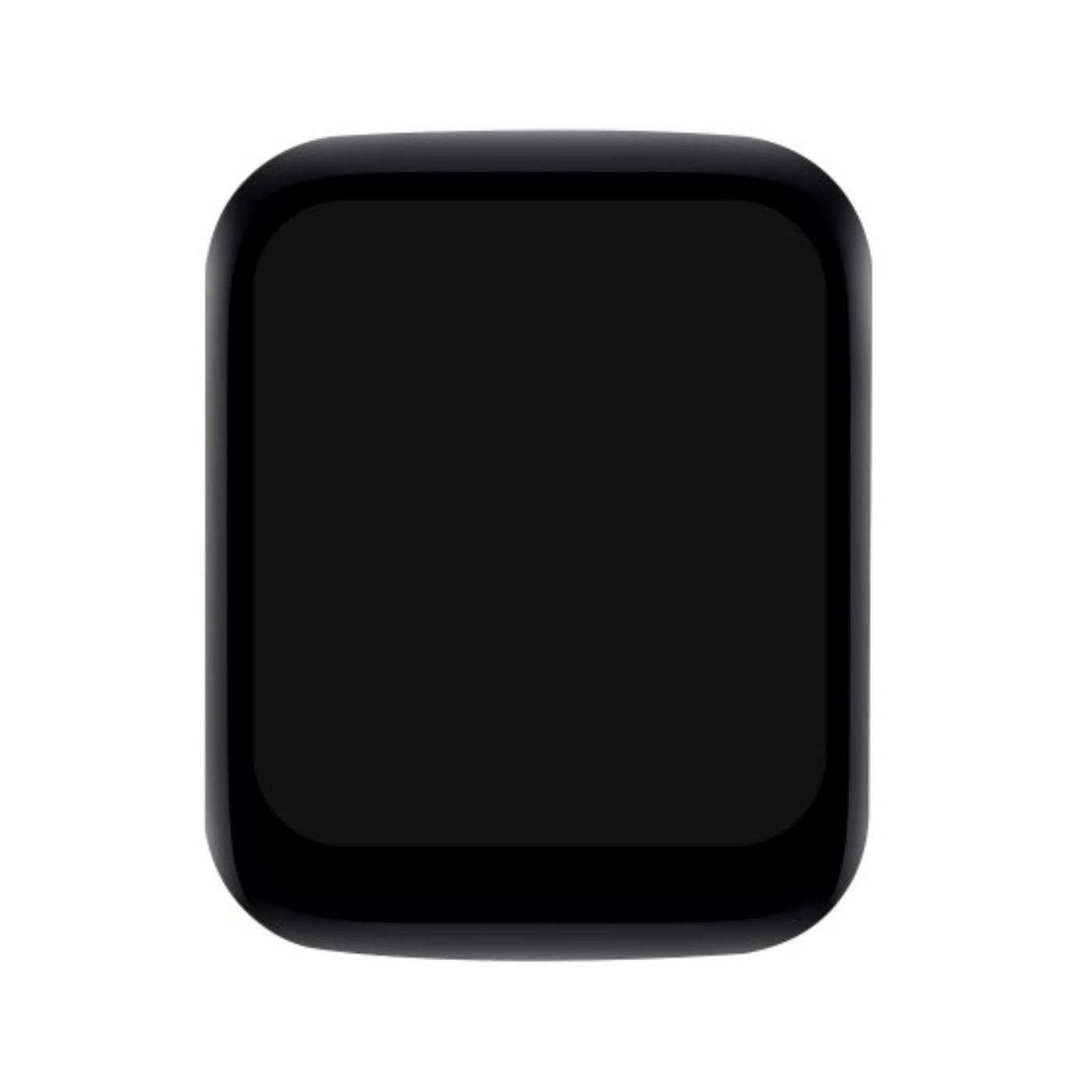

1.69-Inch Touch LCD: Features a 240 × 280 pixel, 262K-color capacitive touch display.
Built-in 6-Axis IMU: QMI8658 provides a 3-axis accelerometer and 3-axis gyroscope for motion and orientation sensing.
Wireless Connectivity: Supports 2.4 GHz Wi-Fi 802.11 b/g/n and Bluetooth 5 (LE).
Memory: Includes 512KB SRAM, 384KB ROM, 8MB PSRAM, and 16MB Flash.
Battery Support: Features a 3.7V lithium battery charging and discharging interface.
Additional Peripherals: Includes an RTC, buzzer, USB Type-C interface, BOOT and RST buttons, and expansion interfaces.

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here

First Name *

Last Name *

Email *

Phone *

+91

Company / Client

GST *

Materials List

File(s) size limit is 20MB. Max 3 files.

Choose Categories * (select one or more)

Select Categories

STEM Kits Development Boards Electronic Components Drone 3D Printers/Pens Sensors Batteries & Power Supply Tools & Instruments

Enter the Captcha *

Reload Captcha

Waveshare ESP32-S3 1.69 Inch 240×280 Touch LCD Development Board with Accelerometer & Gyroscope

~~Rs 3,598/-~~ Rs 2,249/-

Quantity:

Waveshare ESP32-S3 1.69 Inch 240×280 Touch LCD Development Board with Accelerometer & Gyroscope

~~Rs 3,598/-~~ Rs 2,249/-

Description
Specifications
Additional Resources
Warranty
Shipping & Return

Description

Waveshare ESP32-S3 1.69 Inch 240×280 Touch LCD Development Board with Accelerometer & Gyroscope

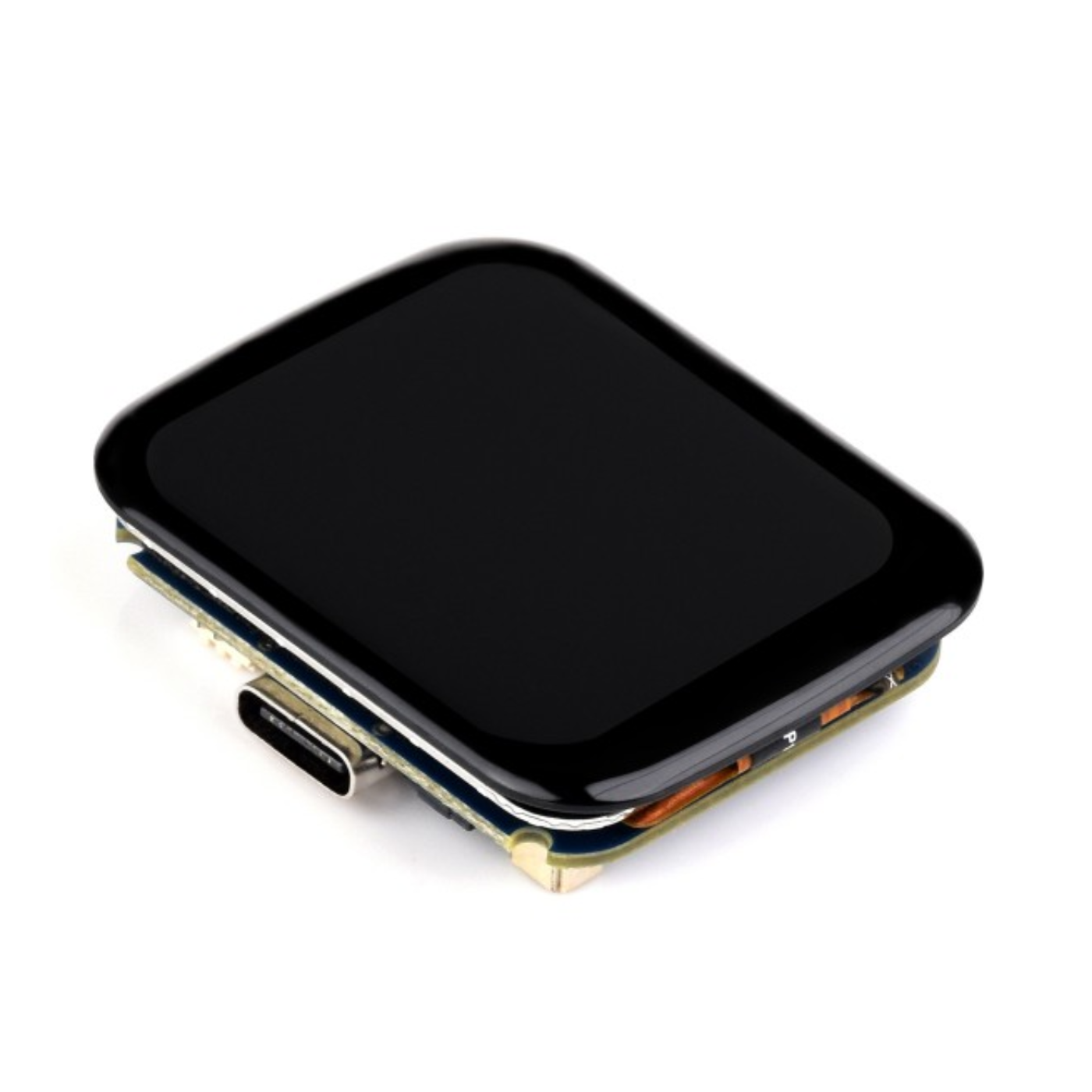

The Waveshare ESP32-S3 1.69 Inch Touch LCD Development Board is a compact, high-performance ESP32-S3 development board designed for interactive embedded projects, wearable devices, smart interfaces, IoT applications, and rapid prototyping. It is powered by an ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor with a maximum frequency of 240 MHz, along with 512KB SRAM, 384KB ROM, 8MB PSRAM, and 16MB external Flash.

The board integrates a 1.69-inch capacitive touch LCD with a 240 × 280 pixel resolution and 262K colors, using an ST7789V2 display driver and CST816T capacitive touch controller. For motion sensing, the onboard QMI8658 6-axis IMU combines a 3-axis accelerometer and 3-axis gyroscope, making it suitable for detecting movement, orientation, gestures, and step-counting applications.

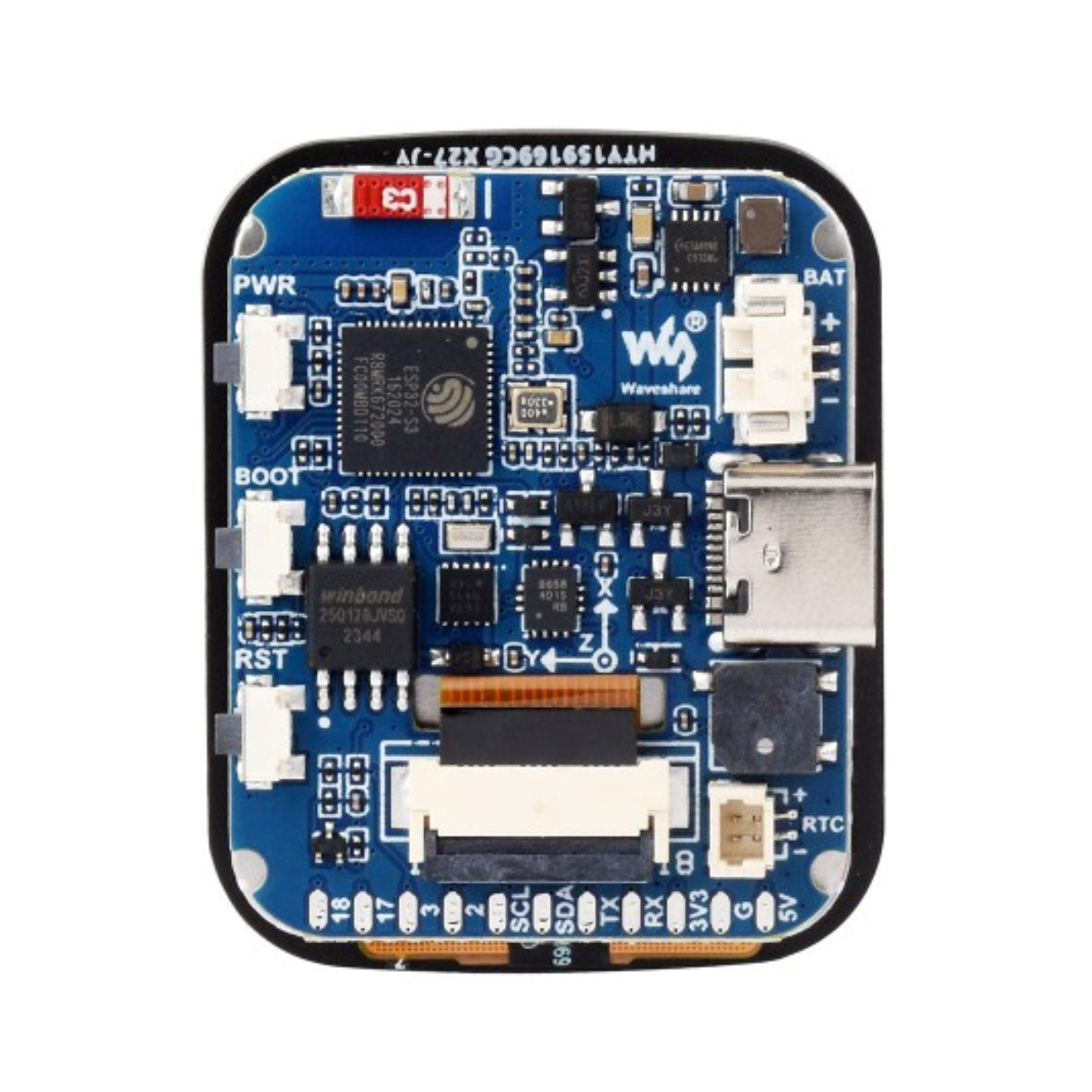

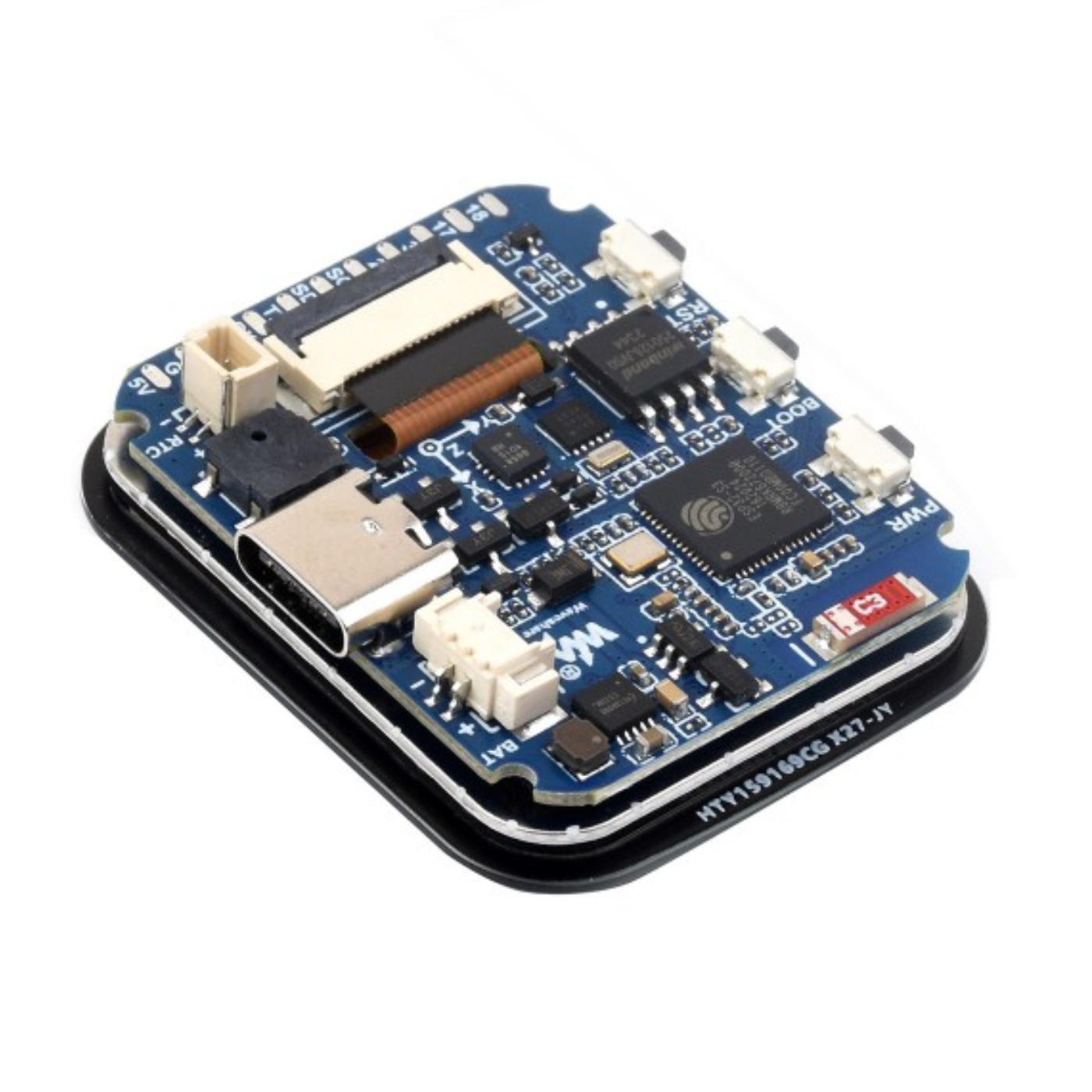

Wireless communication is provided through 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), while the onboard PCF85063 RTC supports real-time clock functions. The board also provides a USB Type-C port, buzzer, programmable PWM button, BOOT and RST buttons, a 3.7V MX1.25 lithium battery connector, and reserved GPIO, I2C, and UART interfaces for connecting external peripherals.

Features:

Equipped with the ESP32-S3R8 Xtensa® 32-bit LX7 dual-core CPU, up to 240MHz main frequency
Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth® 5 (LE), with an integrated antenna.
Built-in 512KB SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory.
Type-C connector keeps it up to date and easier to use.

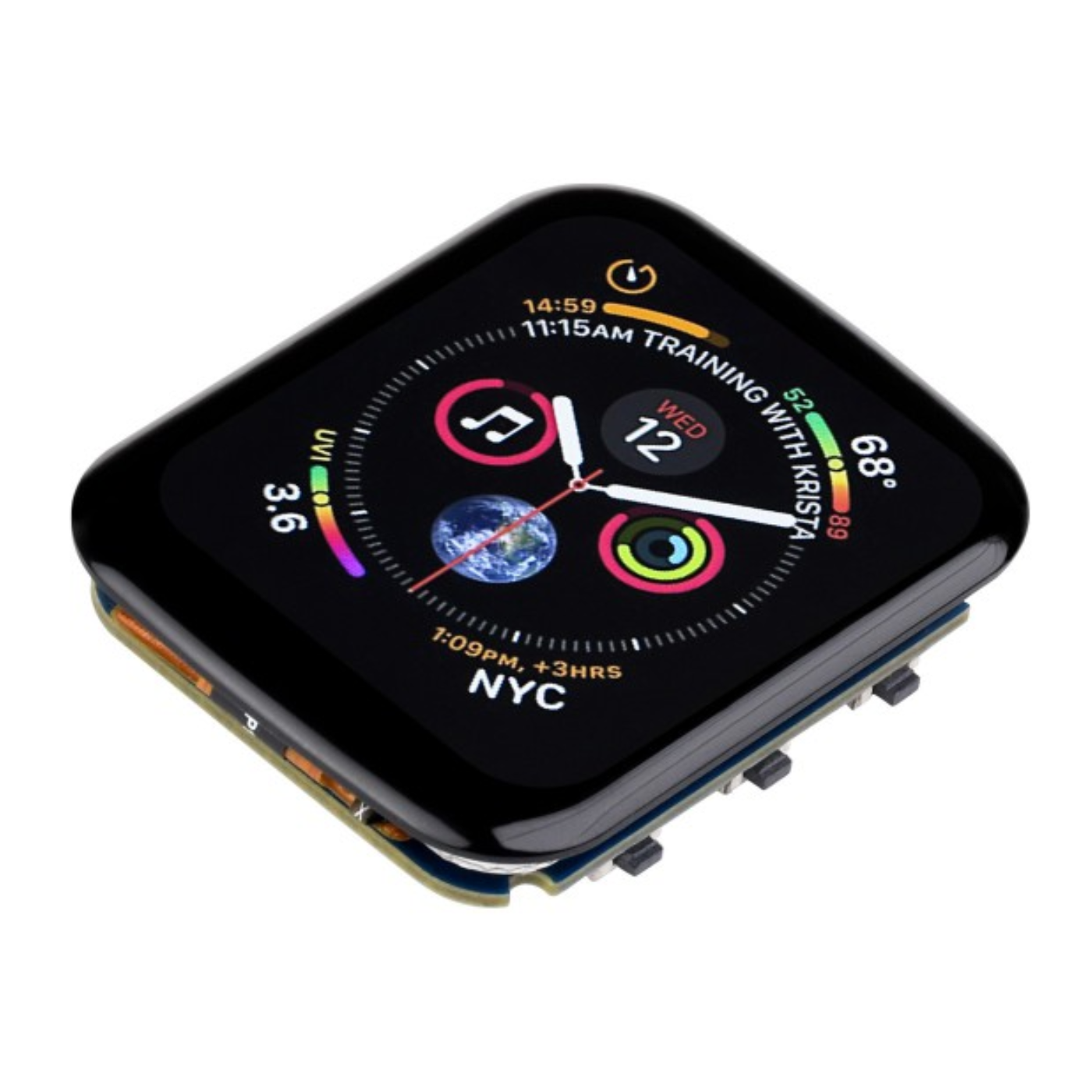

Onboard 1.69inch 240×280 pixels 262K capacitive touch display provides clear color images.
The built-in ST7789V2 display driver and CST816T capacitive touch chip use SPI and I2C communication, significantly reducing IO resources.
Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) detects motion gestures, counts steps, and so on.
For the RTC function need, there is an onboard PCF85063 RTC chip with a reserved SH1.0 RTC battery header that permits charging.
Onboard RST, BOOT, and a programmable PWM button allow for easy custom function development.
Onboard 3.7V MX1.25 lithium battery recharge/discharge header.
Reserved pads with 4 × GPIO, I2C, and UART interfaces for connecting peripherals and debugging.
Supports flexible clock, module power supply independent setup, and other controls to achieve low power consumption in various settings.
High touch screen transmittance, quick reaction, and extended lifetime.

Specifications

Package Includes:

1 x Waveshare ESP32-S3 1.69 Inch 240×280 Touch LCD Development Board

Specifications:

Specification	Details
Microcontroller	ESP32-S3R8
Processor	Xtensa 32-bit LX7 Dual-Core
Clock Frequency	Up to 240 MHz
Display	1.69-inch Touch LCD
Resolution	240 × 280 pixels
Display Colors	262K
Touch Controller	CST816T
Display Driver	ST7789V2
IMU Sensor	QMI8658 6-axis
Accelerometer	3-axis
Gyroscope	3-axis
SRAM	512 KB
ROM	384 KB
PSRAM	8 MB
Flash	16 MB
Wi-Fi	2.4 GHz 802.11 b/g/n
Bluetooth	Bluetooth 5 (LE)
RTC	PCF85063
USB Interface	USB Type-C
Battery Support	3.7V Lithium Battery
Expansion Interfaces	GPIO, I²C, UART
Buttons	BOOT, RST, PWM
Audio	Buzzer
