Waveshare CM4-ETH-RS485-BOX-B-EU Dual ETH Mini Computer
Waveshare CM4-ETH-RS485-BOX-B-EU Dual ETH Mini Computer For Raspberry Pi CM4 with Dual ETH & 4CH RS485
- Rs 8,229/-
- Rs 8,229/-
-
Rs 11,767/-
- 30%
Save Rs 3,538/-
RC REWARDS
Earn
82
RC Coins
on this order
Incl. GST (No Hidden Charges)
Found a better price?
Let us know!
We'll try to match the price for you
Please hurry! Only 0 left in stock
We’ll notify you once the product is back in stock.
SKU:
TIFKT0384
Couldn't load pickup availability
Waveshare CM4-ETH-RS485-BOX-B-EU Dual ETH Mini Computer For Raspberry Pi CM4 with Dual ETH & 4CH RS485
Waveshare CM4-ETH-RS485-BOX-B-EU Dual ETH Mini Computer For Raspberry Pi CM4 with Dual ETH & 4CH RS485
Waveshare CM4-ETH-RS485-BOX-B-EU Dual ETH Mini Computer For Raspberry Pi CM4 with Dual ETH & 4CH RS485

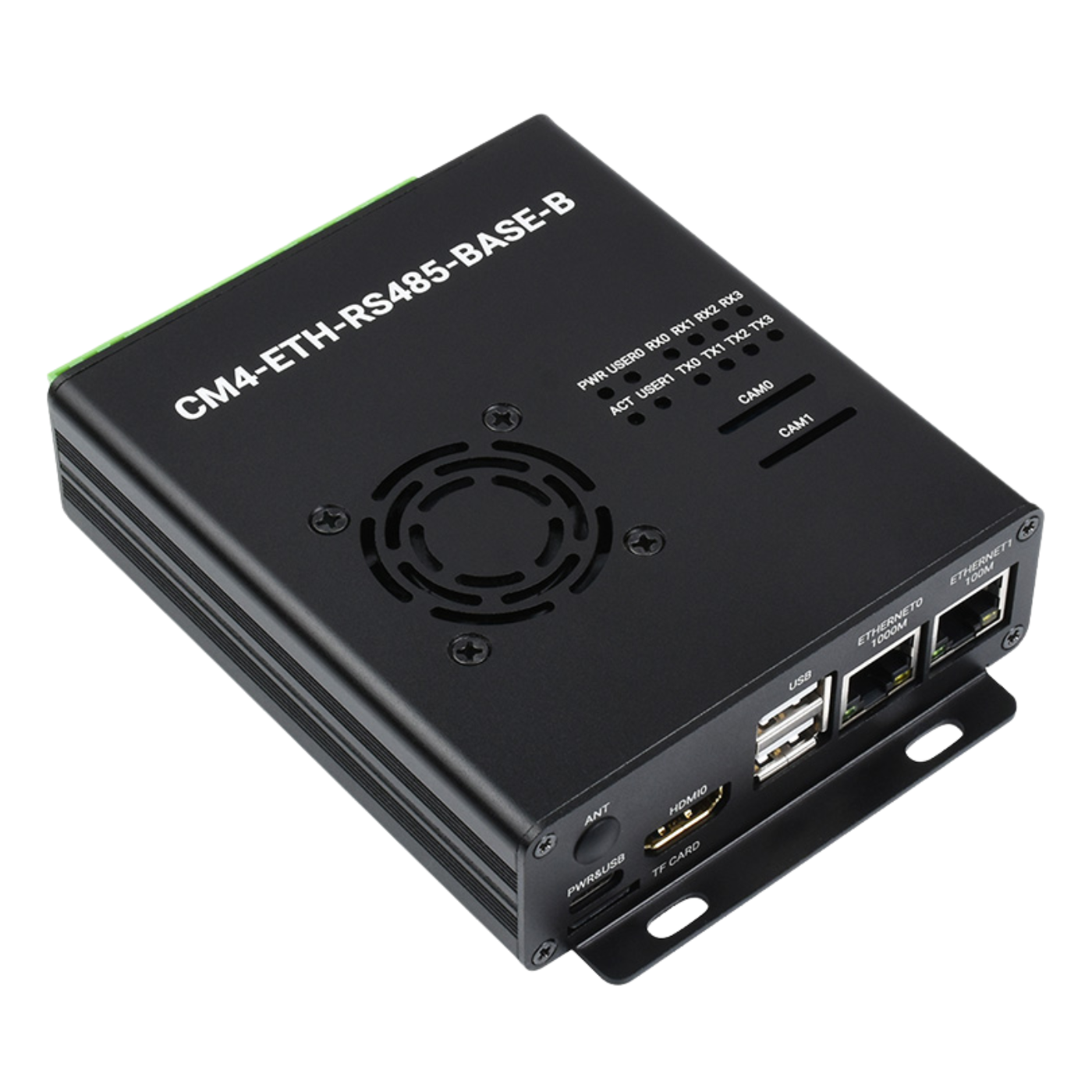

The Waveshare CM4-ETH-RS485-BOX-B-EU Dual ETH Mini Computer is a compact industrial computing platform designed for the Raspberry Pi Compute Module 4, combining dual Ethernet networking with 4-channel isolated RS485 communication in a convenient enclosed form factor. It features 1 × Gigabit Ethernet RJ45 port and 1 × 100M Ethernet RJ45 port, along with 2 × USB 2.0 Type-A interfaces for peripheral connectivity.
For industrial communication and automation projects, the 4 × isolated RS485 channels provide multi-channel serial communication, while the 7–36V DC wide-voltage input supports flexible power integration. The unit also provides 1 × HDMI port with 4K 30fps output, 2 × MIPI CSI-2 camera interfaces, an RTC with battery socket, a MicroSD card slot for CM4 Lite variants, and a 5V fan header.
With dimensions of 123 × 98 × 32mm, this Raspberry Pi CM4 mini computer is well suited for industrial IoT, automation, data communication, and applications requiring multiple RS485 devices and network interfaces.
Features:
- Designed to work with the Raspberry Pi Compute Module 4.
- Provides reliable network connectivity through Gigabit Ethernet and 100M Ethernet.
- Supports four isolated RS485 interfaces for multi-device industrial communication.
- Accepts a 7–36V DC power supply for flexible installation.
- Includes 2 × USB 2.0 Type-A ports for external peripherals.
- Supports up to 4K at 30fps display output.
- Features 2 × MIPI CSI-2 interfaces for compatible cameras.
- Measures 123 × 98 × 32mm, suitable for space-constrained installations.
- Ideal for industrial automation, IoT gateways, data acquisition, smart control systems, and communication projects.
- Includes a 5V fan interface to help maintain stable operating temperatures.

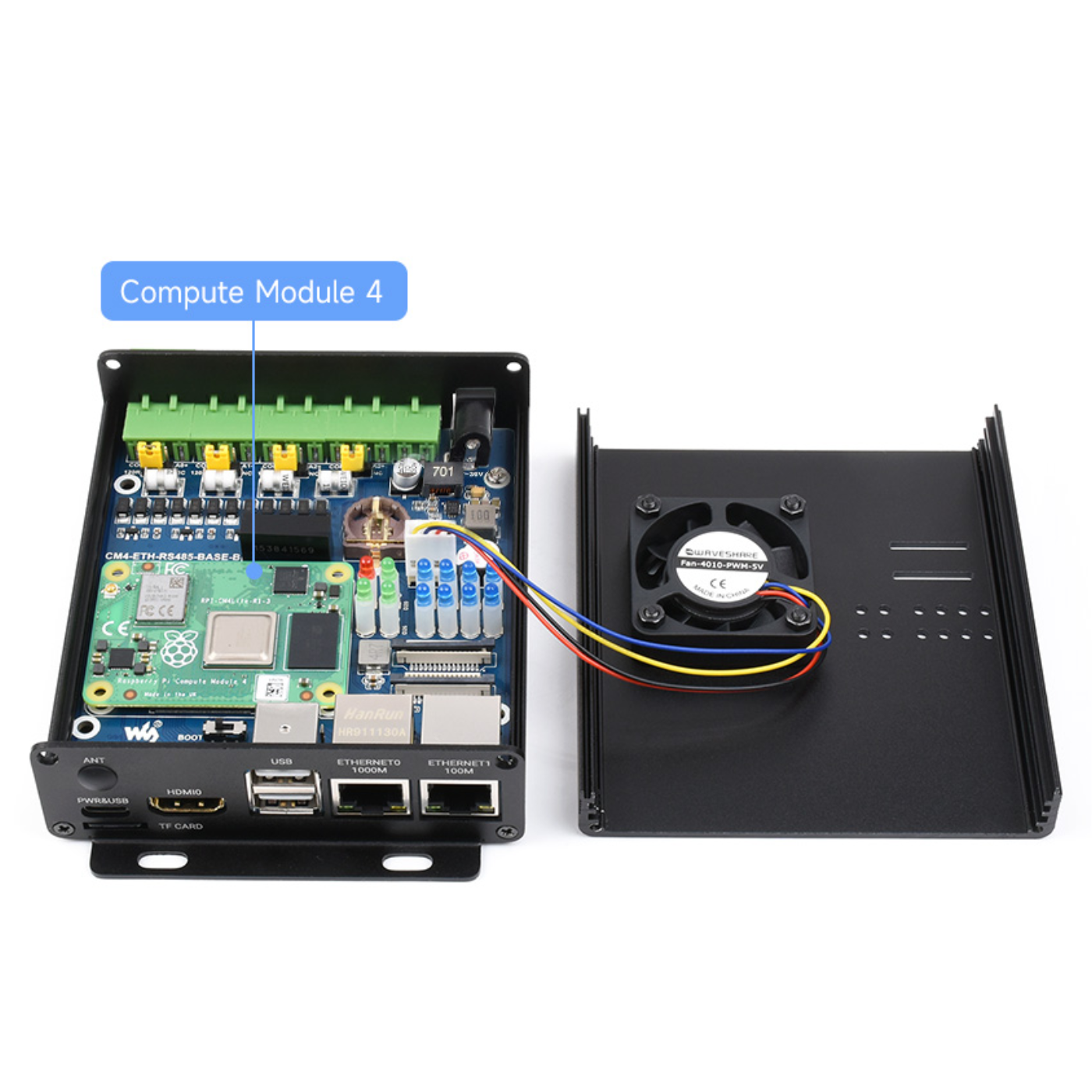

Package Includes:
- 1 x CM4-ETH-RS485-BASE-B
- 1 x Metal case (top and bottom)
- 1 x Fan
- 1 x OPTIONS12V 2A Power Supply
- 1 x Screwdriver
- 1 x Antenna connector rubber plug
- 1x Screws pack
Specifications:
| Specification | Details |
|---|---|
| CM4 Socket | Suitable for all variants of Raspberry Pi Compute Module 4 |

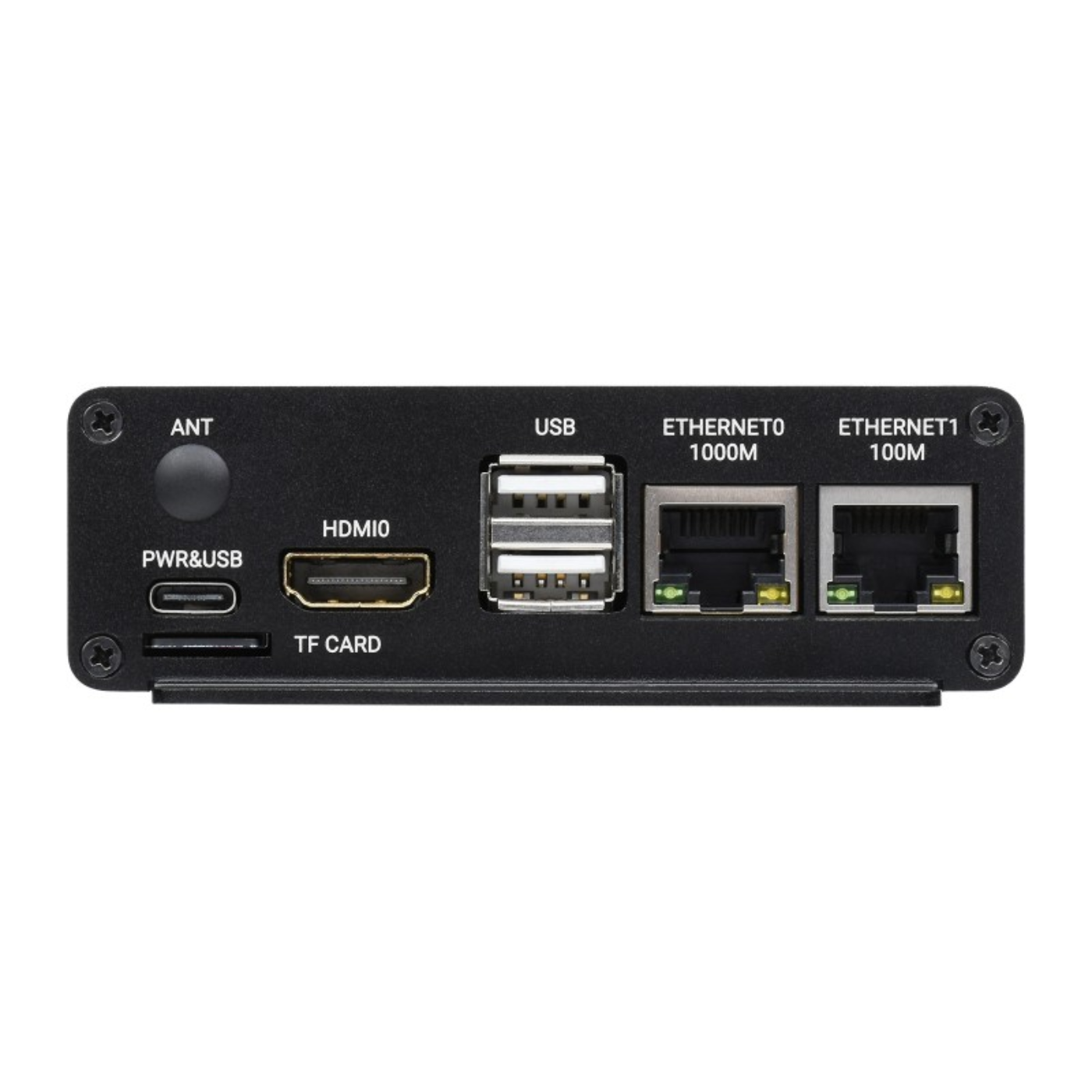

| Networking | Gigabit Ethernet RJ45 × 1, 100M Ethernet RJ45 × 1 |
| USB | USB 2.0 Type-A × 2 |

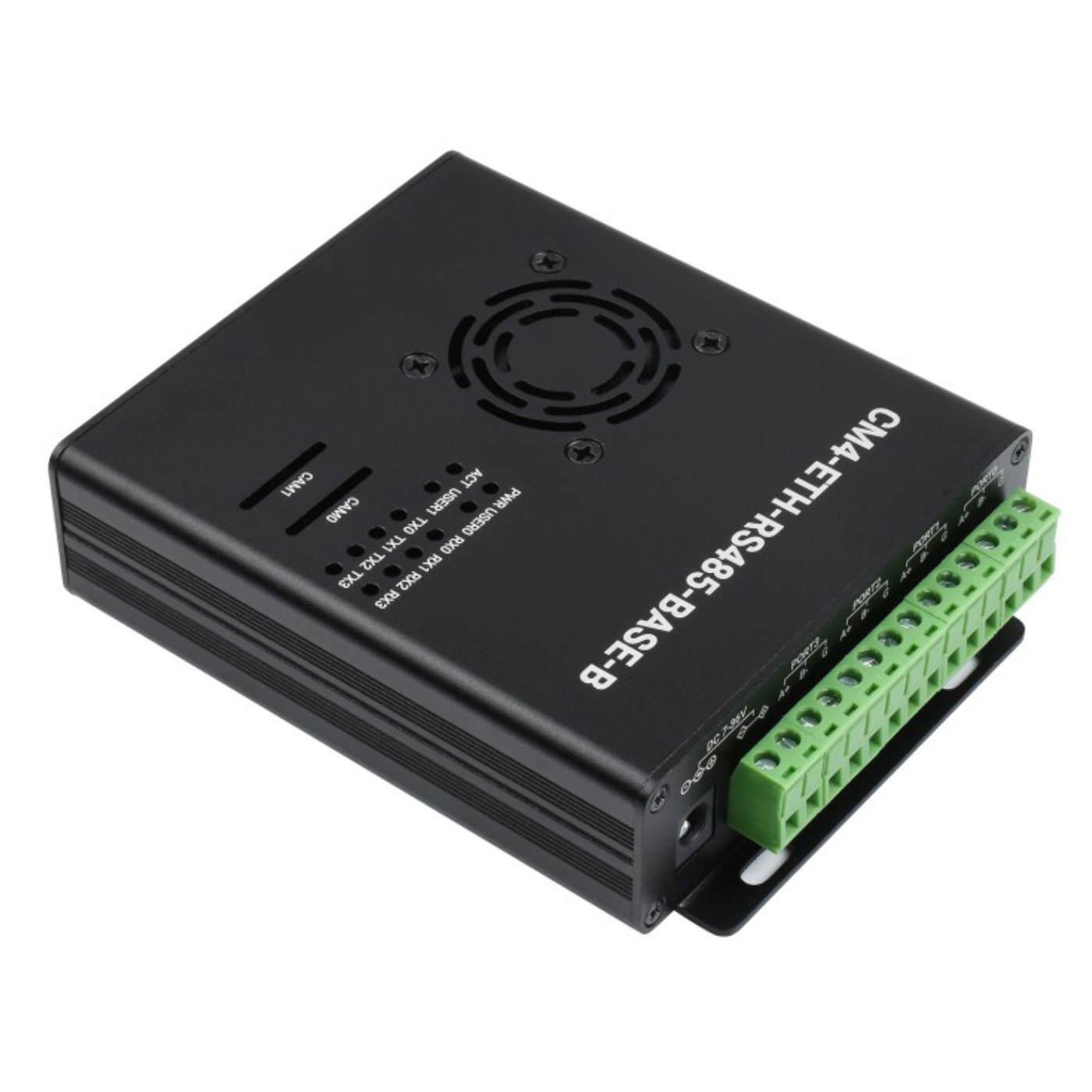

| RS485 | Isolated RS485 × 4 |
| Power Connector | Power screw terminal × 1 |
| Camera Interface | MIPI CSI-2 × 2, 15-pin 1.0mm FPC connector |
| Video Output | HDMI × 1, supports 4K 30fps output |
| RTC | Real-time clock with battery socket and ability to wake Compute Module 4 |
| Storage | MicroSD card socket for Compute Module 4 Lite variants without eMMC |
| Fan Header | 5V, supports fan speed adjustment |

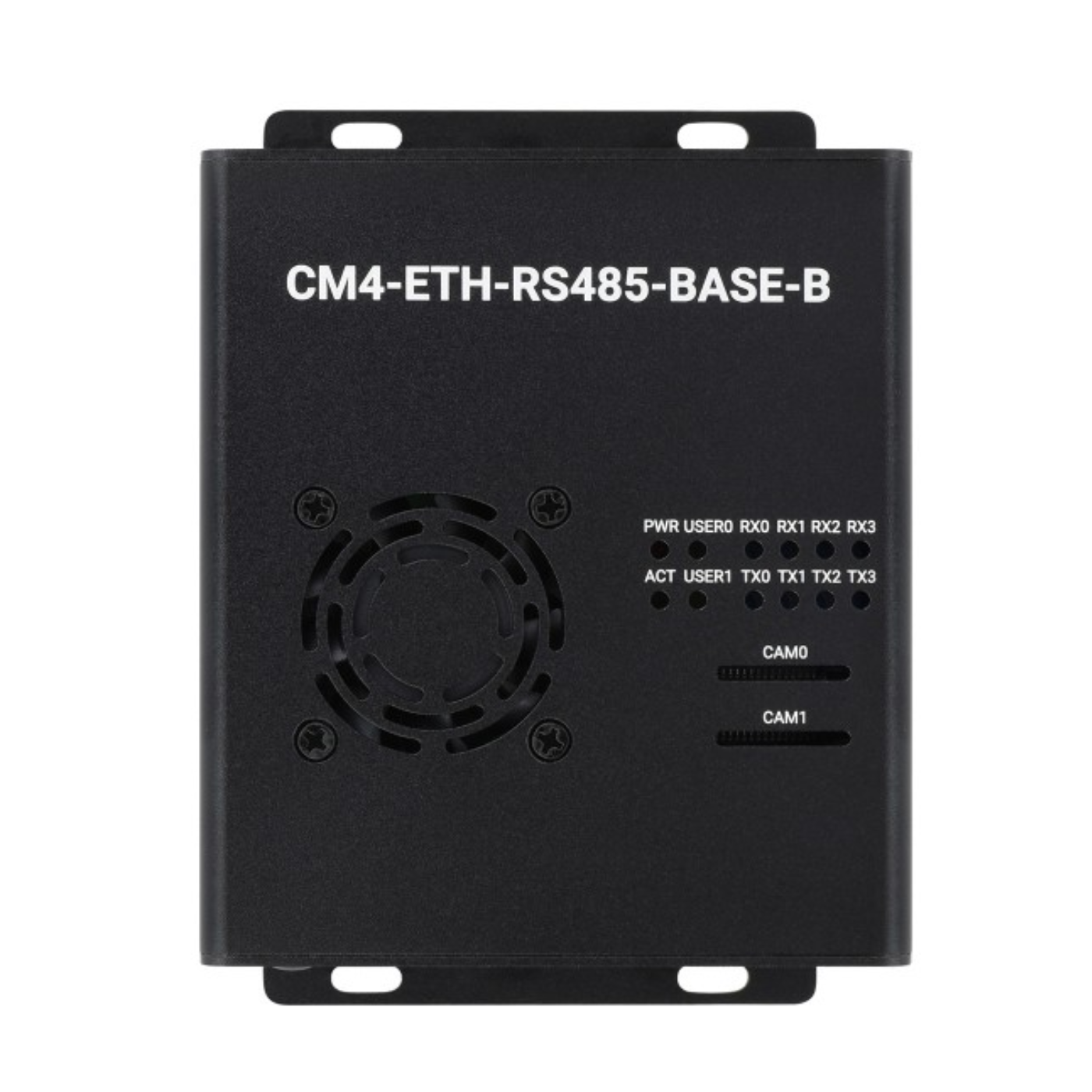

| Indicators | Power indicator × 1, CM4 status indicator × 1, User LED × 2, RS485 communication indicator × 8 |
| Power Input | 7–36V DC |

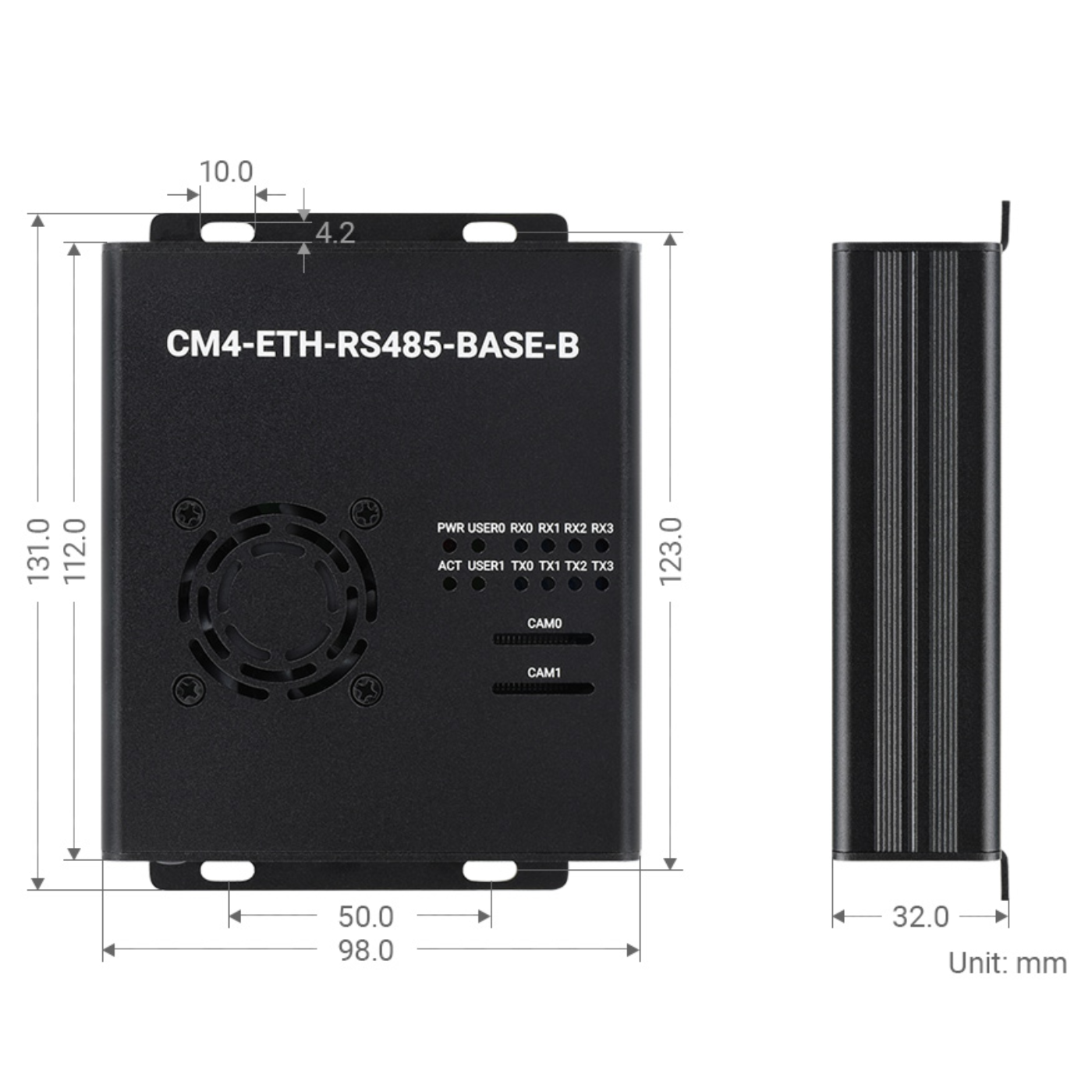

| Dimensions | 123 × 98 × 32mm |
