Waveshare Aluminum Alloy Case for Jetson Orin with Camera Holder - Buy Online in India
Waveshare Aluminum Alloy Case for Jetson Orin with Camera Holder
- Rs 1,549/-
- Rs 1,549/-
-
Rs 2,324/-
- 33%
Save Rs 775/-
RC REWARDS
Earn
15
RC Coins
on this order
Incl. GST (No Hidden Charges)
Found a better price?
Let us know!
We'll try to match the price for you
Please hurry! Only 0 left in stock
We’ll notify you once the product is back in stock.
SKU:
TIFAC0271
Couldn't load pickup availability
Waveshare Aluminum Alloy Case for Jetson Orin with Camera Holder
Waveshare Aluminum Alloy Case for Jetson Orin with Camera Holder
Waveshare Aluminum Alloy Case for Jetson Orin with Camera Holder

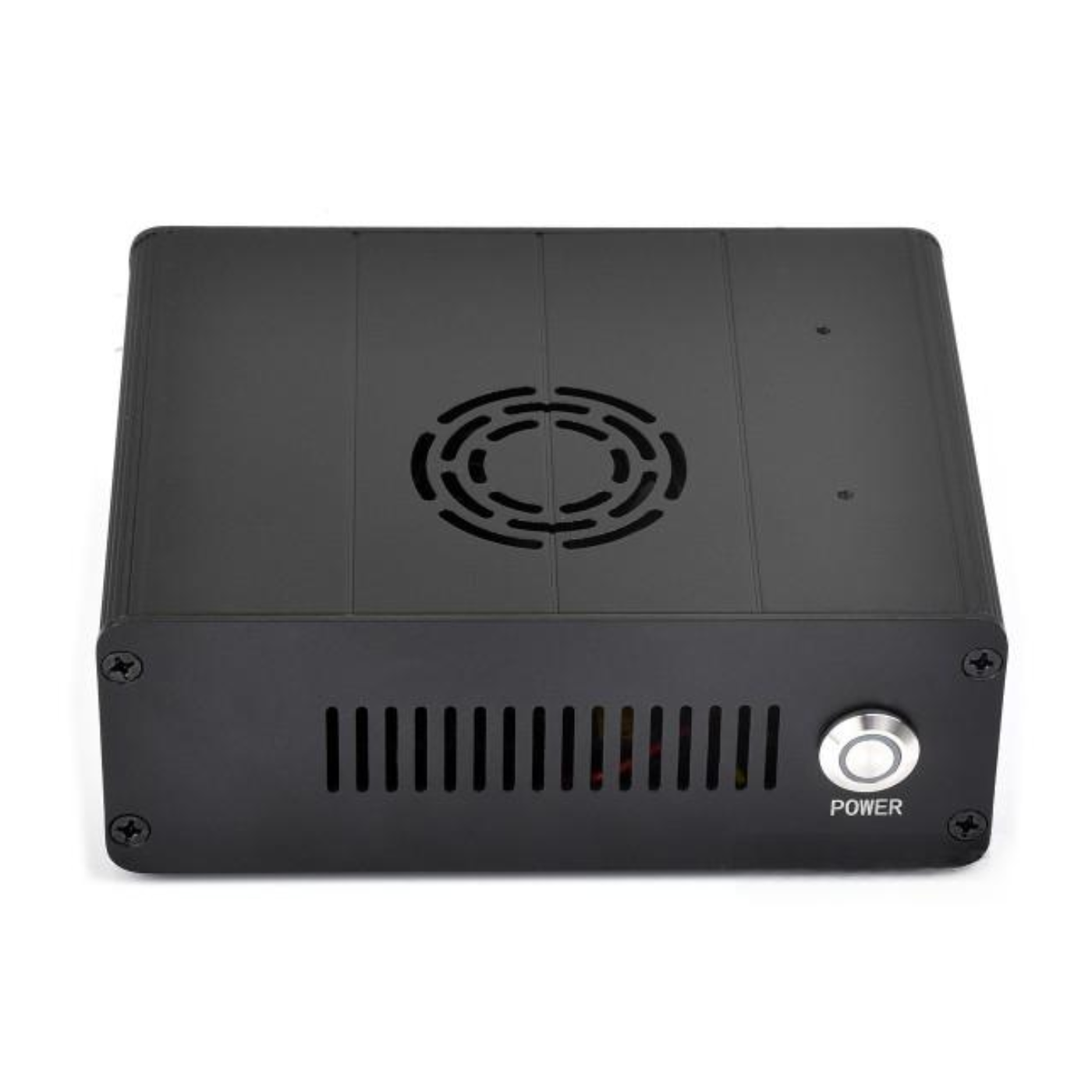

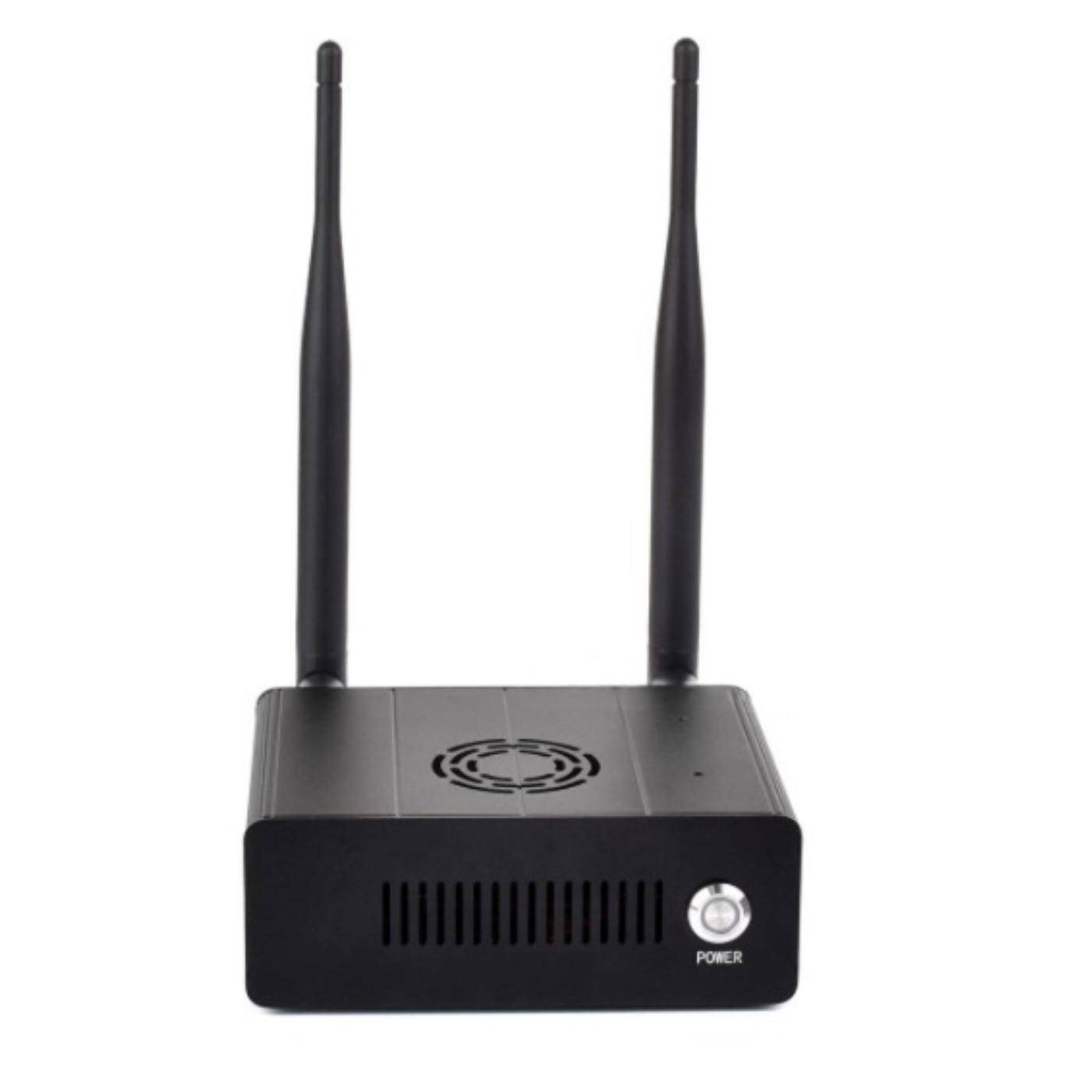

The Waveshare Aluminum Alloy Case for Jetson Orin with Camera Holder (JETSON-ORIN-CASE-A) is a rugged and precisely designed enclosure for Jetson Orin Nano and Jetson Orin NX kits. Made from aluminum alloy, it combines protection with efficient thermal management through three-side airflow vents and dedicated top openings for the built-in fan, supporting both active and passive cooling.

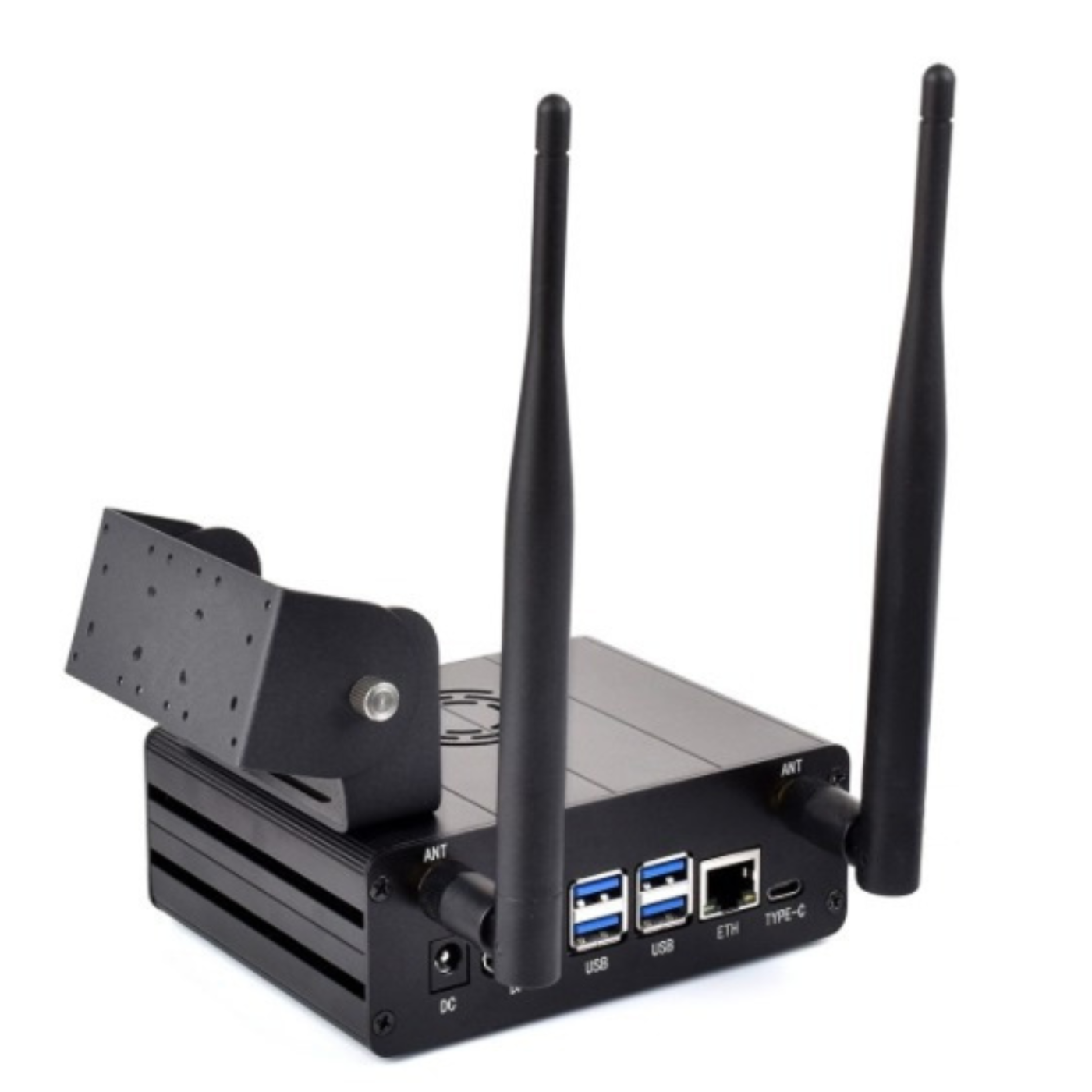

The integrated camera holder features mounting holes for single or binocular cameras and allows adjustment of up to 180°, making it suitable for computer vision, robotics, AI, and edge-computing projects. Precise openings provide convenient access to the board interfaces, while the included 2×20-pin (40-pin) flat ribbon cable of approximately 55 mm keeps GPIO access convenient after installation.
The case also features a power indicator, silicone non-slip feet, and reserved DIN rail mounting holes for flexible deployment. The enclosure measures approximately 122 × 95 × 91 mm and weighs around 470 g. The Jetson Orin kit and camera are not included.
Features:
- Durable and sturdy protection.
- Designed for Orin Nano and Orin NX kits.
- Supports single or binocular cameras.
- Three-side ventilation with top fan openings.
- Includes a 55 mm 2×20-pin ribbon cable.
- Desktop use with DIN rail mounting holes.
- Measures 122 × 95 × 91 mm.
- Provides stable placement and better airflow.

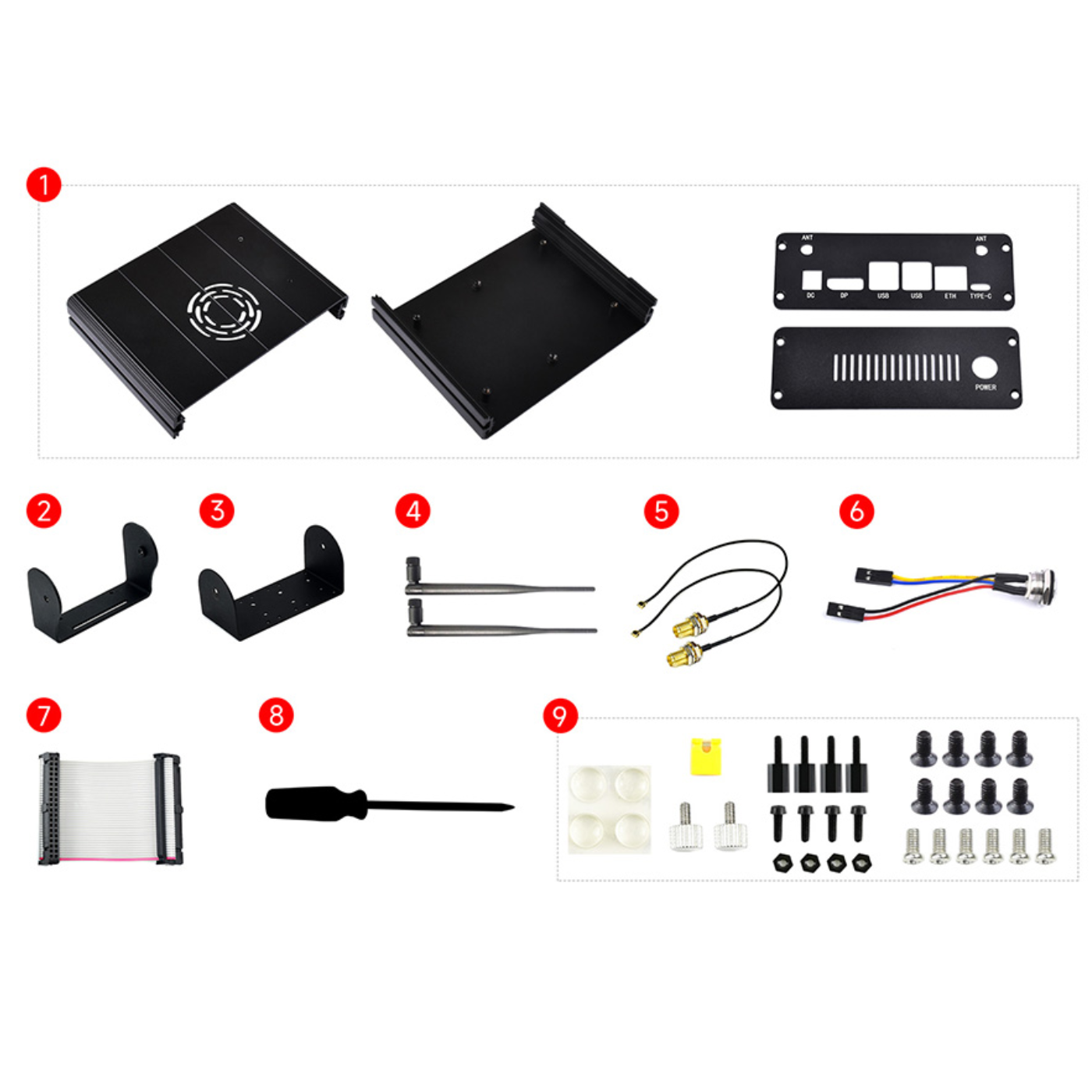

Package Includes:
- 1 x Aluminum body case (top and bottom + side plates)
- 1 x Camera holder bottom mount
- 1 x Camera holder top mount
- 1 x Antenna (2PCS)
- 1 x IPEX4 to SMA cable (2PCS)
- 1 x Button with 4PIN wires
- 1 x Flat ribbon cable 2*20PIN ~55mm
- 1 x Screwdriver
- 1 x Screws pack and accessories
Specifications:
| Specification | Details |
|---|---|
| Model | JETSON-ORIN-CASE-A |
| Material | Aluminum Alloy |
| Compatible Boards | Jetson Orin Nano & Jetson Orin NX Kits |
| Camera Support | Single / Binocular Camera |
| Camera Adjustment | Up to 180° |
| Cooling | Active + Passive Cooling |
| Airflow | Three-Side Ventilation + Top Fan Openings |
| GPIO Access | 40-Pin Header |
| Ribbon Cable | 2×20-Pin, approx. 55 mm |
| Dimensions | 122 × 95 × 91 mm |
| Weight | Approx. 470 g |
| Mounting | Desktop + Reserved DIN Rail Holes |
| Feet | Silicone Non-Slip Feet |
