Waveshare 8-Channel Industrial Modbus RTU Relay Module (D)

Waveshare 8-Channel Industrial Modbus RTU Relay Module (D) – RS485 Interface, Digital Input & 7–36V Power Supply

Rs 3,999/-
- 33%
Rs 3,999/-
Rs 5,999/-
Save Rs 2,000/-
🪙
RC REWARDS Earn 39 RC Coins on this order
Incl. GST (No Hidden Charges)
Please hurry! Only 0 left in stock

We’ll notify you once the product is back in stock.

Free Delivery Above ₹999

Technical Support & Easy Returns

Same-Day Shipping (Order by 3 PM on Business Days)

Earn RC Coins on Every Prepaid Order

COD Available on Order Value Between ₹500 to ₹3,000
SKU: TIFKT0387
  • 8-channel industrial relay module with RS485 communication and standard Modbus RTU protocol.
  • 7–36V DC power supply supports a wide range of industrial power sources.
  • 8 digital inputs support 5–36V passive/active NPN or PNP signals.
  • Each relay supports a contact load of ≤10A at 250V AC or ≤10A at 30V DC.
  • Features multi-isolation protection, including power isolation, magnetic isolation and TVS protection.
  • Supports 4800 to 256000 baud rates with a default communication format of 9600, N, 8, 1.
  • Offers Normal, Linkage, Toggle and Edge Trigger relay control modes.
  • Designed for industrial automation, PLC systems, remote I/O control and equipment switching.

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here
+91

File(s) size limit is 20MB. Max 3 files.

Select Categories
CAPTCHA
Reload Captcha
Robocraze Academy Limited Time Offer
Waveshare 8-Channel Industrial Modbus RTU Relay Module (D) – RS485 Interface, Digital Input & 7–36V Power Supply -Electronic Modules -Relays -Robocraze
Waveshare 8-Channel Industrial Modbus RTU Relay Module (D) – RS485 Interface, Digital Input & 7–36V Power Supply
Rs 5,999/- Rs 3,999/-
Waveshare 8-Channel Industrial Modbus RTU Relay Module (D) – RS485 Interface, Digital Input & 7–36V Power Supply -Electronic Modules -Relays -Robocraze
Waveshare 8-Channel Industrial Modbus RTU Relay Module (D) – RS485 Interface, Digital Input & 7–36V Power Supply -Electronic Modules -Relays -Robocraze
Waveshare 8-Channel Industrial Modbus RTU Relay Module (D) – RS485 Interface, Digital Input & 7–36V Power Supply -Electronic Modules -Relays -Robocraze
Waveshare 8-Channel Industrial Modbus RTU Relay Module (D) – RS485 Interface, Digital Input & 7–36V Power Supply -Electronic Modules -Relays -Robocraze
Waveshare 8-Channel Industrial Modbus RTU Relay Module (D) – RS485 Interface, Digital Input & 7–36V Power Supply -Electronic Modules -Relays -Robocraze
Waveshare 8-Channel Industrial Modbus RTU Relay Module (D) – RS485 Interface, Digital Input & 7–36V Power Supply -Electronic Modules -Relays -Robocraze
Waveshare 8-Channel Industrial Modbus RTU Relay Module (D) – RS485 Interface, Digital Input & 7–36V Power Supply -Electronic Modules -Relays -Robocraze

Waveshare 8-Channel Industrial Modbus RTU Relay Module (D) – RS485 Interface, Digital Input & 7–36V Power Supply

Rs 5,999/- Rs 3,999/-
Description

Waveshare 8-Channel Industrial Modbus RTU Relay Module (D) – RS485 Interface, Digital Input & 7–36V Power Supply

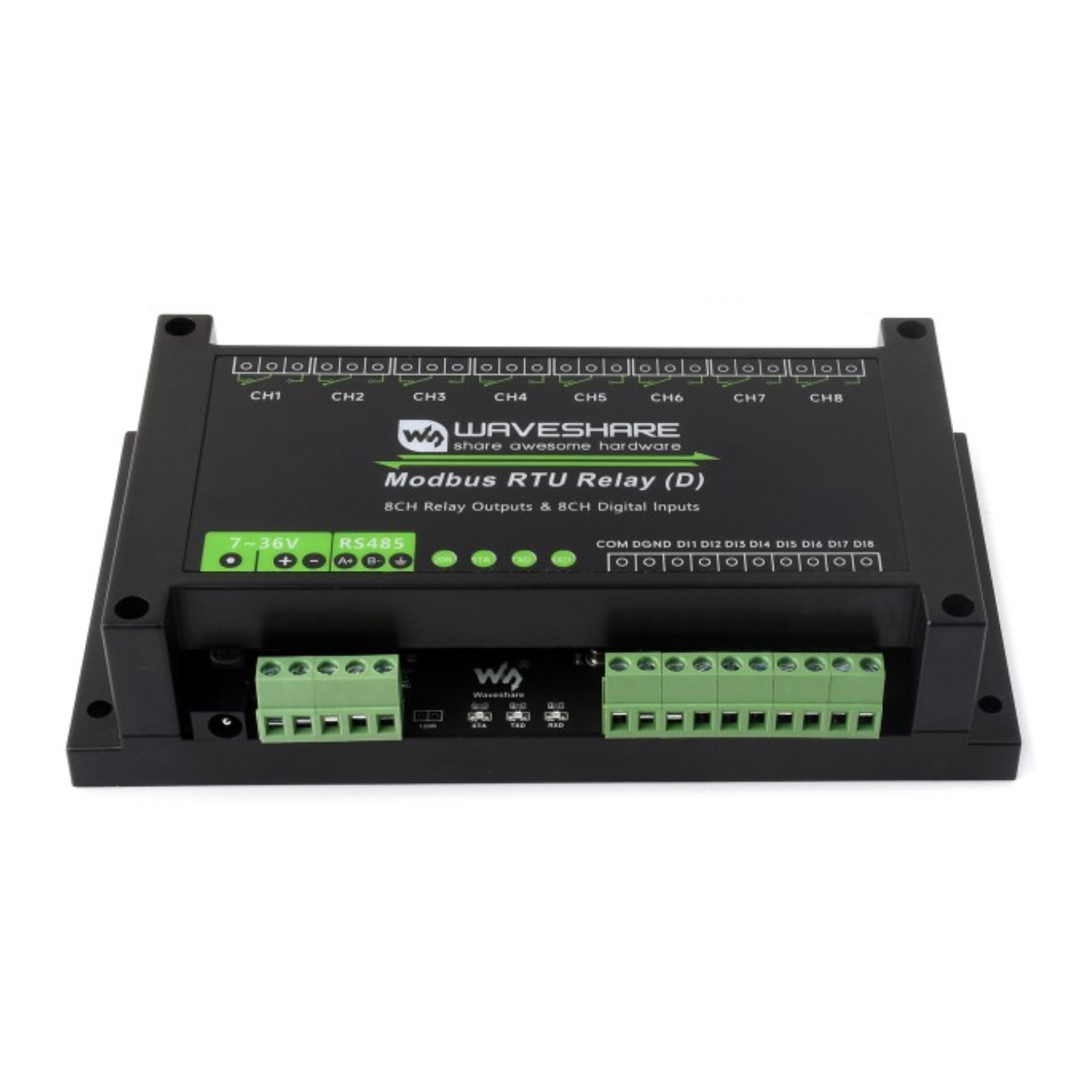

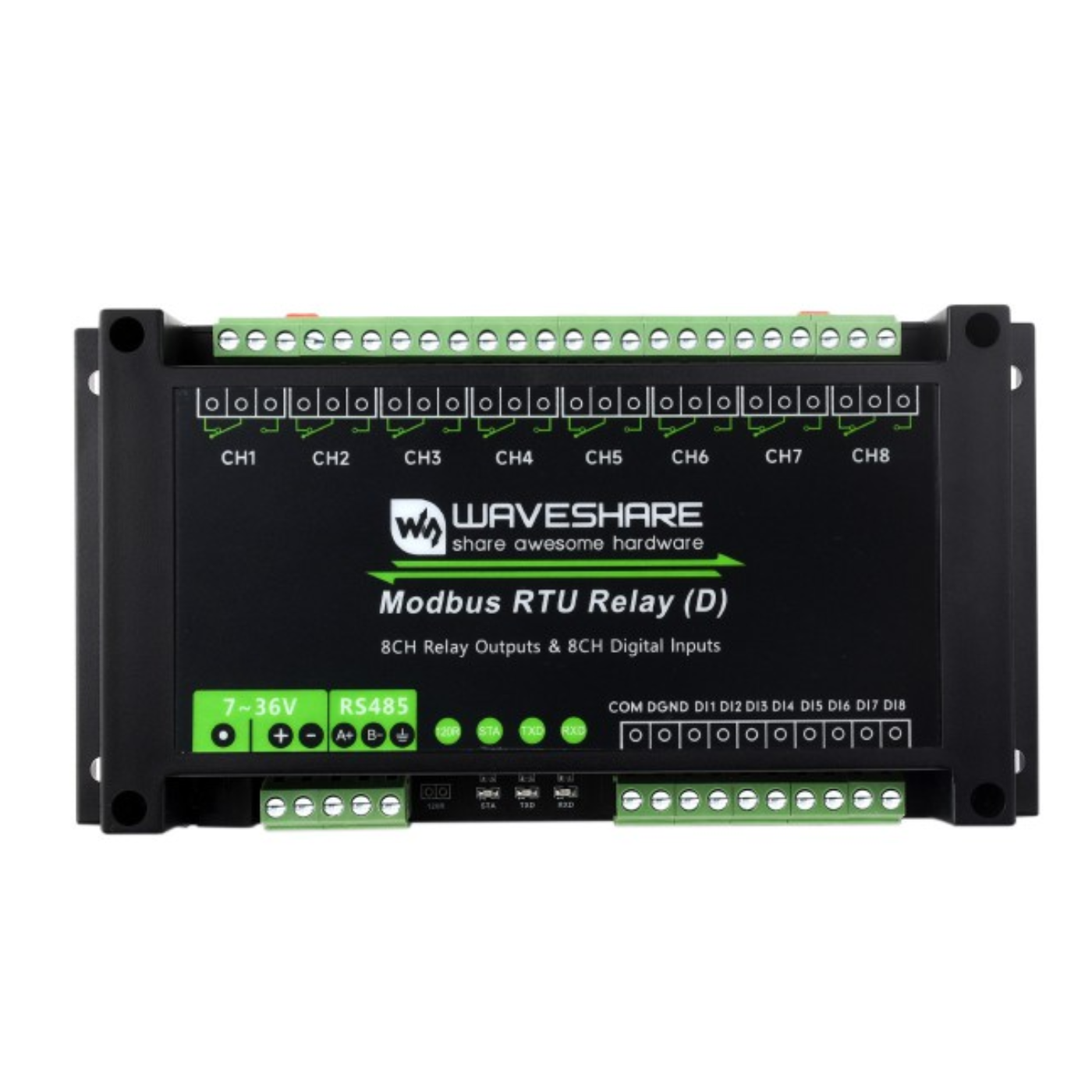

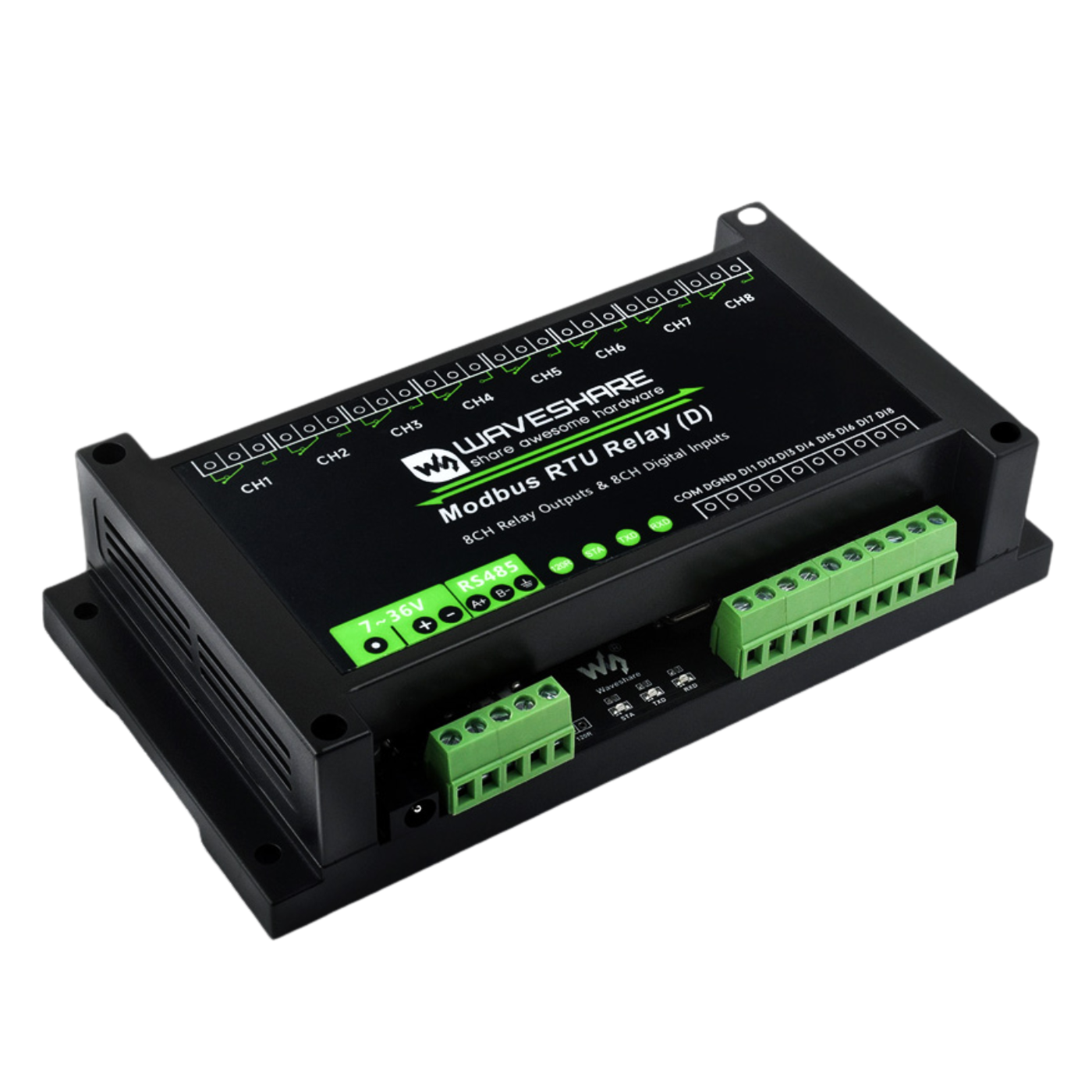

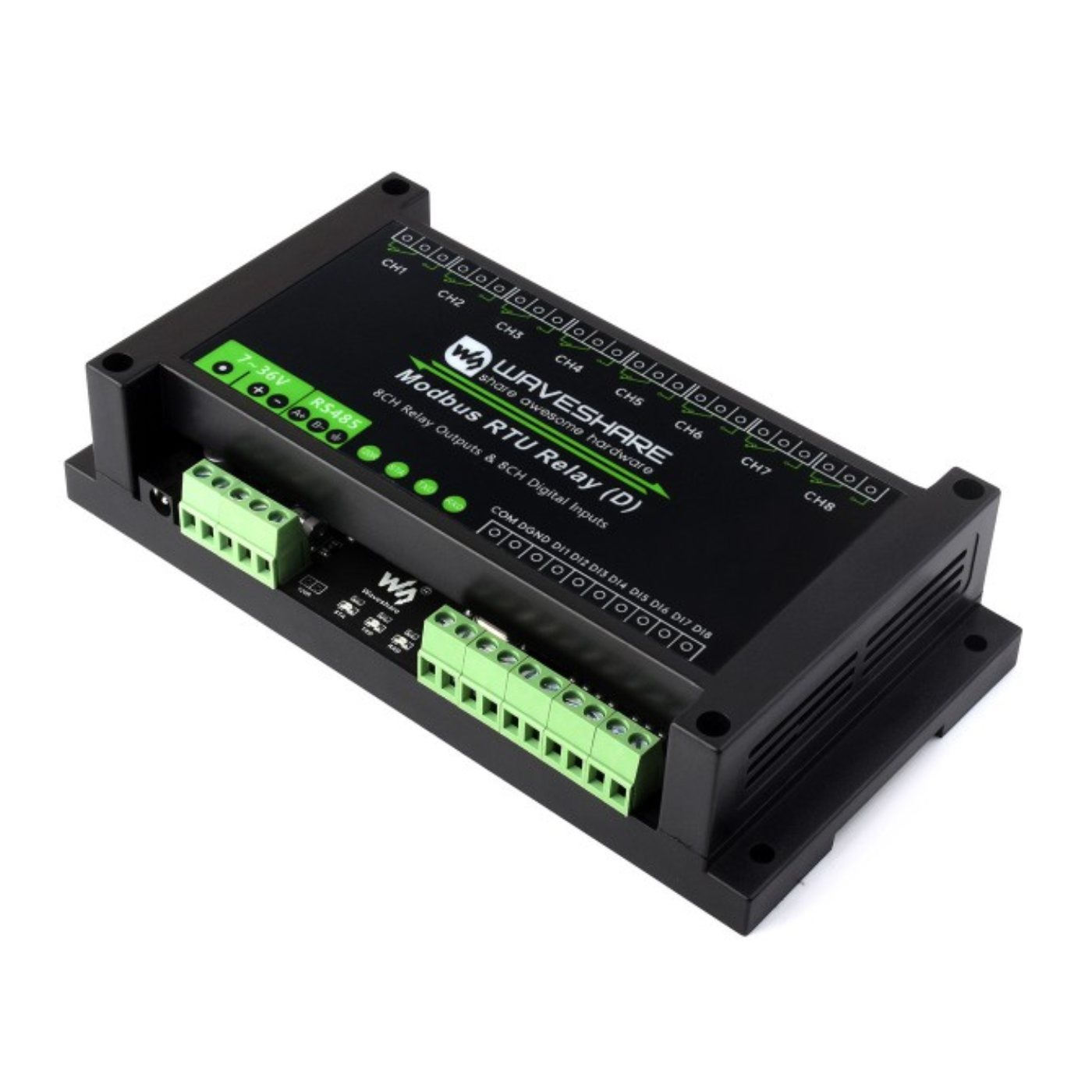

The Waveshare 8-Channel Industrial Modbus RTU Relay Module (D) is an industrial-grade RS485 relay module designed for reliable remote switching and digital signal monitoring in automation and control systems. It provides 8 relay channels and 8 digital inputs, communicating through the standard Modbus RTU protocol over RS485.

The module operates from a DC 7–36V power supply, while each relay uses a 1NO 1NC contact form and supports a contact load of ≤10A at 250V AC or ≤10A at 30V DC. Its digital inputs accept 5–36V passive or active signals and support both NPN and PNP input configurations through built-in bidirectional optocouplers.

Communication supports baud rates from 4800, 9600, 19200, 38400, 57600, 115200, 128000 to 256000, with 9600, N, 8, 1 as the default format and an RS485 address range of 1–255. The module also provides Normal, Linkage, Toggle and Edge Trigger control modes, making it suitable for industrial automation, PLC control, remote relay switching, digital input monitoring and Modbus-based control systems. Built-in power isolation, magnetic isolation and TVS protection further improve reliability in demanding industrial environments.

Features:

  • Cascade several devices on the RS485 bus with configurable device addresses (1-255).
  • Features flash-on and flash-off functions; by giving an argument to the command, it is possible to turn on the relay for a while and then close it automatically.

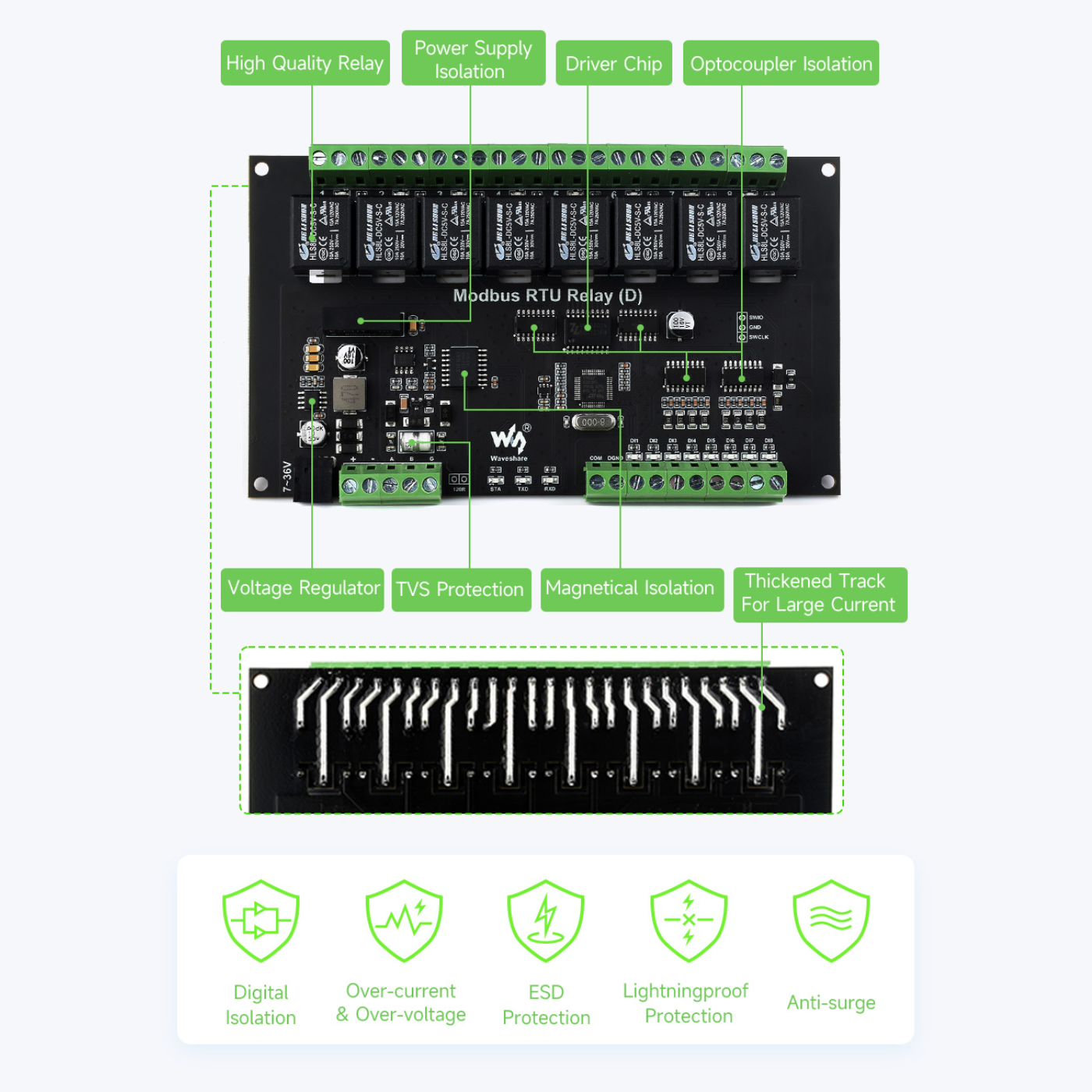

  • Onboard unibody power supply separation delivers stable isolated voltage and does not require an additional power source for the isolated terminal.
  • Onboard unibody magnetic isolation provides signal isolation, great reliability, robust anti-interference, and low power consumption.
  • Onboard resettable fuse and TVS (Transient Voltage Suppressor) effectively suppress surge voltage and transient spike voltage in the circuit, providing over-current/over-voltage proof, lightningproof, and anti-electrostatic.
  • Onboard Optocoupler isolation protects the relay from interference from high-voltage circuits.
  • Adopts dedicated relay driver chip, with built-in flyback diode protection, for stronger and more steady driving.
  • Supports both passive and active digital input, with bidirectional optocoupler separation and a built-in debouncing mechanism. The relay provides digital input linkage control and toggle control.
  • Reverse-proof circuit prevents the circuit from being accidently destroyed by an incorrect connection.
  • High-quality relay with contact rating of ≤10A at 250VAC/30VDC.

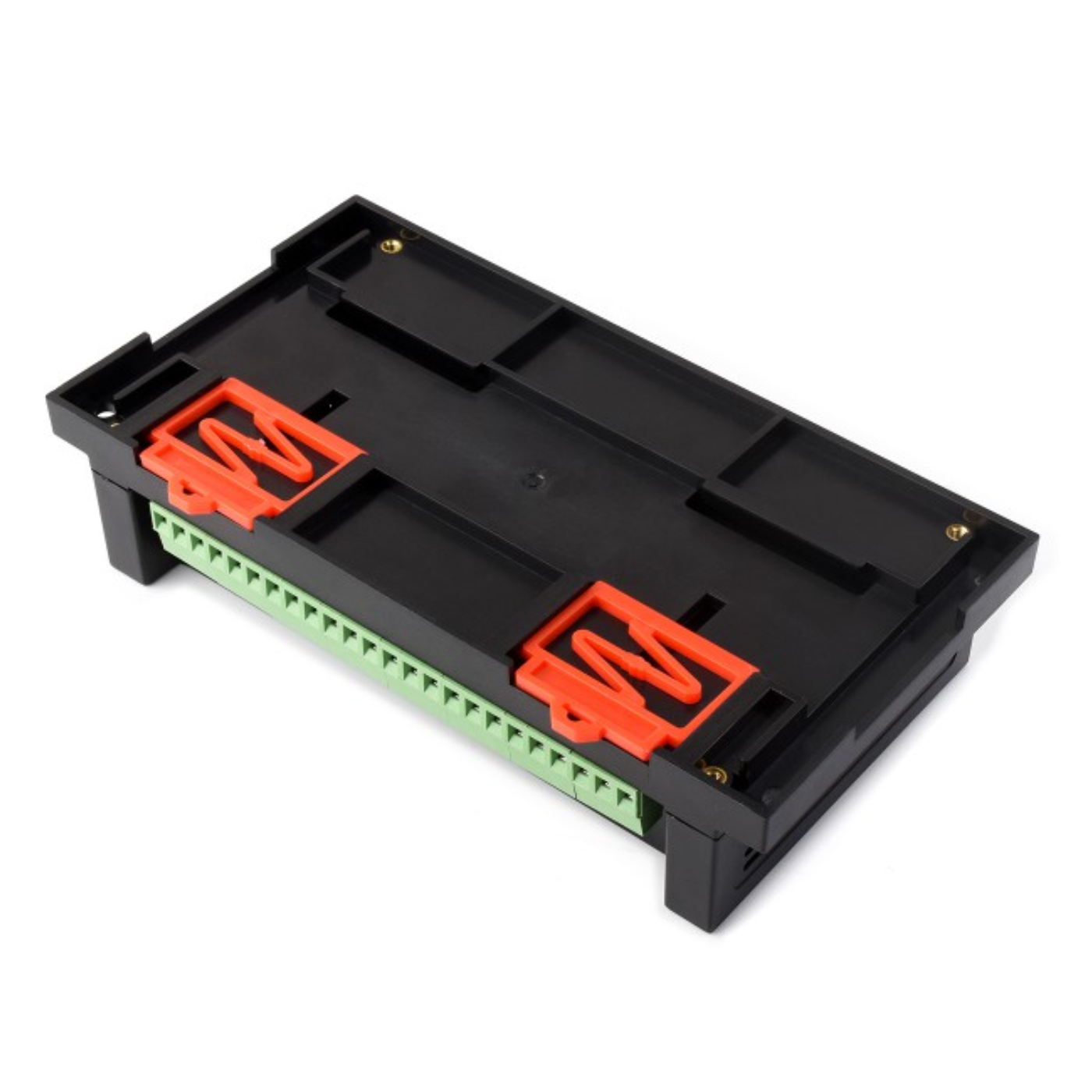

  • Rail-mounted ABS plastic enclosure is easy to install and safe to use.
  • Multiple LEDs for indicating the MCU state and signal transmission status
Specifications

Package Includes:

  • 1 x Modbus RTU Relay (D)
  • 1 x Screwdriver

Specifications:

Specification Details
Power Supply 7–36V DC
Communication Interface RS485
Communication Protocol Standard Modbus RTU
Baud Rate 4800, 9600, 19200, 38400, 57600, 115200, 128000, 256000
Default Communication Format 9600, N, 8, 1
Relay Channels 8
Contact Form 1NO 1NC
Contact Rating ≤10A at 250VAC / 30VDC
Digital Inputs 8DI, 5–36V
Digital Input Type Passive / Active input (NPN or PNP)
Input Isolation Built-in bidirectional optocoupler isolation
RS485 Address 1–255
LED Indicators STA, TXD, RXD
STA Indicator Flashes when the MCU is operating normally
TXD Indicator Lights up when transmitting data
RXD Indicator Lights up when receiving data
