Waveshare 7-Inch 1280×800 HDMI IPS Capacitive Touch Display
Waveshare 7-Inch 1280×800 HDMI IPS Capacitive Touch Display with Optical Bonding & Toughened Glass
- Rs 10,289/-
- Rs 10,289/-
-
Rs 14,713/-
- 30%
Save Rs 4,424/-
RC REWARDS
Earn
102
RC Coins
on this order
Incl. GST (No Hidden Charges)
Found a better price?
Let us know!
We'll try to match the price for you
Please hurry! Only 0 left in stock
We’ll notify you once the product is back in stock.
SKU:
TIFDP0120
Couldn't load pickup availability
Waveshare 7-Inch 1280×800 HDMI IPS Capacitive Touch Display with Optical Bonding & Toughened Glass
Waveshare 7-Inch 1280×800 HDMI IPS Capacitive Touch Display with Optical Bonding & Toughened Glass
Waveshare 7-Inch 1280×800 HDMI IPS Capacitive Touch Display with Optical Bonding & Toughened Glass
The Waveshare 7-Inch 1280×800 HDMI IPS Capacitive Touch Display is a compact touchscreen designed for projects that need clear visuals and intuitive touch control. Its 7-inch IPS display provides a 1280 × 800 resolution and a 178° viewing angle, while the wide-color-gamut LED technology supports up to NTSC 68% color gamut for richer and more vivid colors.
The display features a 10-point capacitive touch panel, with the actual number of supported touch points depending on the operating system. Its optical bonding technology helps improve image clarity and provides a dust-resistant display structure, while the up to 6H toughened glass panel adds durability.
With an HDMI display interface, USB Type-C touch connection, 350 cd/m² brightness, and DDC/CI brightness control, it is well suited for Raspberry Pi projects, embedded systems, Jetson development boards, DIY interfaces, kiosks, and interactive applications.
Features:
- 7-Inch IPS Display – Delivers clear and vibrant visuals with a 1280 × 800 resolution.
- 10-Point Capacitive Touch – Supports responsive multi-touch interaction for intuitive control.
- Wide Color Gamut – Provides up to NTSC 68% color gamut for richer and more natural colors.
- Optical Bonding Technology – Reduces the gap between the display and touch panel for improved visibility and a cleaner viewing experience.
- 6H Toughened Glass – Provides a durable and scratch-resistant touch surface for everyday use.
- 178° Viewing Angle – Maintains consistent image quality and colors when viewed from different angles.
- HDMI Display Interface – Enables easy connection with Raspberry Pi, Jetson boards, PCs, and other HDMI-compatible devices.
- USB Type-C Touch Interface – Provides a convenient connection for touch control.
- 350 cd/m² Brightness – Offers good screen visibility for indoor applications and embedded projects.
- Compact Touchscreen Solution – Suitable for DIY projects, embedded systems, kiosks, smart interfaces, and interactive displays.
Package Includes:
- 1 x 7EP-CAPLCD
- 1 x HDMI flat cable ~1m
- 1 x USB Type-A to Type-C cable ~1m
- 1 x Cleaning cloth
- 1 x Micro HDMI Adapter
- 1 x HDMI Adapter
- 1 x Button board
- 1 x 3PIN cable
- 1 x HDMI to Micro HDMI Adapter
- 1 x FFC 20PIN cable 2pcs
- 1 x 1.27H 4PIN cable
- 1 x PH1.25 4PIN to Type-A cable
- 1 x Screws pack
Specifications:
| Specification | Details | Unit |
|---|---|---|
| Model | 7EP-CAPLCD | / |
| Display Size | 7.0 | Inch |
| Panel Type | IPS | / |
| Viewing Angle | 178 | Degrees |
| Resolution | 1280 × 800 | Pixels |

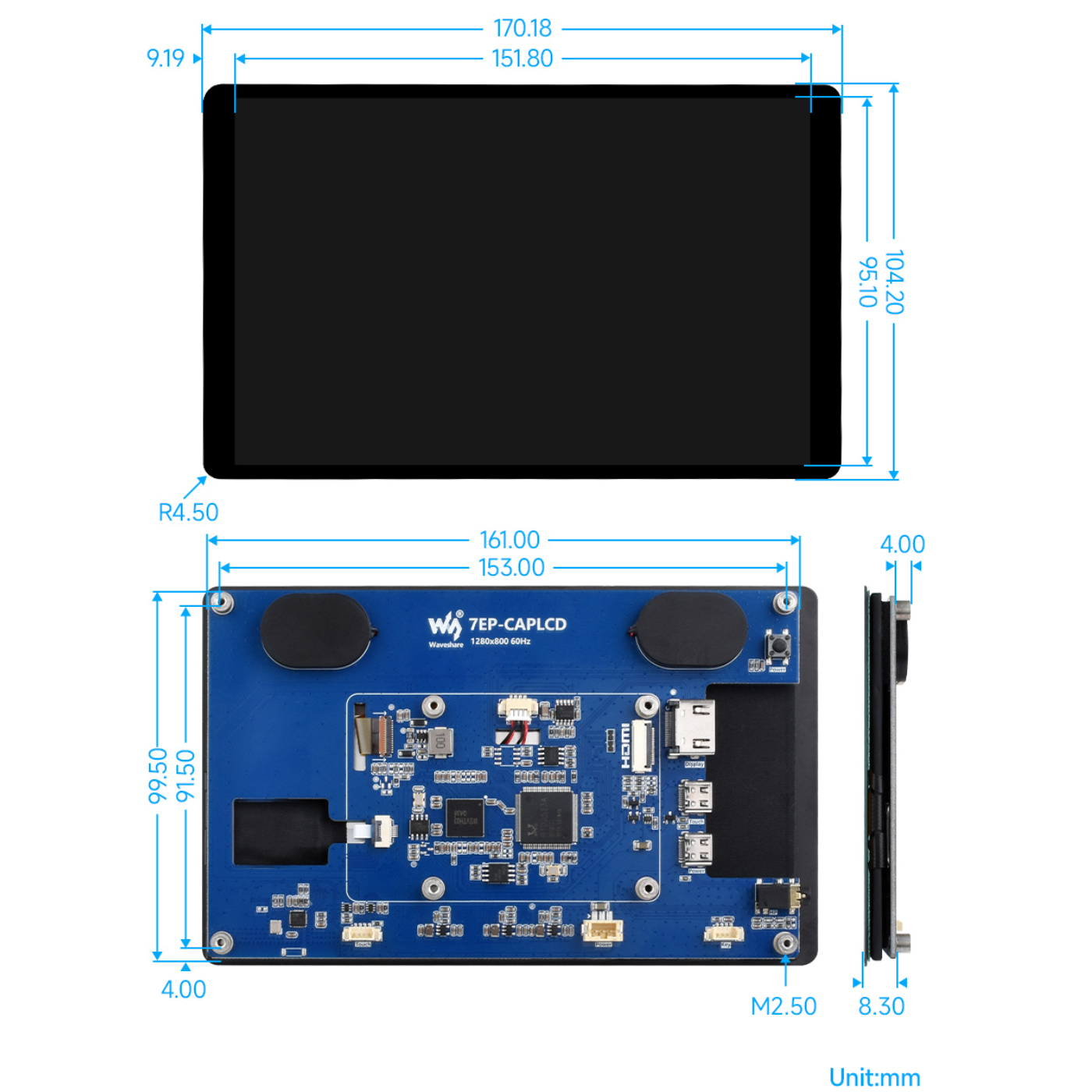

| Touch Screen Size | 170.18 (H) × 104.20 (V) | mm |
| Display Area | 150.72 (H) × 94.20 (V) | mm |
| Pixel Pitch | 0.11775 (H) × 0.11775 (V) | mm |
| Color Gamut | 68 | % NTSC |
| Maximum Brightness | 350 | cd/m² |
| Contrast Ratio | 800:1 | / |
| Backlight Adjustment | OSD adjustment or DDC/CI backlight adjustment | / |
| Refresh Rate | 60 | Hz |
| Display Interface | Standard HDMI interface | / |
| Power Interface | 5V Type-C power supply | / |
| Power Consumption | 3 | W |
