Waveshare 5inch 800×480 LCD HDMI Resistive Touch Screen
Waveshare 5inch 800×480 LCD HDMI Resistive Touch Screen
Waveshare 5inch 800×480 LCD HDMI Resistive Touch Screen

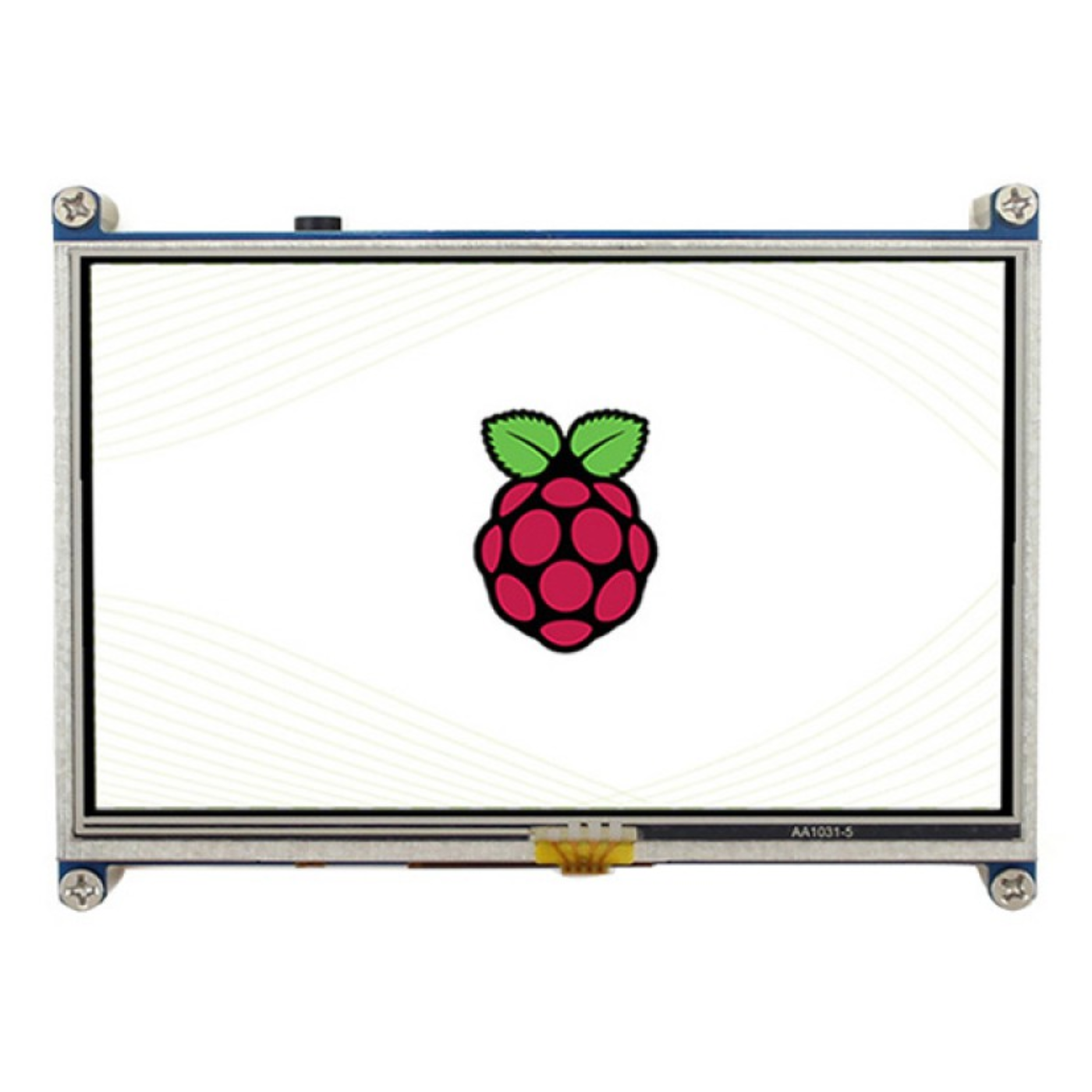

The Waveshare 5inch 800×480 LCD HDMI Resistive Touch Screen is a compact 5-inch TFT LCD display designed for Raspberry Pi projects, embedded applications, DIY electronics, robotics, and portable computing setups. It provides an 800 × 480 hardware resolution and uses an HDMI interface for video input, while touch control is handled through an SPI touch port.

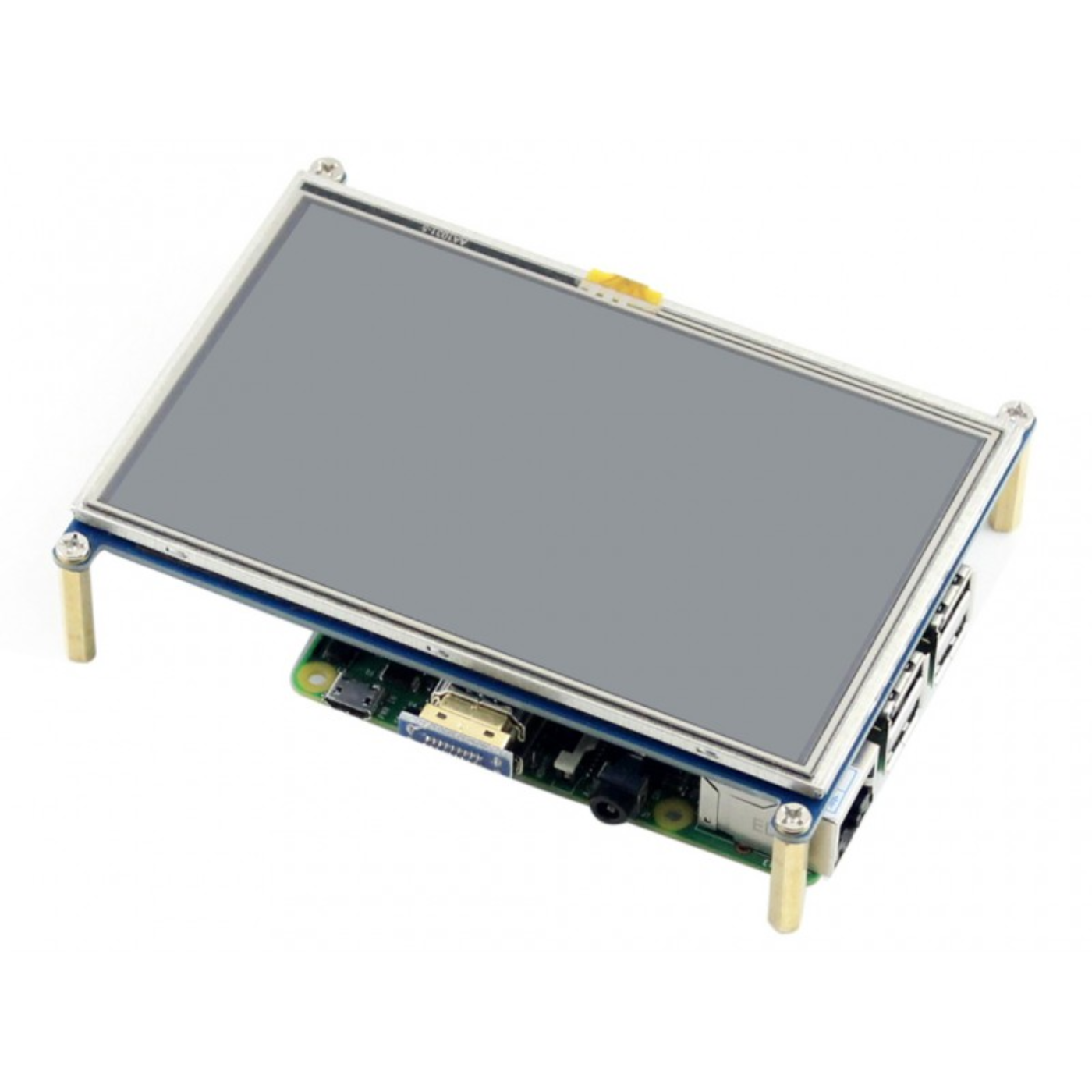

The resistive touch screen allows users to interact directly with supported applications, making it useful for Raspberry Pi-based control panels, monitoring systems, kiosks, and interactive projects. The display supports Raspberry Pi 4B, 3B+, 3A+, 3B, 2B, 1B+, and 1A+ through direct connection, while Raspberry Pi Zero 2 W, Zero W, and Zero require an additional HDMI cable.
Supported operating systems include Raspberry Pi OS, Ubuntu, Kali, and RetroPie. With low power consumption, a compact 0.152 kg design, and an included stylus, this 5-inch HDMI touch display offers a practical solution for makers who need a small touchscreen monitor for Raspberry Pi and electronics projects.
Features:
- Hardware resolution: 800 x 480.
- Touch controls are resistive.
- Compatible with all Raspberry Pi revisions and allows for direct connection. (If you're using a Raspberry Pi Zero or Zero 2 W, you'll need an extra HDMI cable).
- Raspberry Pi OS, Ubuntu, Kali, and Retropie systems are all supported.
- Also functions as a computer monitor; in this case, the touch panel is missing, and an HDMI cable is required.
- HDMI interface for display; no I/Os required.
- Support for backlight control, which saves more electricity.
Package Includes:
- 1 x 5inch HDMI LCD
- 1 x HDMI to micro HDMI connector
- 1 x HDMI connector
- 1 x Stylus
- 1 x RPi screws pack (4pcs)
Specifications:
| Specification | Details |
|---|---|
| Display Size | 5 inch |
| Resolution | 800 × 480 pixels |
| Display Type | TFT LCD |
| Interface | HDMI |
| Touch Type | Resistive Touch |
| Touch Interface | SPI |
| Operating Systems | Raspberry Pi OS, Ubuntu, Kali, RetroPie |
| Compatible Boards | Raspberry Pi 4B, 3B+, 3A+, 3B, 2B, 1B+, 1A+ |
| Weight | 0.152 kg |
