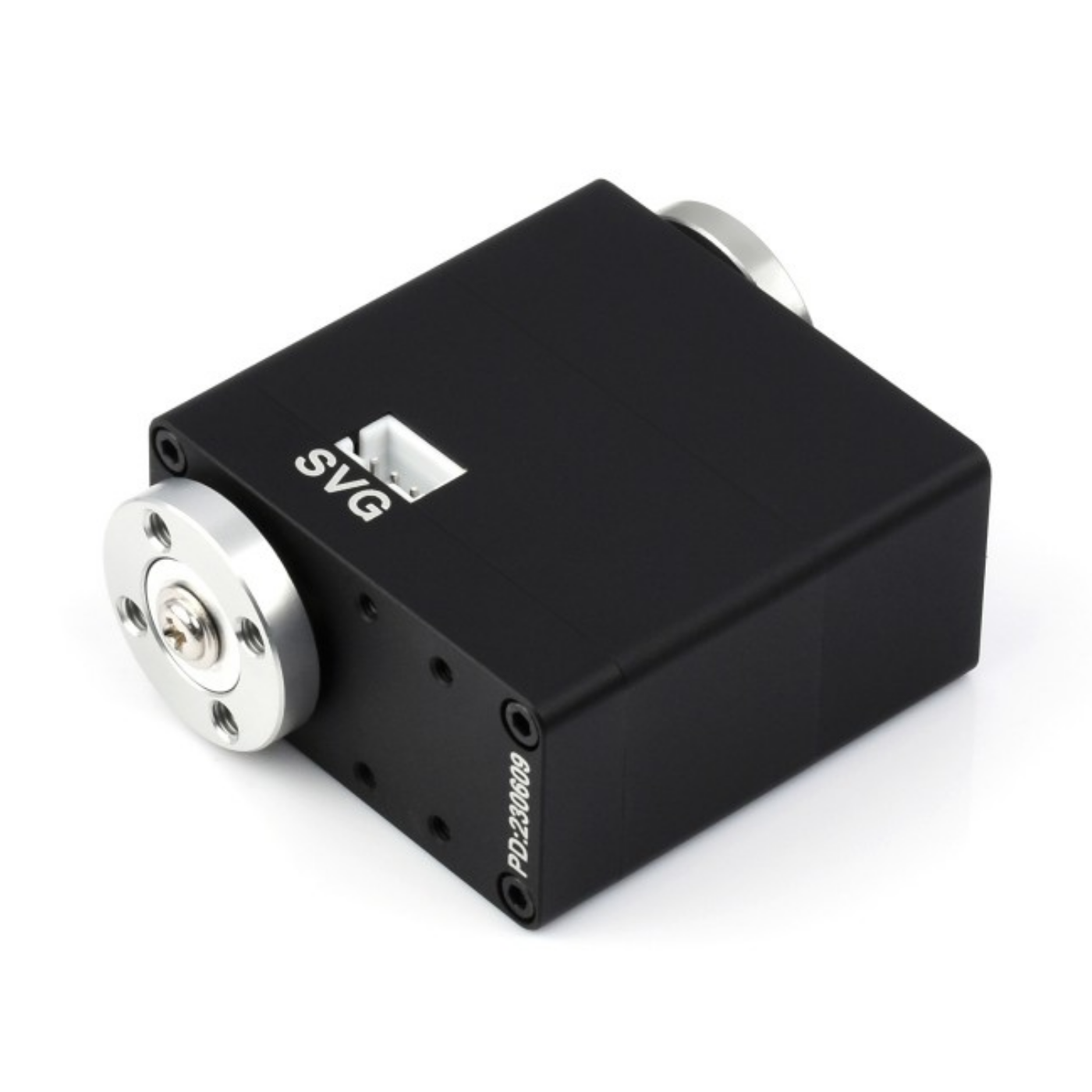

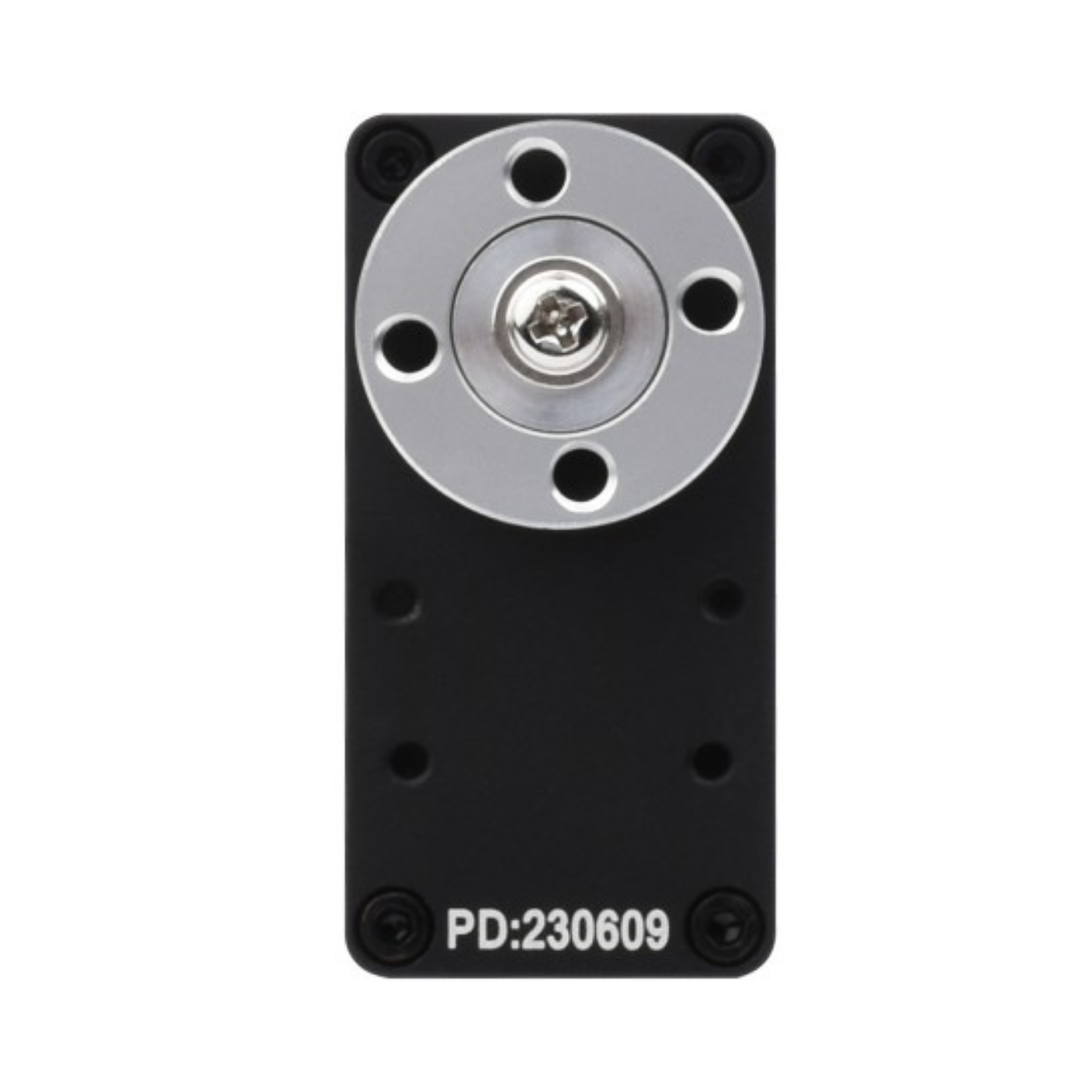

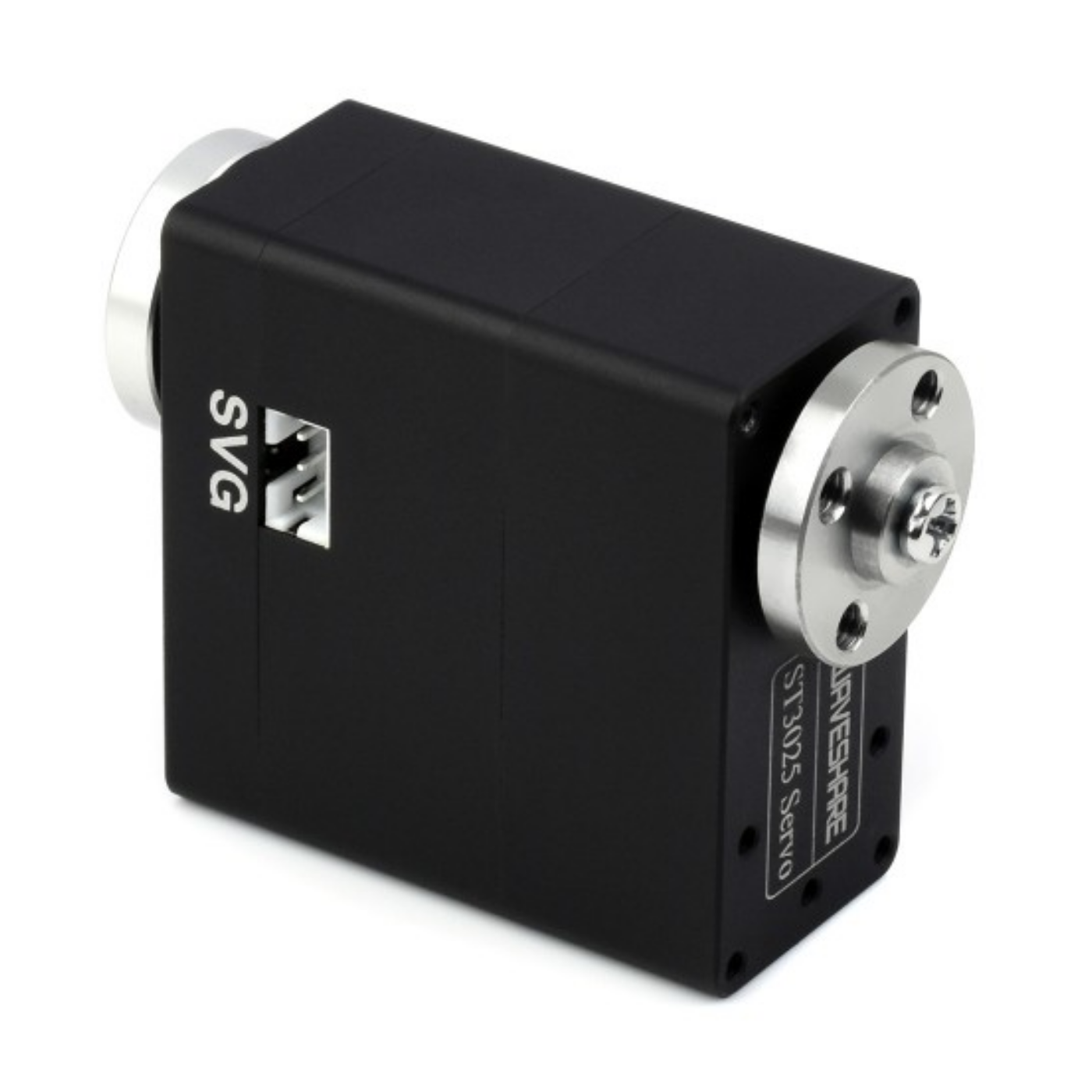

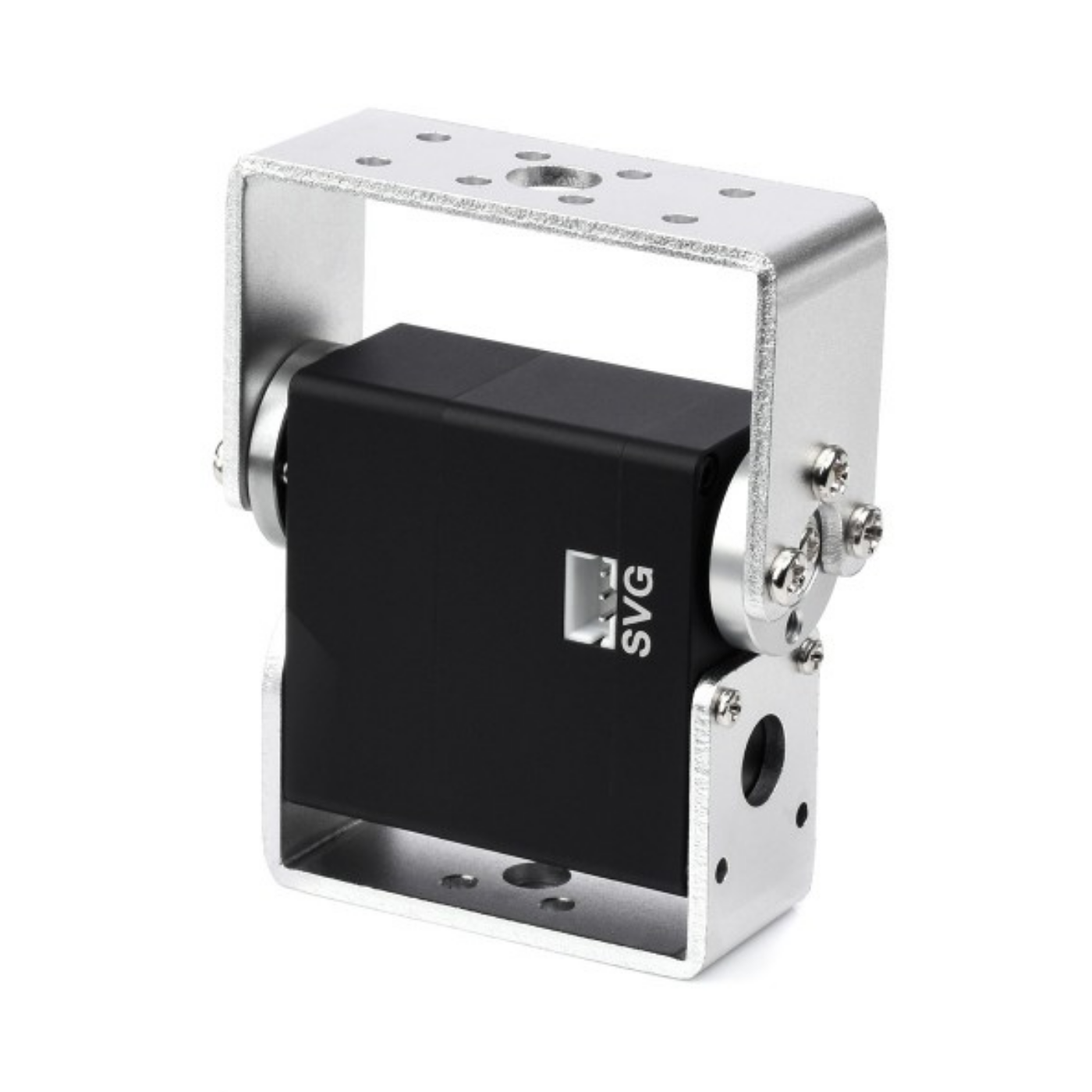

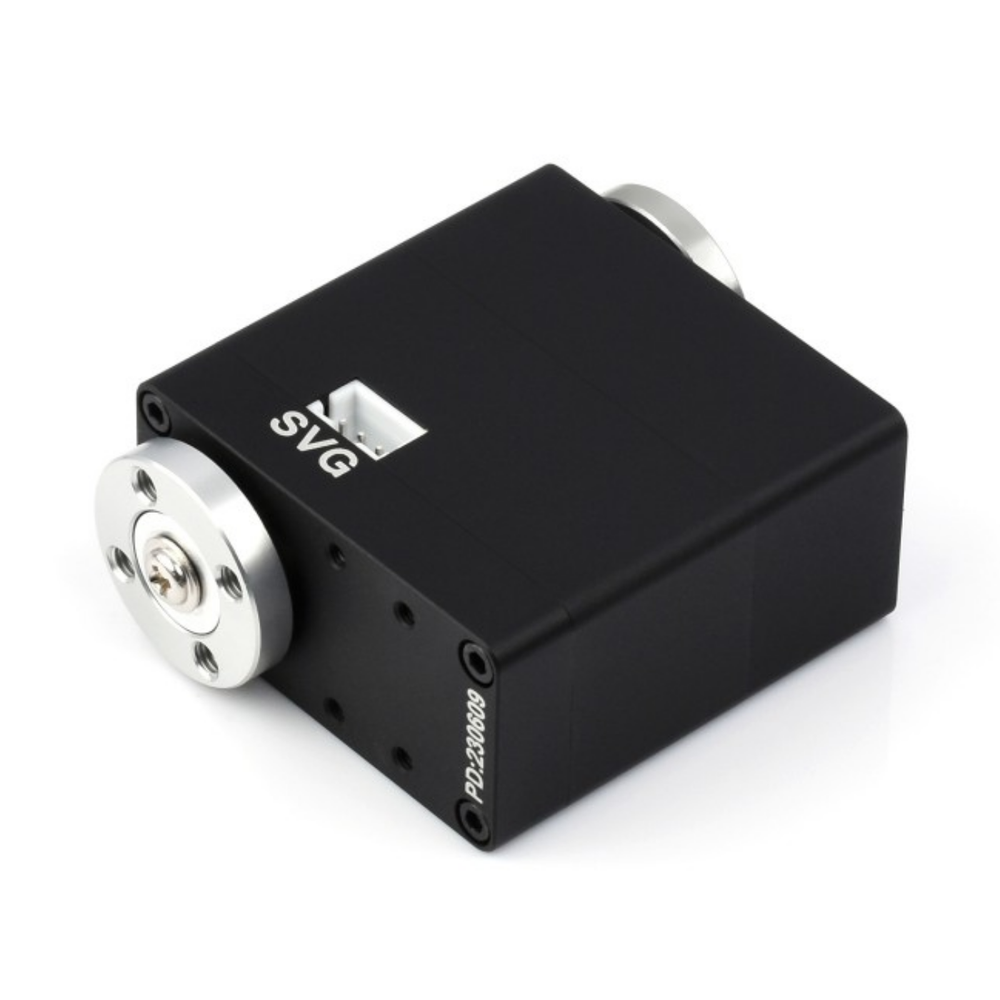

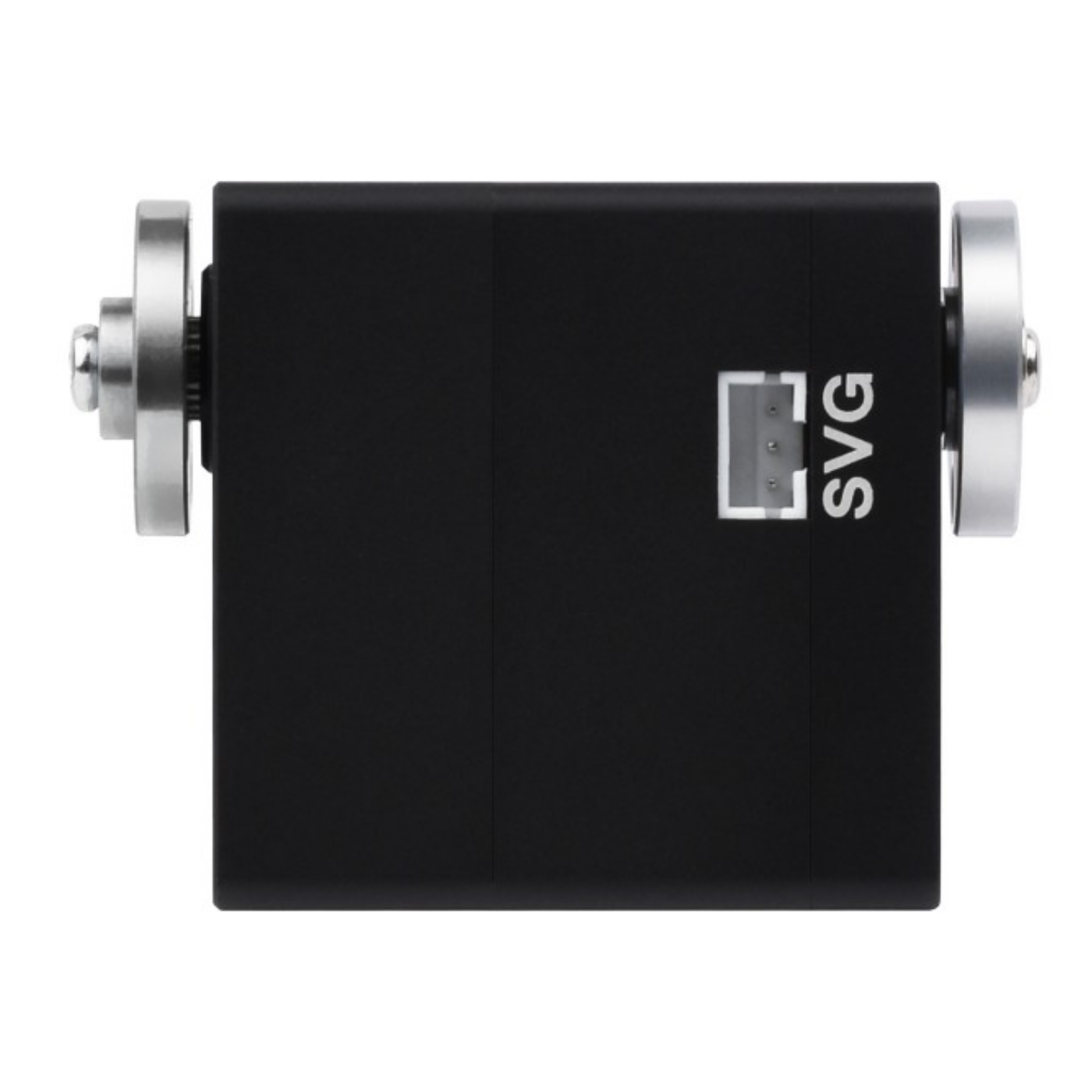

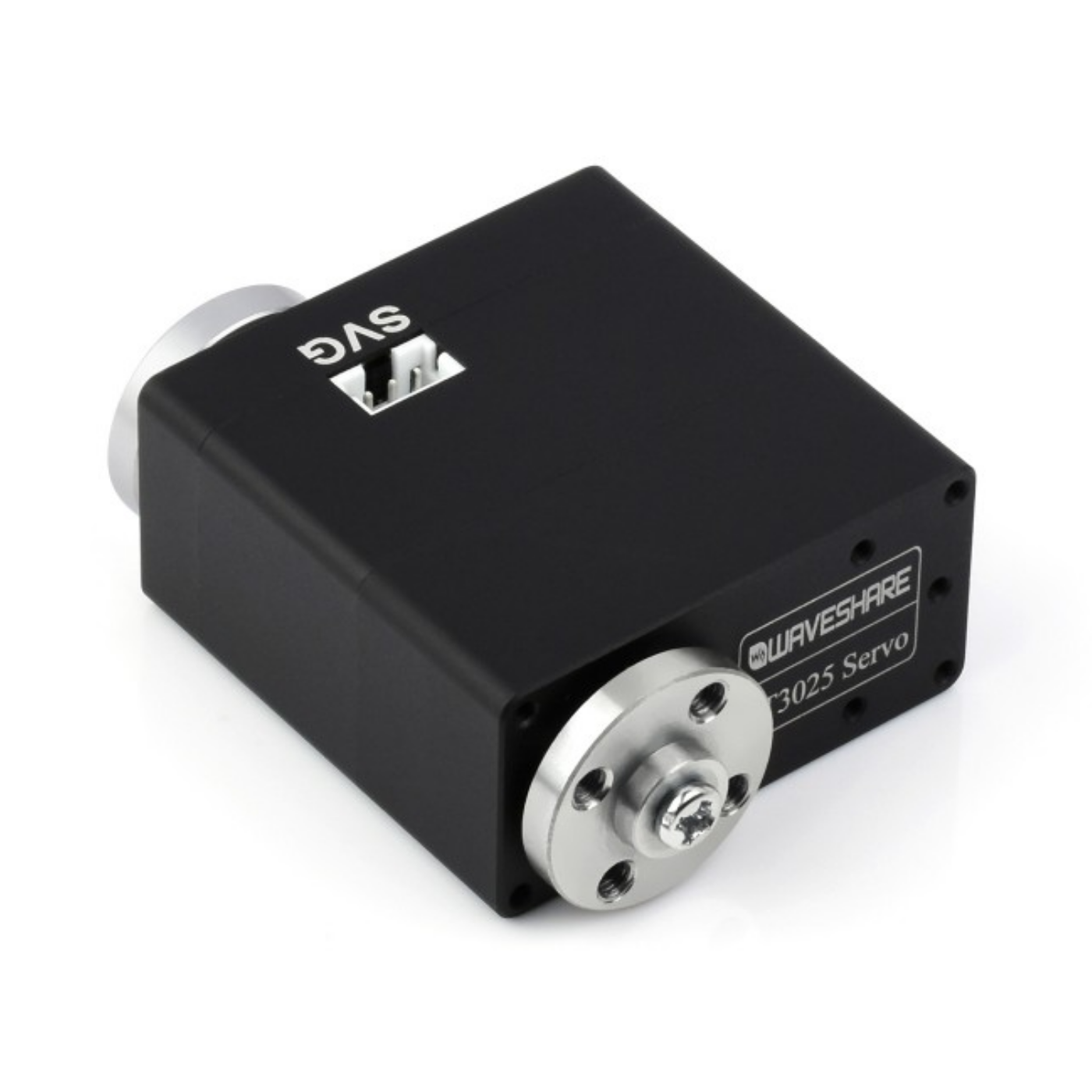

The Waveshare ST3025 40kg.cm Metal Serial Bus Servo is a high-performance actuator designed for robotics projects that require high torque, accurate positioning, and closed-loop motion control. Powered by a brushless motor and equipped with a 12-bit 360° magnetic encoder, it provides precise angle control with a resolution of 0.088°.
The servo delivers up to 40kg.cm torque at 12V and supports a wide 6–12.6V operating voltage range, making it suitable for applications such as robotic arms, quadruped robots, hexapod walkers, humanoid robots, camera gimbals, and other advanced robotic systems. Its serial bus architecture supports control of multiple servos while providing real-time feedback on position, load, speed, voltage, current, and temperature.
With programmable middle-position calibration and selectable angle servo, speed closed-loop motor, and step modes, this high torque robotic servo motor offers the flexibility needed for both prototyping and complex motion-control applications.
| Specification | Details |
|---|---|
| Product Model | Waveshare ST3025 Servo |
| Input Voltage | 6V–12.6V (Typical: 12V) |
| Mechanical Limited Angle | No Limit |
| Rotating Angle | 360° in Servo Mode / Continuous Rotation in Motor Mode |
| Baud Rate | 38,400 bps–1 Mbps (1 Mbps Default) |
| Gear Type | High-Precision Metal Gear |
| Idling Speed | 0.117 sec/60° (85 RPM) @ 12V |
| Position Sensor Resolution | 0.088° (360°/4096) |
| Servo ID Range | 0–253 |
| Feedback | Position, Load, Speed, Input Voltage, Current, Temperature |
| Static Current | 6 mA |
| No-Load Current | 380 mA |
| Rated Current | 1.5 A |
| Locked-Rotor Current | 4.4 A |
| Locked-Rotor Torque | 40 kg·cm |
| Torque Constant (KT) | 9 kg·cm/A |

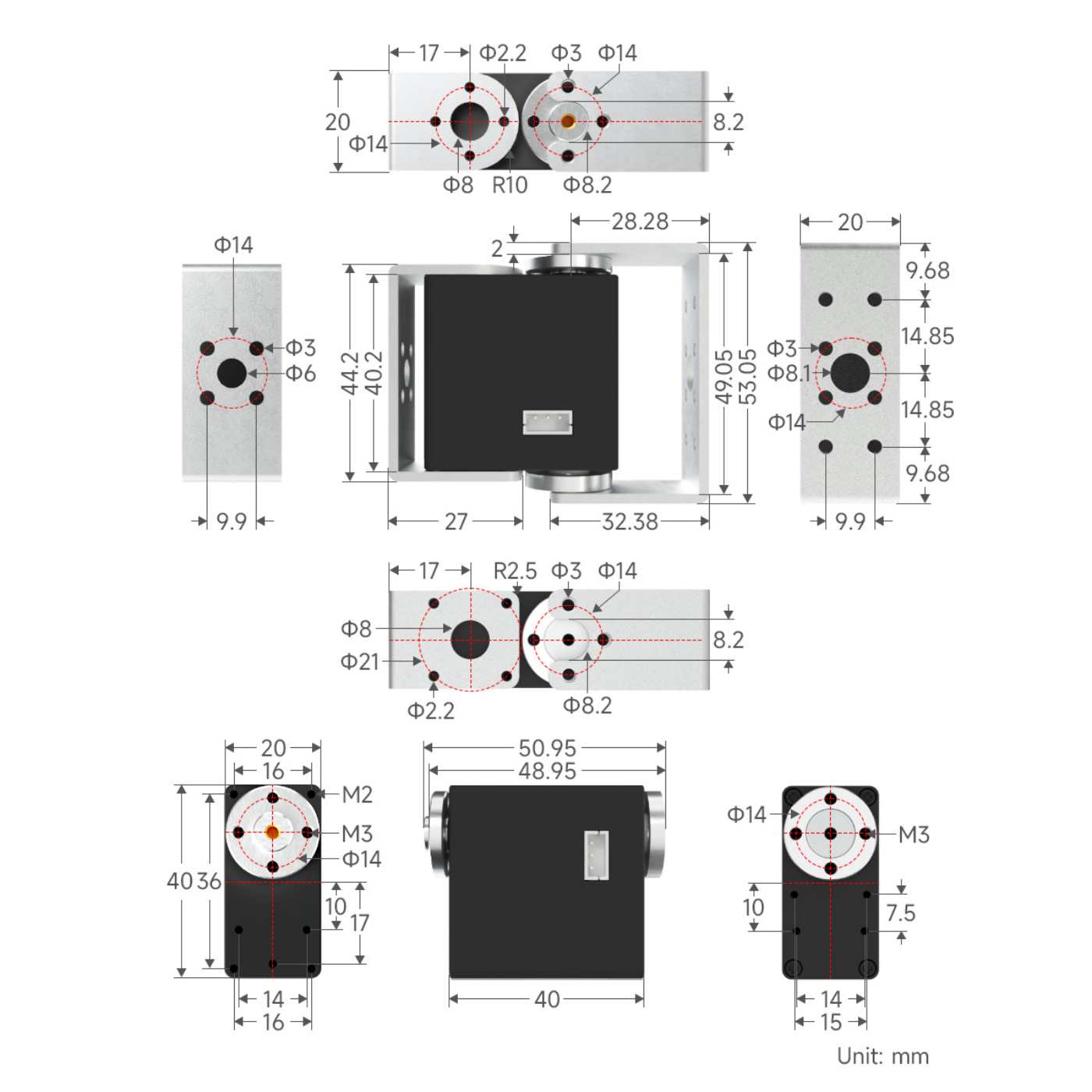

| Dimensions | 40 × 20 × 40 mm |
