Waveshare 3007 5V Cooling Fan for Raspberry Pi Compute Module 4
Waveshare 3007 5V Cooling Fan for Raspberry Pi Compute Module 4
Waveshare 3007 5V Cooling Fan for Raspberry Pi Compute Module 4

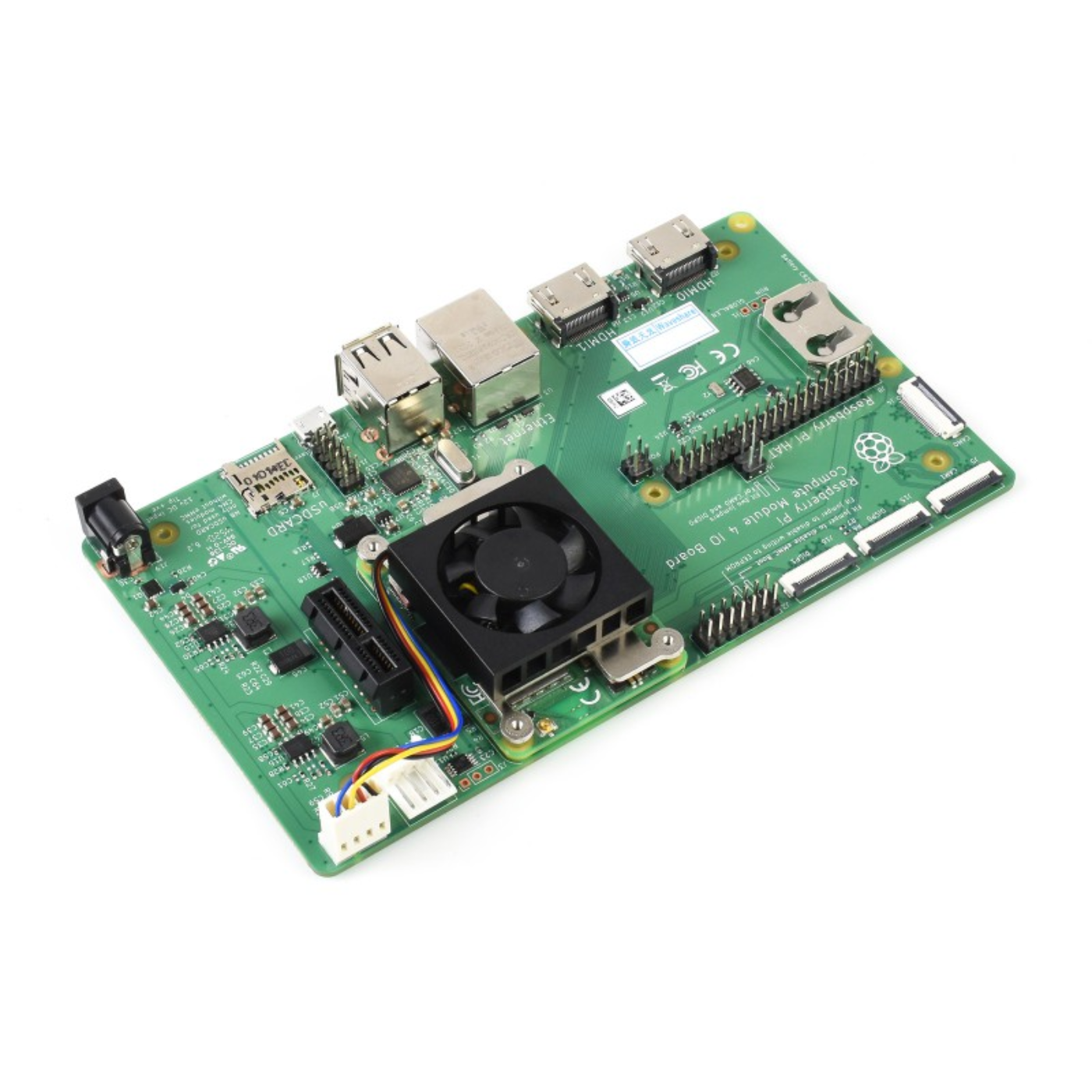

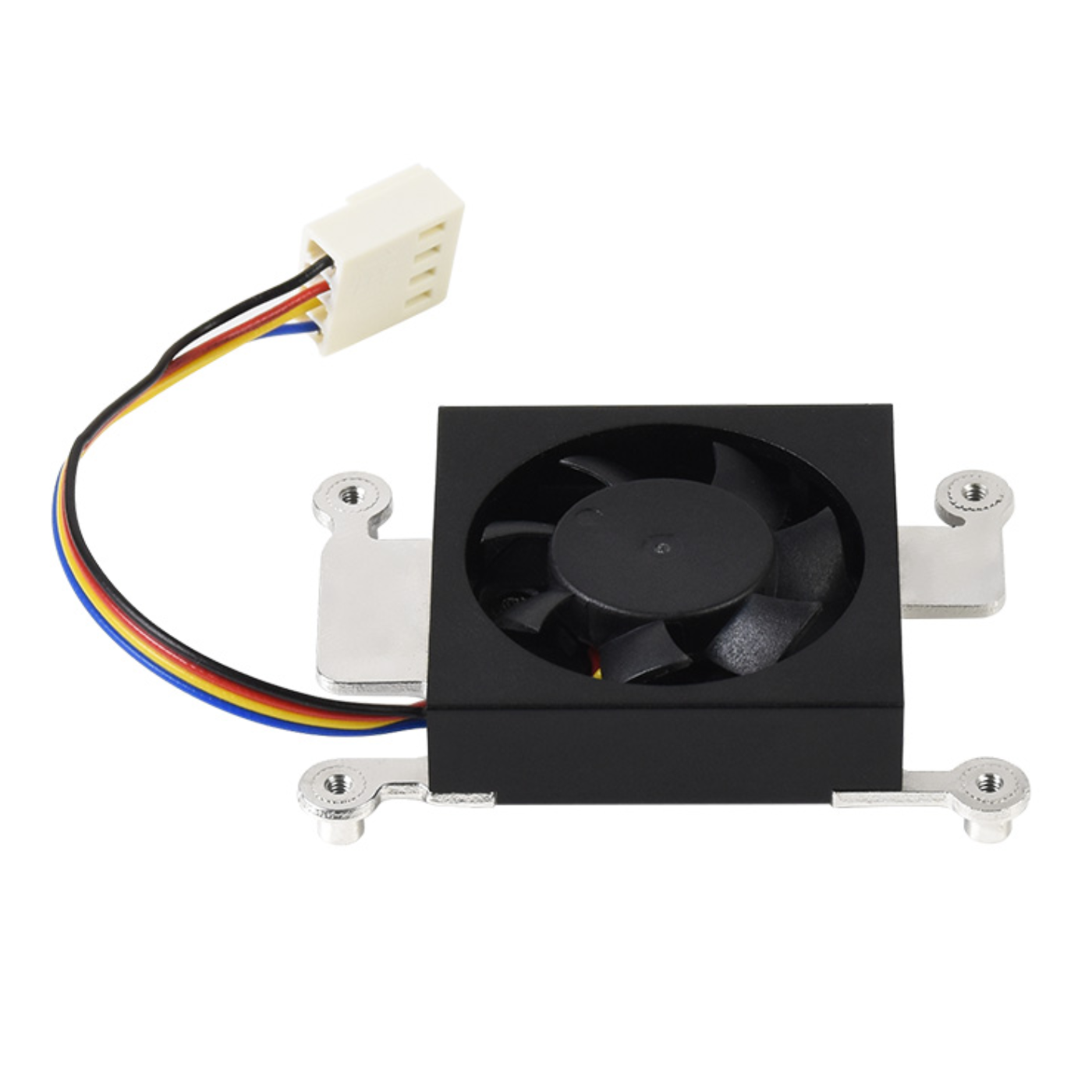

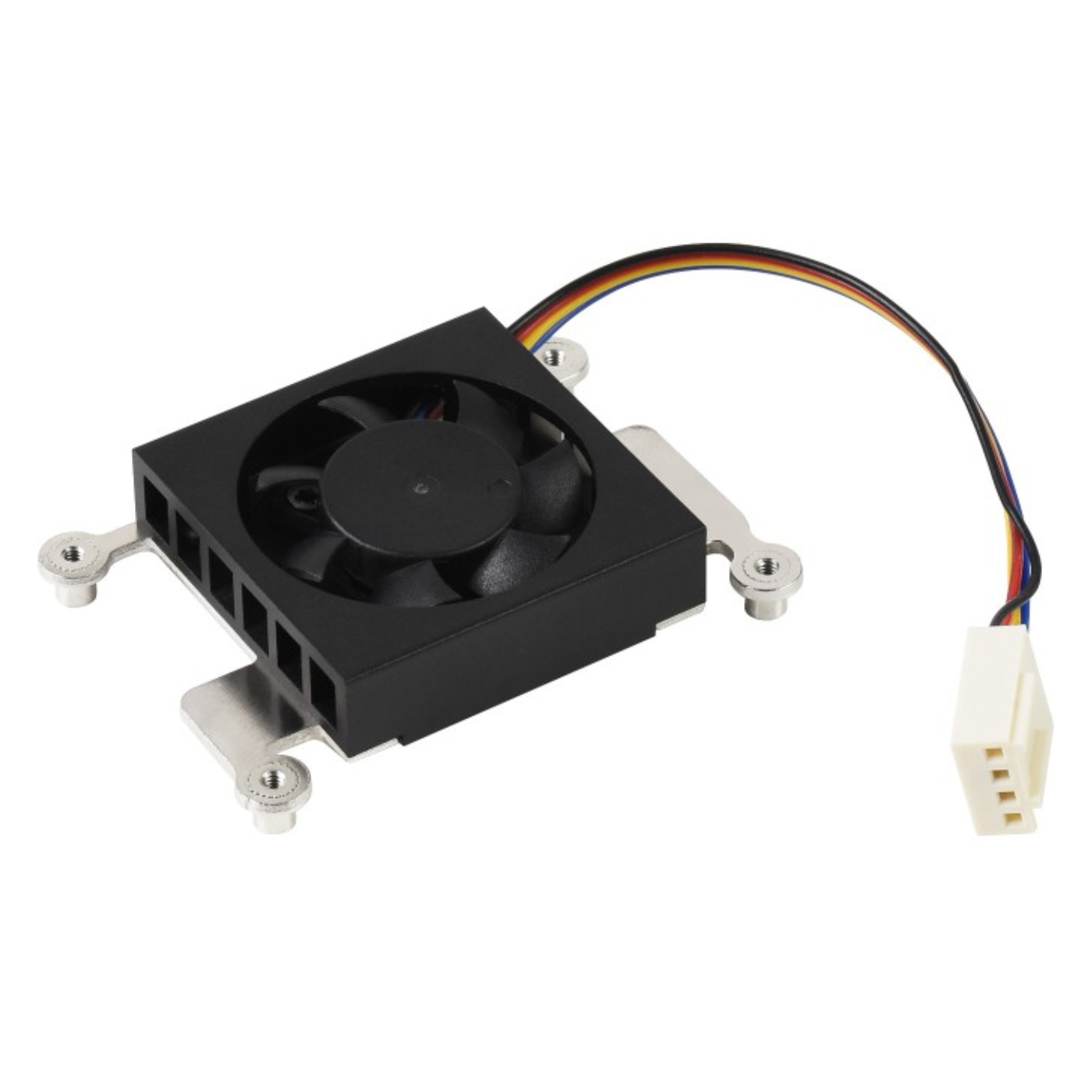

The Waveshare 3007 5V Cooling Fan for Raspberry Pi Compute Module 4 is a dedicated, low-profile cooling solution designed to provide efficient heat dissipation for the Raspberry Pi CM4. The 3007-5V fan operates at 5V with a rated power of 1W (0.2±0.02A) and delivers a rated speed of 5000±10% RPM.
Its 4-wire PWM speed-adjustable fan header allows controlled fan operation, while the compact 54 × 39 × 13mm design matches the CM4's size and mounting-hole layout for convenient installation.

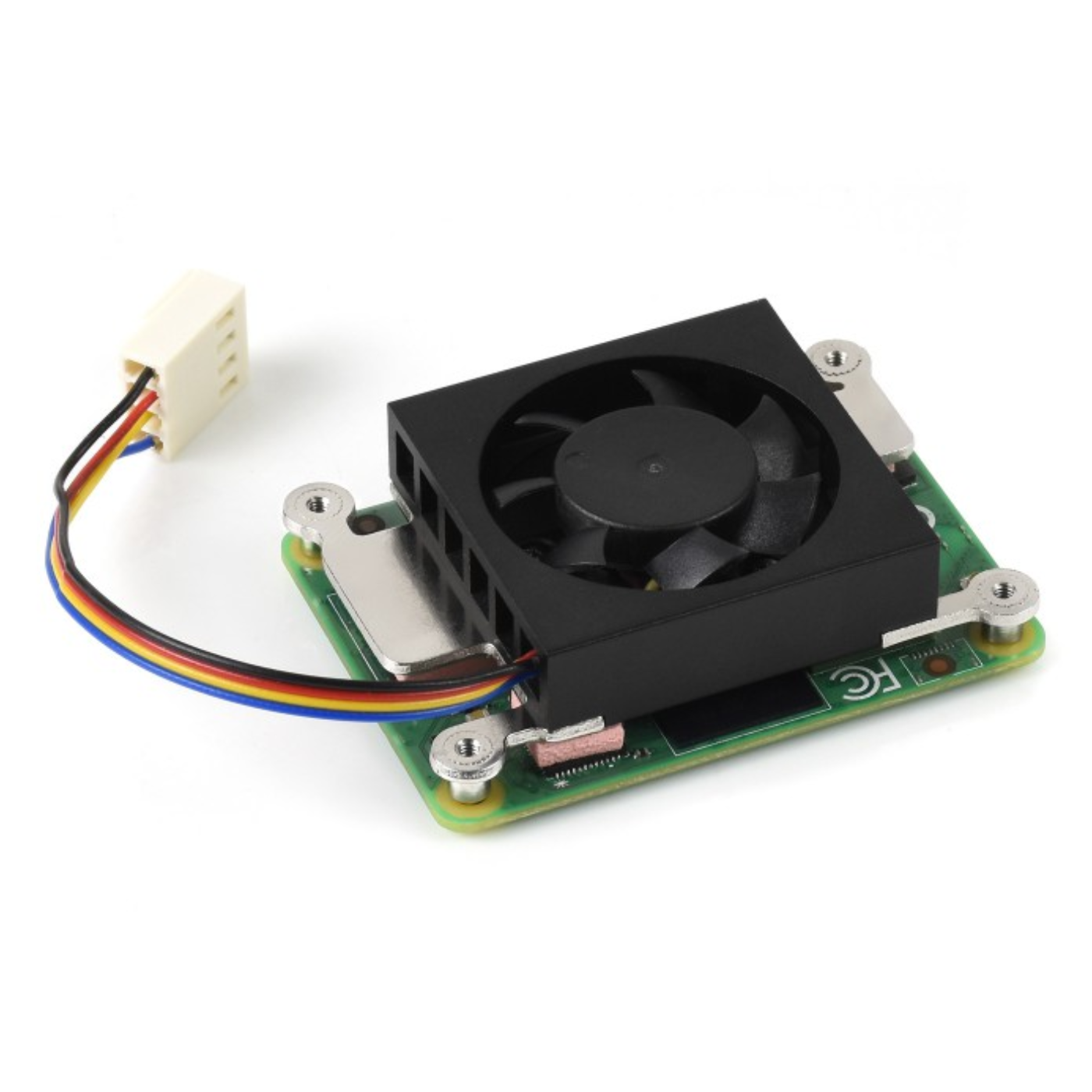

The 90±10mm cable provides flexible connection, and the included thermal tapes and screws help secure the fan to the Compute Module 4. This Raspberry Pi CM4 cooling fan is suitable for projects and applications where active cooling is needed to improve heat dissipation during sustained operation.
Features:
- 54 × 39 × 13 mm low-profile cooling fan designed for Raspberry Pi CM4.
- Available in 5V and 12V versions with PWM speed control.
- 5V model: 5000 ± 10% RPM, 1W; 12V model: 8000 ± 10% RPM, 1.62W.
- 4-wire interface enables adjustable fan speed for efficient cooling.
- Includes thermal tapes and mounting screws for easy installation.

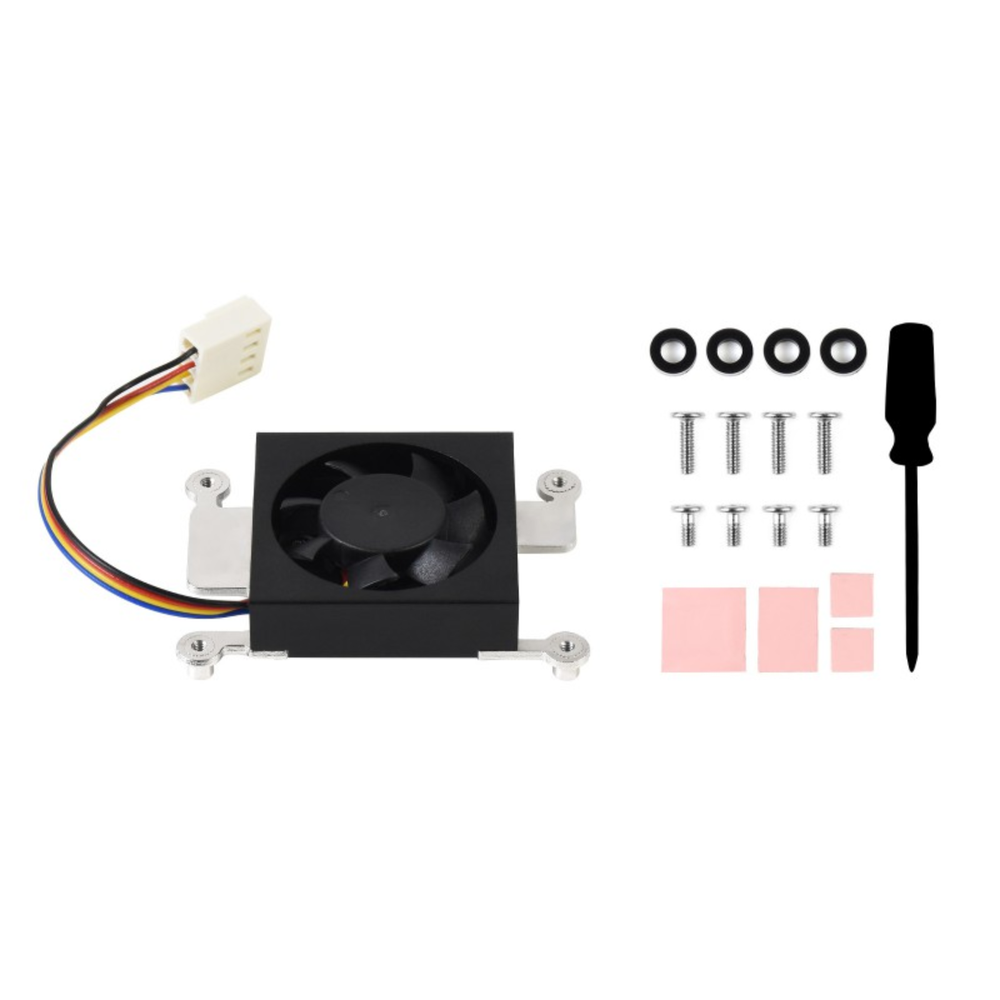

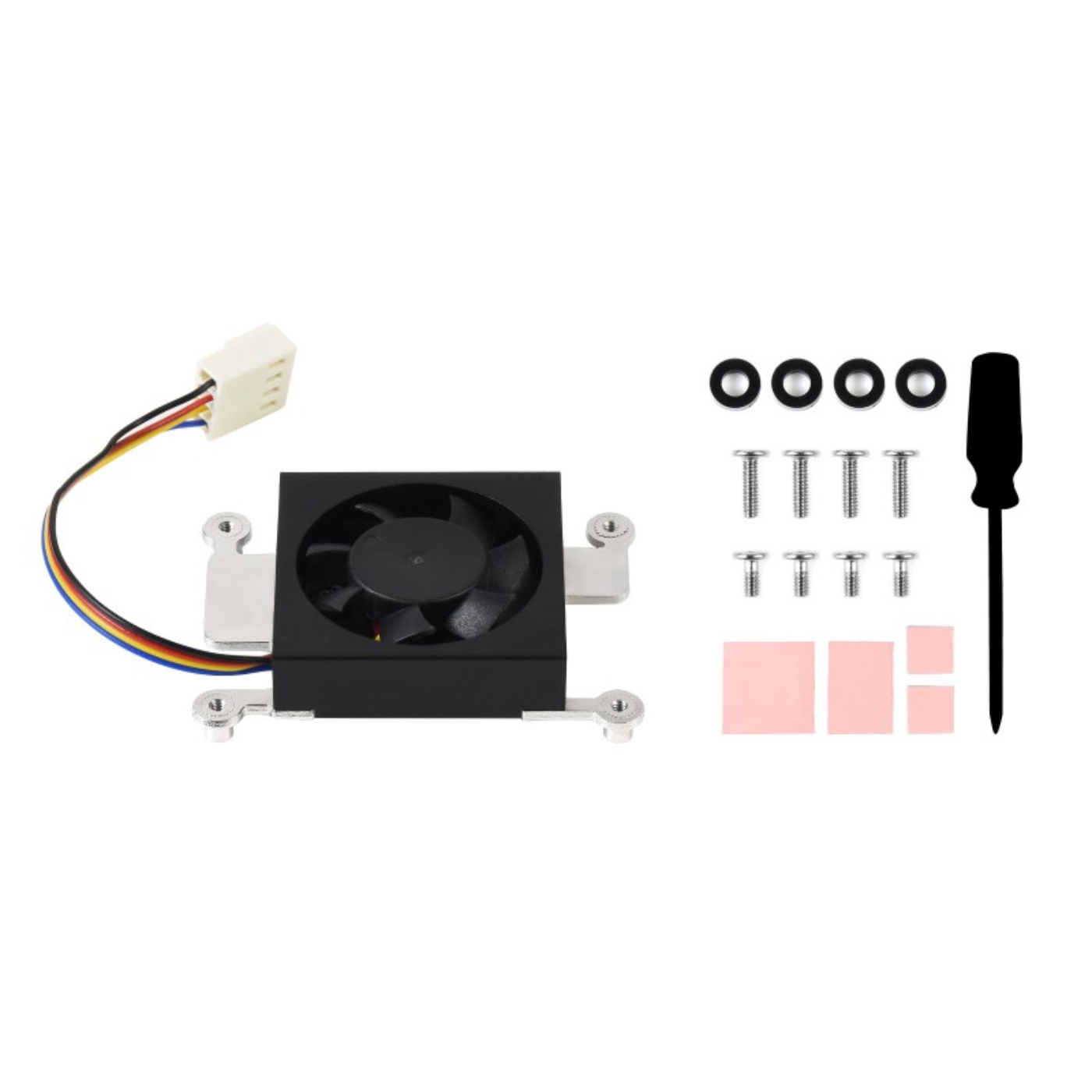

Package Includes:
- 1 x CM4-FAN-3007
- 1 x Screws and thermal tapes
Specifications:
| Specification | Details |
|---|---|
| Version | 3007-5V |
| Rated Power | 1W (5V, 0.2±0.02A) |
| Rated Speed | 5000±10% RPM |
| General | Low-profile, PWM speed adjustment |
| Interface | 4-wire PWM speed-adjustable fan header |
| Cable Length | 90±10mm |

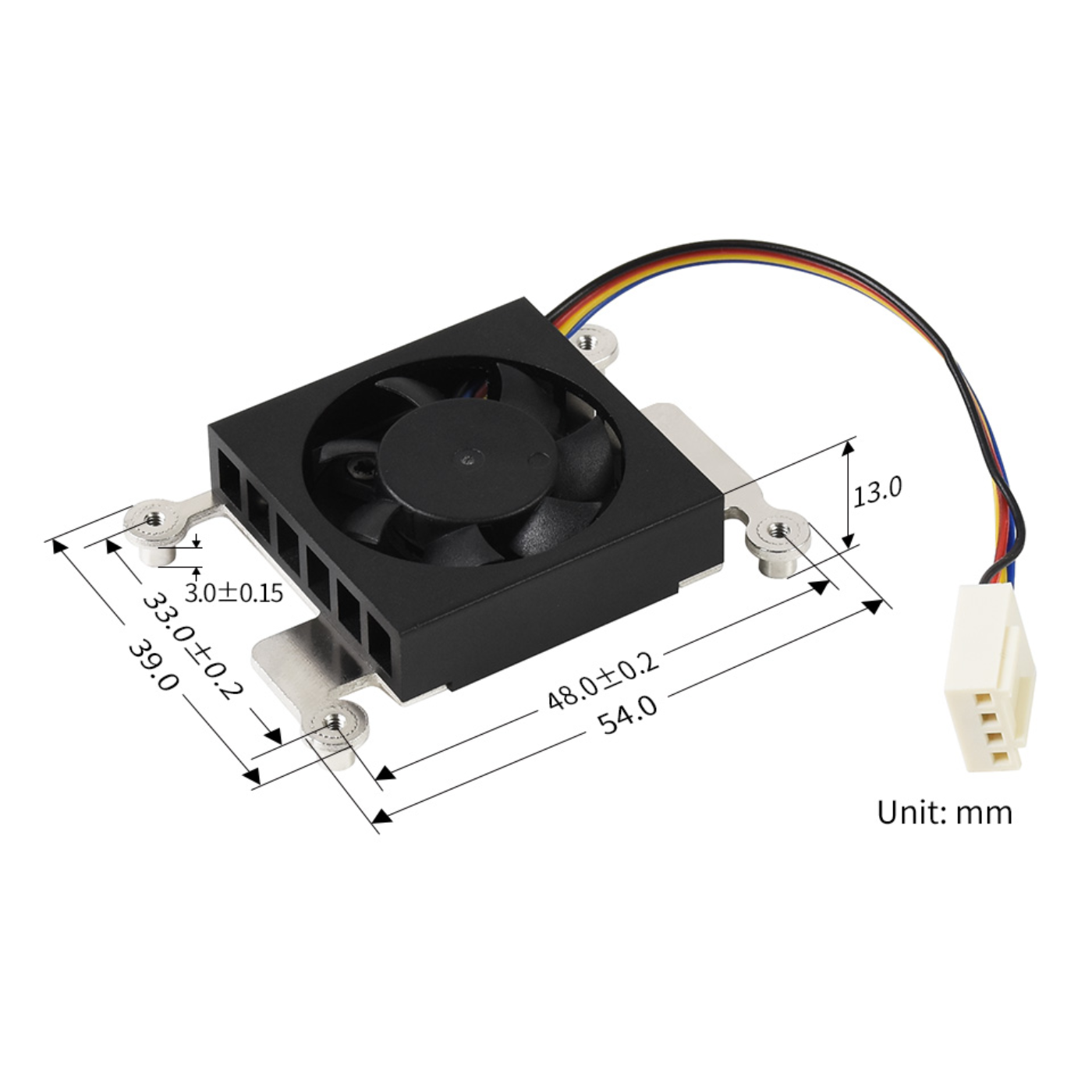

| Dimensions | 54 × 39 × 13mm |
