Waveshare 1280×800 10.1inch Capacitive Touch LCD Display HDMI/Type-C Display Interface
Let us know!
We'll try to match the price for you
For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below
Couldn't load pickup availability
Looking for a reliable portable monitor or a high-quality Raspberry Pi display? The Waveshare 10.1-inch Capacitive Touch LCD Display is engineered to be your perfect secondary screen for work, coding, or entertainment. Boasting an exact resolution of 1280×800 on a premium IPS panel, this display ensures sharp, distortion-free visuals from any angle thanks to its 178° wide viewing angle.
The screen’s wide color gamut reaches up to 82% NTSC, enhancing chroma purity by 58.3% to deliver exceptionally vibrant and accurate colors. Built for everyday durability and optical clarity, it features a 6H hardness toughened glass panel with optical bonding technology that minimizes internal reflection and prevents dust accumulation.

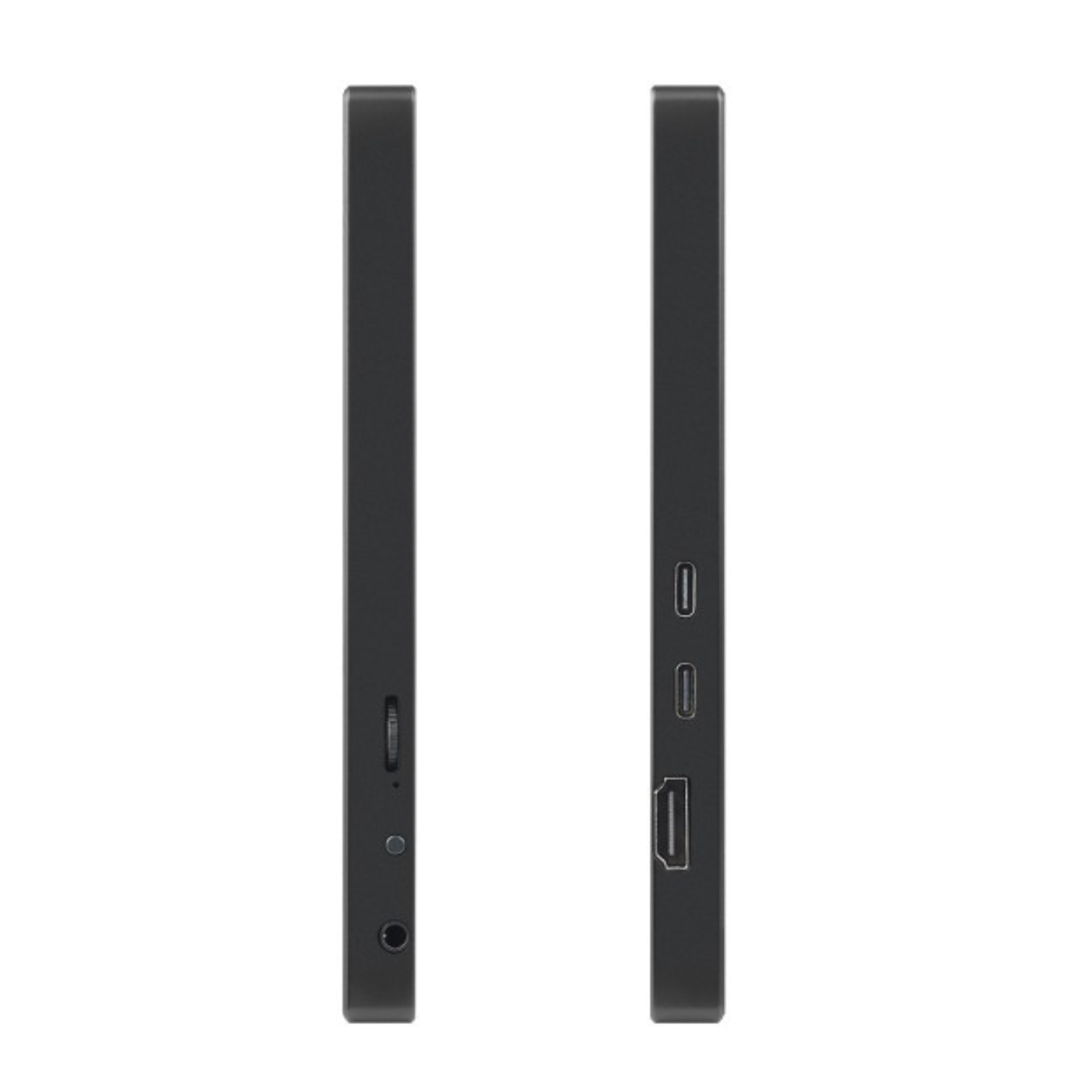

Connectivity is incredibly flexible, offering both HDMI and full-featured Type-C LCD interfaces that support plug-and-play audio/video transmission, DDC/CI brightness control, and direct wired smartphone projection (compatible with Huawei, Samsung, OPPO, and more).

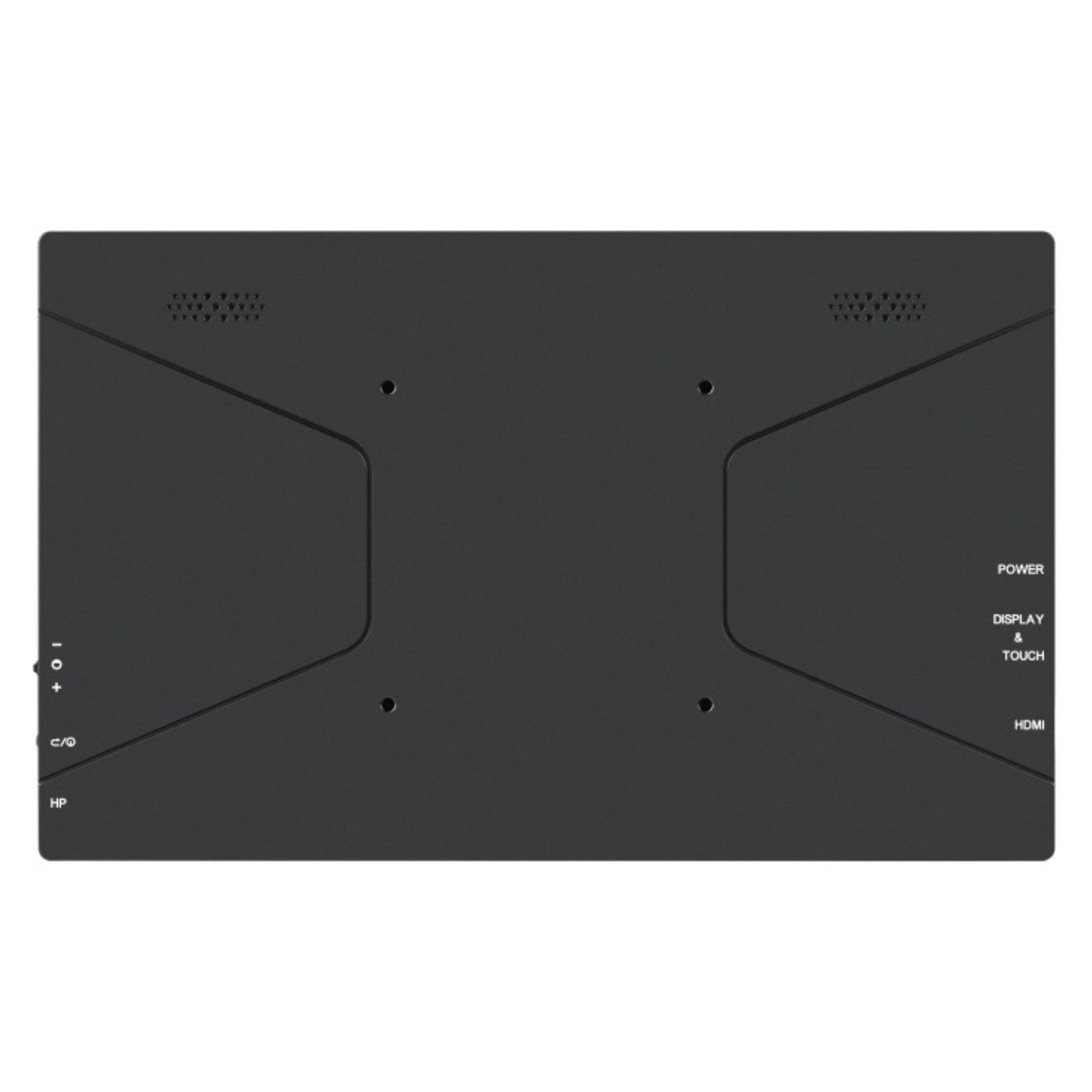

Housed in a robust aluminum alloy case, it also includes dual-track Hi-Fi speakers, a 3.5mm audio output, and a triangular stand, with optional VESA 75×75mm wall mounting for ultimate setup customization across Windows PCs, Jetson Nano, and single-board computers.
| Item | Description | Unit |
|---|---|---|
| Model | 10.1HP-CAPLCD Monitor | / |
| Dimensions | 10.1 | Inch |
| Viewing Angle | 178 | Deg |
| Resolution | 1280 x 800 | Pixels |

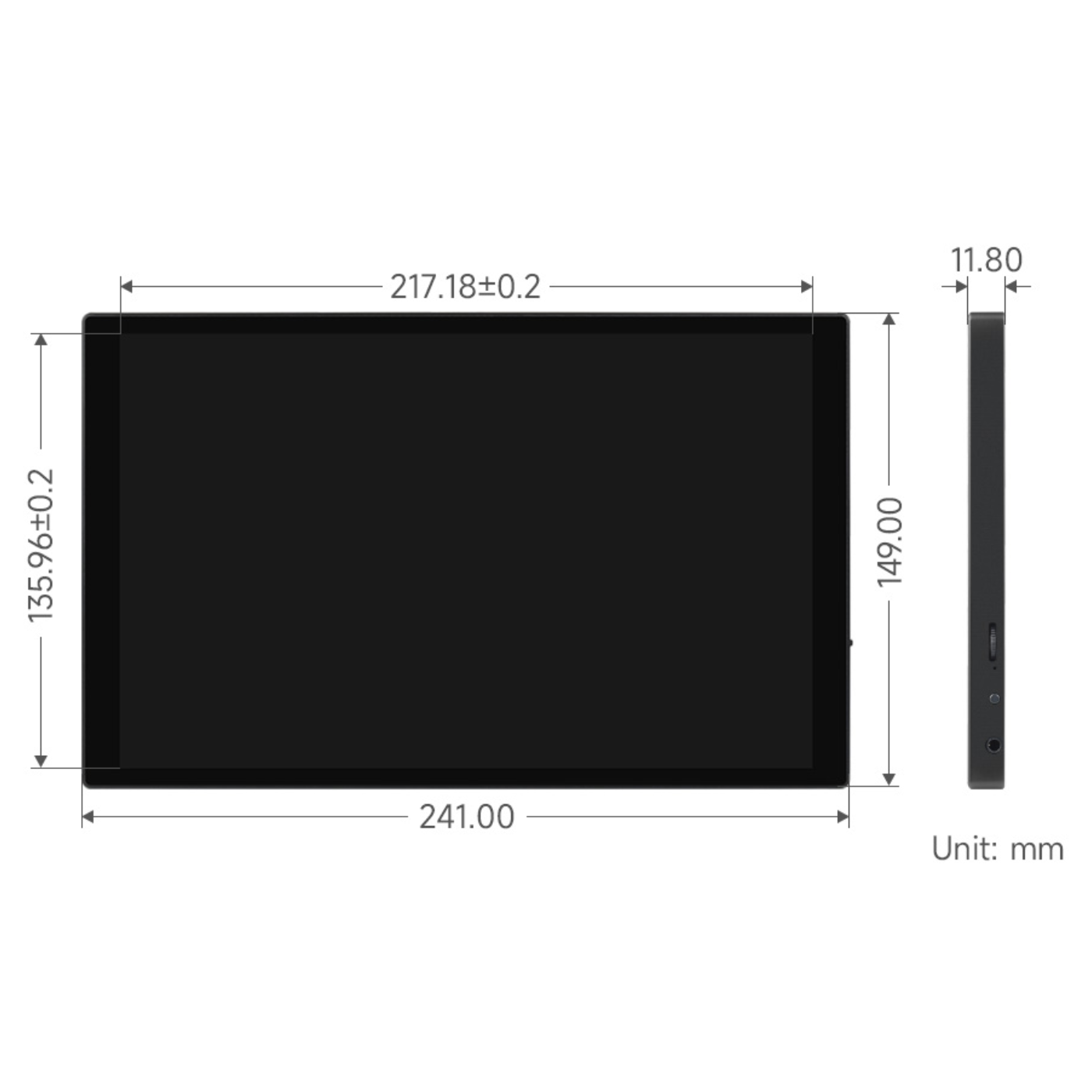

| Overall Dimensions | 241.00(H) × 149.00(V) × 11.80(D) | mm |
| Display Dimensions | 228.6(H) × 143.0(V) | mm |
| Display Area | 135.36(H) × 216.58(V) | mm |
| Pixel Pitch | 0.1175(H) x 0.1088(V) | mm |
| Color Gamut | 82% | NTSC |
| Max. Brightness | 350 | cd/m² |
| Contrast | 800:1 | / |
| Backlight Adjustment | OSD Menu | / |
| Refreshing Rate | 60 | Hz |
| Display Interface | Standard HDMI Interface | / |
| Power Port | 5V Type-C | / |
| Power Consumption | 4 | Watt |
| Weight | 809 | g |
This product comes with a 1-year manufacturer warranty from the date of purchase, covering manufacturing defects only.
The product shows signs of physical damage, mishandling, exposure to water/moisture, fire, natural calamities, unauthorized repairs, improper storage near heat or direct sunlight, or alteration in any way.
No air gaps visible under bright backlight test. Delivery took four business days with insurance. Website filters excluded non-bonded variants accurately. Packaging used anti-static foam for electronics. Reflectivity low enough for outdoor readability in shade.
Photo showed actual bezel thickness—not exaggerated. Packaging prevented ESD with conductive foam layer. Shipment cleared customs without delays—proper HS code. Website had FAQ addressing common refresh rate issues. Perfect for kiosks or portable medical displays.
Consumes only 8W at full brightness—very efficient. Delivery tracking showed warehouse departure timestamp. Website allowed saving config to cloud profile. Packaging used recycled-content materials responsibly. Type-C PD negotiation works with standard chargers reliably.
Cart saved across devices during comparison phase. Delivery included return label for quality assurance. Website remembered my resolution preference across sessions. Packaging labeled orientation clearly to avoid upside-down install. Brightness adjustable down to 50 nits for dark rooms.
Detected instantly as secondary monitor on Windows. Delivery included QR code linking to driver page. Website offered bundle discounts with mini-PCs. Packaging labeled input ports clearly on outer sleeve. Ideal for digital signage or interactive dashboards needing reliability.
