Waveshare 11.6Inch HDMI Capacitive Touch Display 1920x1080 for Raspberry Pi

Waveshare 11.6Inch HDMI Capacitive Touch Display 1920x1080 for Raspberry Pi

The 11.6-inch high-definition IPS touch screen Waveshare display is designed for a multitude of applications, from hobbyist projects with single-board computers to professional interface solutions. Its 1920x1080 resolution delivers crisp, clear visuals on the 11.6-inch panel, making it an excellent choice as a primary or secondary screen.

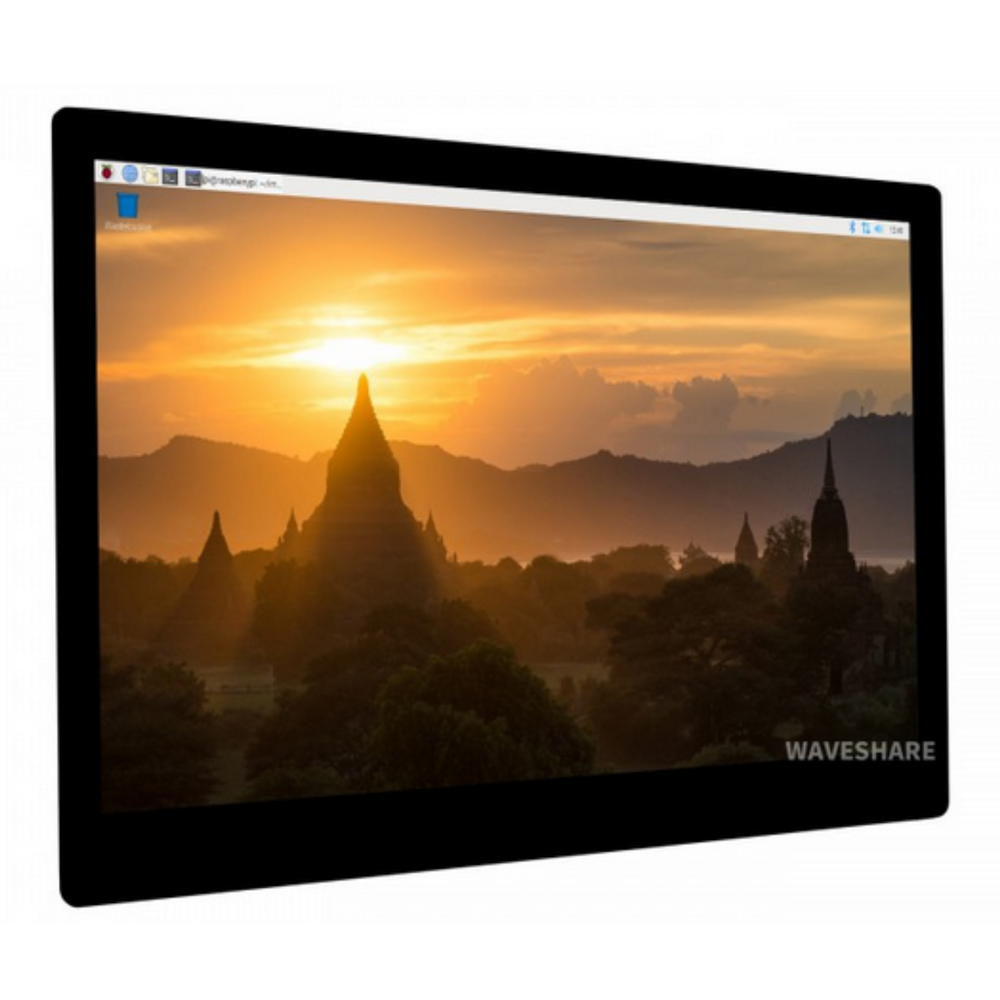

Front view of the Waveshare 11.6-inch display showcasing its vibrant IPS panel

The integration of 10-point capacitive touch provides an intuitive and interactive experience, particularly effective as a Raspberry Pi touch screen display or with Windows systems. The toughened glass touch panel, utilizing optical bonding technology, not only improves durability but also enhances the visual experience by reducing glare and improving touch accuracy.

Close-up of the display highlighting the toughened glass and optical bonding

This HDMI capacitive touch screen boasts excellent compatibility, supporting various operating systems like Raspberry Pi OS (often driver-free for touch), Ubuntu, Kali, Windows 10/8.1/7, and even game consoles. Setting it up is straightforward, with standard HDMI for video and USB for the touch interface, making it a versatile display solution for makers, developers, and tech enthusiasts.

The display connected to a Raspberry Pi and a mini-PC, demonstrating its versatility

Side view showing the display's ports and connectivity options

Features:

• Screen Size & Panel: 11.6-inch IPS display for vivid colors.
• Resolution: 1920x1080 Full HD for sharp, detailed images.
• Touch Technology: 10-point capacitive touch with toughened glass panel.
• Viewing Angle: Wide 178° viewing angle for flexible placement.
• Display Interface: Standard HDMI port for video input.
• Touch Interface: USB port for touch control functionality.
• Optical Bonding: Enhances display clarity, durability, and touch experience.
• Device Support: Compatible with Raspberry Pi, Jetson Nano, PCs, and game consoles.
• OSD Menu: On-Screen Display for brightness, contrast, and other settings.
• Audio Output: Integrated 3.5mm audio jack for HDMI audio.
• Driver Support: Often driver-free for touch on supported systems like Raspberry Pi OS and Windows.

Package Includes:

• 1 x 11.6inch HDMI LCD Waveshare Display (H)
• 1 x Power adapter 12V
• 1 x HDMI cable
• 1 x HDMI to Micro HDMI Adapter
• 1 x USB-A to Micro-B cable
• 1 x Triangular stand
• 1 x Button board cable
• 1 x Button board

Specifications:
