Waveshare 10.1-Inch IPS LCD Capacitive Touchscreen Display

Name: Waveshare 10.1-Inch IPS LCD Capacitive Touchscreen Display, 1920×1200, HDMI, Optical Bonding, 10-Point Touch
Brand: Robocraze
SKU: TIFDP0127
Price: 13599 INR
Availability: OutOfStock

Waveshare 10.1-Inch IPS LCD Capacitive Touchscreen Display, 1920×1200, HDMI, Optical Bonding, 10-Point Touch

Rs 13,599/-

- 33%

Rs 13,599/-

~~Rs 20,399/-~~

Save Rs 6,800/-

🪙

RC REWARDS Earn 135 RC Coins on this order

Incl. GST (No Hidden Charges)

Please hurry! Only 0 left in stock

We’ll notify you once the product is back in stock.

Quantity:

Free Delivery Above ₹999

Technical Support & Easy Returns

Same-Day Shipping (Order by 3 PM on Business Days)

Earn RC Coins on Every Prepaid Order

COD Available on Order Value Between ₹500 to ₹3,000

SKU: TIFDP0127

Delivers a sharp 1920×1200 resolution with a wide 178° viewing angle.
Supports up to 10-point multi-touch, depending on the operating system.
Provides convenient connection to Raspberry Pi, Jetson boards, PCs, and other HDMI-enabled devices.
Reduces the gap between the display and touch panel for clearer viewing and improved dust resistance.
Features a toughened glass surface with up to 6H hardness for added durability.
Provides clear and vivid images for everyday projects and interactive applications.
Allows easy switching between landscape and portrait display orientations.
Includes a dual-track ferrite speaker for improved audio output.
Uses USB Type-C for touch communication.
Supports Raspberry Pi, Jetson series boards, and Windows PCs with driver-free operation in supported configurations.

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here

First Name *

Last Name *

Email *

Phone *

+91

Company / Client

GST *

Materials List

File(s) size limit is 20MB. Max 3 files.

Choose Categories * (select one or more)

Select Categories

STEM Kits Development Boards Electronic Components Drone 3D Printers/Pens Sensors Batteries & Power Supply Tools & Instruments

Enter the Captcha *

Reload Captcha

Waveshare 10.1-Inch IPS LCD Capacitive Touchscreen Display, 1920×1200, HDMI, Optical Bonding, 10-Point Touch

~~Rs 20,399/-~~ Rs 13,599/-

Quantity:

Waveshare 10.1-Inch IPS LCD Capacitive Touchscreen Display, 1920×1200, HDMI, Optical Bonding, 10-Point Touch

~~Rs 20,399/-~~ Rs 13,599/-

Description
Specifications
Additional Resources
Shipping & Return

Description

Waveshare 10.1-Inch IPS LCD Capacitive Touchscreen Display, 1920×1200, HDMI, Optical Bonding, 10-Point Touch

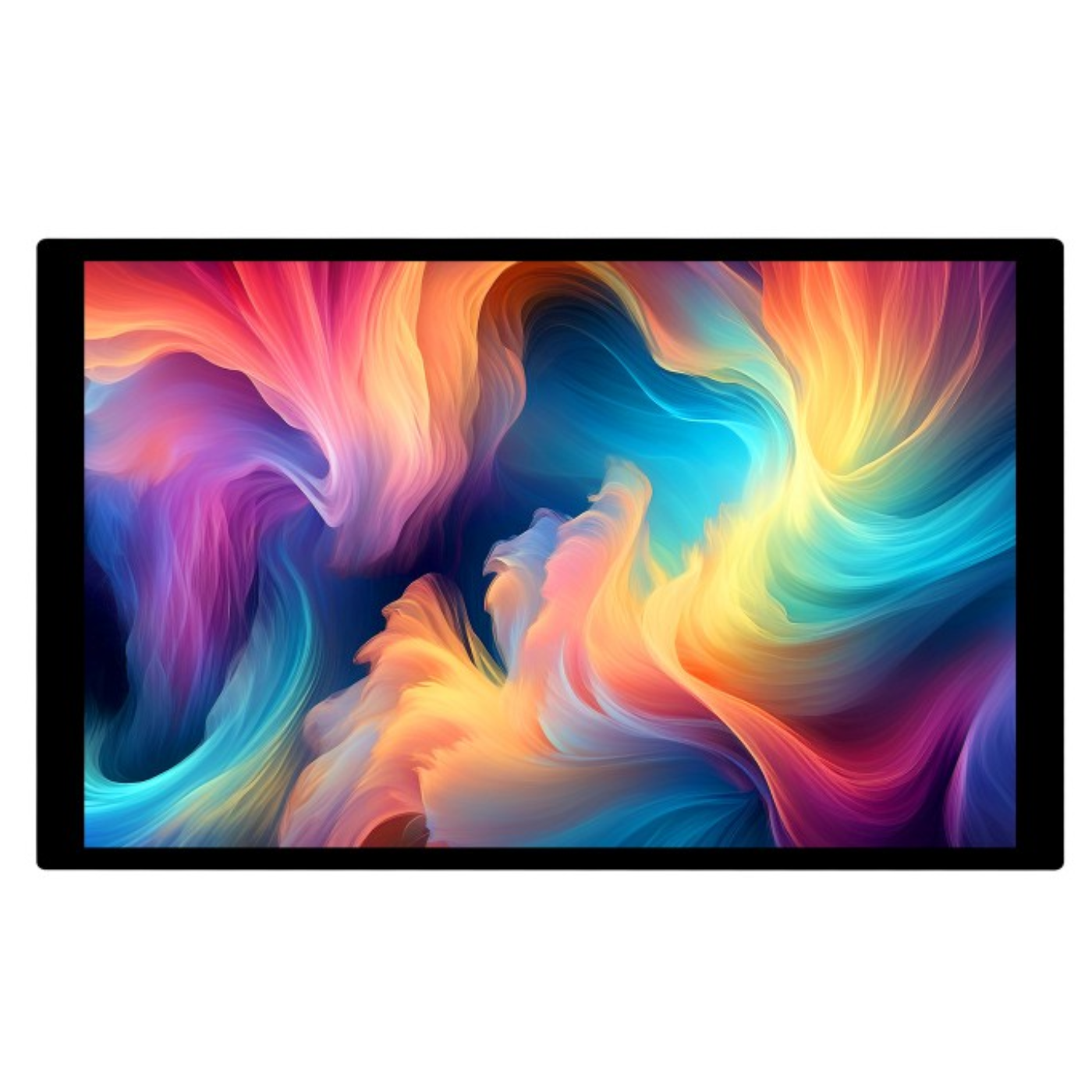

The Waveshare 10.1-Inch IPS LCD Capacitive Touchscreen Display is a high-resolution touchscreen display designed for Raspberry Pi projects, embedded systems, interactive applications, and desktop use. It features a 10.1-inch IPS panel with a 1920×1200 resolution, 300 cd/m² brightness, and a 178° viewing angle, producing clear images and consistent colors from different viewing positions.

The display uses an HDMI interface for video input and a USB Type-C touch port, while its capacitive touch panel supports up to 10-point multi-touch, depending on the operating system. Its optical bonding technology helps improve screen visibility and reduces the space between the LCD and touch panel, while the 6H toughened glass panel adds durability.

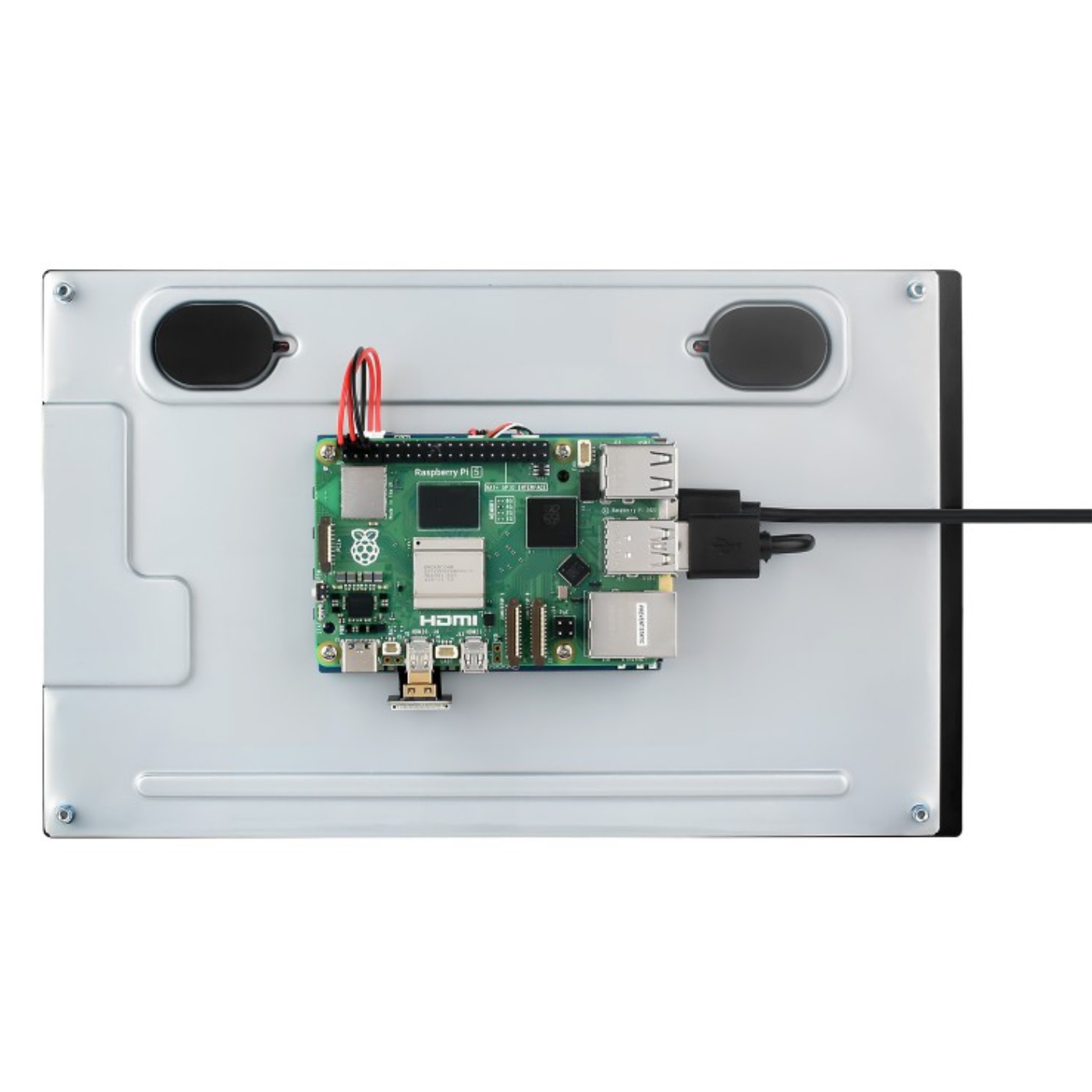

The display also supports both landscape and portrait orientation, includes a built-in dual-track Hi-Fi speaker, and works with platforms including Raspberry Pi, Jetson Nano/TX2/Xavier NX/Orin series, and Windows 11/10/8.1/8/7.

Features:

10.1-inch IPS screen with 1920x1200 hardware resolution.
10 point capacitive touch, tempered glass panel, hardness up to 6H.
Using completely laminated panel technology for improved display effect.
When used with Raspberry Pi, Raspberry Pi OS, Ubuntu, Kali, and Retropie are supported.
The PC monitor supports Windows 11/10/8.1/8/7.
Physical buttons allow you to regulate the power, brightness, and screen rotation.
Support HDMI audio output, an inbuilt 3.5mm headphone connector, and 4PIN high-quality speakers.

Specifications

Package Includes:

1 x 10.1EP-CAPLCD
1 x HDMI flat cable ~1m
1 x USB Type-A to Type-C cable ~1m
1 x Micro HDMI Adapter
1 x HDMI Adapter
1 x HDMI to Micro HDMI Adapter
1 x PH1.25 4PIN to Type-A cable
1 x Capacitive touch pen
1 x 3PIN cable
1 x HDMI-Cable-120mm (2pcs)
1 x Cleaning cloth
1 x Screws pack

Specifications:

Specification	Description	Unit
Model	10.1EP-CAPLCD	/
Size	10.1	Inch
Viewing Angle	178	Deg
Resolution	1920 × 1200	Pixels

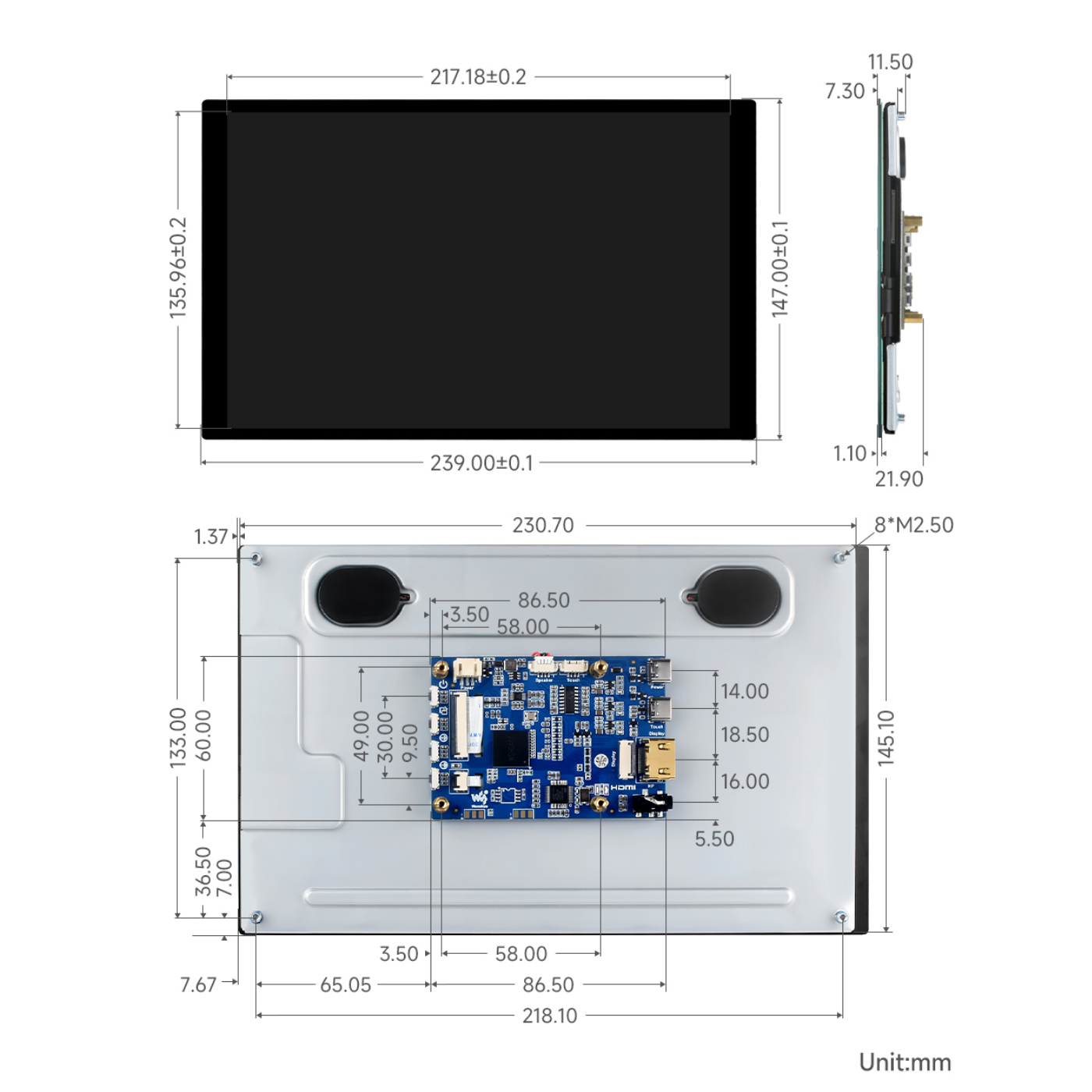

Touch Screen Size	239.00 (H) × 147.00 (V)	mm
Display Area	217.18 (H) × 135.59 (V)	mm
Color Gamut	65%	NTSC
Max Brightness	300	cd/m²
Contrast Ratio	1000:1	/
Backlight Adjustment	Button backlight adjustment	/
Refresh Rate	60	Hz
Display Interface	Standard HDMI interface	/
Power Interface	5V Type-C power supply	/
Max Power Consumption	6	Watt
