Waveshare 10.1-Inch 800×1280 DSI IPS Capacitive Touch Display with Optical Bonding & Toughened Glass
Waveshare 10.1-Inch 800×1280 DSI IPS Capacitive Touch Display with Optical Bonding & Toughened Glass
Waveshare 10.1-Inch 800×1280 DSI IPS Capacitive Touch Display with Optical Bonding & Toughened Glass
The Waveshare 10.1-Inch 800×1280 DSI IPS Capacitive Touch Display is a high-quality 10.1-inch DSI capacitive touch display designed for interactive embedded systems, dashboards, tablets, entertainment interfaces, and Raspberry Pi projects. It features an 800 × 1280 resolution IPS panel, delivering a wide 178° viewing angle and 400 cd/m² brightness for clear visuals from different viewing positions.
The display uses optical bonding with a toughened glass capacitive touch panel for improved screen clarity and durability, while supporting 10-point capacitive touch through an I2C touch interface. Its MIPI DSI connection provides a direct display interface, and the integrated driver circuit helps keep the total LCD thickness to just 10.8 mm.
The display supports refresh rates of up to 60 Hz and software-controlled backlight adjustment, making it a practical choice for responsive touch-based interfaces and compact electronics projects.
Features:
- 10.1-Inch IPS Display – Provides clear and vibrant visuals with a 10.1-inch IPS panel and a wide 178° viewing angle.
- 800 × 1280 Resolution – Delivers detailed images and text with a 800 × 1280-pixel resolution.
- 10-Point Capacitive Touch – Supports up to 10 simultaneous touch points for smooth and responsive interaction.
- Optical Bonding – Reduces reflections and improves screen clarity by bonding the display and touch panel together.
- 6H Toughened Glass – Features a durable 6H hardness glass panel for improved protection against everyday scratches.
- MIPI DSI Interface – Uses a DSI interface for direct connection with compatible Raspberry Pi and embedded platforms.
- 400 cd/m² Brightness – Provides a brightness level of 400 cd/m² for comfortable viewing in various indoor environments.
- 60 Hz Refresh Rate – Supports up to a 60 Hz refresh rate for smooth screen updates and touch-based applications.

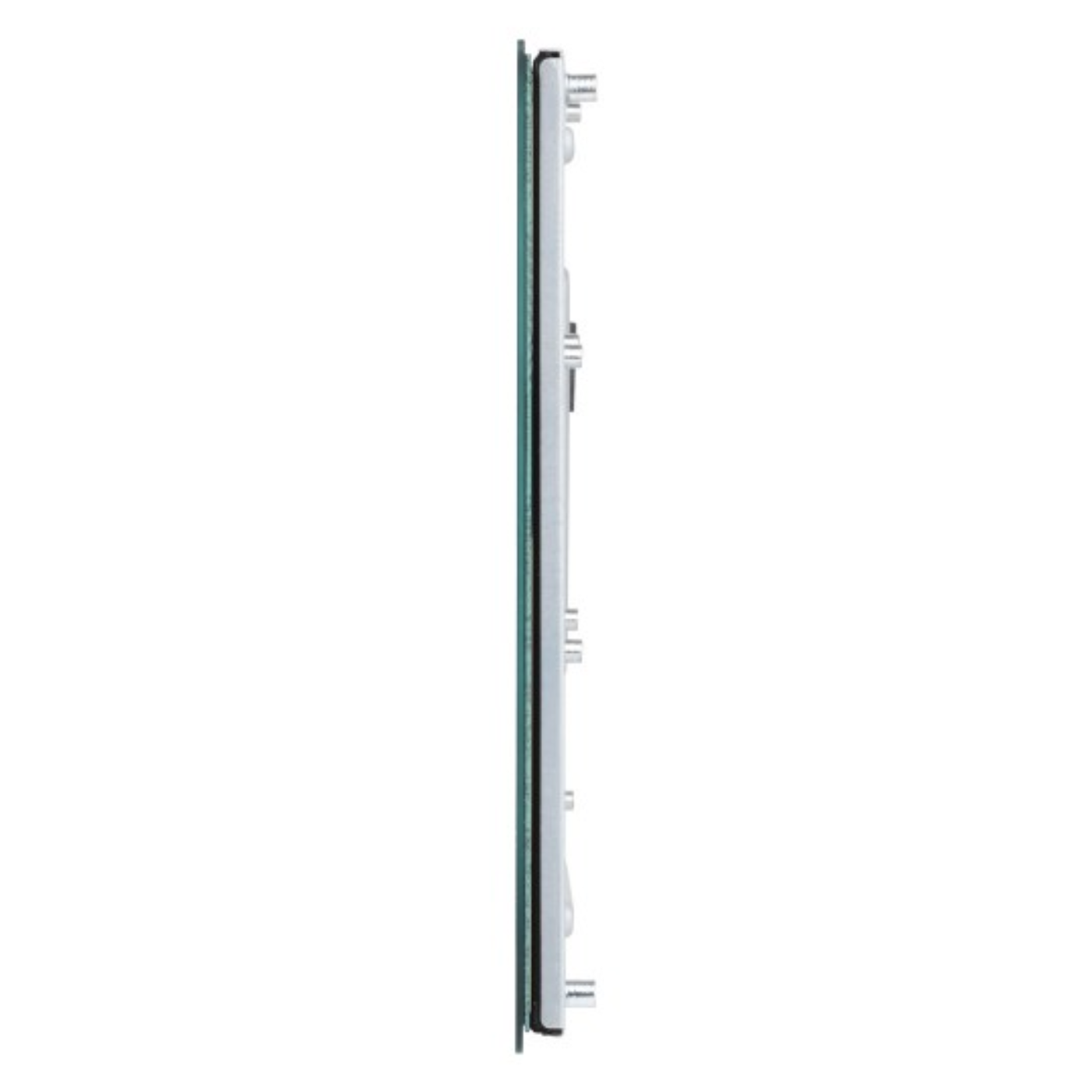

- Slim 10.8 mm Design – The display has a compact 10.8 mm thickness, making it suitable for space-constrained projects.
- Embedded Project Ready – Ideal for Raspberry Pi projects, smart dashboards, interactive kiosks, HMI systems, and DIY touchscreen applications.
Package Includes:
- 1 x 10.1-DSI-TOUCH-A
- 1 x MIPI-DSI-Cable-12cm
- 1 x MX 1.25 2PIN to 2.54 3PIN cable
- 2 x FFC 22PIN cable ~200mm (opposite sides)
- 1 x MX1.25 2PIN to MX1.25 4PIN cable ~150mm
- 1 x Screws pack
Specifications:
| Specification | Details |
|---|---|
| Display Size | 10.1 Inches |
| Panel Type | IPS |
| Resolution | 800 × 1280 Pixels |
| Touch Type | Capacitive |
| Touch Points | 10-Point |
| Interface | MIPI DSI |
| Viewing Angle | 178° |
| Brightness | 400 cd/m² |
| Refresh Rate | Up to 60 Hz |
| Glass | 6H Toughened Glass |
| Bonding | Optical Bonding |
| Thickness | 10.8 mm |
