Waveshare 10.1" 1280×800 HDMI IPS Touchscreen LCD with Case

Waveshare 10.1-Inch 1280×800 HDMI IPS Capacitive Touchscreen LCD (B) Display with Case

Rs 11,299/-
- 33%
Rs 11,299/-
Rs 16,949/-
Save Rs 5,650/-
🪙
RC REWARDS Earn 112 RC Coins on this order
Incl. GST (No Hidden Charges)
Please hurry! Only 0 left in stock

We’ll notify you once the product is back in stock.

Free Delivery Above ₹999

Technical Support & Easy Returns

Same-Day Shipping (Order by 3 PM on Business Days)

Earn RC Coins on Every Prepaid Order

COD Available on Order Value Between ₹500 to ₹3,000
SKU: TIFDP0130
  • 10.1-inch IPS Display with a clear 1280×800 hardware resolution.
  • 10-point capacitive touchscreen for smooth and responsive multi-touch interaction.
  • 170° wide viewing angle provides comfortable viewing from different positions.
  • HDMI interface makes it easy to connect with Raspberry Pi boards, PCs, and compatible mini computers.
  • Toughened glass touch panel with up to 6H hardness for improved durability.
  • USB touch interface enables convenient touch control when connected to a compatible host.
  • Protective acrylic case gives the display a clean, finished appearance and added protection.
  • Broad OS support, including Raspberry Pi OS, Ubuntu, Kali, RetroPie, and Windows 7/8/8.1/10/11.
  • Low-power design makes it suitable for embedded displays, dashboards, kiosks, and maker projects.

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here
+91

File(s) size limit is 20MB. Max 3 files.

Select Categories
CAPTCHA
Reload Captcha
Robocraze Academy Limited Time Offer
Waveshare 10.1-Inch 1280×800 HDMI IPS Capacitive Touchscreen LCD (B) Display with Case -Displays -LCD Displays -Robocraze
Waveshare 10.1-Inch 1280×800 HDMI IPS Capacitive Touchscreen LCD (B) Display with Case
Rs 16,949/- Rs 11,299/-
Waveshare 10.1-Inch 1280×800 HDMI IPS Capacitive Touchscreen LCD (B) Display with Case -Displays -LCD Displays -Robocraze
Waveshare 10.1-Inch 1280×800 HDMI IPS Capacitive Touchscreen LCD (B) Display with Case -Displays -LCD Displays -Robocraze
Waveshare 10.1-Inch 1280×800 HDMI IPS Capacitive Touchscreen LCD (B) Display with Case -Displays -LCD Displays -Robocraze
Waveshare 10.1-Inch 1280×800 HDMI IPS Capacitive Touchscreen LCD (B) Display with Case -Displays -LCD Displays -Robocraze
Waveshare 10.1-Inch 1280×800 HDMI IPS Capacitive Touchscreen LCD (B) Display with Case -Displays -LCD Displays -Robocraze
Waveshare 10.1-Inch 1280×800 HDMI IPS Capacitive Touchscreen LCD (B) Display with Case -Displays -LCD Displays -Robocraze
Waveshare 10.1-Inch 1280×800 HDMI IPS Capacitive Touchscreen LCD (B) Display with Case -Displays -LCD Displays -Robocraze

Waveshare 10.1-Inch 1280×800 HDMI IPS Capacitive Touchscreen LCD (B) Display with Case

Rs 16,949/- Rs 11,299/-
Description

Waveshare 10.1-Inch 1280×800 HDMI IPS Capacitive Touchscreen LCD (B) Display with Case

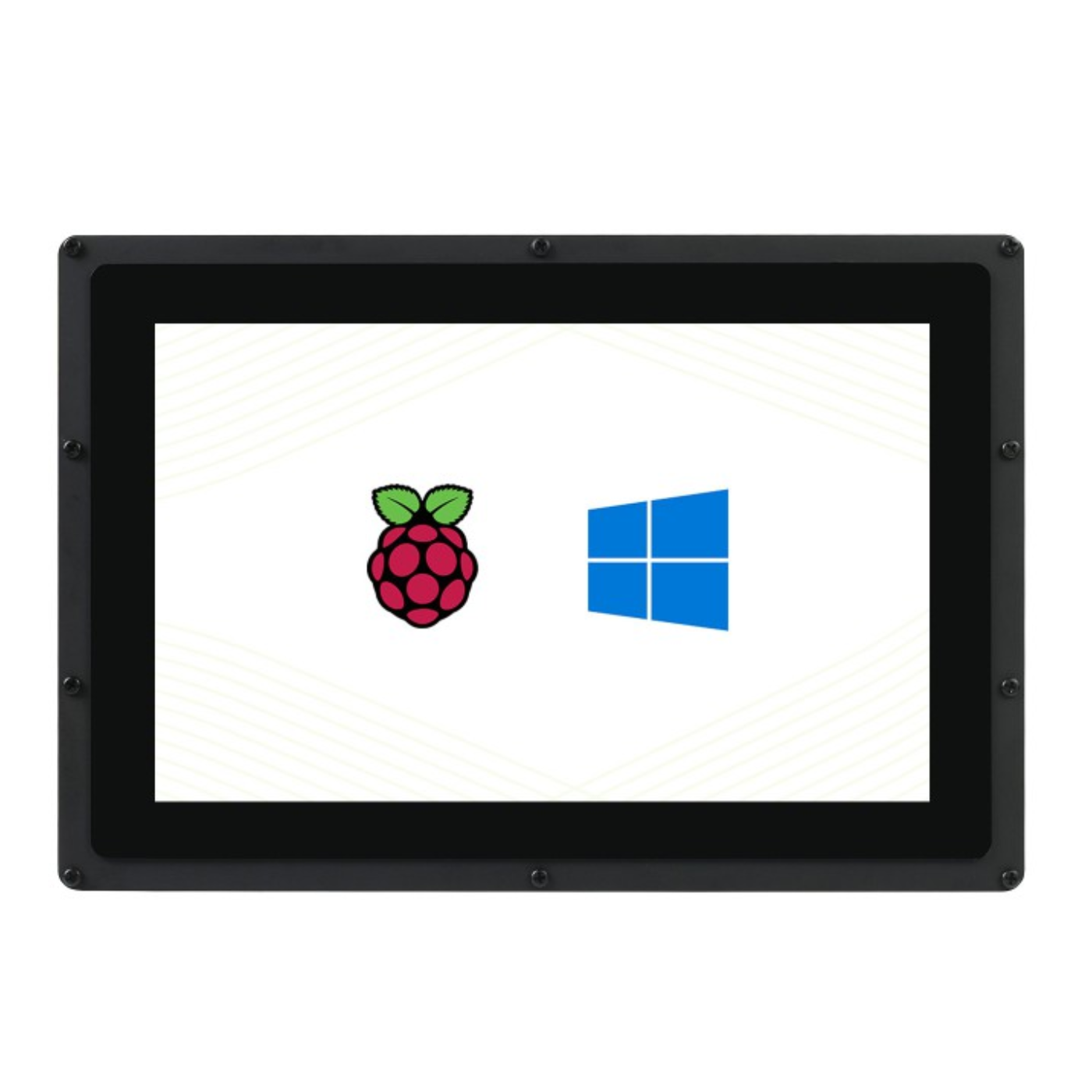

The Waveshare 10.1-Inch 1280×800 HDMI IPS Capacitive Touchscreen LCD (B) Display with Case is a versatile touch display designed for Raspberry Pi projects, mini PCs, embedded systems, and desktop applications. Its 10.1-inch IPS panel delivers a 1280×800 resolution and a wide 170° viewing angle for clear visuals, while the responsive 10-point capacitive touchscreen provides intuitive multi-touch control.

The toughened glass panel offers up to 6H hardness, and the included acrylic case provides a neat, protected setup for development and finished projects. With HDMI for video and USB for touch input, this Waveshare HDMI LCD works with Raspberry Pi OS, Ubuntu, Kali, RetroPie, and Windows systems, making it well suited for interactive dashboards, control panels, kiosks, HMI applications, smart home interfaces, and other Raspberry Pi touchscreen projects.

Features:

  • The 10.1-inch IPS screen has a hardware resolution of 1280 × 800.
  • 10-point capacitive touch control, toughened glass panel with hardness up to 6H.
  • When used with a Raspberry Pi, it supports Raspberry Pi OS, Ubuntu, Kali, and Retropie.
  • Supports Windows 11/10/8.1/8/7 when used as a computer monitor.
Specifications

Package Includes:

  • 1 x 10.1inch HDMI LCD (B) (with case)
  • 1 x Back stand
  • 1 x HDMI cable
  • 1 x HDMI to Micro HDMI Adapter
  • 1 x USB-A to Micro-B cable
  • 1 x Screws pack

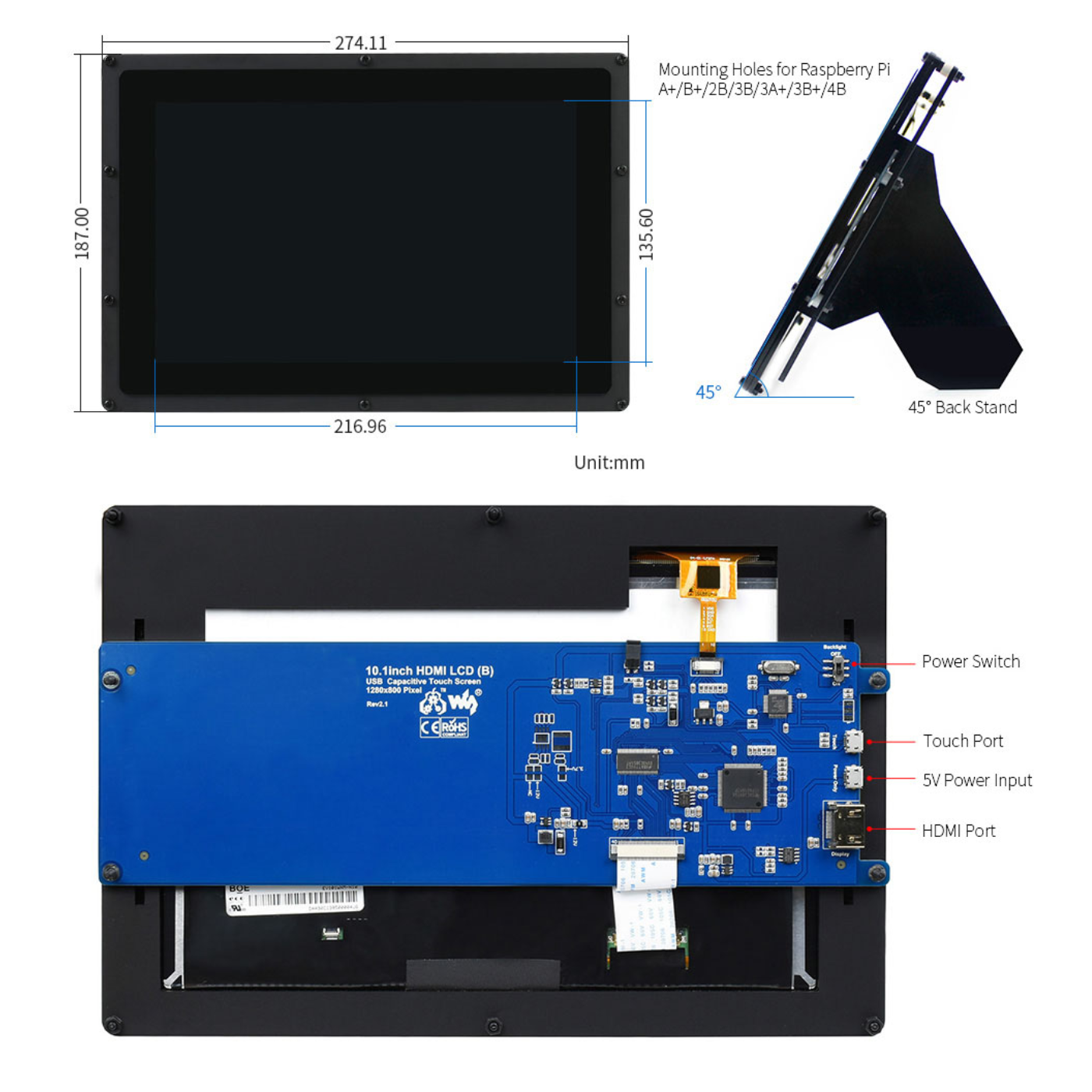

Specifications:

Specification Details
Display Size 10.1 Inches
Resolution 1280 × 800 Pixels
Display Type IPS LCD
Touch Type 10-Point Capacitive Touch
Viewing Angle 170°
Video Interface HDMI
Touch Interface USB
Panel Protection Toughened Glass, Up to 6H
Operating Systems Raspberry Pi OS, Ubuntu, Kali, Windows 7/8/8.1/10/11
Case Acrylic Protective Case
