Vending Machine Coin Acceptor

Vending Machine Coin Acceptor

Regular price Rs. 539
Regular price Rs. 835 Sale price Rs. 539
Sale Sold out 35% off Best Price Guaranteed
You save Rs. 296 | Eligible for Free Shipping
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Product will be SHIPPED TODAY, if ordered within 13 hours and 51 minutes.

BEST COUPON FOR YOU

FLAT ₹ 100/- OFF RC100

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here
  • Working voltage is DC+12 v ± 20percent. Quiescent current below 25mA. Dynamic current below 400 mA
  • Programmable for one coin type based on coin material.thickness and size

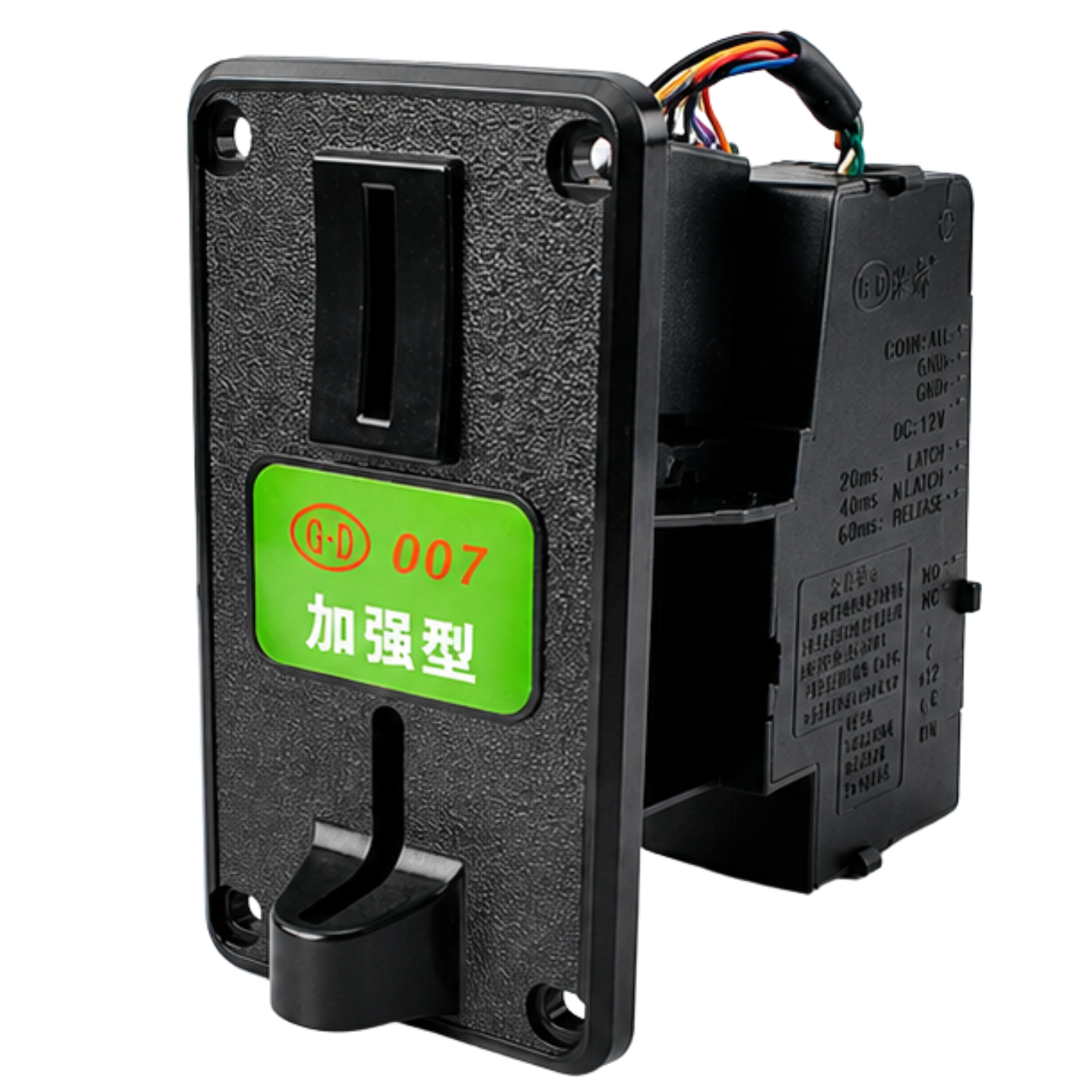

  • Connection Diagram a) Gray wire b) Black wire -Ground c) White wire -COIN signal d) Red wire -DC+12V
  • Quick release face plate for easy maintenance -Black color face plate with push button type coin release.
Trust Badge 1 Trust Badge 2 Trust Badge 3

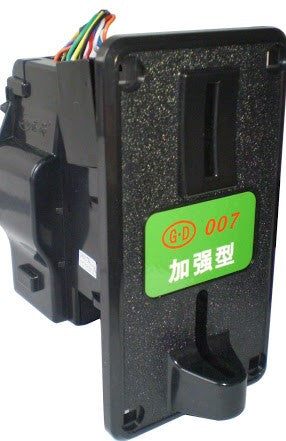

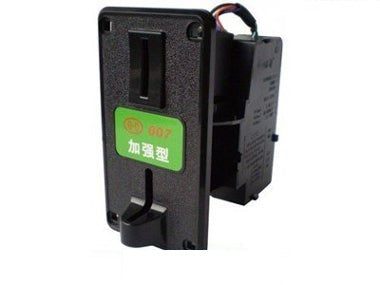

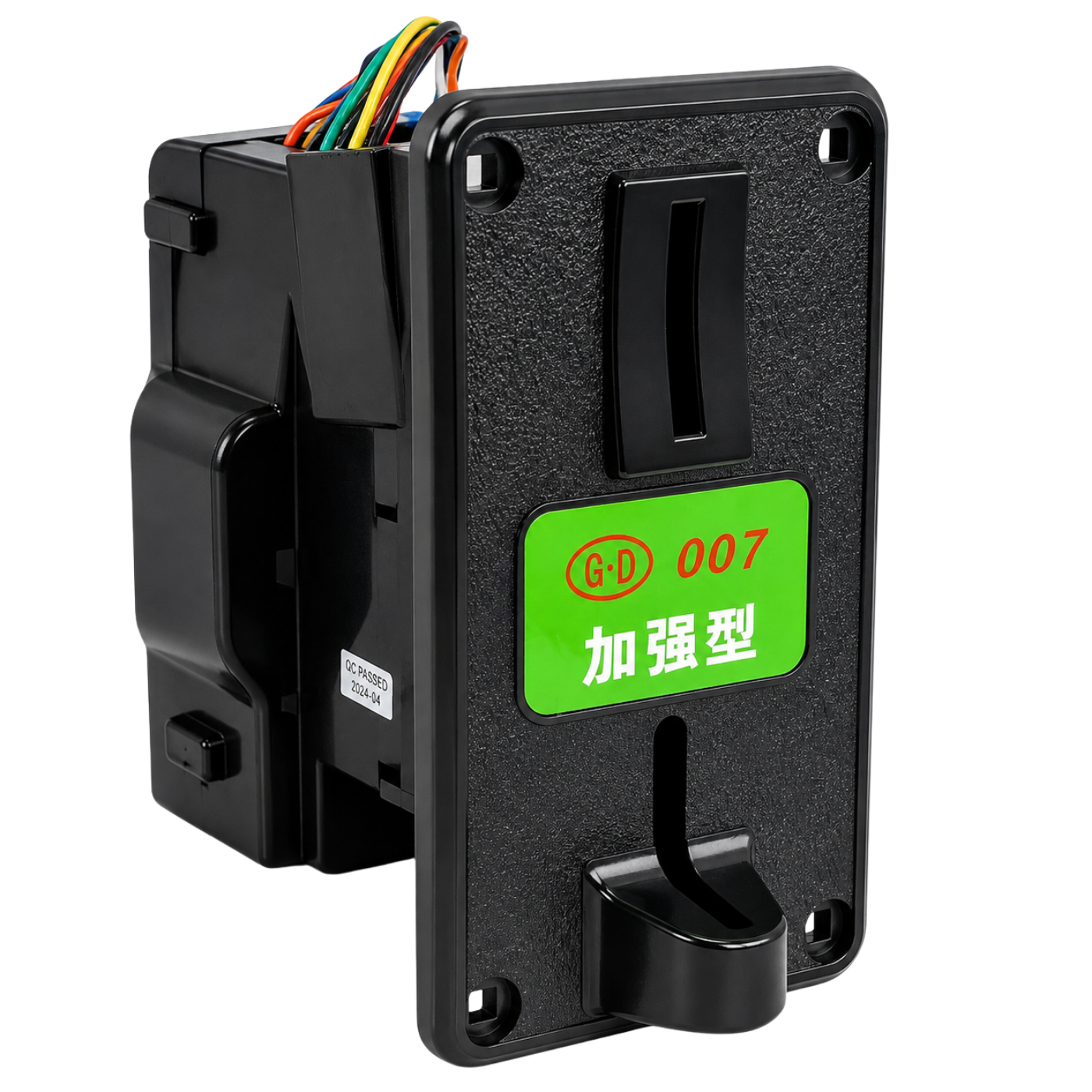

GD-007 Single Coin Acceptor

Coin acceptor modules accept currency coins which can be suitable for various vending machines. Coin acceptor modules are available in multiple categories including single coin acceptors, comparable type coin acceptors, multi-coin coin acceptors, etc. The Single coin acceptor is specially designed to accept only a specific coin. A comparable type of coin acceptor is used to accept the coins that are similar to the coins put aside the coin acceptor. Multi-coin coin acceptors can accept different coins with one machine, and output different signals to the microcontroller.

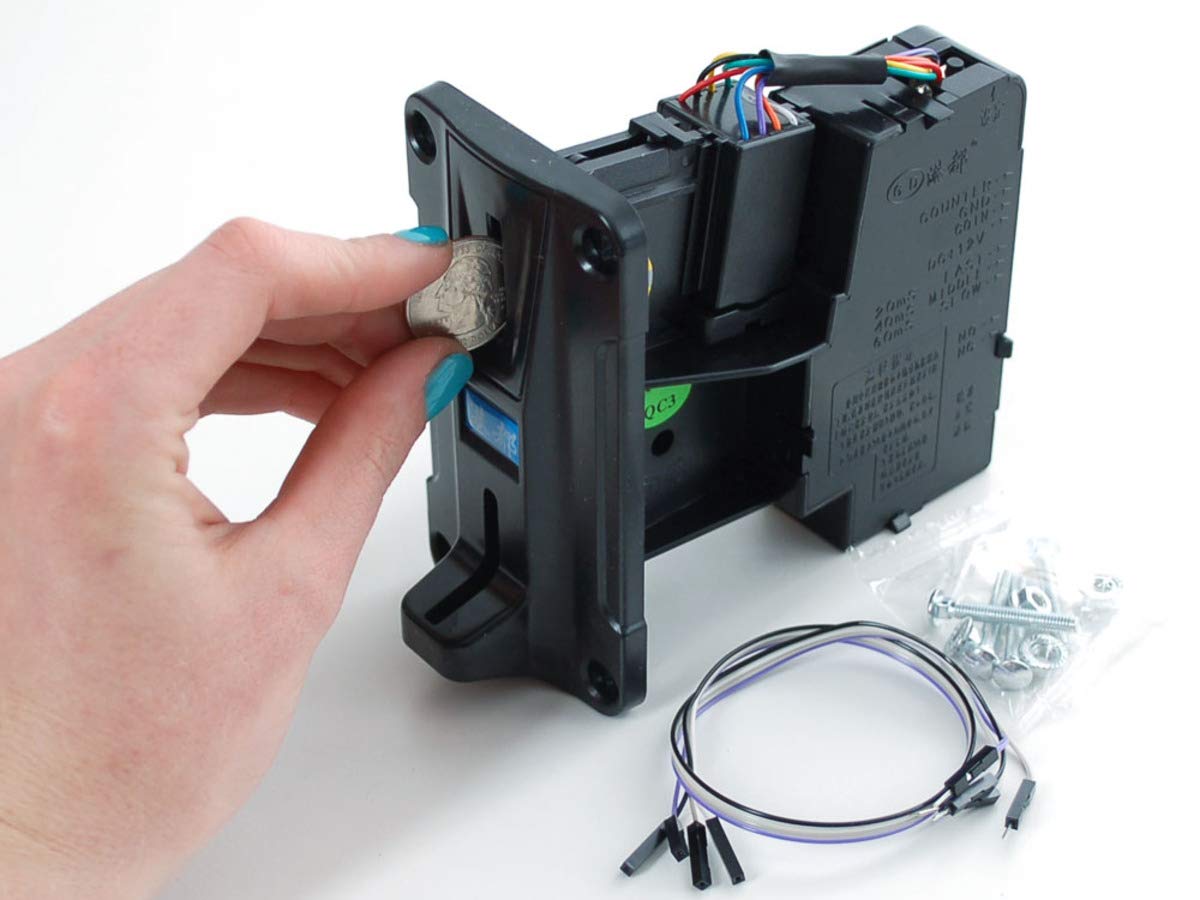

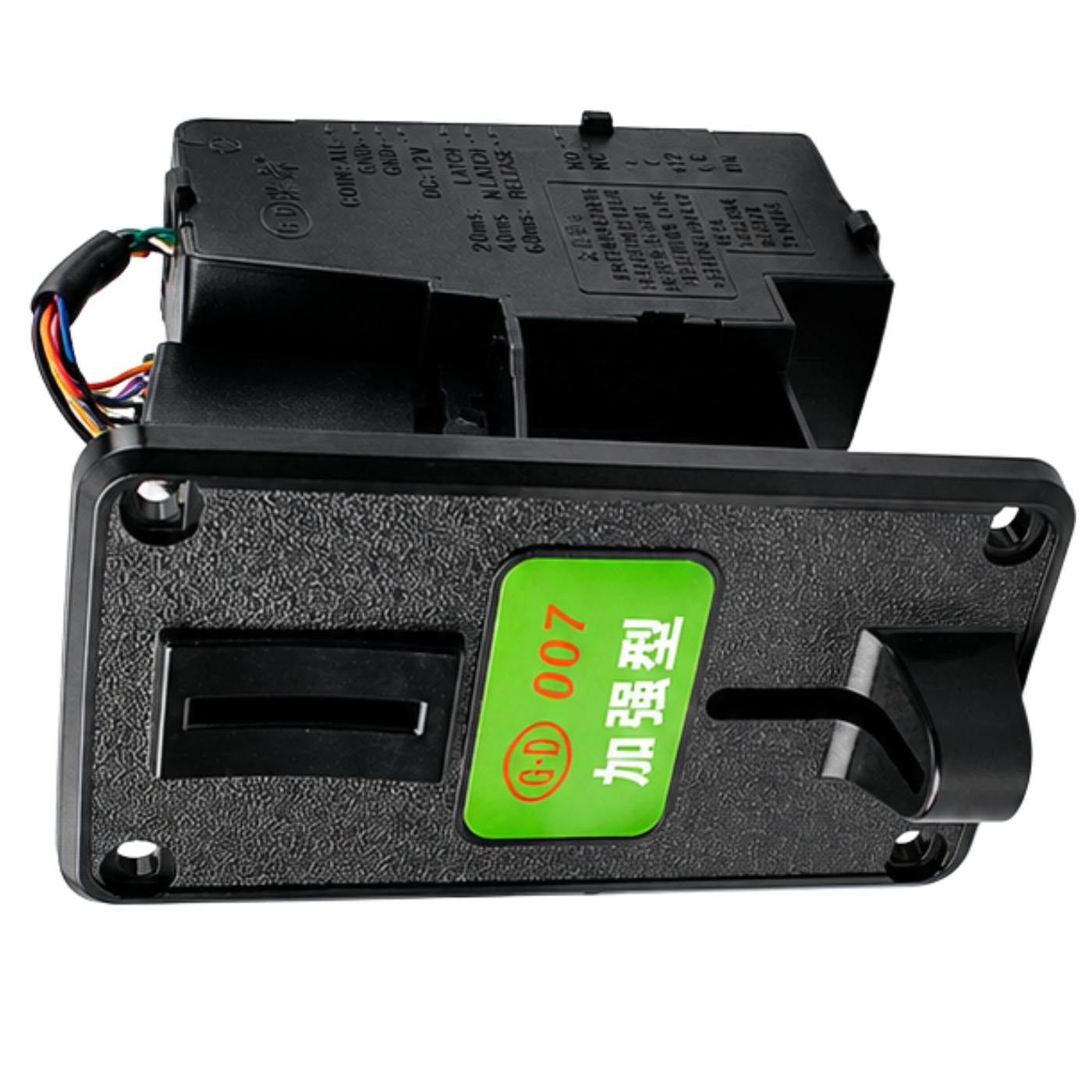

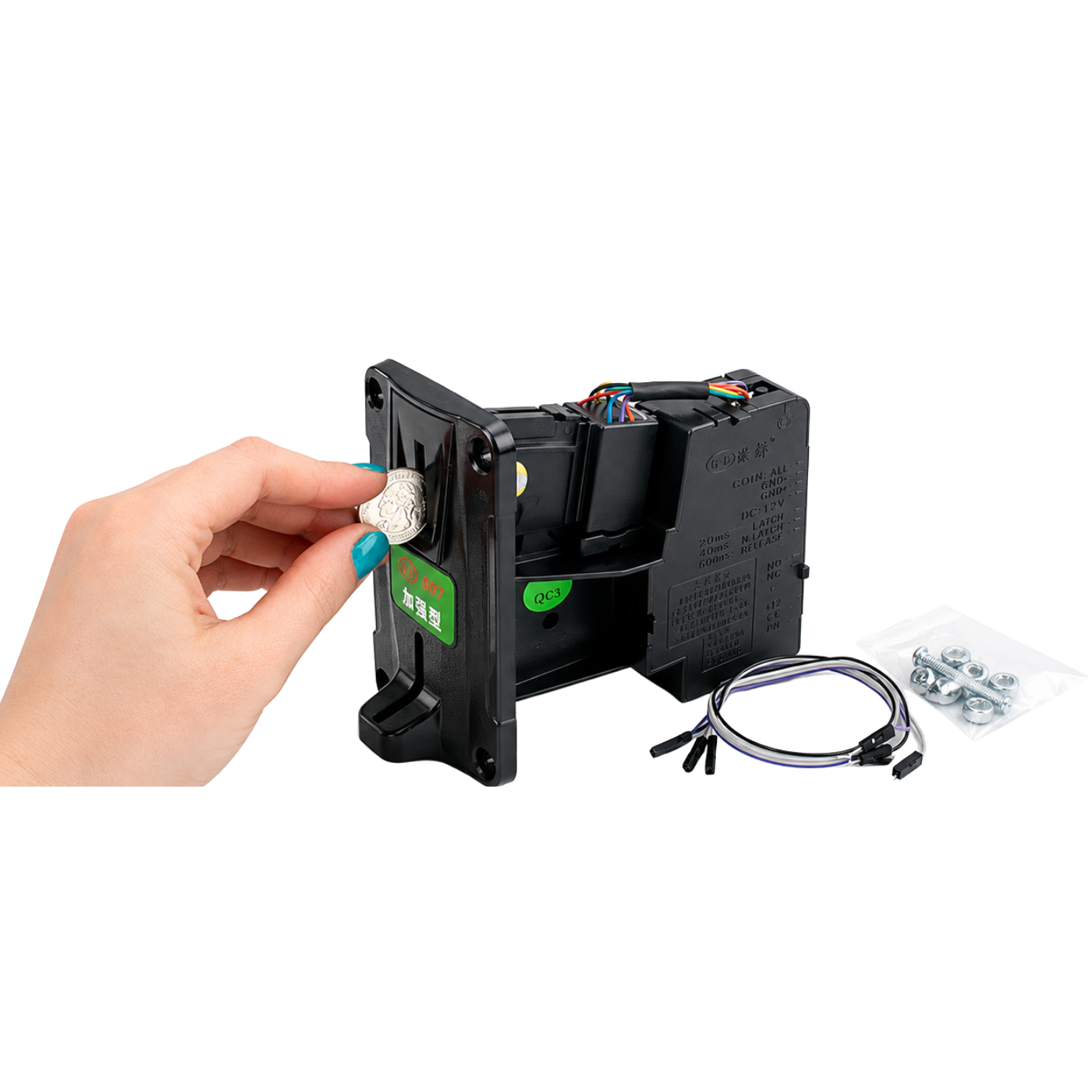

The coin-accepting sensor device has an inbuilt microcontroller that takes data from the sensor inside the device and collects different coins. Using this data, the microcontroller knows whether this coin needs to be accepted or returned. The device is easily programmed using a push button located on the top. The coin acceptor device gives us an impulse signal on the output pin for every inserted coin and by counting impulses we know how many coins have been inserted. It also has three switches which we use in order to select the type of signal we want to get on the output. The first switch has three positions to select the impulse length. The second switch is used to set the signal to be +5 V(NC) or 0 V(NO). Using the 3rd switch, the precision of the device can be chosen.

Applications:

  • Vending Machine

Also check BV30 Compact Bill Acceptor offered by Robocraze. It is designed for handling low-value transactions efficiently and securely. The bill acceptor has a compact design, making it suitable for use in vending machines, parking systems, and arcade games. It features enhanced sensing and security for accurate bill validation. The attractive bezel illumination comes in RGB options, providing an eye-catching display.

Package Includes:

  • 1 x GD-007 Single Coin Acceptor

Specifications:

Supply Voltage  DC+12V discrepancy 20%
Temperature -10Celsius degree ~ +60Celsius degree
Coin thickness 1.2 - 3mm

Shipping & Returns

  • All orders confirmed before 3 pm IST are shipped on the
    same day, barring rare pickup delays on holidays or disturbances
  • Delivery time in Metro cities is 1-3 days, Others it is
    3-7 days. It varies based on location, reliant on courier services
  • Return window: 7 days from receipt unless stated
    otherwise. No refunds/replacements after
  • Returns only for non-working/damaged products are accepted
  • Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
  • Refunds are processed within 3-4 working days post inspection and approval.

For more details, please check our Shipping and Return Policy

View full details
Trust Badge 1 Trust Badge 2 Trust Badge 3

Found a better price?

Let us know!
We'll try to match the price for you

  • ⚡ Dispatched within 24 hours

  • 💰 Earn RC Coins on every purchase

  • 🚚 Free shipping on orders above Rs 500/-

  • 🛠️ Dedicated Technical Support Team

1 of 4

1. Why do vending machines reject coins?

  • The vending machine will reject money that was legitimately created but improperly minted. The vending machine will think the money is fake and will just reject.

2. How can a vending machine detect the type of coin inserted by the user?

  • Vending machines use light sensors to measure the size of a coin and electromagnets to detect the metal type to determine what kind of coin it is.

3. How does a coin acceptor work?

  • The coin acceptor identifies the coin according to its mass, size, diameter, thickness, metal composition, and/or magnetism, and then sends an appropriate electrical signal via its output connection.

4. What is a vending machine coin acceptor?

  • Coin acceptor modules accept currency coins which can be suitable for various vending machines. Coin acceptor modules are available in multiple categories including single coin acceptors, comparable type coin acceptors, multi-coin coin acceptors, etc. The Single coin acceptor is specially designed to accept only a specific coin. A comparable type of coin acceptor is used to accept the coins that are similar to the coins put aside by the coin acceptor. Multi-coin coin acceptors can accept different coins with one machine, and output different signals to the microcontroller.
