- Vertical USB Type-C female breakout board
- Simplifies USB-C integration without complex soldering
- Ideal for panel mounting in projects
- Supports up to 3A power delivery (depends on upstream device)
- Breaks out key USB-C pins to standard 0.1" pitch header
USB Type C Vertical Female Breakout -7Semi

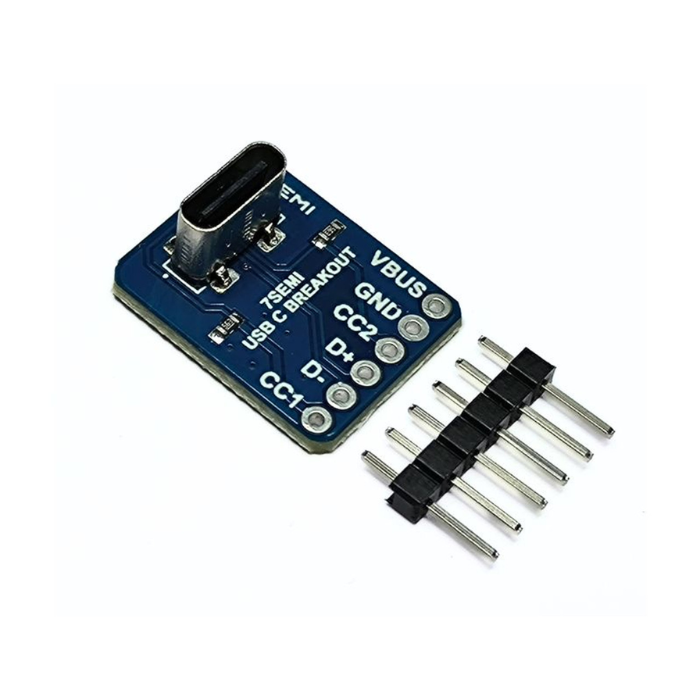

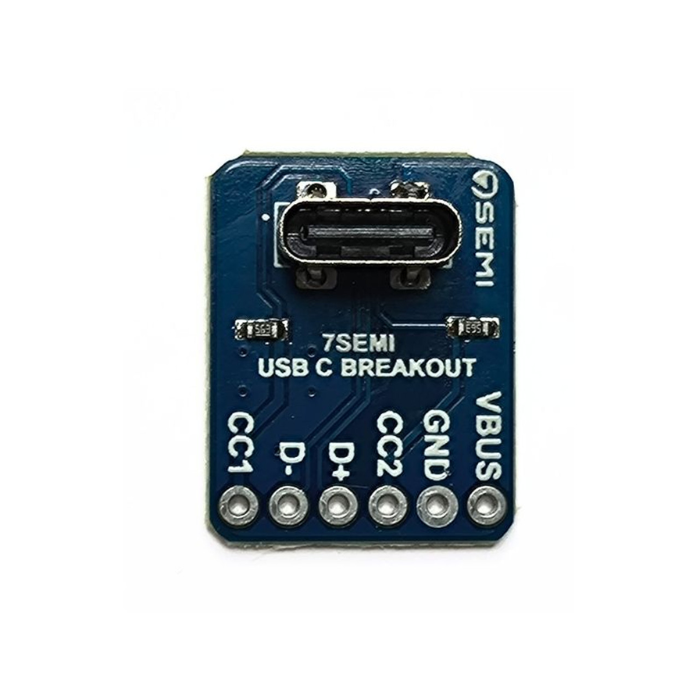

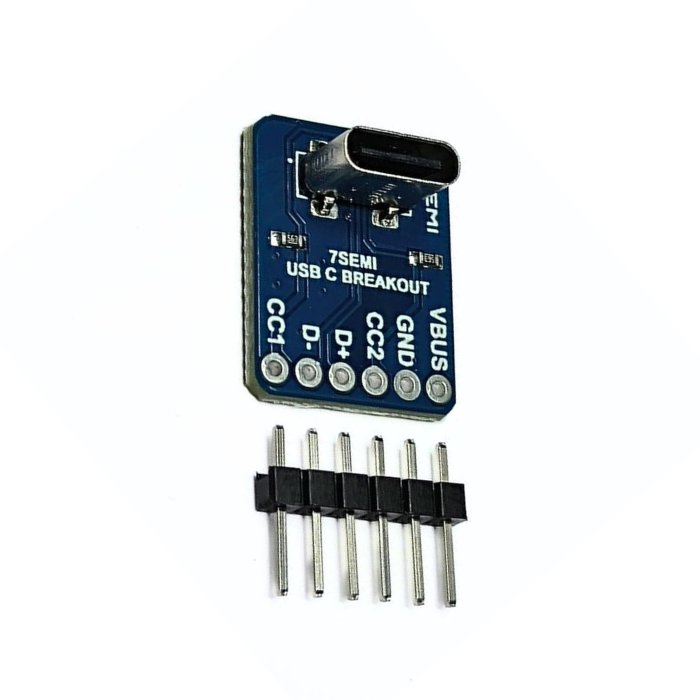

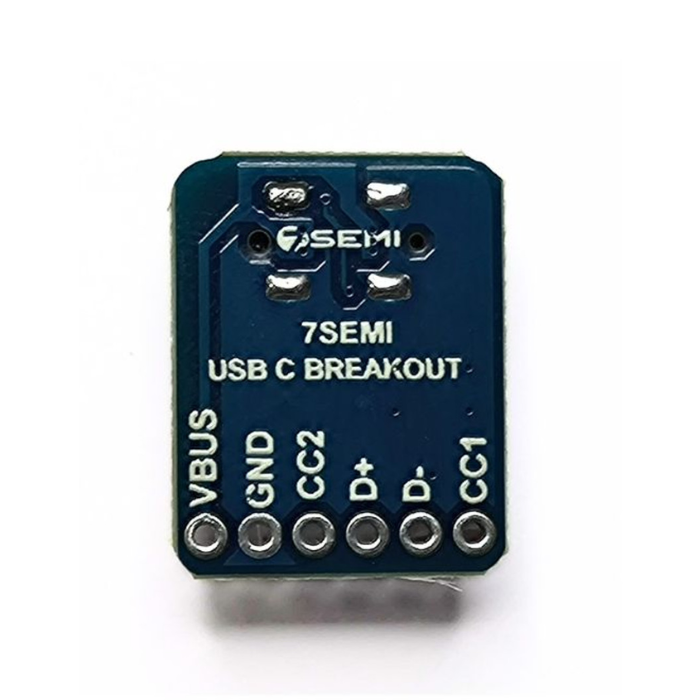

The USB Type C Vertical Female Breakout -7Semi offers an effortless way to integrate a USB-C connector vertically into your projects, making panel mounting straightforward and clean.
It eliminates the hassle of soldering individual surface-mount pads by breaking out the key USB-C pins—VBUS, GND, CC1, CC2, D+, and D-—to a standard 0.1" pitch header, making wiring and prototyping much easier.
This breakout board supports power delivery of up to 3A, depending on the capabilities of the connected upstream device, ensuring reliable power and data connectivity for a variety of applications.
Features:
-
Vertical USB-C connector orientation for easy panel mounting
-
Breaks out USB-C signals: VBUS, GND, CC1, CC2, D+, and D-
-
Supports up to 3A current delivery
-
0.1" pitch header for easy prototyping and wiring
- Eliminates need for soldering tiny surface-mount pads
Package Includes:
- 1 x USB Type C Vertical Female Breakout -7Semi
Specifications:
| Specification | Details |
|---|---|
| Connector Type | USB Type-C Female (Vertical Orientation) |
| Mounting Type | Panel Mount / Vertical |
| Breakout Pin Pitch | 0.1 inch (2.54 mm) |
| Broken Out Pins | VBUS, GND, CC1, CC2, D+, D- |
| Maximum Current Support | Up to 3A (depends on upstream device) |
| Board Type | Breakout Board |
