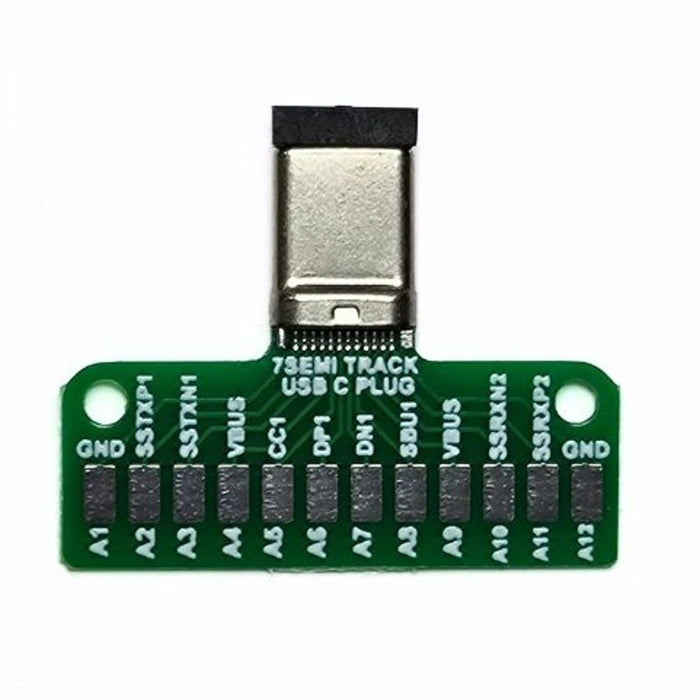

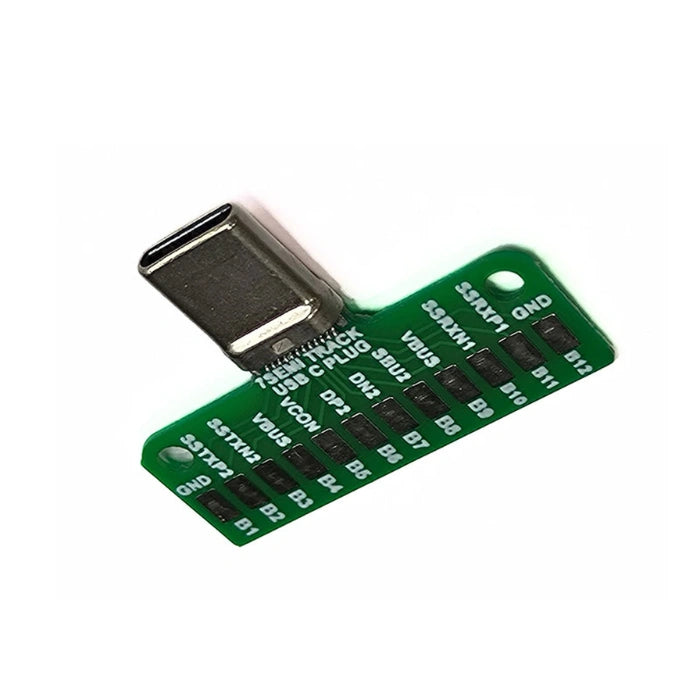

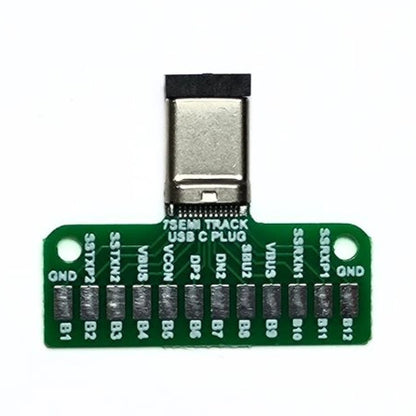

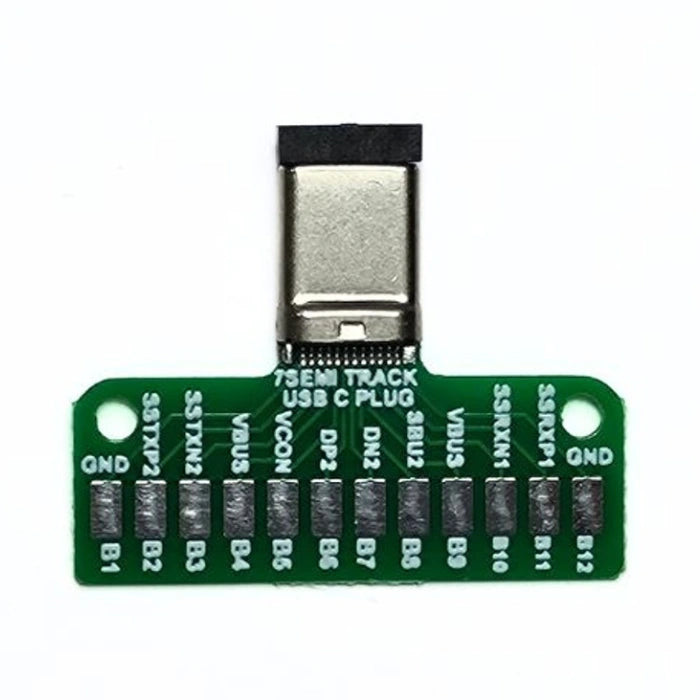

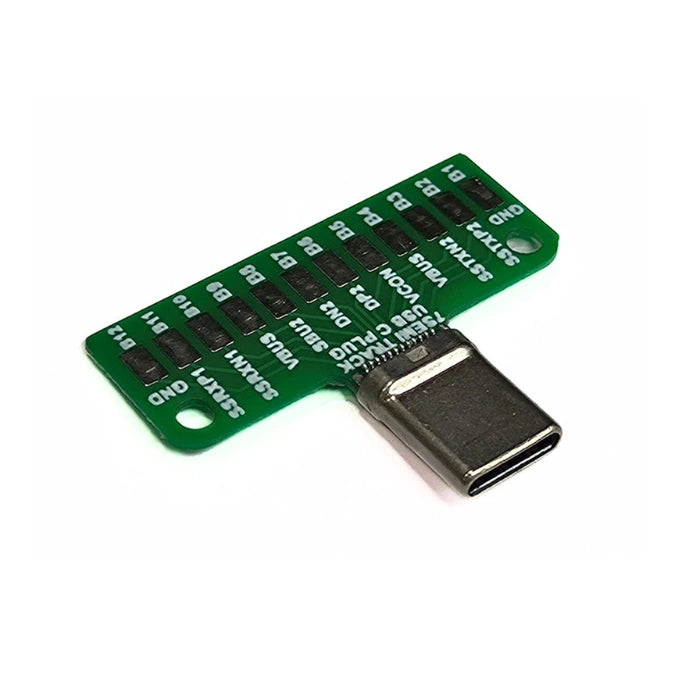

USB 3.1 Type-C Male Breakout Board (24-Pin) - 7Semi
USB 3.1 Type-C Male Breakout Board (24-Pin) - 7Semi
Low stock: 7 left
Couldn't load pickup availability
Technical Support & Easy Returns
Raise a Ticket
Earn RC Coins on Every Purchase
Rewards
Cash on Delivery Available
Cash Delivery
COUPON
When you shop for โน 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Straight plug type 24-pin Type-C male connector for easy integration.
- Eliminates the need for soldering individual small SMD pads.
- Vertical orientation ideal for applications without mounts.
- Simplifies the design process for USB-C connectivity.
- Suitable for prototyping, testing, and custom electronics development.
USB 3.1 Type-C Male Breakout Board (24-Pin) - 7Semi
The 7Semi USB 3.1 Type-C Male Breakout Board (24-Pin) offers a practical solution for integrating USB-C connectivity into your projects without the need for soldering individual small SMD pads. Featuring a straight plug type 24-pin Type-C male connector, this breakout board provides a vertical USB-C interface that is particularly convenient for applications without mounts. Its straightforward orientation simplifies the design process, making it an excellent choice for prototyping, testing, and custom electronics development.
Features:
- Connectivity without effort: Adding a USB-C port to your projects is simple.
- Adaptable Design: Perfect for mount-free applications.
- Simple Orientation: Suitable for a range of PCB designs.
- Dependable Performance: Assures USB-C connections are steady and effective.
- Superior Construction: Sturdy and long-lasting.
Package Includes:
- 1 x 7Semi USB 3.1 Type-C Male Breakout Board (24-Pin)
Specifications:
| Connector Type | USB 3.1 Type-C Male (Straight Plug) |
| Pin Count | 24 Pins |
| Orientation | Vertical |
| Mounting Type | Through-hole (no SMD soldering required) |
| Dimensions | 3.3 x 2.7 x 0.3 cm |
| Weight | 2 gm |
| Pin Pitch | 0.1" (2.54 mm) |
| Power Delivery Support | Yes (up to 100W, depending on upstream device) |
| Data Transfer Rate | Up to 10 Gbps (USB 3.1 Gen 2) |
| Durability | 10,000 mating cycles |
| Mounting Holes | Yes, for secure attachment |
| Ideal Use Cases | Prototyping, custom electronics, testing, DIY projects |
