Tilt Sensor Vibration Alarm Vibration Switch Module for Arduino

Tilt Sensor Vibration Alarm Vibration Switch Module for Arduino

Regular price Rs. 50
Regular price Rs. 68 Sale price Rs. 50
Sale Sold out 26% off Best Price Guaranteed
You save Rs. 18 | Free Shipping on Orders Above ₹ 499/-
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Product will be SHIPPED TODAY, if ordered within 4 hours and 16 minutes.

BEST COUPON FOR YOU

FLAT ₹ 100/- OFF RC100

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here
  • Operating voltage: 3.3 to 5VDC
  • Ball Rolling type of tilt sensor.
  • This small module is easy to use.
  • A fixed bolt hole for easy installation
  • Wide voltage LM393 comparator
  • On board, it provides a tilt switch, high sensitivity and commonly being used for tilt detection.
Trust Badge 1 Trust Badge 2 Trust Badge 3

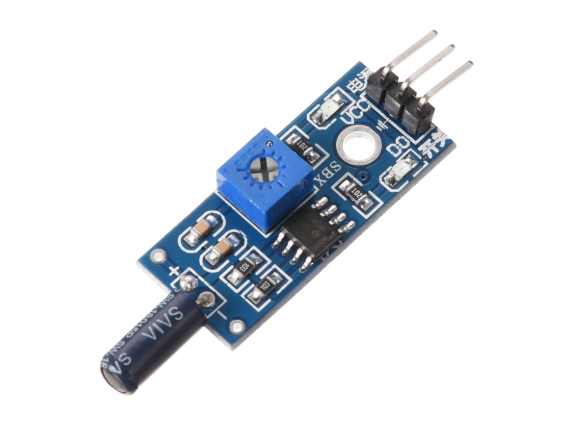

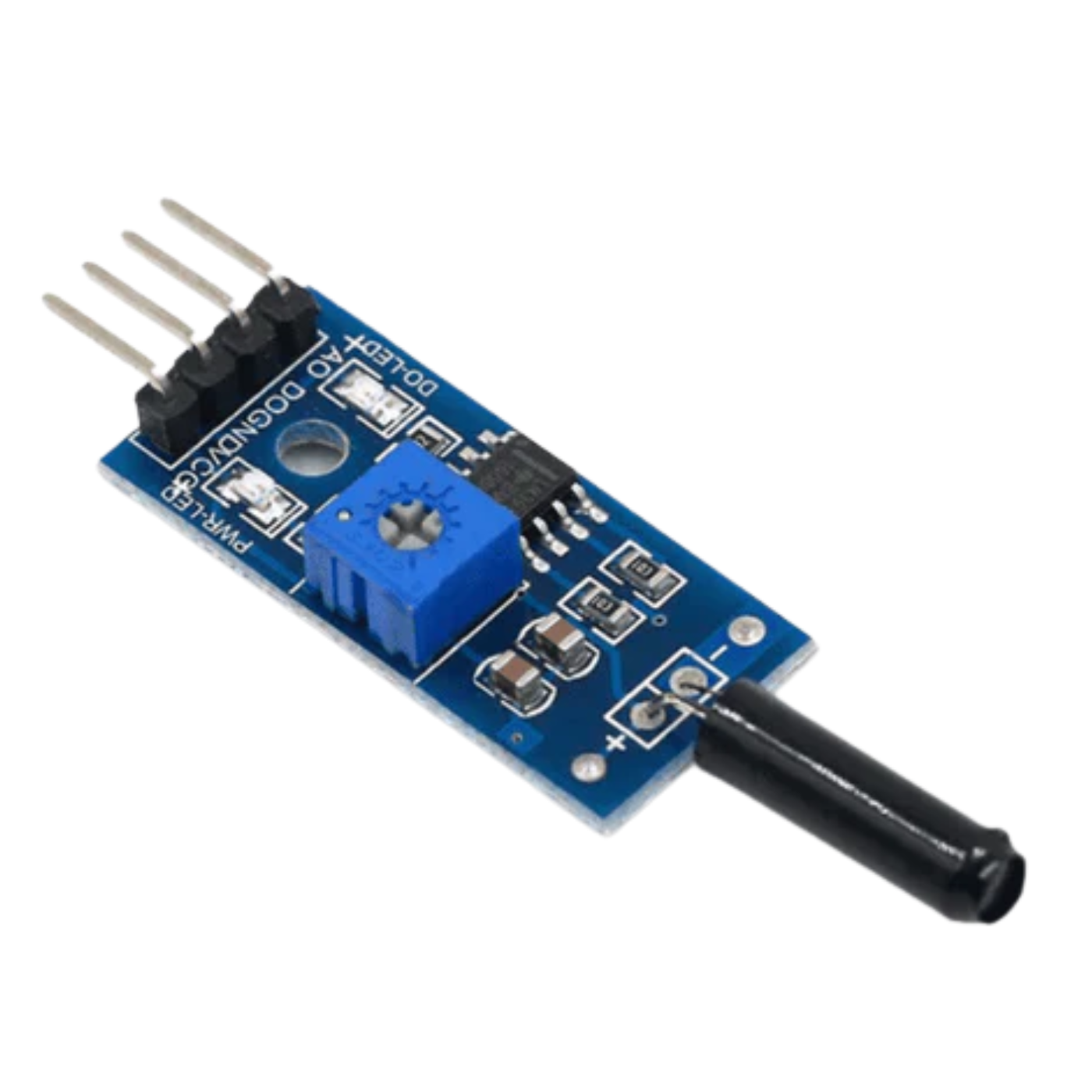

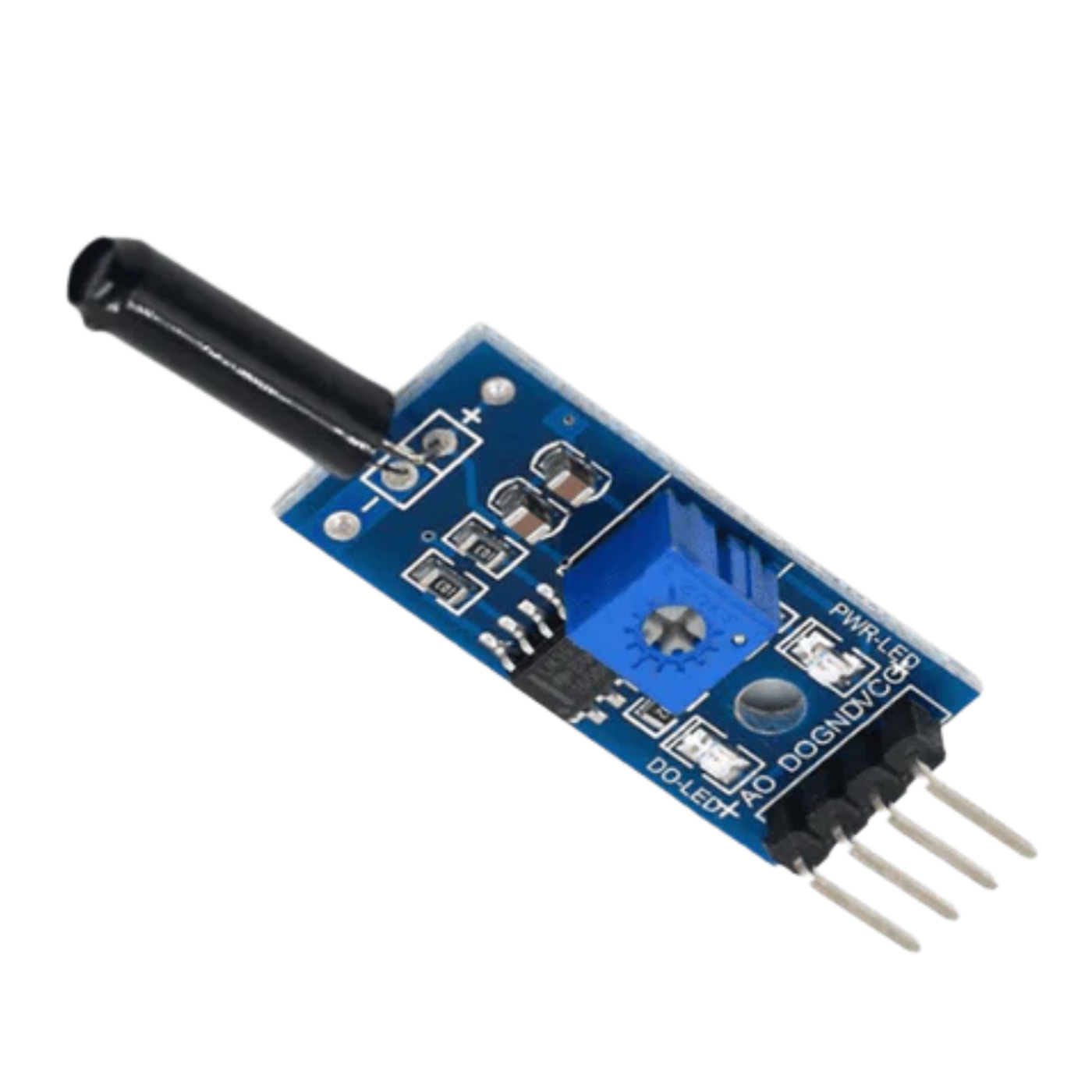

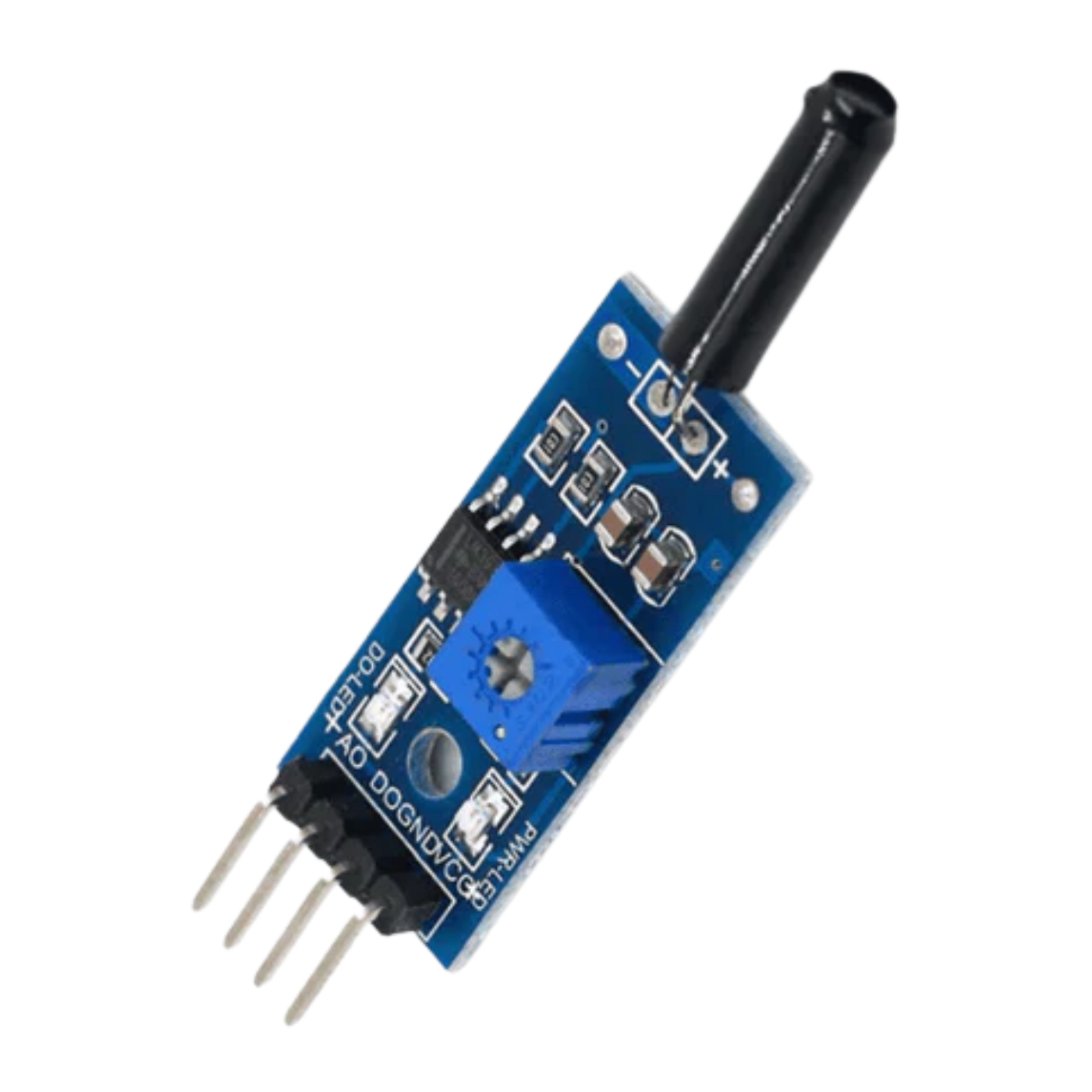

Tilt Sensor Vibration Alarm Vibration Switch Module for Arduino - Black

The Tilt Sensor Vibration Alarm Vibration Switch Module for Arduino come with the basic components for operation. Supplying power and it is good to be used. Attach it to object and it will detect whether the object is tilt. Simple usage as it is the digital output, so you will know the object is tilt or not by reading the output.
It uses SW-460D or SW-520D tilt sensor. The Tilt Sensor is the ball rolling type, NOT Mercury type. Comes with an M3 mounting hole for ease of attaching it to an object. On board, it provides a tilt switch, high sensitivity and commonly being used for tilt detection. The sensor module comes with power LED and status LED for the visual indicator.
The module will output logic LOW when the module is not tilted until the threshold angle; it will output logic HIGH when it is tilted over the threshold angle. We have tested, the tilt angle is quite big, from 45 degrees to 130 degrees. However, it depends on the angular velocity too. It can be used as a vibration sensor too.
It can be interfaced with any microcontroller with digital input such as 8051, PIC, SK40C, SK28A,SKds40A.

Pin Connection:

  • VCC = 5V
  • GND = 0V.
  • DO = digital output from module

Package Includes:

  • 1 x Tilt Sensor Module

Specifications:

Operating Voltage (VDC)

3.3 ~ 5

Length (mm)

30

Width (mm)

14

Height (mm)

6

Weight (gm)

3
