SmartElex Scale Breakout Board – NAU7802
Let us know!
We'll try to match the price for you
Couldn't load pickup availability

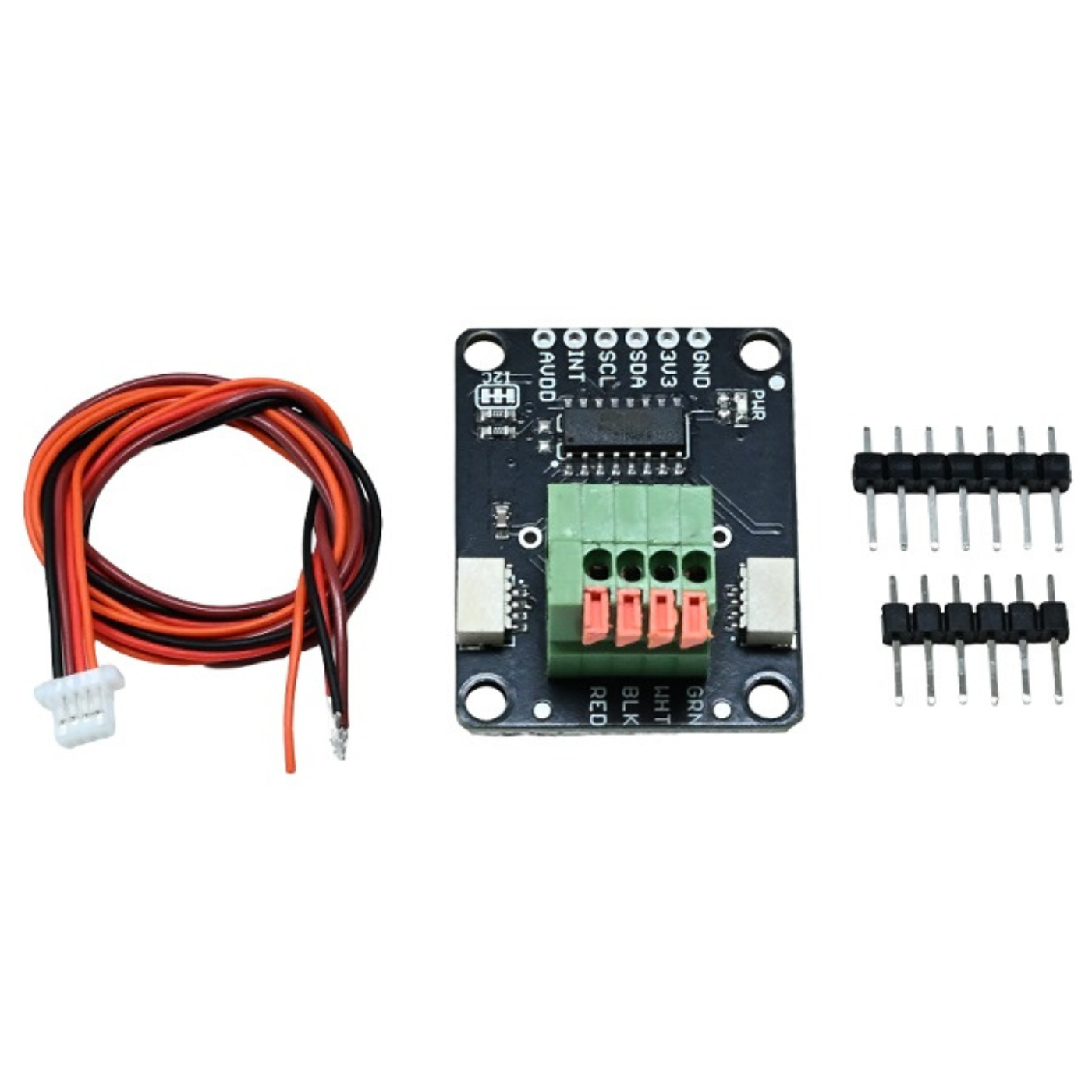

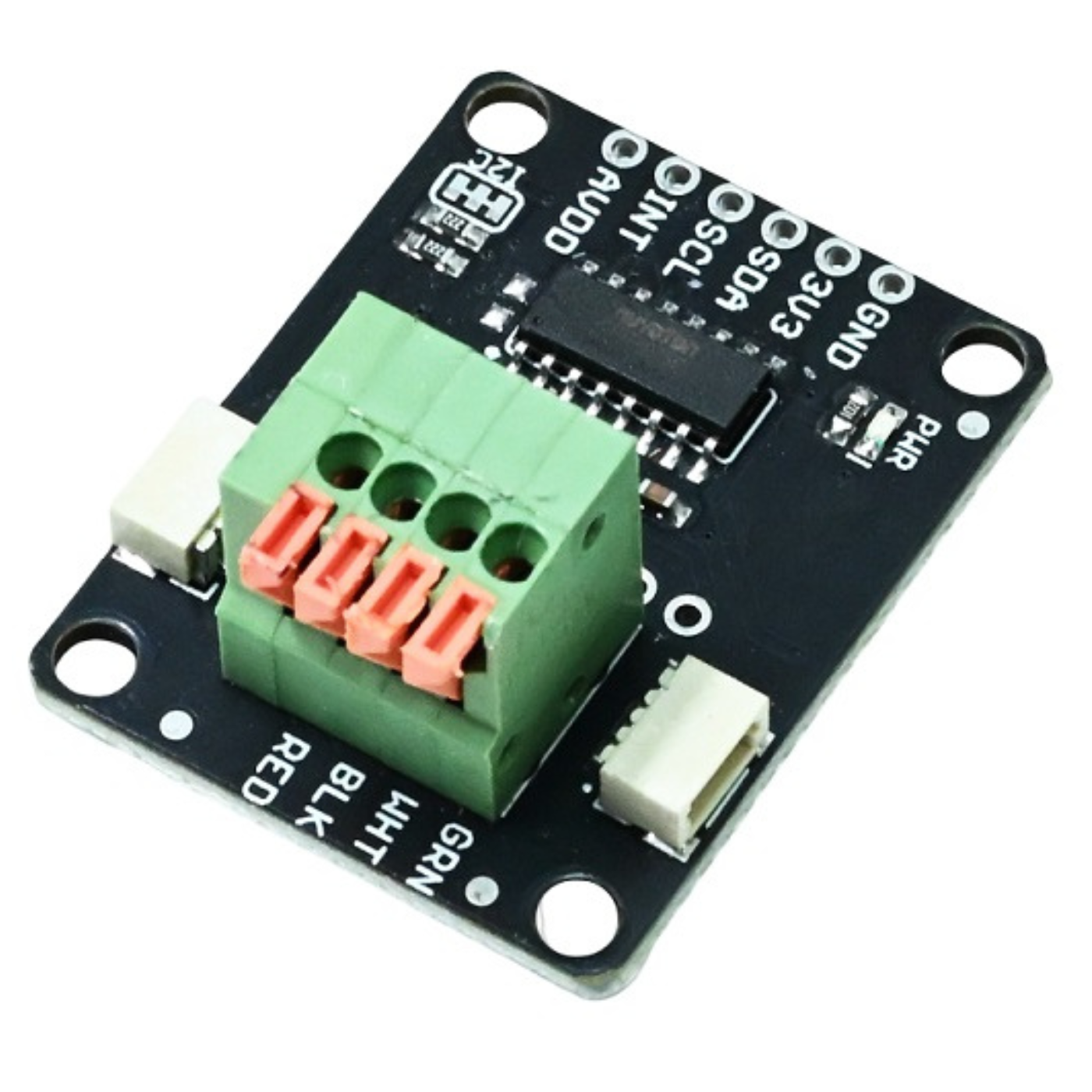

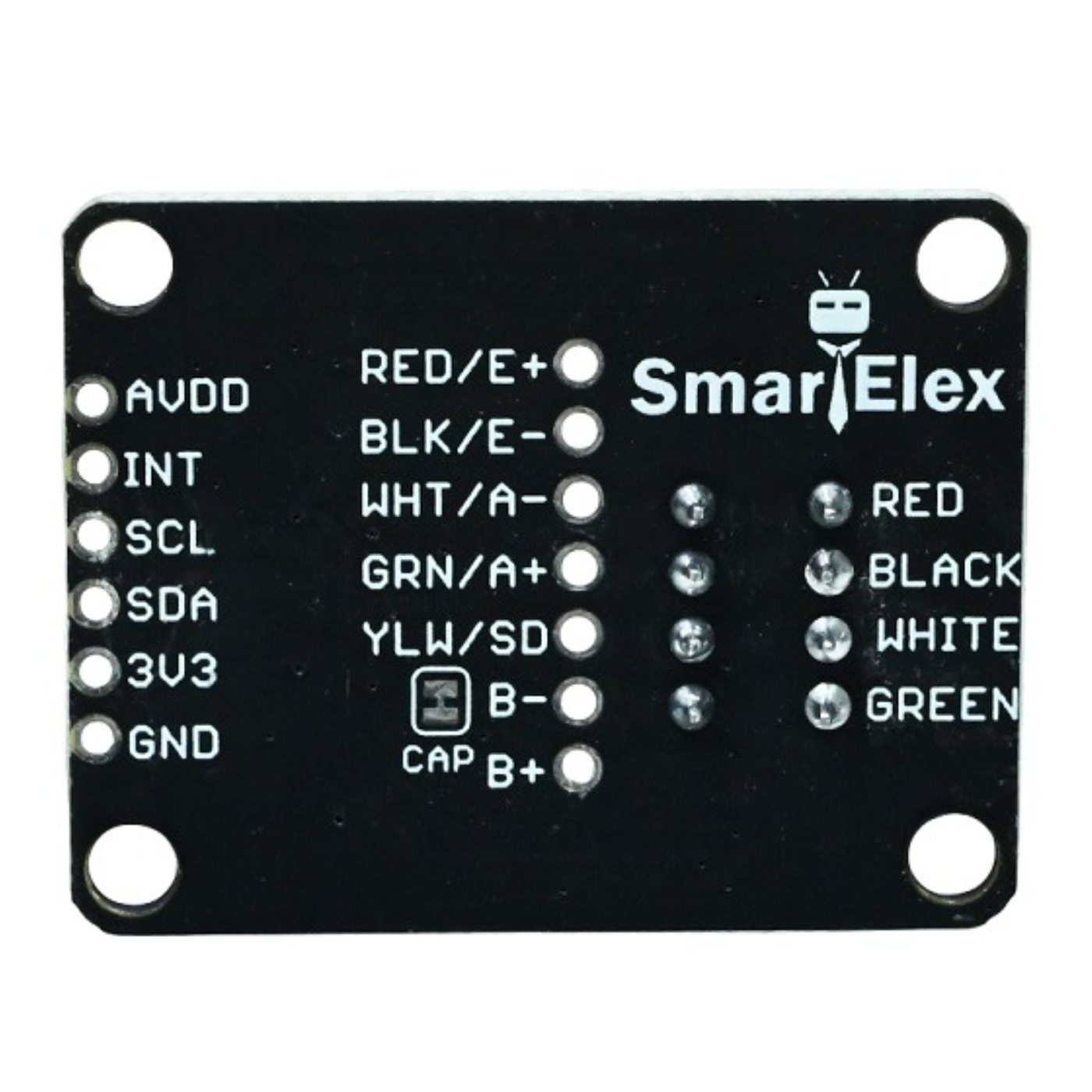

The SmartElex Scale Breakout Board – NAU7802 is a precision module designed for accurate weight measurement using load cells.
This breakout board integrates a high-performance 24-bit ADC converter that amplifies and converts the tiny signals from a load cell into reliable digital data through an I2C interface.
It allows easy connection to any microcontroller without the need for soldering, thanks to its four spring terminals.
The NAU7802 ensures excellent signal amplification and conversion, making it perfect for creating industrial weighing systems, process control mechanisms, or custom sensing applications.
With its user-friendly design and high accuracy, the SmartElex Scale Breakout is an essential component for engineers and makers working on precise measurement and automation projects.
| Specification | Details |
|---|---|
| Model | Scale Breakout |
| Model No. | NAU7802 |
| Voltage Rating (V) | 3.3V |
| Reference Voltage (V) | 0.1V to 5V |
| PCB Size (L x W) mm | 27.32 x 35.56 mm |
This item is covered with a supplier warranty of 1 year from the time of delivery against manufacturing defects only.
In case of manufacturing defects or issues, we will replace the part after warranty confirmation by our technical team, but we won’t offer refunds or replace the entire product.
