SmartElex MAX30101 Photodetector Breakout Board
Let us know!
We'll try to match the price for you
We’ll notify you once the product is back in stock.
Couldn't load pickup availability

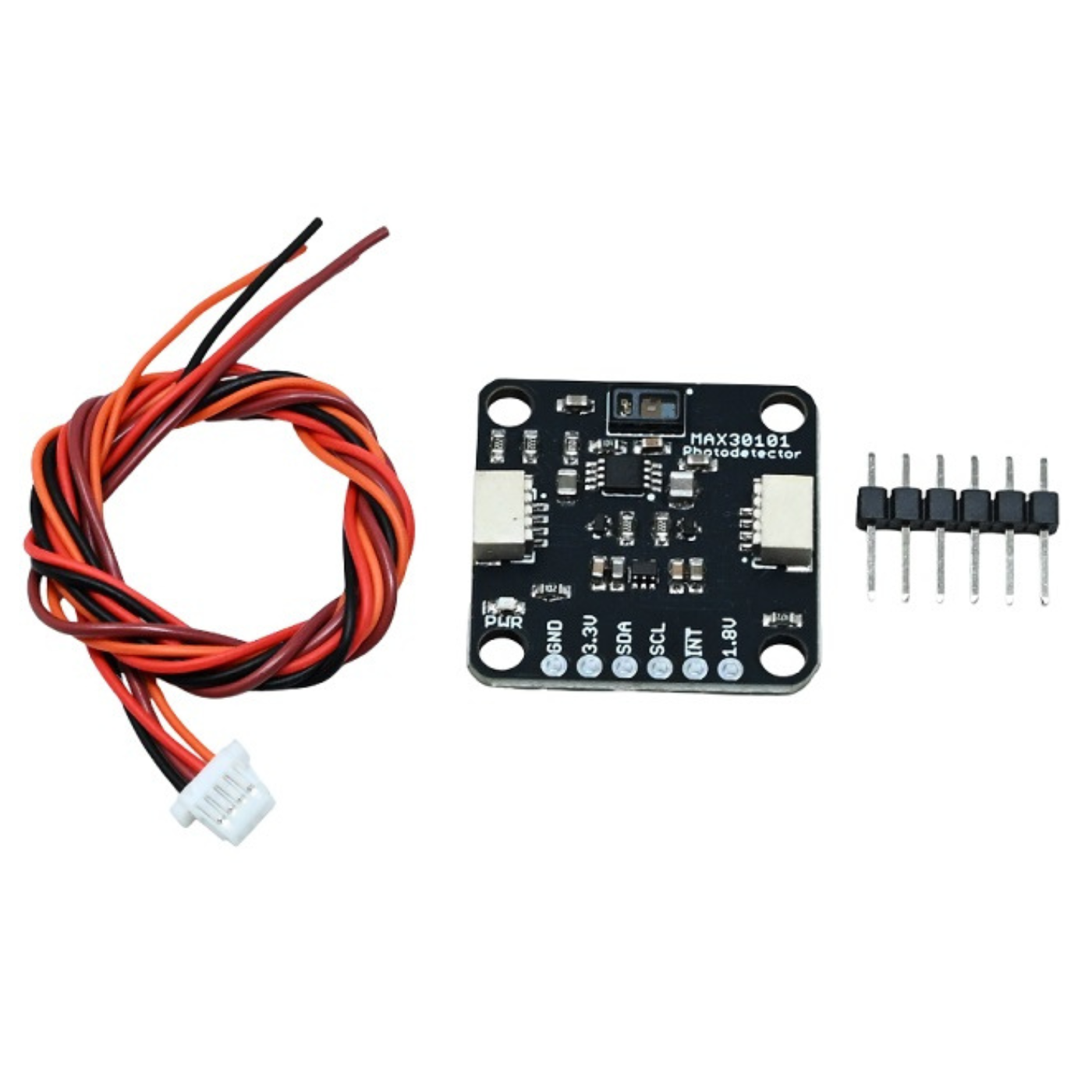

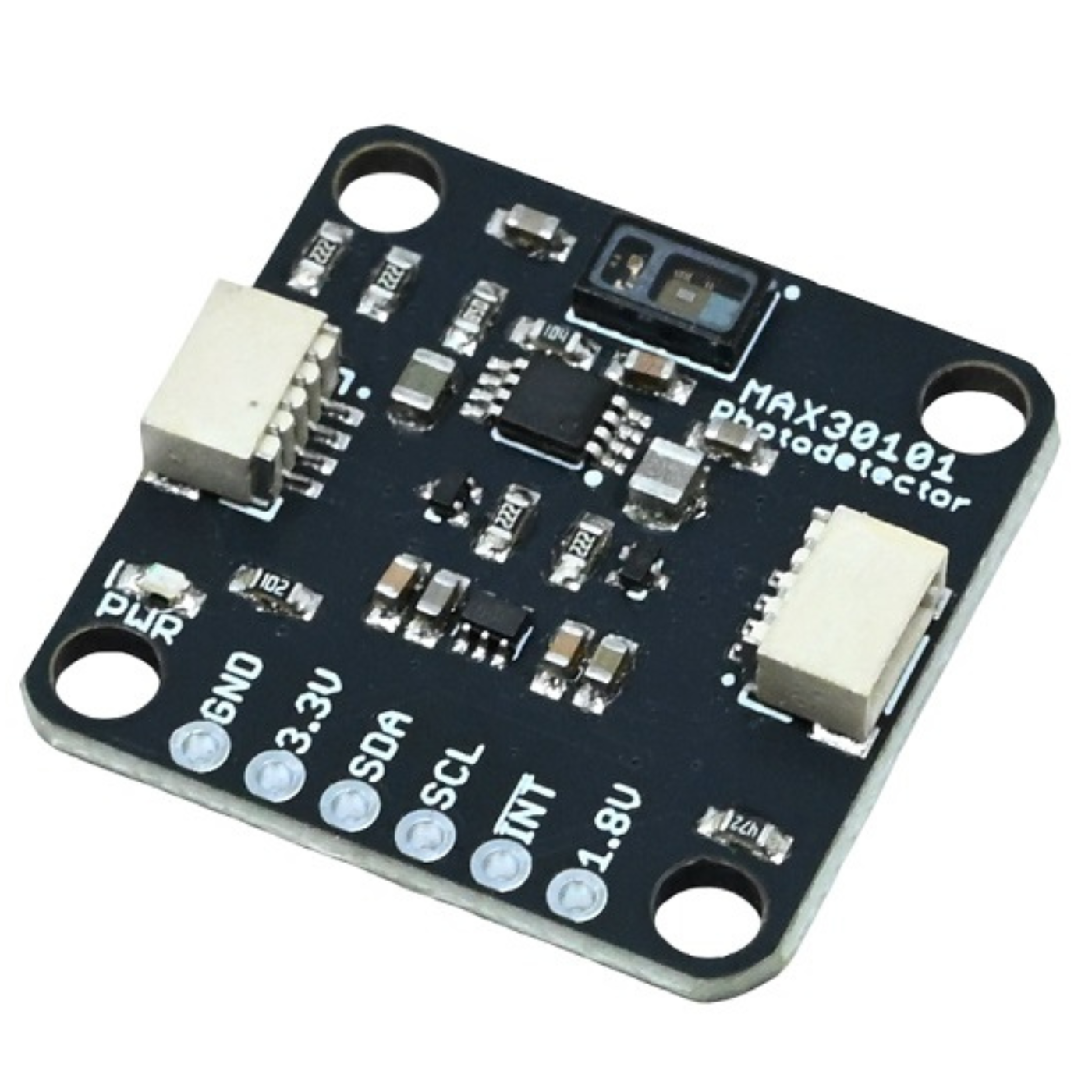

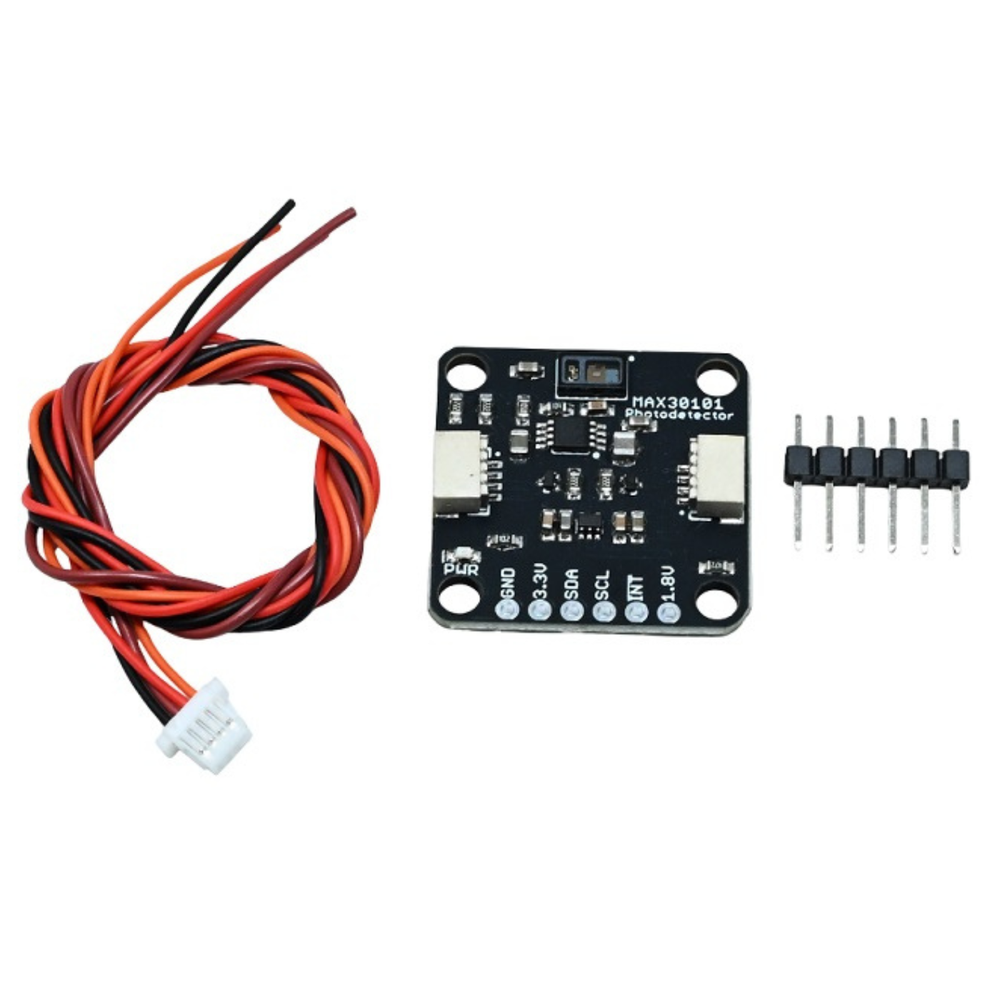

The SmartElex MAX30101 Photodetector Breakout Board is a high-performance optical sensor designed for precise light detection and analysis.
Powered by the advanced MAX30101 sensor, it effectively measures the amount of light reflected from its LEDs, making it ideal for applications such as smoke or particle detection, proximity sensing, and photoplethysmography (PPG) for heart rate monitoring.

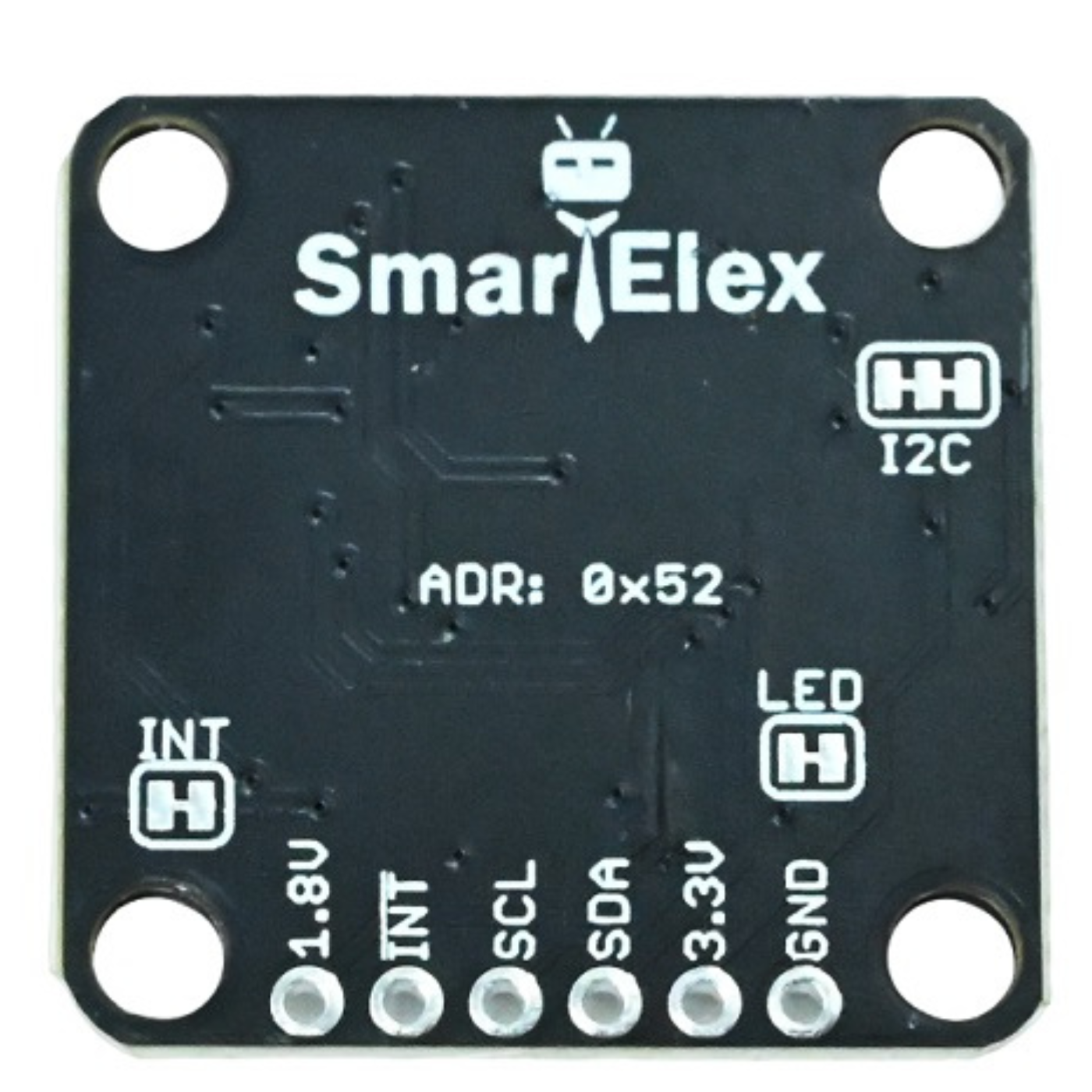

With seamless I2C communication, the breakout board ensures easy connectivity with various microcontrollers, while the 0.1″ spaced pins allow for effortless breadboard use.
As the successor to the MAX30105 and MAX30102, this sensor module delivers enhanced sensitivity and reliability for a wide range of optical sensing projects.
| Specification | Details |
|---|---|
| Model | Photodetector Breakout |
| Model No. | MAX30101 |
| Resolution | 18-bit |
| Data Transfer Rate | Up to 3200 sps |
| Sample Rate | 10.24 MHz |
| Length | 25.4 mm |
| Width | 25.4 mm |
This item is covered with a supplier warranty of 1 year from the time of delivery against manufacturing defects only.
In case of manufacturing defects or issues, we will replace the part after warranty confirmation by our technical team, but we won’t offer refunds or replace the entire product.
