SmartElex LSM9DS1 9-DOF Accelerometer, Gyroscope & Magnetometer Breakout Board
Couldn't load pickup availability

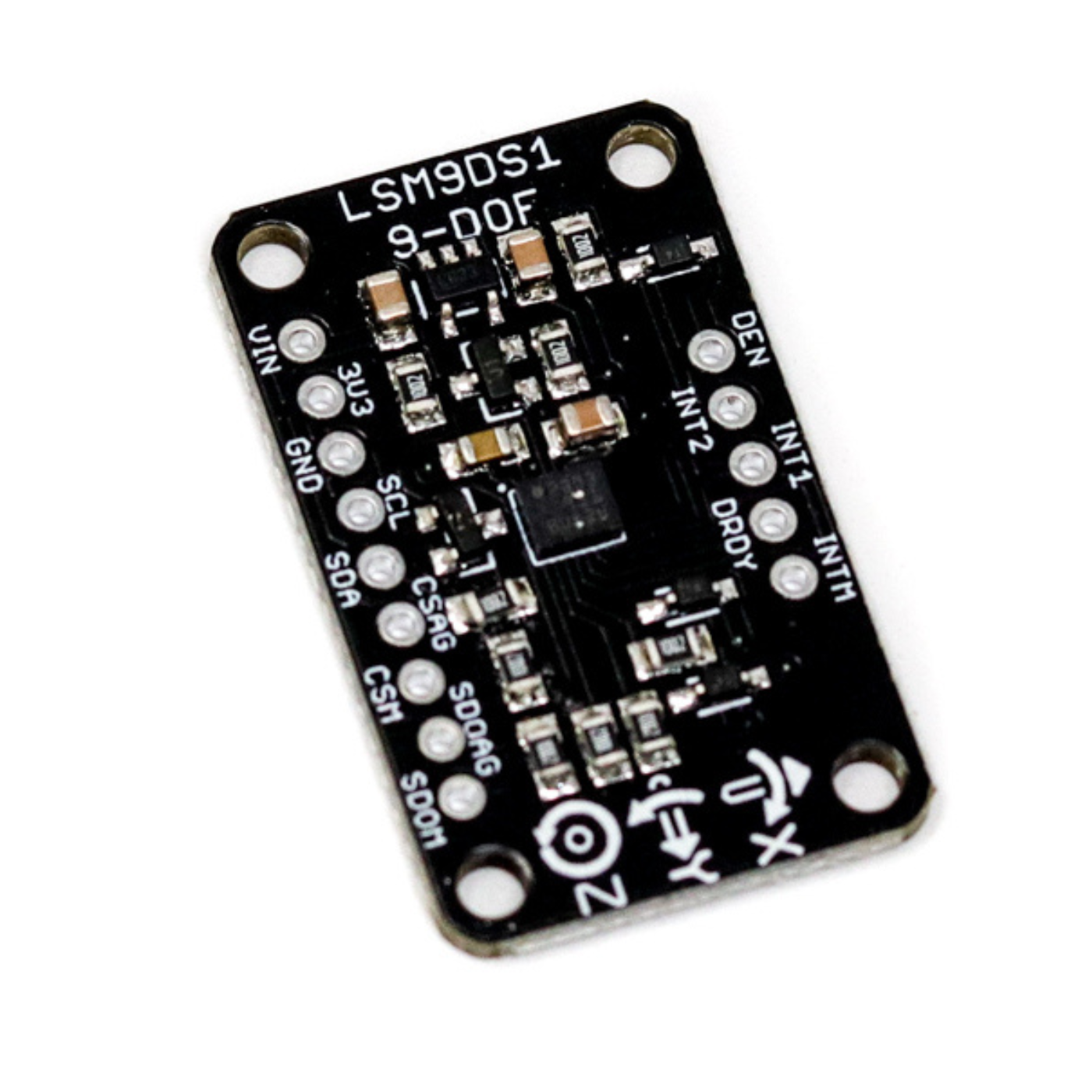

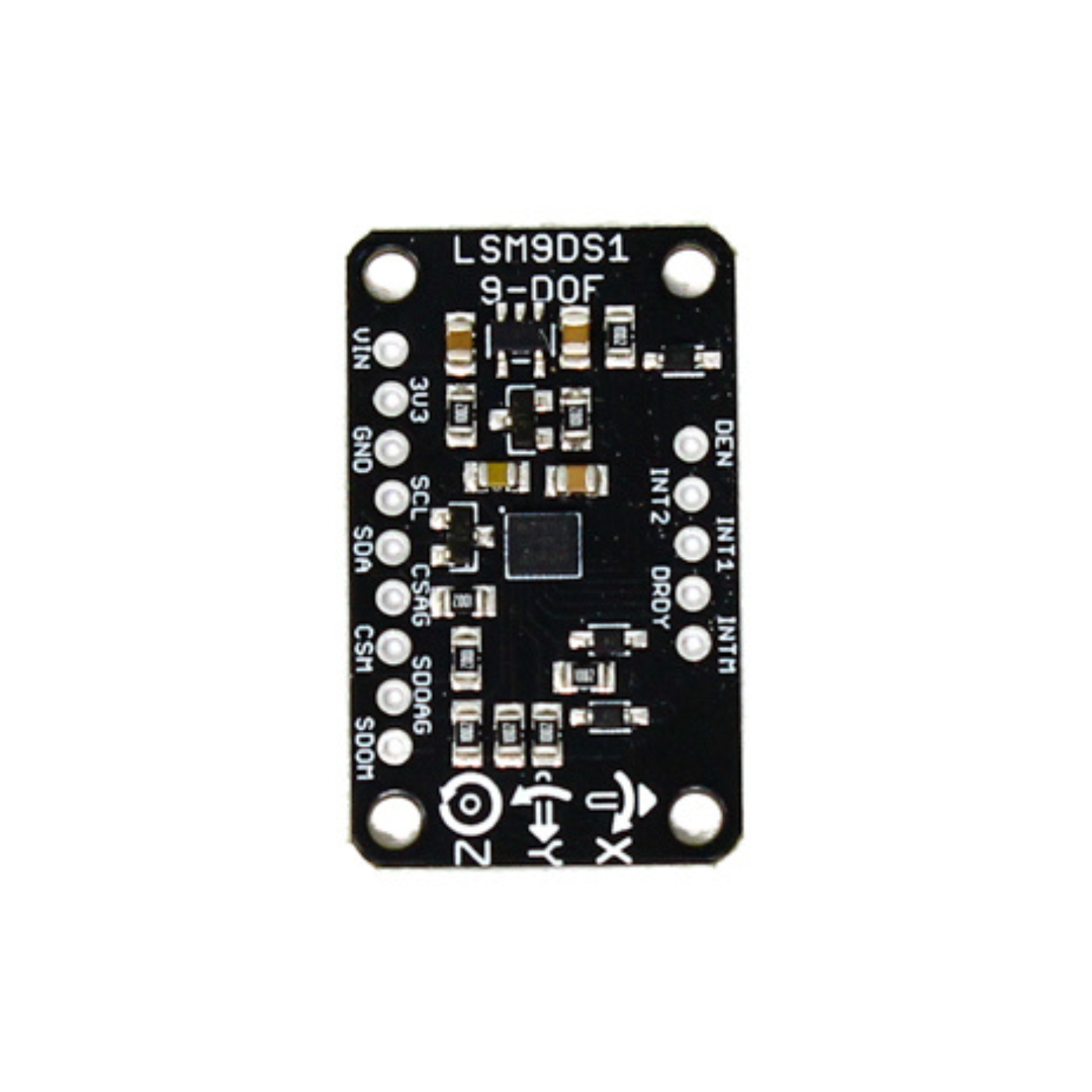

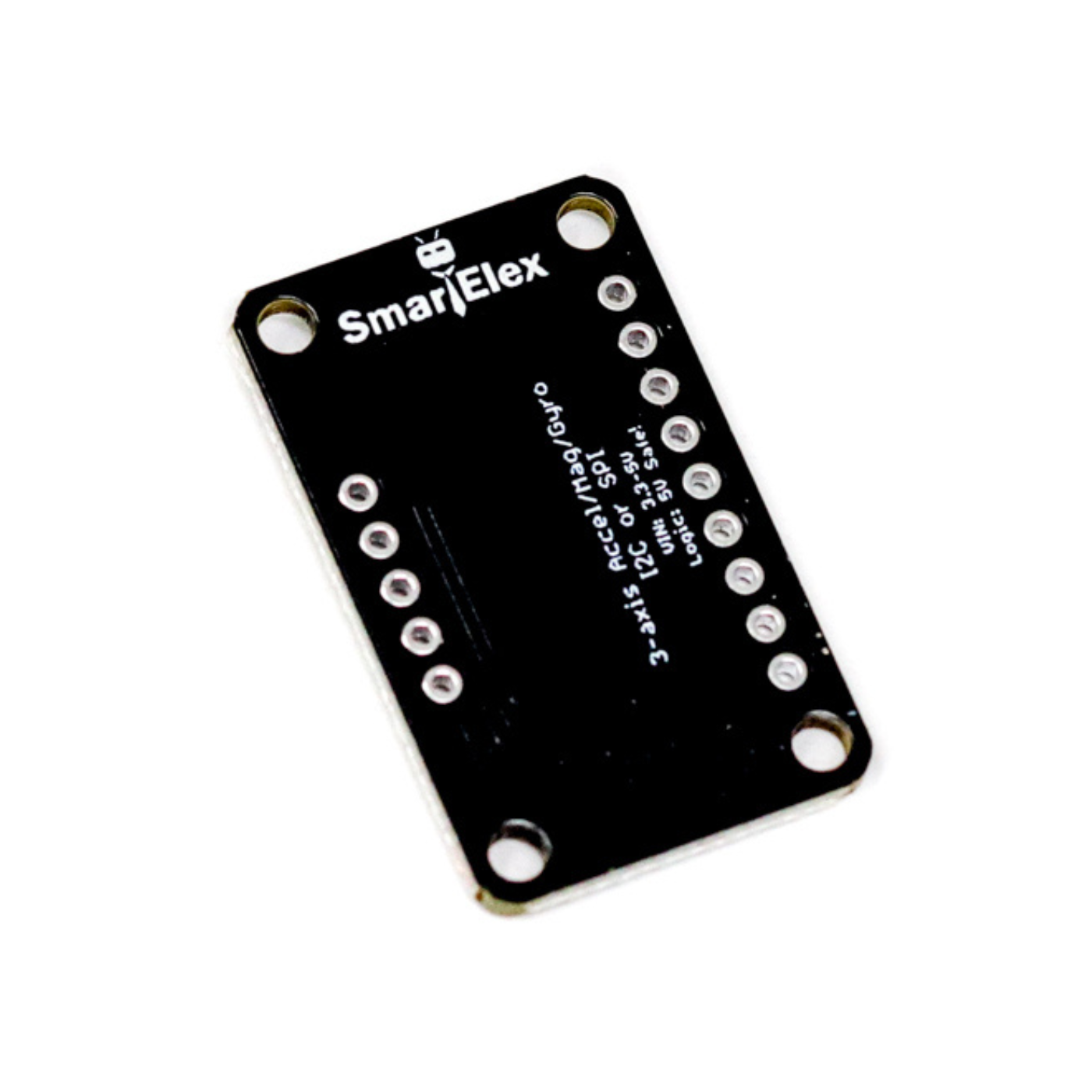

The SmartElex LSM9DS1 Breakout Board is an advanced 9-DOF motion sensor module that combines a 3-axis accelerometer, 3-axis gyroscope, and 3-axis magnetometer in one compact board. It helps detect motion, orientation, and direction, making it perfect for building motion trackers, drones, robots, and navigation systems.
This powerful LSM9DS1 sensor measures acceleration, rotation, and magnetic field data with high precision for accurate movement analysis.

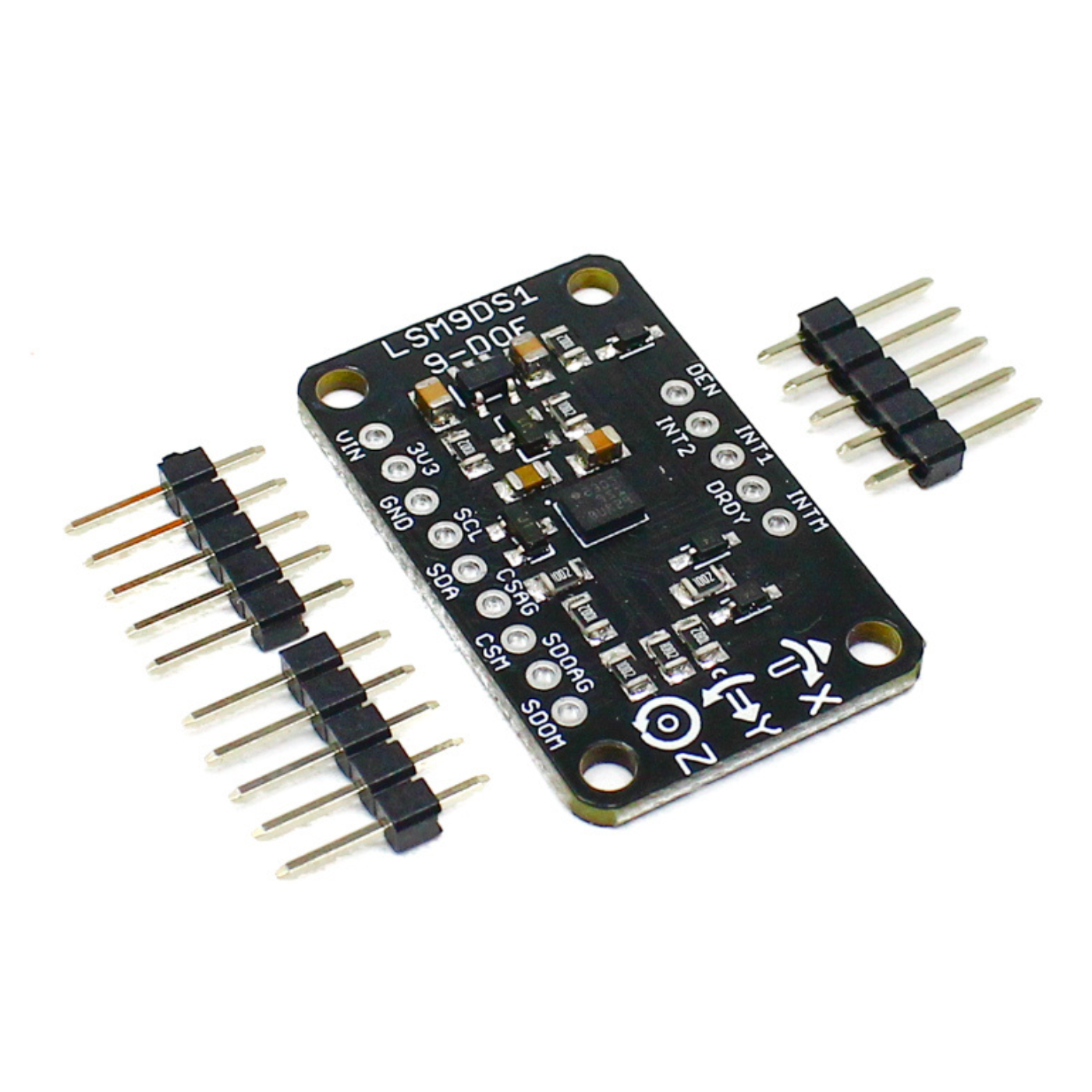

The board supports both I2C and SPI interfaces, making it easy to connect with popular microcontrollers like Arduino and Raspberry Pi. Operating on 3–5V, it’s ready to use straight out of the box with included headers and mounting holes for secure installation.
Whether you’re designing a motion detection system or experimenting with a 9-axis orientation sensor, the SmartElex LSM9DS1 offers flexibility, accuracy, and stability for your projects.
| Specification | Details |
|---|---|
| Model | Breakout Board |
| Model No. | LSM9DS1 |
| Voltage Rating (V) | 3 to 5 |
| Communication Mode | I2C and SPI |
| Length (mm) | 33.02 |
| Width (mm) | 20.32 |
| Weight (g) | 1 |
This item is covered with a supplier warranty of 1 year from the time of delivery against manufacturing defects only.
In case of manufacturing defects or issues, we will replace the part after warranty confirmation by our technical team, but we won’t offer refunds or replace the entire product.
