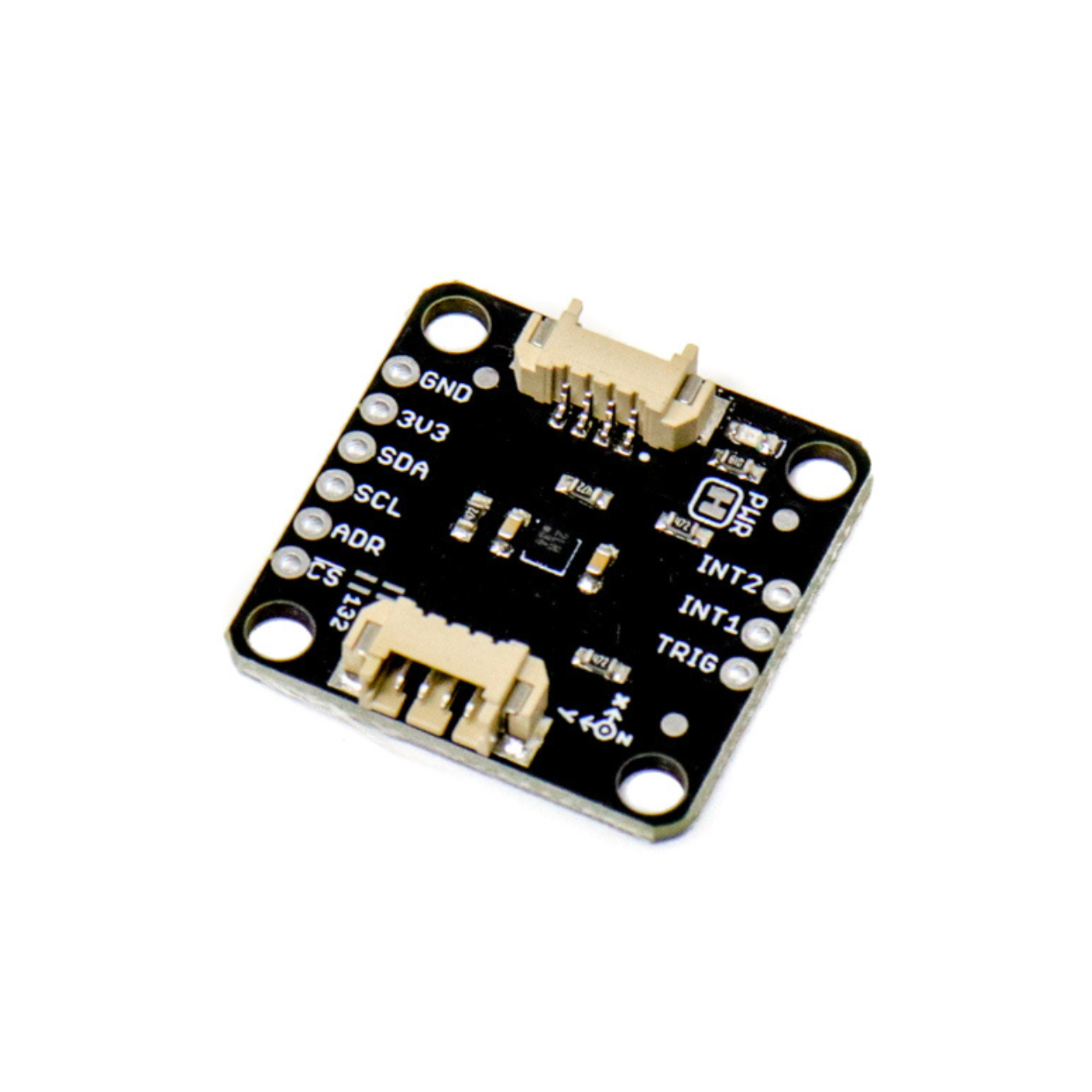

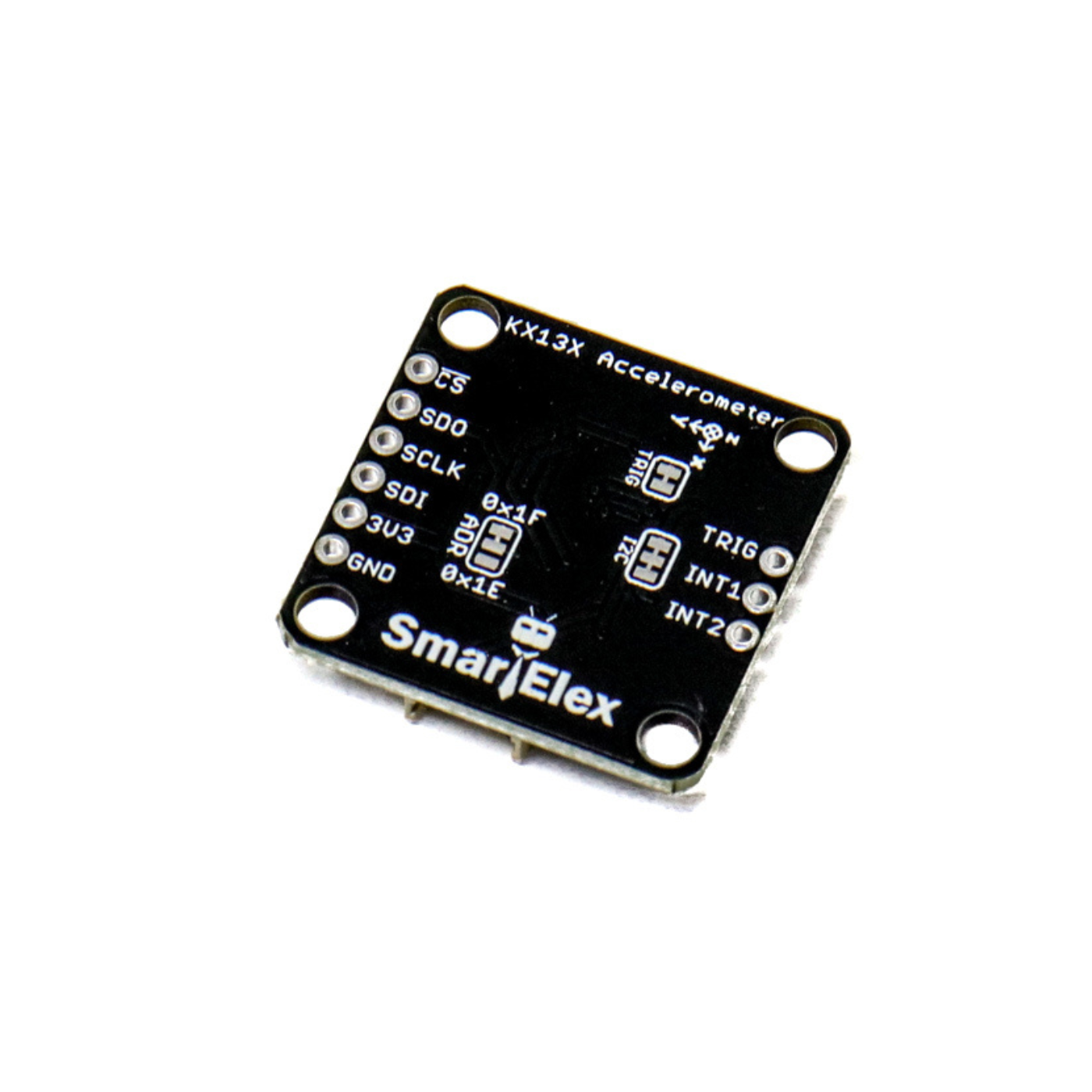

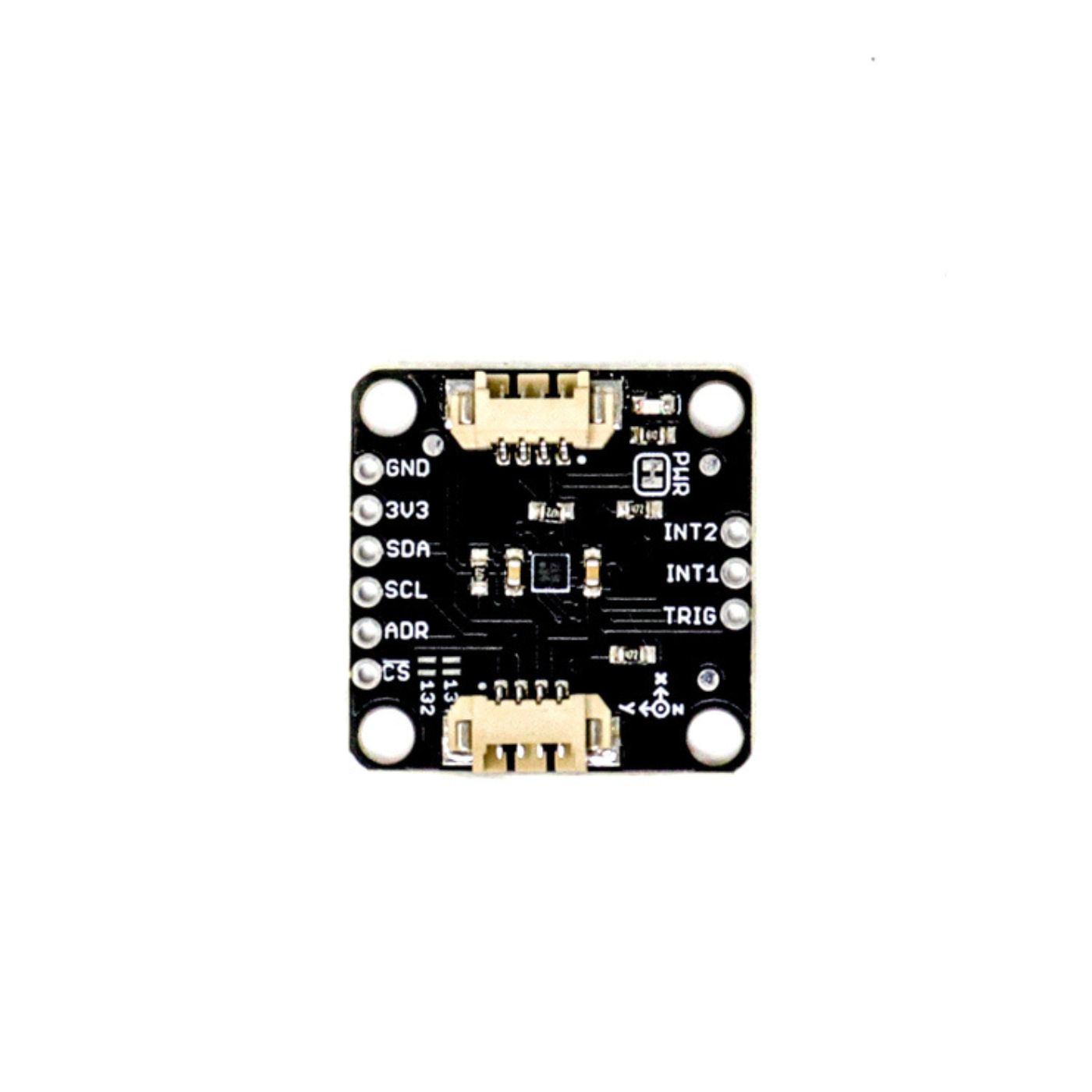

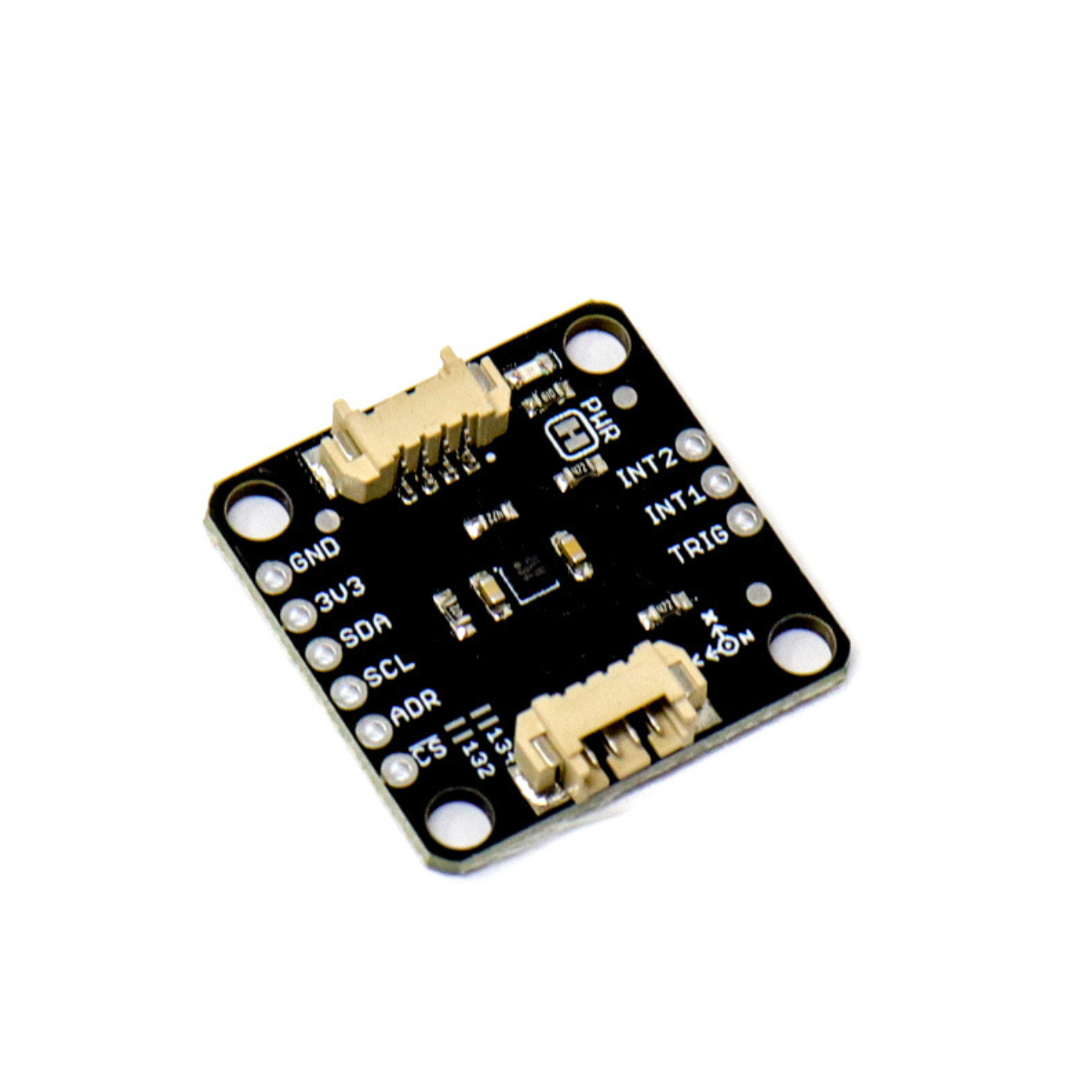

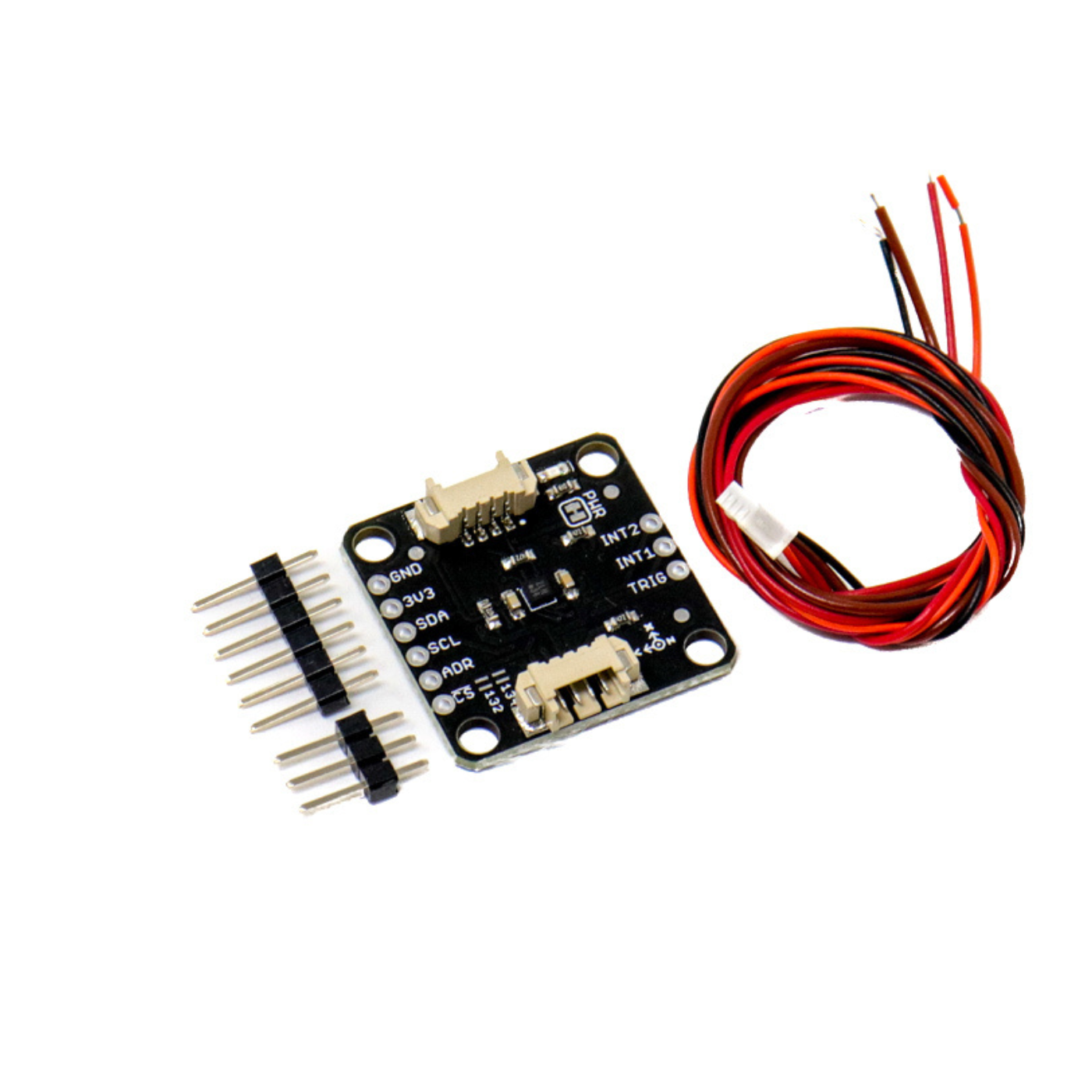

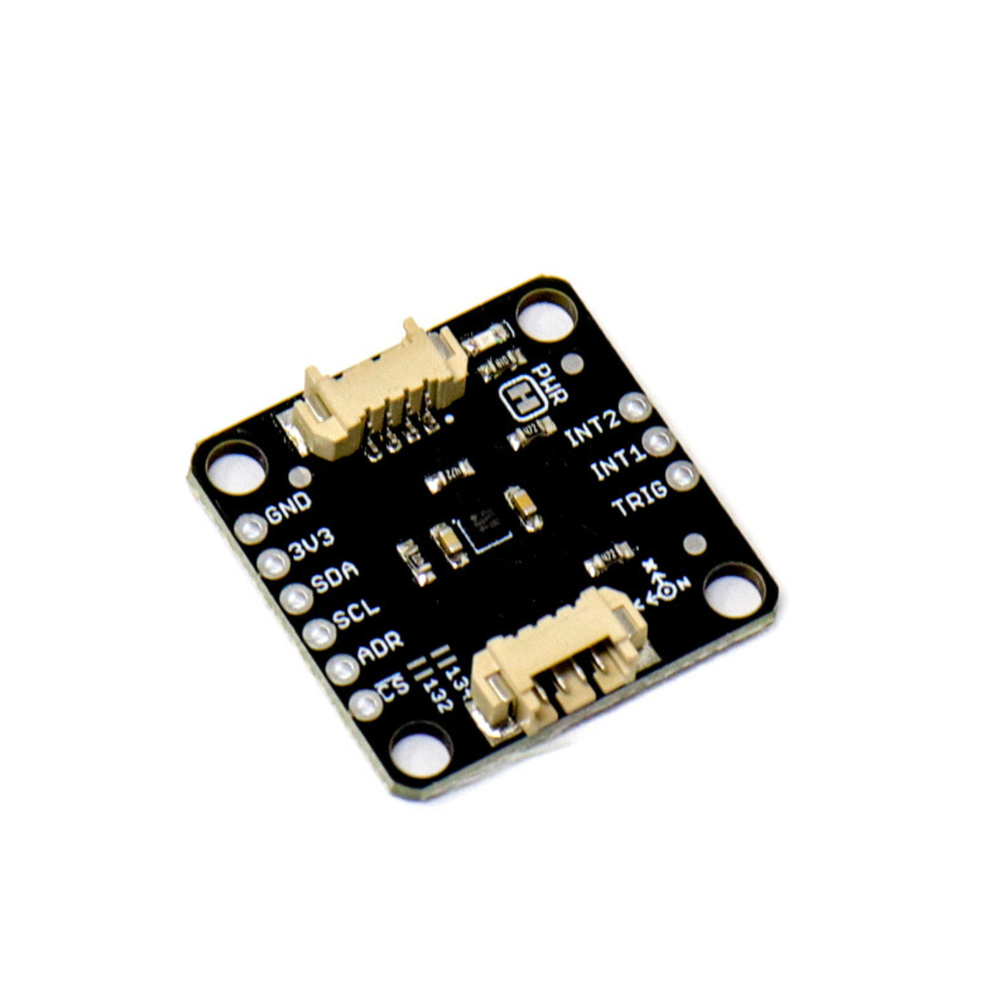

SmartElex KX134 Triple Axis Accelerometer Breakout – High-Speed 16-Bit Digital Motion Sensor
Couldn't load pickup availability
The SmartElex KX134 Triple Axis Accelerometer Breakout is a high-performance motion sensor designed for accurate vibration and acceleration measurement. It features the KX134 digital accelerometer, which can measure acceleration in three axes (X, Y, and Z) with exceptional precision.
With selectable ranges of ±8g, ±16g, ±32g, and ±64g, it’s perfect for projects that demand both high sensitivity and durability — from motion tracking to vibration analysis and industrial sensing.
This accelerometer supports both I2C and SPI communication, allowing easy integration with most microcontrollers such as Arduino, ESP32, or Raspberry Pi. Its compact design and low power consumption make it ideal for portable and battery-powered applications.
Whether you’re developing a data logger, gesture-controlled device, or robotics system, the SmartElex KX134 provides accurate and stable motion detection with minimal noise and fast response time.
| Specification | Details |
|---|---|
| Model | Triple Axis Accelerometer Breakout |
| Model No. | KX134 |
| Measurement Range | ±8g, ±16g, ±32g, ±64g |
| Data Transfer Rate | 25600Hz |
| I2C | Up to 3.4MHz |
| SPI | Up to 10MHz |
| I2C Address | 0x1E (0x1F alternate) |
| PCB Size (L x W) mm | 25.40 x 25.40 |
This item is covered with a supplier warranty of 1 year from the time of delivery against manufacturing defects only.
In case of manufacturing defects or issues, we will replace the part after warranty confirmation by our technical team, but we won’t offer refunds or replace the entire product.
