SmartElex JST-SH 8 Channel I2C Multiplexer Breakout Module – TCA9548A - Buy Online in India

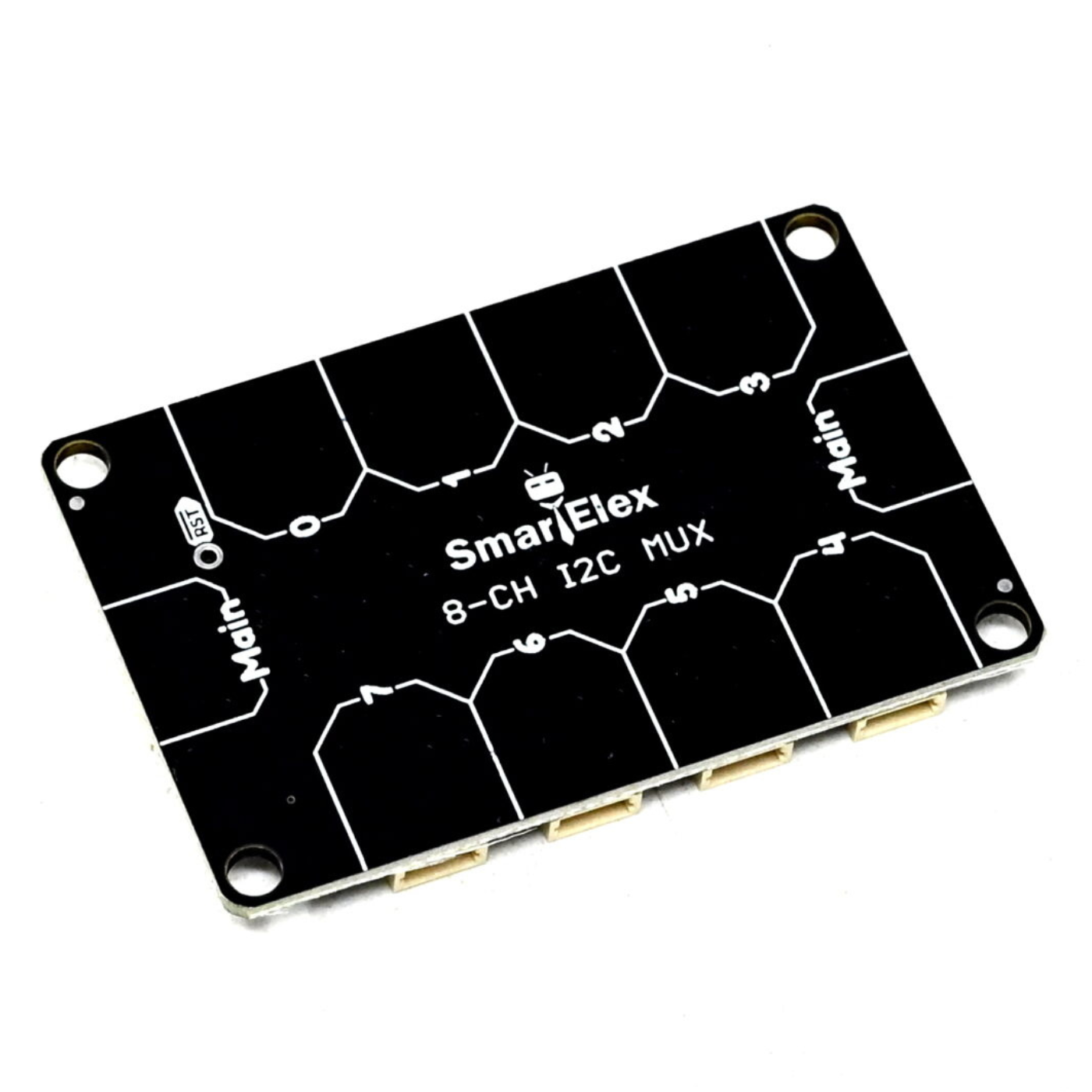

SmartElex JST-SH 8 Channel I2C Multiplexer Breakout Module – TCA9548A

Rs 370/-
- 47%
Rs 370/-
Rs 699/-
Save Rs 329/-
Incl. GST (No Hidden Charges)
Please hurry! Only 0 left in stock

We’ll notify you once the product is back in stock.

Free Delivery Above ₹999

Technical Support & Easy Returns

Same Day Shipping

Earn RC Coins on Purchase

Cash on Delivery
SKU: TIFCC0331
  • 8-channel I2C Multiplexer based on the reliable TCA9548A IC
  • Allows connection of multiple I2C devices with the same address
  • Uses JST-SH connector for secure, plug-and-play I2C communication
  • Supports up to 8 selectable I2C channels, expandable to 64 I2C buses
  • Jumper-selectable I2C addresses for using multiple multiplexers on one bus
  • Wide operating voltage range: 1.65V to 5.5V
  • Fully compatible with JST-SH based SmartElex boards

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here

File(s) size limit is 20MB.

Captcha challenge – enter the characters shown in the image
Reload Captcha
Robocraze Academy Limited Time Offer
SmartElex JST-SH 8 Channel I2C Multiplexer Breakout Module – TCA9548A -Electronic Components -Integrated Circuits -Robocraze
SmartElex JST-SH 8 Channel I2C Multiplexer Breakout Module – TCA9548A
Rs 699/- Rs 370/-
SmartElex JST-SH 8 Channel I2C Multiplexer Breakout Module – TCA9548A -Electronic Components -Integrated Circuits -Robocraze
SmartElex JST-SH 8 Channel I2C Multiplexer Breakout Module – TCA9548A -Electronic Components -Integrated Circuits -Robocraze
SmartElex JST-SH 8 Channel I2C Multiplexer Breakout Module – TCA9548A -Electronic Components -Integrated Circuits -Robocraze

SmartElex JST-SH 8 Channel I2C Multiplexer Breakout Module – TCA9548A

Rs 699/- Rs 370/-
Description

SmartElex JST-SH 8 Channel I2C Multiplexer Breakout Module – TCA9548A

The SmartElex JST-SH 8 Channel I2C Multiplexer Breakout Module – TCA9548A is designed to solve one of the most common I2C communication challenges—using multiple sensors with the same address.

This I2C Multiplexer enables you to select and control up to 8 independent I2C channels, effectively isolating devices while communicating through a single I2C bus. By cascading multiplexers, you can expand your setup to support up to 64 I2C buses.

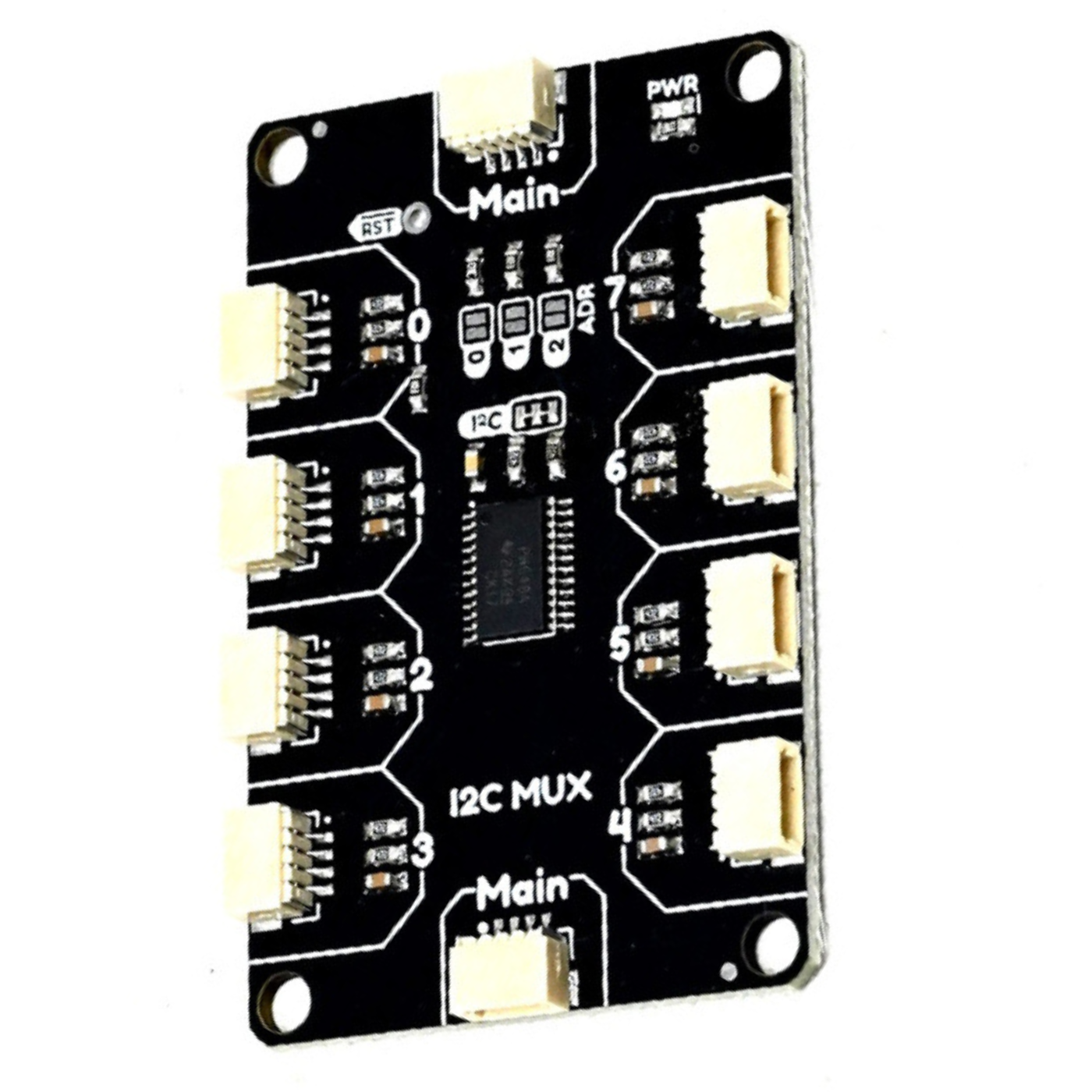

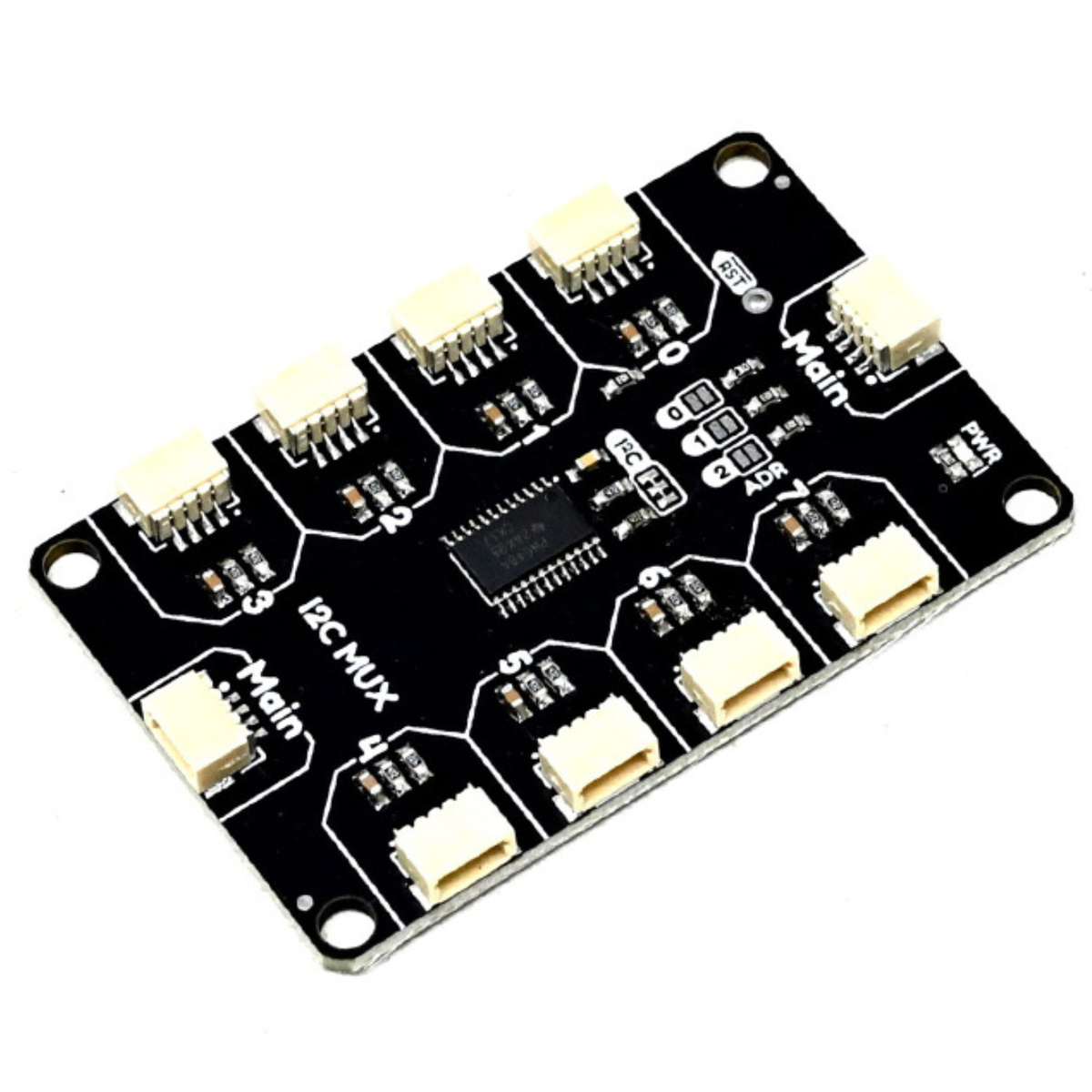

Built around the TCA9548A, this 8-channel multiplexer routes I2C signals efficiently using a JST-SH connector, ensuring stable connections and easy integration in compact electronics projects. The module features eight configurable I2C addresses, adjustable via onboard ADR jumpers, allowing multiple multiplexers to operate on the same I2C port without conflicts.

With a wide operating voltage range of 1.65V to 5.5V, it is fully compatible with microcontrollers like Arduino, Raspberry Pi, ESP32, and other JST-SH-enabled SmartElex boards—making it a reliable and scalable solution for sensor-heavy I2C applications.

Features:

  • 8-Channel Multiplexer: Communicate with several I2C devices using the same address.
  • Up to 64 I2C Buses: Can support a wide range of sensors and devices.
  • JST-SH Connector System: Simple connectivity with our internal boards.
  • Jumper-Selectable Addresses: Three ADR jumpers can be soldered to change the address for maximum flexibility.
  • I2C Communication Only: simplifies device connectivity and control.
  • Wide Voltage Range: Operates between 1.65V and 5.5V to provide compatibility with a variety of systems.
  • Ideal for complex projects: Ideal for extending sensor networks without address conflicts.
Specifications

Package Includes:

  • 1 x SmartElex JST-SH 8 Channel I2C Multiplexer Breakout Module – TCA9548A

Specifications:

Item Type Breakout Module
Power Supply (V) 5V
Communication Bus 64 I2C
Channels 8
