Infrared obstacle detection module designed for robotics and automation projects
Uses an IR transmitter and receiver to detect nearby objects through reflected light
Active-low digital output goes LOW when an obstacle is detected
Adjustable detection range of approximately 2–30 cm with 35° detection angle
LM393 comparator and simple interface for easy microcontroller integration

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here

First Name *

Last Name *

Email *

Phone *

+91

Company / Client

GST *

Materials List

File(s) size limit is 20MB. Max 3 files.

Choose Categories * (select one or more)

Select Categories

STEM Kits Development Boards Electronic Components Drone 3D Printers/Pens Sensors Batteries & Power Supply Tools & Instruments

Enter the Captcha *

Reload Captcha

SmartElex Infrared Obstacle Avoidance Sensor Module | Active Low IR Proximity Sensor

~~Rs 104/-~~ Rs 88/-

Quantity:

SmartElex Infrared Obstacle Avoidance Sensor Module | Active Low IR Proximity Sensor

~~Rs 104/-~~ Rs 88/-

Description
Specifications
Shipping & Return

Description

SmartElex Infrared Obstacle Avoidance Sensor Module | Active Low IR Proximity Sensor

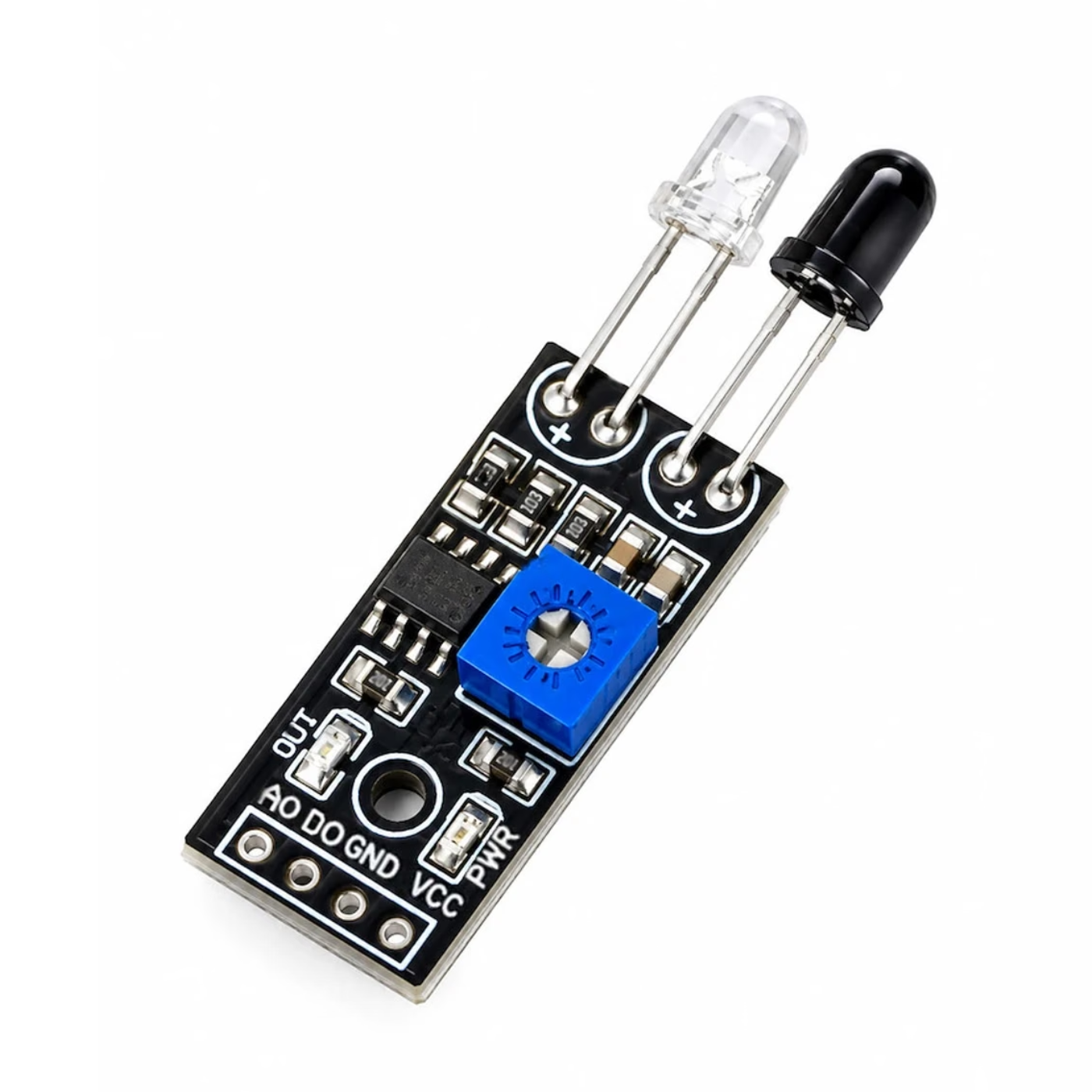

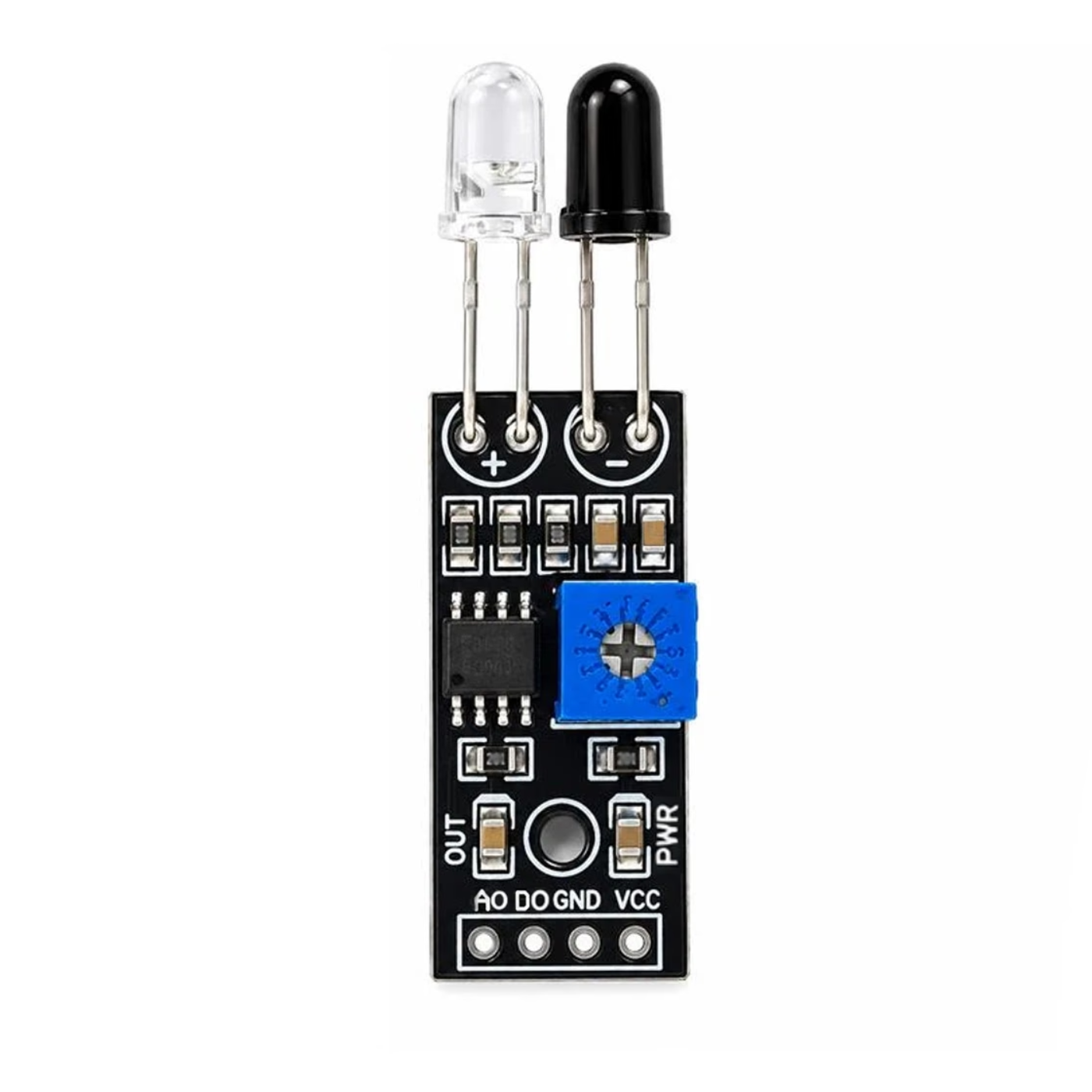

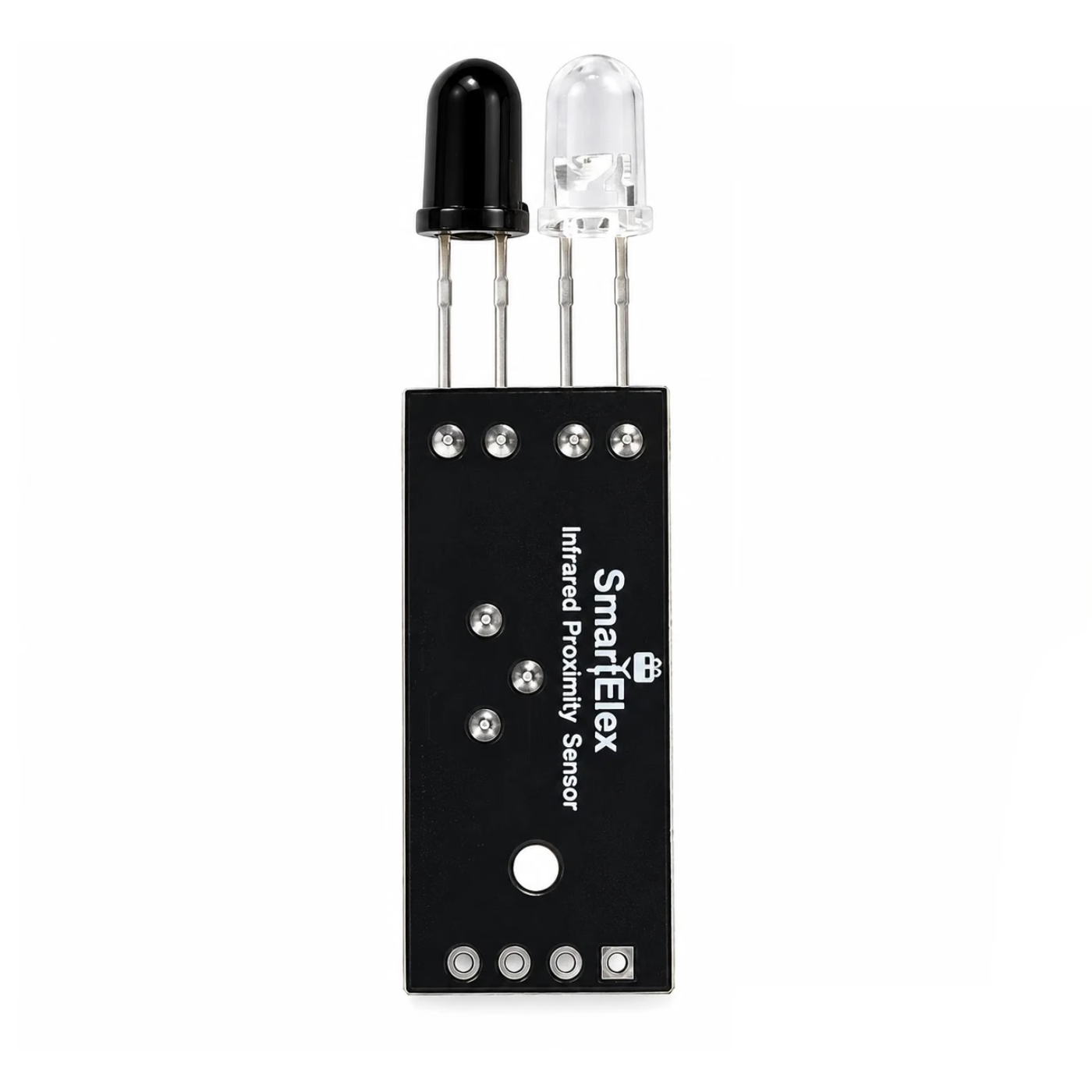

The SmartElex Infrared Obstacle Avoidance Sensor Module is a compact IR proximity sensor designed to detect nearby objects by sensing reflected infrared light. It uses an IR transmitter and receiver along with an LM393 comparator to provide a simple digital detection signal. The output is active low, meaning it goes LOW when an obstacle is detected.

The module features an adjustable detection range, onboard indicator LED and a simple 3-wire interface, making it easy to integrate with Arduino, Raspberry Pi and other microcontroller-based systems. Its typical detection range is 2–30 cm with a detection angle of approximately 35°.

Features

Infrared Obstacle Detection: Uses an IR transmitter and receiver to detect objects by sensing reflected infrared light.
Active-Low Output: Digital output switches LOW when an obstacle is detected, making it easy to interface with microcontrollers.
Adjustable Detection Range: Onboard potentiometer allows the detection distance to be adjusted according to the application.
2–30cm Detection Range: Provides a typical obstacle detection range of approximately 2–30cm depending on the target and environment.
35° Detection Angle: Provides a focused detection area suitable for obstacle avoidance and proximity sensing.
LM393 Comparator: Uses an onboard LM393 comparator to process the received infrared signal and provide a stable digital output.
Detection Indicator: Onboard LED provides a visual indication when an obstacle is detected.

Specifications

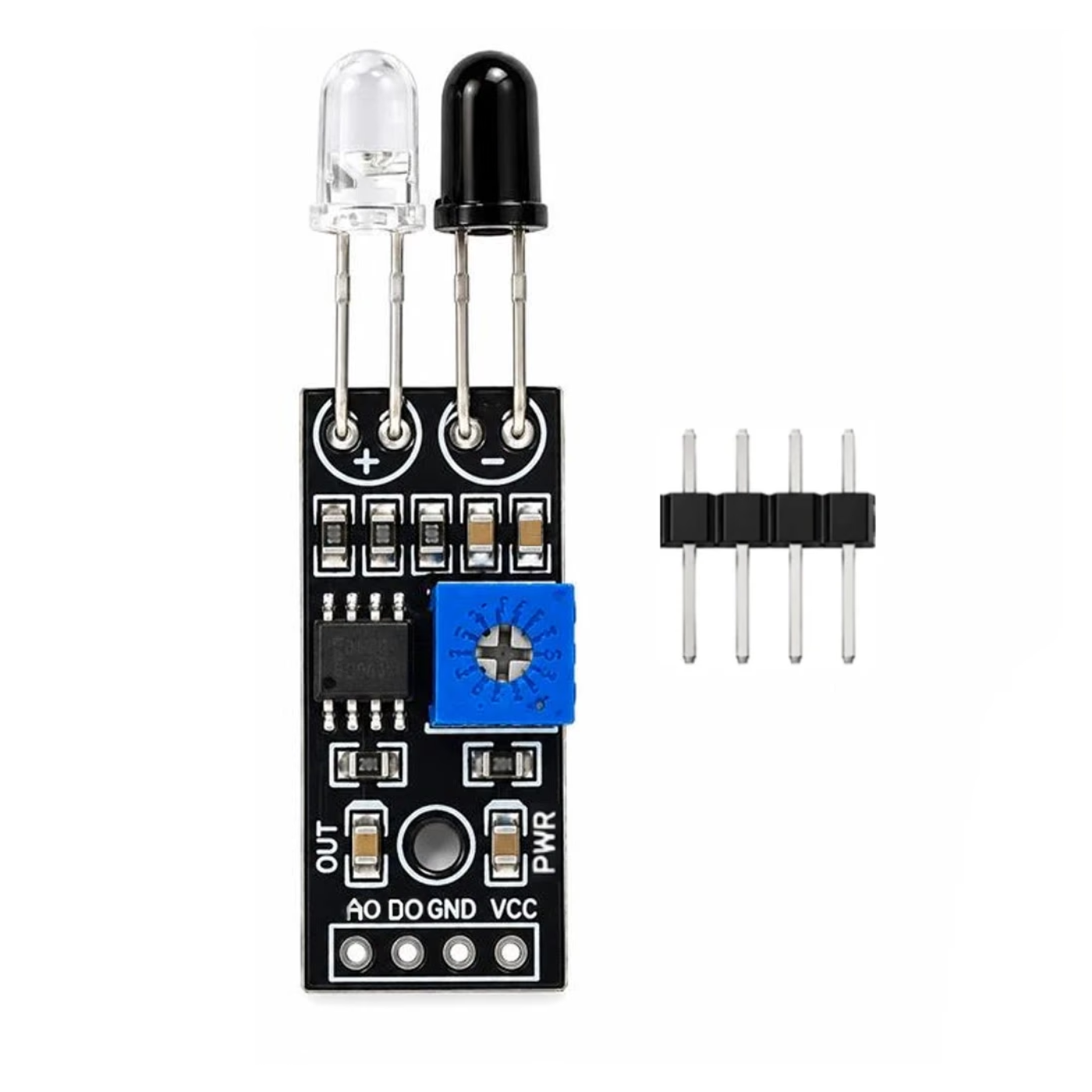

Package Includes:

1 x SmartElex Infrared Obstacle Avoidance Sensor Module (Active Low)
1 x 4-pin Header

Specification

Specification	Details
Item Type	Infrared Obstacle Avoidance Sensor Module
Interface	GND, VCC, OUT
Voltage Rating	3.3 V
Sensor Type	IR Transmitter + IR Receiver
Measuring Distance	Approx. 2 cm
IC Chip	LM393
Length	45 mm
Width	13 mm
Height	6 mm
Weight	5 g
Detection Angle	35°
Indicator	Onboard LED
Compatible Controller Board	ESP32, STM32, Raspberry Pi, Arduino, ESP8266
