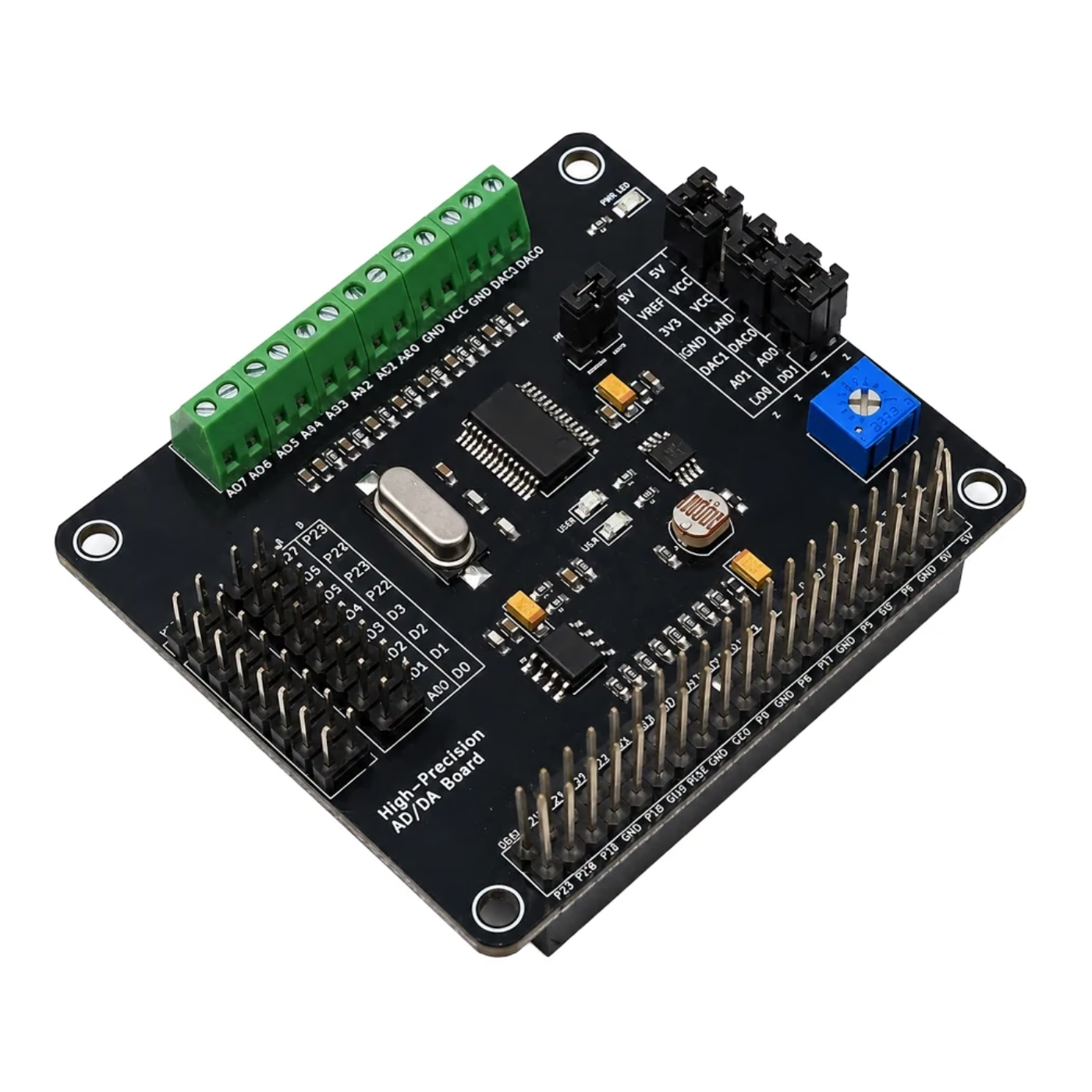

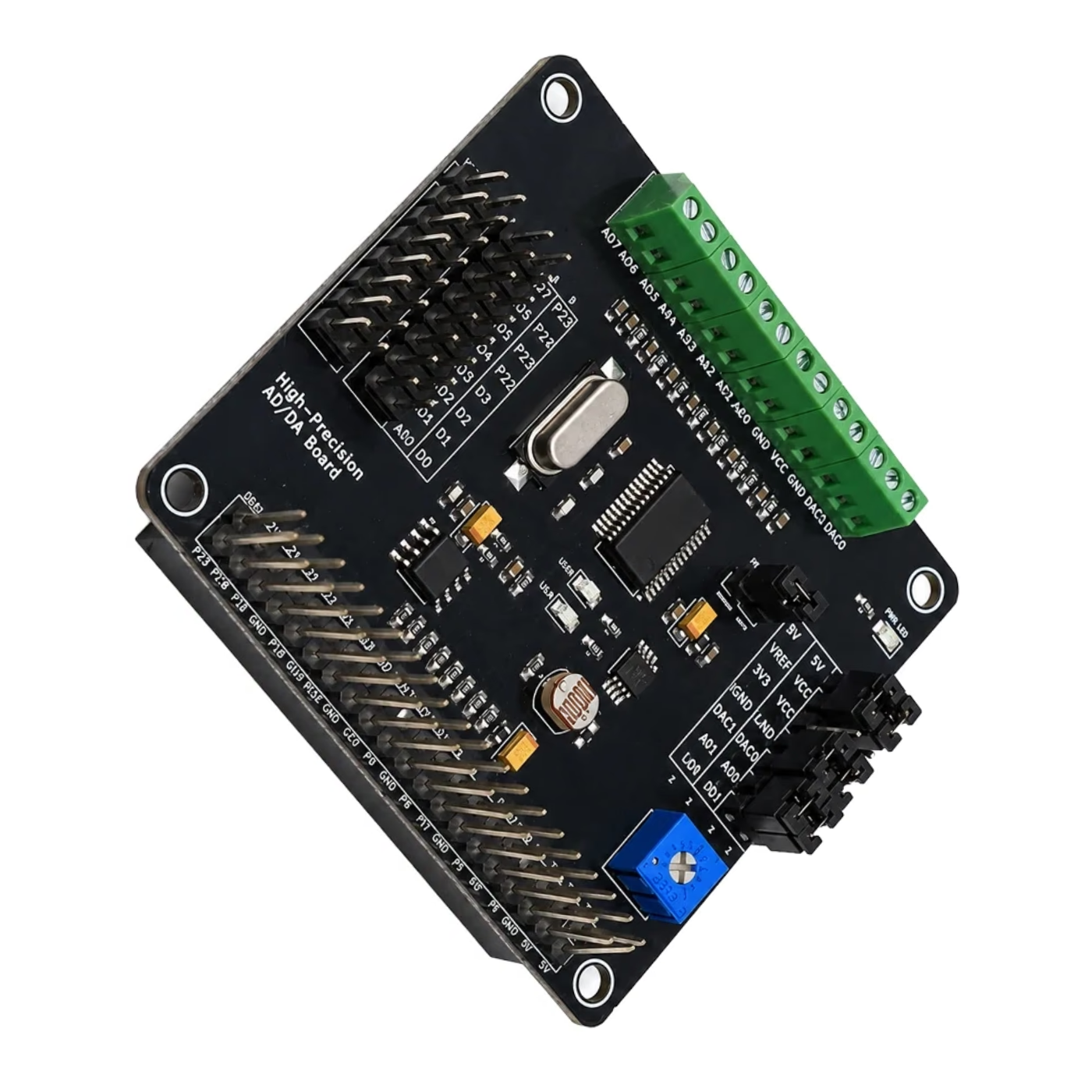

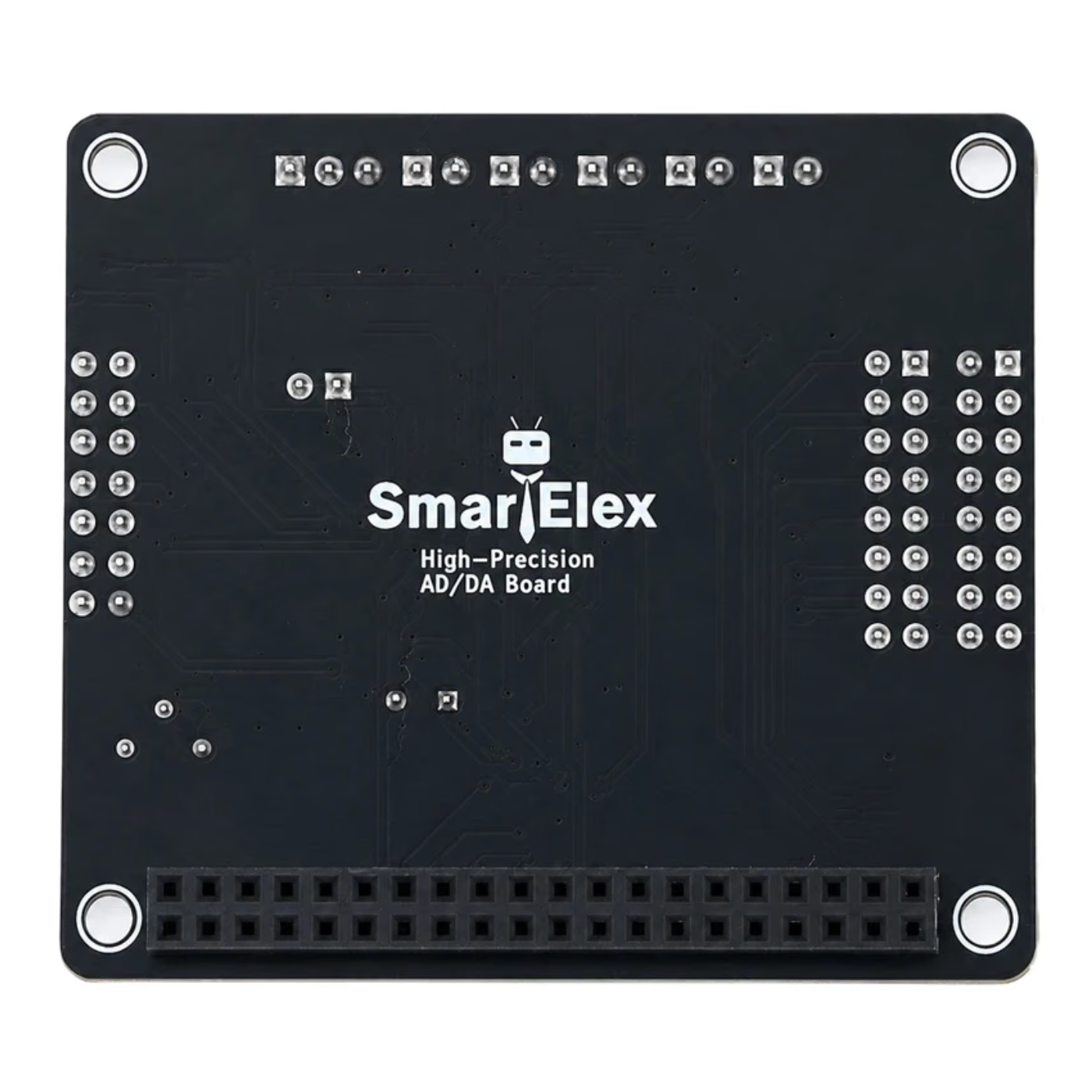

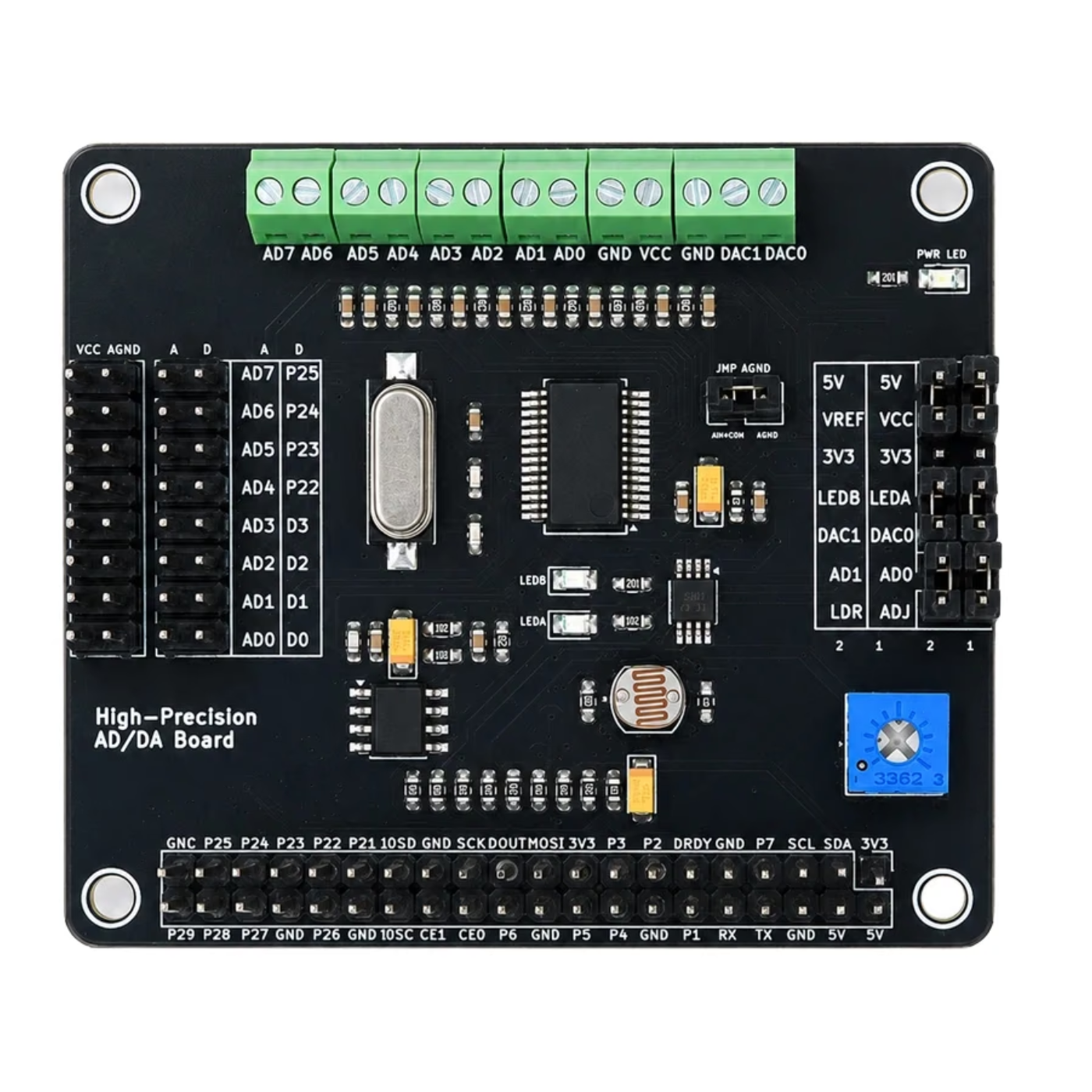

SmartElex High-Precision AD/DA Expansion Board for Raspberry Pi
SmartElex High-Precision AD/DA Expansion Board for Raspberry Pi
SmartElex High-Precision AD/DA Expansion Board for Raspberry Pi
The SmartElex High-Precision AD/DA Expansion Board for Raspberry Pi provides reliable and accurate analog signal conversion for applications that require precise data processing. Designed as a Raspberry Pi ADC and DAC expansion solution, it enables smooth analog-to-digital (ADC) and digital-to-analog (DAC) conversion, making it useful for sensor interfacing, data acquisition, signal measurement, industrial automation, and control systems.
With precision components and high-resolution signal processing, this Raspberry Pi expansion board can help capture analog sensor signals and generate accurate analog outputs. It is a practical choice for Raspberry Pi-based embedded systems, research projects, laboratory experiments, and educational electronics applications where dependable analog I/O performance is important.
Features:
- 8-channel, 24-bit high-precision ADC onboard ADS1256 (compatible with 4-channel differential input)
- Accurate data capture with a high sampling rate of up to 30KSPS
- 2-channel, 16-bit, high-precision onboard DAC8552
- Pinout that works with the SmartElex sensor interface
- standard to make connecting analog sensor modules simple
- Onboard terminal block for easy analog and digital signal connection
- allows for the connecting of input and output signals for a variety of uses.
- Easy signal monitoring and demonstration with an integrated AD/DA detector circuit
- offers Raspberry Pi and Jetson Nano platform sample demos online.
- Compact, dependable, and stable design
Package Includes:
- 1 x SmartElex High-Precision AD/DA Expansion Board for Raspberry Pi
Specifications:
| ADC Resolution | 24-bit High-Precision ADC |
|---|---|
| DAC Resolution | 16-bit DAC |
| Communication Interface | SPI |
| Build | Compact and Stable PCB Design |
| Raspberry Pi Integration | Plug-and-Play via Raspberry Pi GPIO |
| Functionality | Analog Input and Analog Output |
| Applications | Data Acquisition and Signal Generation |
| Compatibility | Raspberry Pi, Jetson Nano |
| Reliability | Industrial-Grade Performance |
| Dimensions | 65 × 55 × 20 mm |
