SmartElex GPS-RTK Board UFL ZED-F9P-04B - IOT & Wireless Boards - GSM, GPS, GPRS - Robocraze

SmartElex FREE SHIPPING BEST PRICE GUARANTEED

SmartElex GPS-RTK Board UFL ZED-F9P-04B - Buy Online in India

Name: SmartElex GPS-RTK Board UFL ZED-F9P-04B
Brand: Robocraze
SKU: TIFCC0365
Price: 20499 INR
Availability: OutOfStock

SmartElex GPS-RTK Board UFL ZED-F9P-04B

Rs 20,499/-

- 24%

Rs 20,499/-

~~Rs 26,999/-~~

Save Rs 6,500/-

Incl. GST (No Hidden Charges)

Please hurry! Only 0 left in stock

We’ll notify you once the product is back in stock.

Quantity:

Free Delivery Above ₹999

Technical Support & Easy Returns

Same Day Shipping

Earn RC Coins on Purchase

Cash on Delivery

SKU: TIFCC0365

High-precision GNSS module with u-blox ZED-F9P-04B chipset
Supports RTK positioning with up to 1 cm accuracy
Dual-band GNSS (L1 & L2) for enhanced reliability
UFL connector for compact external antenna integration
Works as both Rover and Base Station
Multiple interfaces: USB-C, UART, I2C, and SPI

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here

First Name *

Last Name *

Email *

Phone *

Company

Materials List

File(s) size limit is 20MB.

Enter the Captcha *

Captcha challenge – enter the characters shown in the image

Reload Captcha

SmartElex GPS-RTK Board UFL ZED-F9P-04B

~~Rs 26,999/-~~ Rs 20,499/-

Quantity:

SmartElex GPS-RTK Board UFL ZED-F9P-04B

~~Rs 26,999/-~~ Rs 20,499/-

Description
Specifications
Additional Resources
Shipping & Return

Description

SmartElex GPS-RTK Board UFL ZED-F9P-04B

The SmartElex GPS-RTK Board UFL ZED-F9P-04B is a high-performance GNSS solution built around the advanced u-blox ZED-F9P chipset, delivering centimeter-level positioning accuracy using RTK (Real-Time Kinematics) technology. Designed for precision-driven applications, this board supports multi-band GNSS signals (L1 & L2) and multiple satellite constellations including GPS, GLONASS, Galileo, and BeiDou. Its compact design with a UFL connector allows seamless integration with external antennas, making it ideal for embedded and space-constrained projects.

Engineered for flexibility, the board can operate as both a rover and a base station, making it suitable for robotics, autonomous navigation, surveying, and precision agriculture. With multiple communication interfaces such as USB-C, UART, I2C, and SPI, it ensures easy compatibility with various development platforms. The built-in rechargeable backup battery enables faster startup times, while configurable update rates up to 20Hz provide real-time, high-accuracy positioning data for dynamic applications.

Features:

Powered by u-blox ZED-F9P-04B high-precision GNSS module
Supports GPS, GLONASS, Galileo, and BeiDou constellations
Dual-frequency reception (L1C/A and L2C) for improved accuracy
RTK (Real-Time Kinematics) support for centimeter-level positioning
Configurable update rate up to 20Hz for real-time tracking
UFL connector for secure and compact antenna connection
Built-in rechargeable backup battery for warm start capability
Flexible communication via USB-C, UART, I2C, and SPI
Suitable for robotics, drones, surveying, and autonomous systems

Specifications

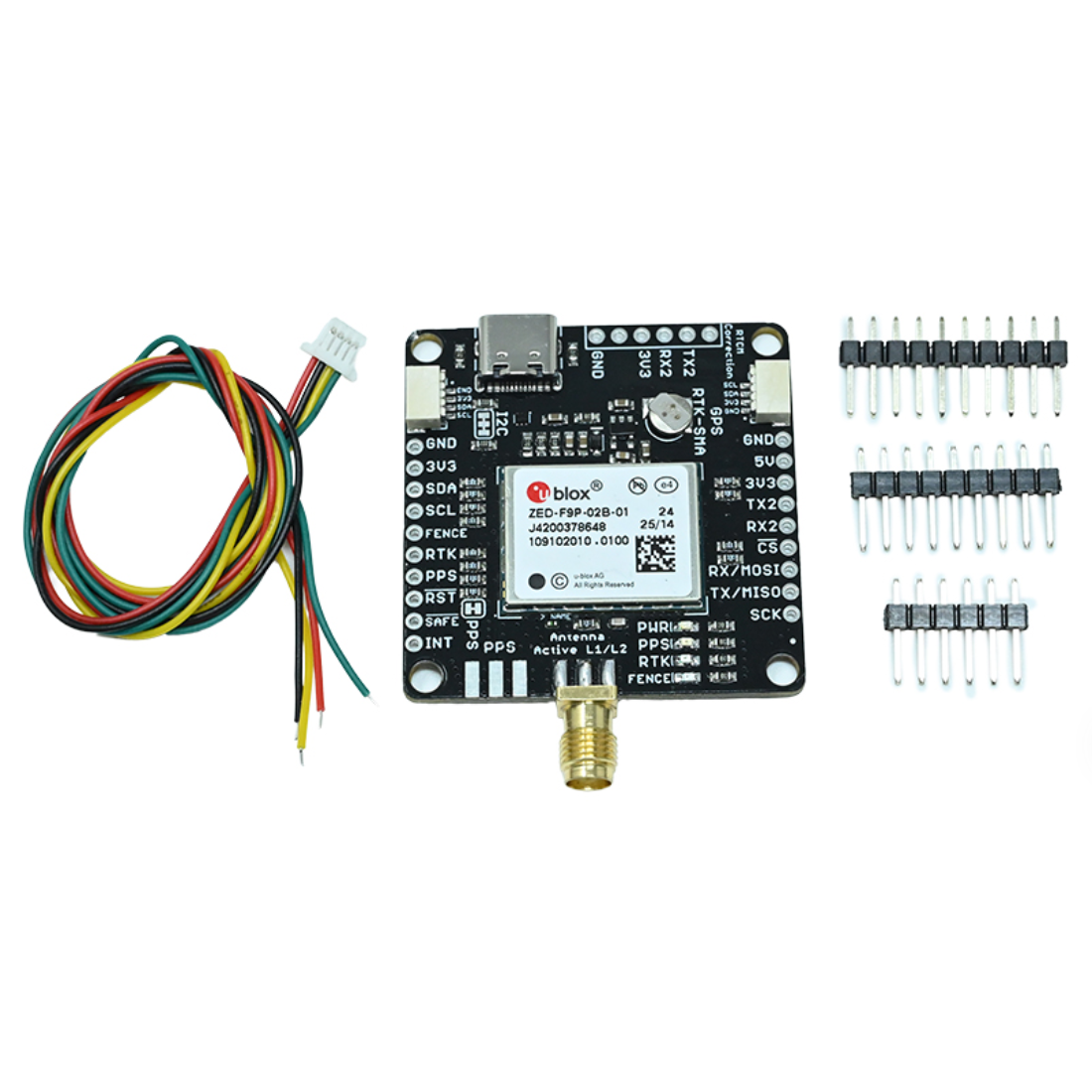

Package includes:

1 x SmartElex GPS-RTK Board SMA – ZED-F9P-02B

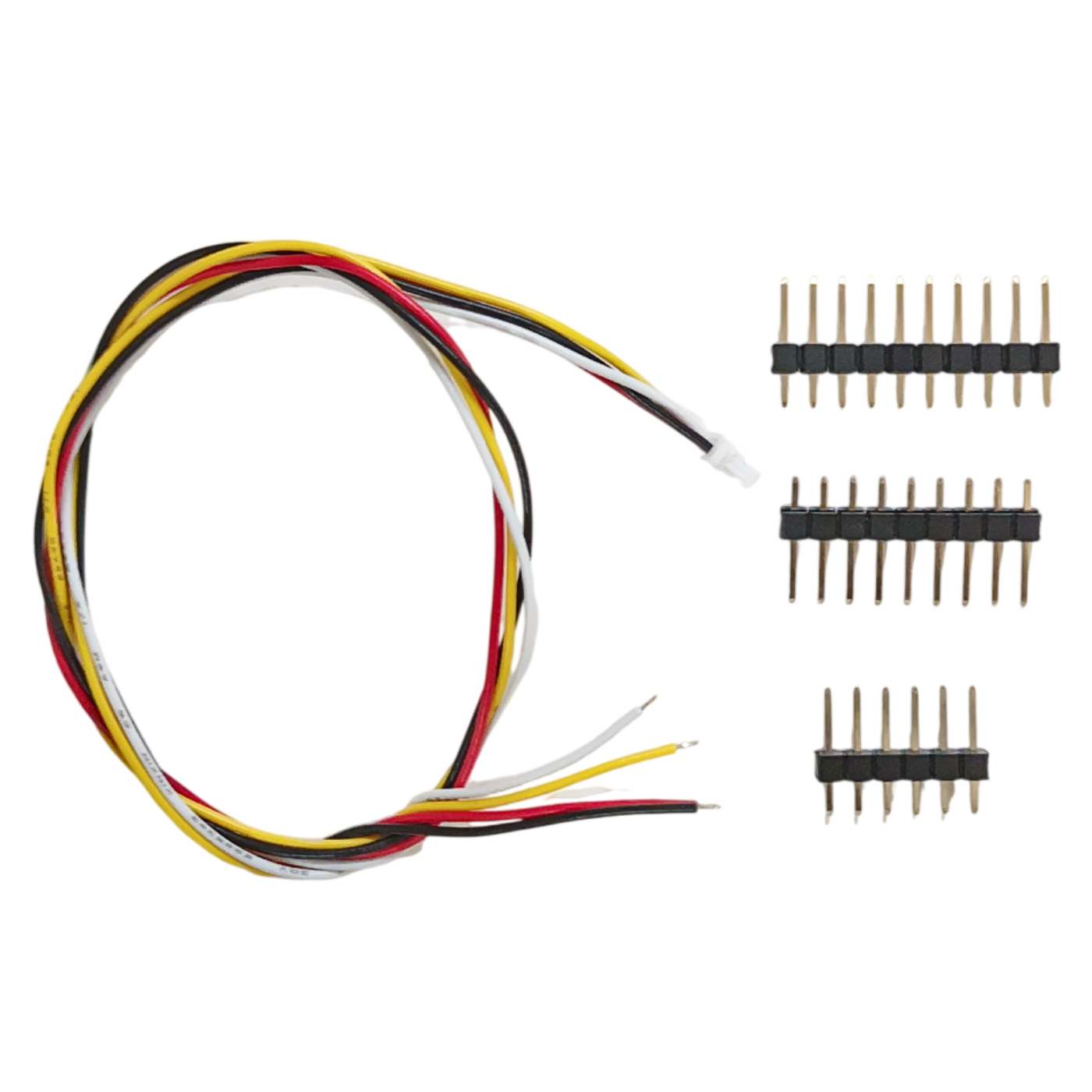

1 x 1 X 4 Pin I2C Interface Cable
3 x Header Pin

Specifications:

Parameter	Specification
GNSS Module	u-blox ZED-F9P-04B
Positioning Accuracy	~2.5m (Standard), ~1 cm (RTK)
Supported GNSS	GPS, GLONASS, Galileo, BeiDou
Frequency Bands	L1C/A, L2C
Operating Voltage	3.3V – 5V
Logic Level	3.3V
Current Consumption	68mA – 130mA
Time to First Fix (TTFF)	25s (Cold), 2s (Hot)
Max Navigation Rate	25Hz (PVT), 20Hz (RTK)
Interfaces	USB, UART, I2C, SPI
Antenna Connector	UFL
Max Altitude	50 km
Max Velocity	500 m/s
Operating Temperature	-40°C to +85°C
Dimensions	44 mm × 43 mm × 5 mm
Weight	~9 g
