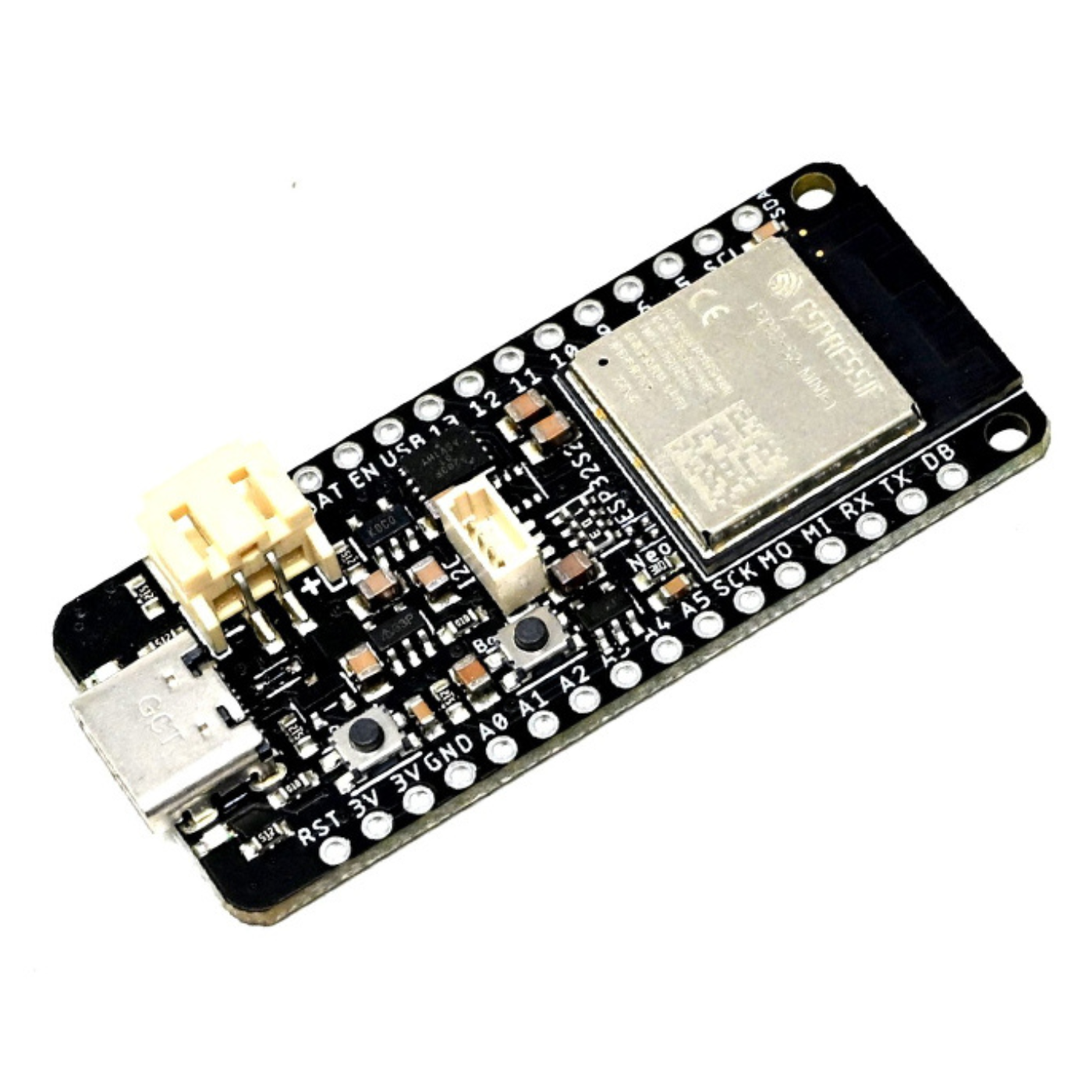

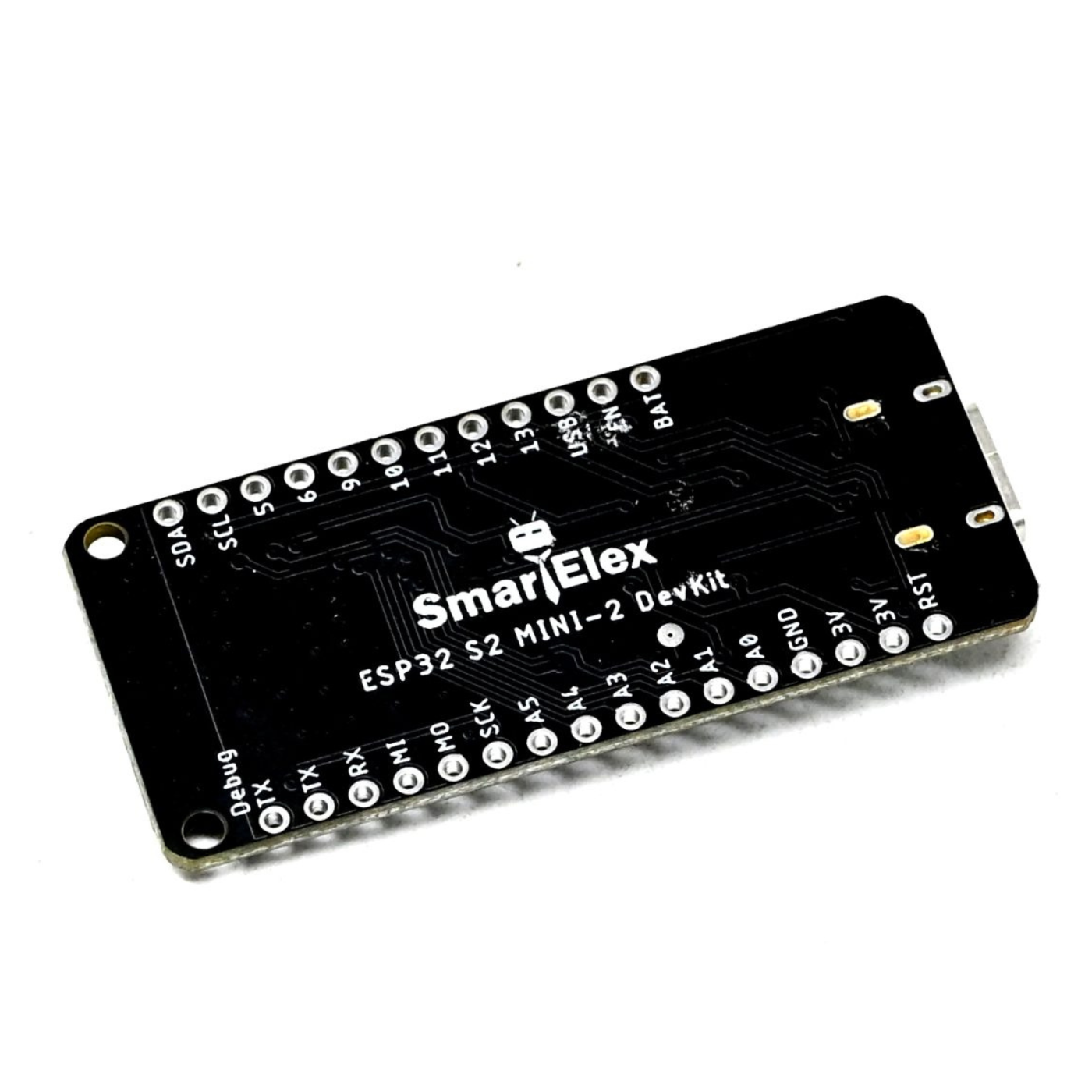

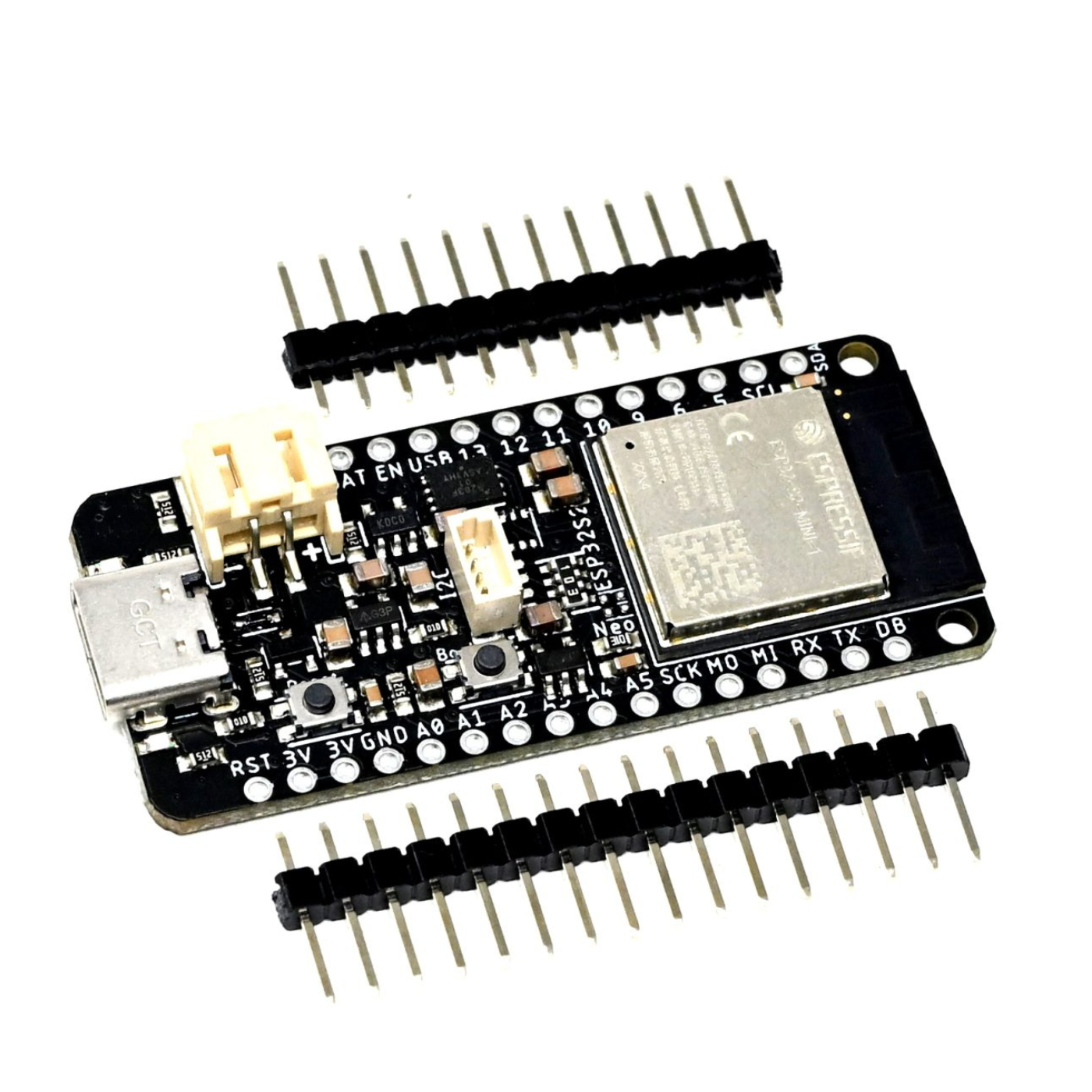

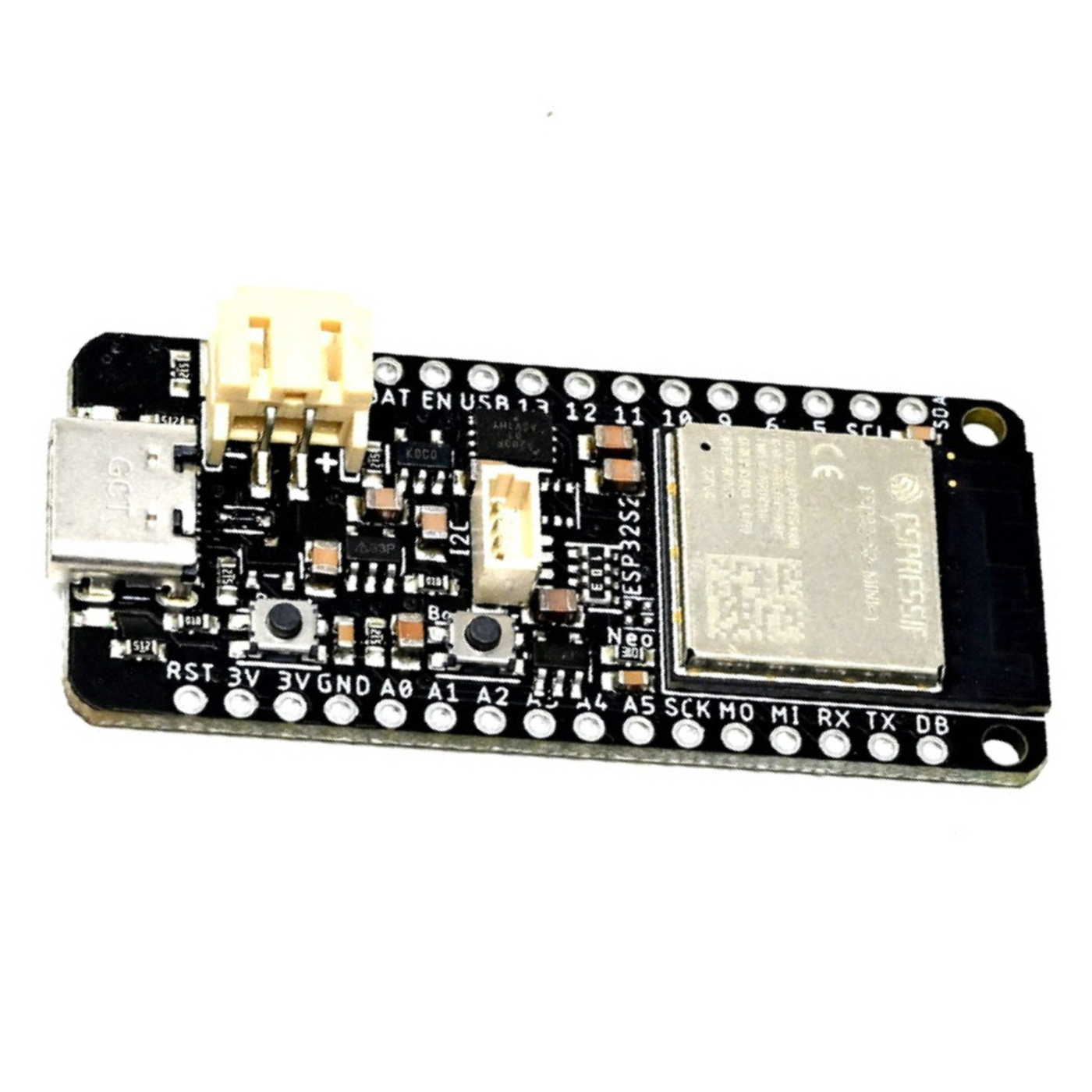

SmartElex ESP32-S2-MINI-2 Development Board
The SmartElex ESP32-S2-MINI-2 Development Board is a high-performance ESP32-S2 Development Board designed for advanced IoT Development Board applications. Powered by the ESP32-S2 series chip (revision v1.0), it features a 32-bit Xtensa® LX7 CPU clocked up to 240 MHz, delivering fast and reliable processing for connected devices.
The board integrates Wi-Fi connectivity and a low-power co-processor that efficiently handles peripheral monitoring to reduce power consumption. With support for 43 GPIOs, USB OTG, SPI, I2C, UART, ADC, DAC, touch and temperature sensors, camera and LCD interfaces, this ESP32 Microcontroller Board is ideal for smart home automation, wearable electronics, and custom IoT solutions requiring stable wireless performance and flexible peripheral control.
Features:
CPU and On-chip Memory
- ESP32-S2FH4 or ESP32-S2FN4R2 integrated, Xtensa® single-core 32-bit LX7 microprocessor with up to 240 MHz.
- 128 KB ROM
- 320 KB SRAM
- RTC has 16 KB SRAM.
- 4 MB Flash
- 2MB PSRAM (ESP32-S2FN4R2 only)
Wi-Fi
- 802.11 b/g/n
- Bitrate: 802.11n, up to 150 Mbps
- A-MPDU and A-MSDU Aggregation
- Guard interval support: 0.4 µs.
- Operating frequency range: 2412 ~ 2484 MHz.
Applications:
- Generic Low-power IoT Sensor Hub
- Generic Low-power IoT Data Loggers
- Cameras for Video Streaming
- Over-the-top (OTT) Devices
- USB Devices
- Speech Recognition
- Image Recognition
- Mesh Network
- Home Automation
- Smart Home Control Panel
- Smart Building
- Industrial Automation
- Smart Agriculture
- Audio Applications
- Health Care Applications
- Wi-Fi-enabled Toys
- Wearable Electronics
- Retail & Catering Applications
- Smart POS Machines
