SmartElex Dual Channel Battle Relay module
Let us know!
We'll try to match the price for you
Couldn't load pickup availability

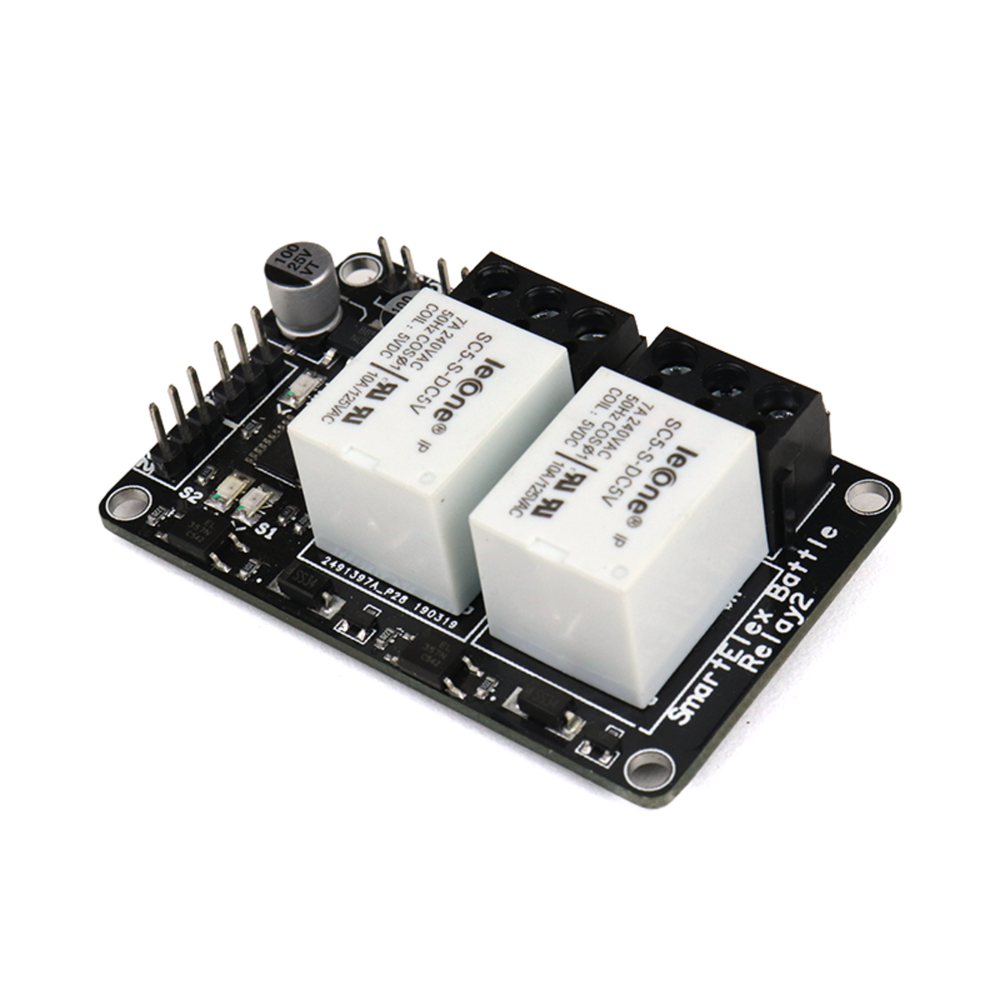

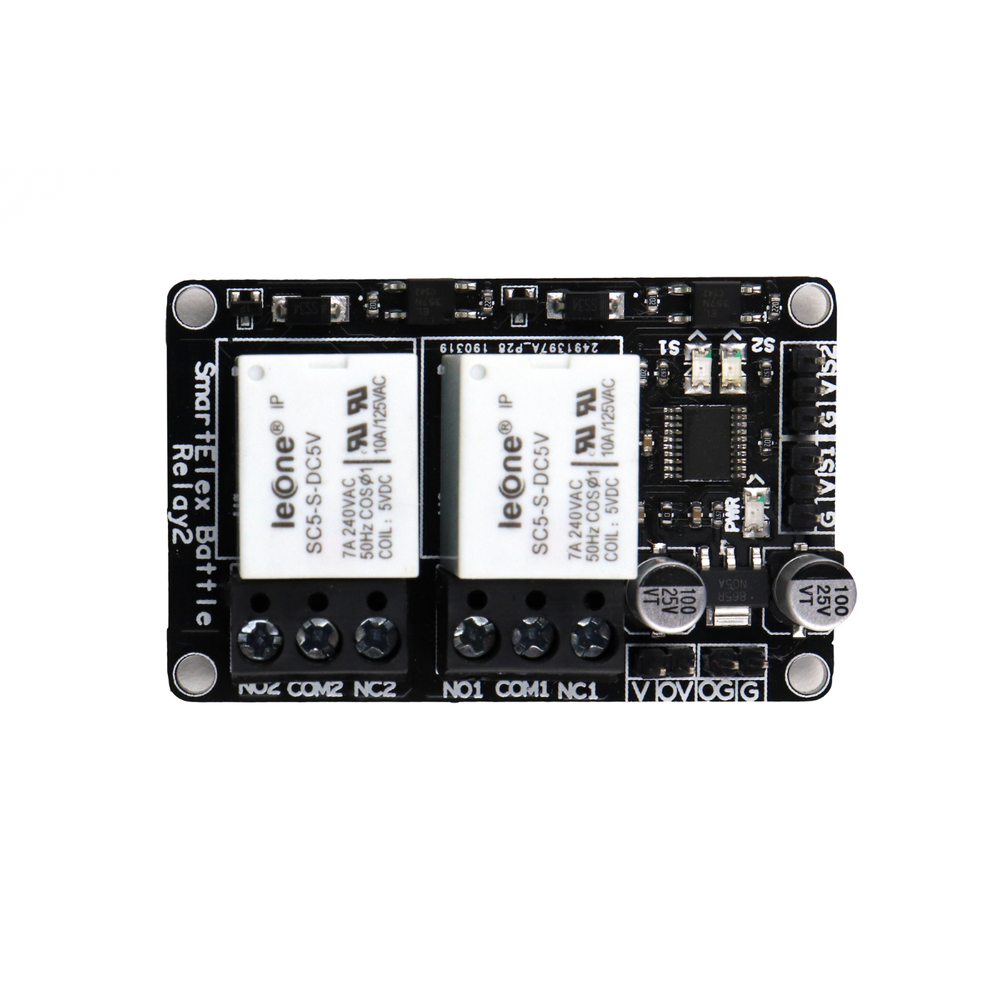

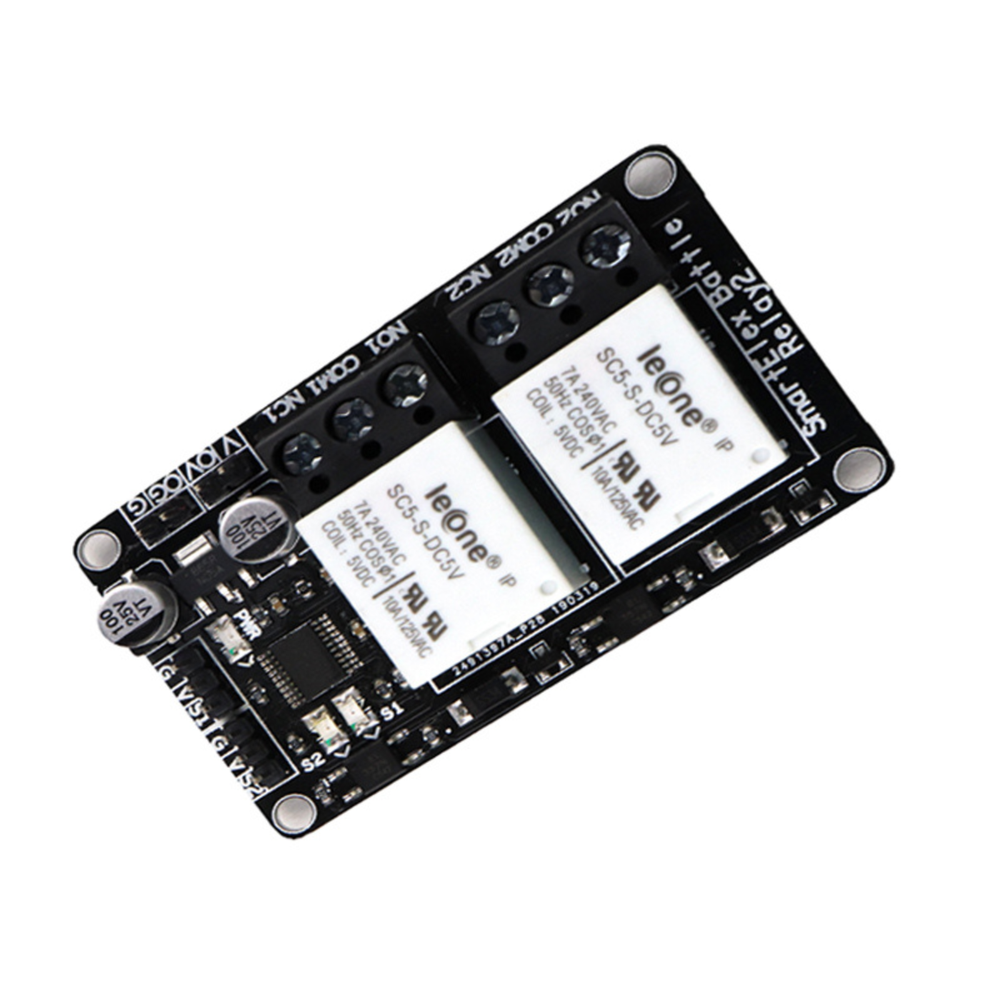

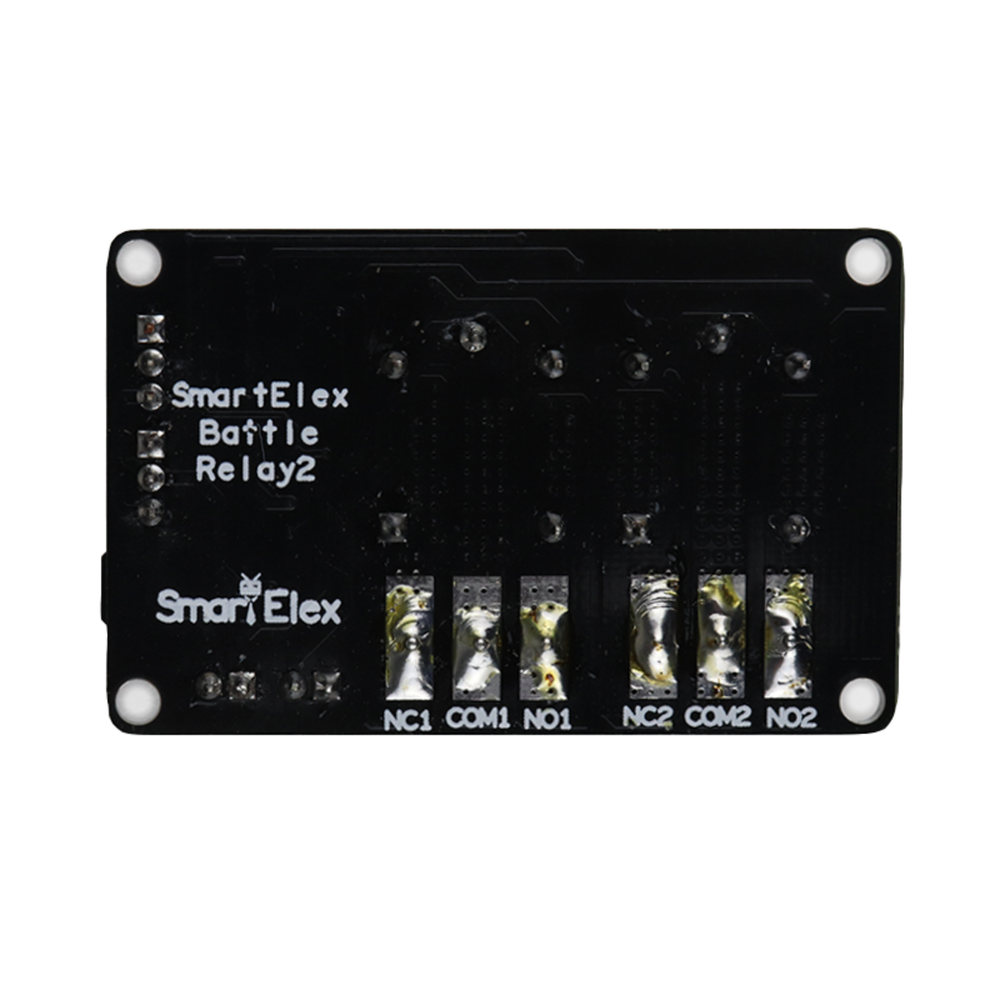

The SmartElex Dual Channel Battle Relay Module is a compact and practical relay board designed to safely control high-power electrical loads using low-voltage control signals. It helps users switch devices like motors, lights, pumps, or appliances without directly handling high voltage, making projects safer and more reliable. This module is well suited for students, makers, educators, and engineers who are working on control systems, robotics projects, or learning automation concepts in labs and classrooms.
This dual-channel relay module is commonly used in robotics, home automation, IoT experiments, and industrial prototyping where isolated and dependable switching is required. It integrates easily with popular development platforms such as Arduino, Raspberry Pi, and ESP32, allowing quick connection and straightforward control through digital pins. With stable operation and simple interfacing, the SmartElex Dual Channel Battle Relay Module enables developers to focus on logic and application design, making it ideal for DIY projects, academic experiments, and early-stage product development.
| Parameter | Specification |
|---|---|
| Operating Voltage (VDC) | 4.8 ~ 5.8 V |
| Supply Current | 40 mA |
| Trigger Voltage (VDC) | 5 V |
| Switching Voltage (VAC) | 125V @ 10A, 240V @ 7A |
| Operating Temperature | -40°C to 85°C |
| Storage Temperature | -40°C to 80°C |
| Length | 50 mm |
| Width | 45 mm |
| Height | 17 mm |
| Weight | 32 g |
This item is covered with a supplier warranty of 1 year from the time of delivery against manufacturing defects only.
In case of manufacturing defects or issues, we will replace the part after warranty confirmation by our technical team, but we won’t offer refunds or replace the entire product.
