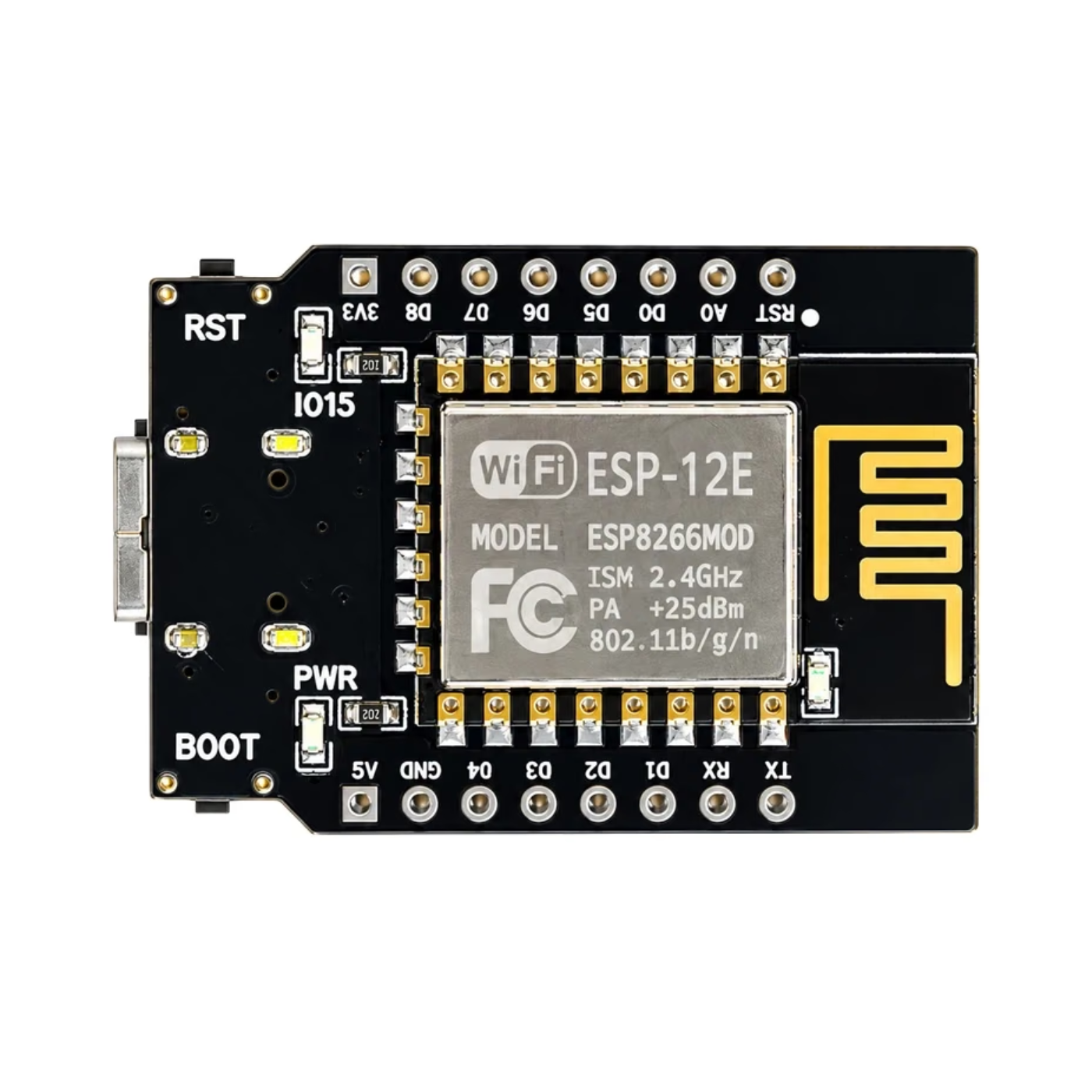

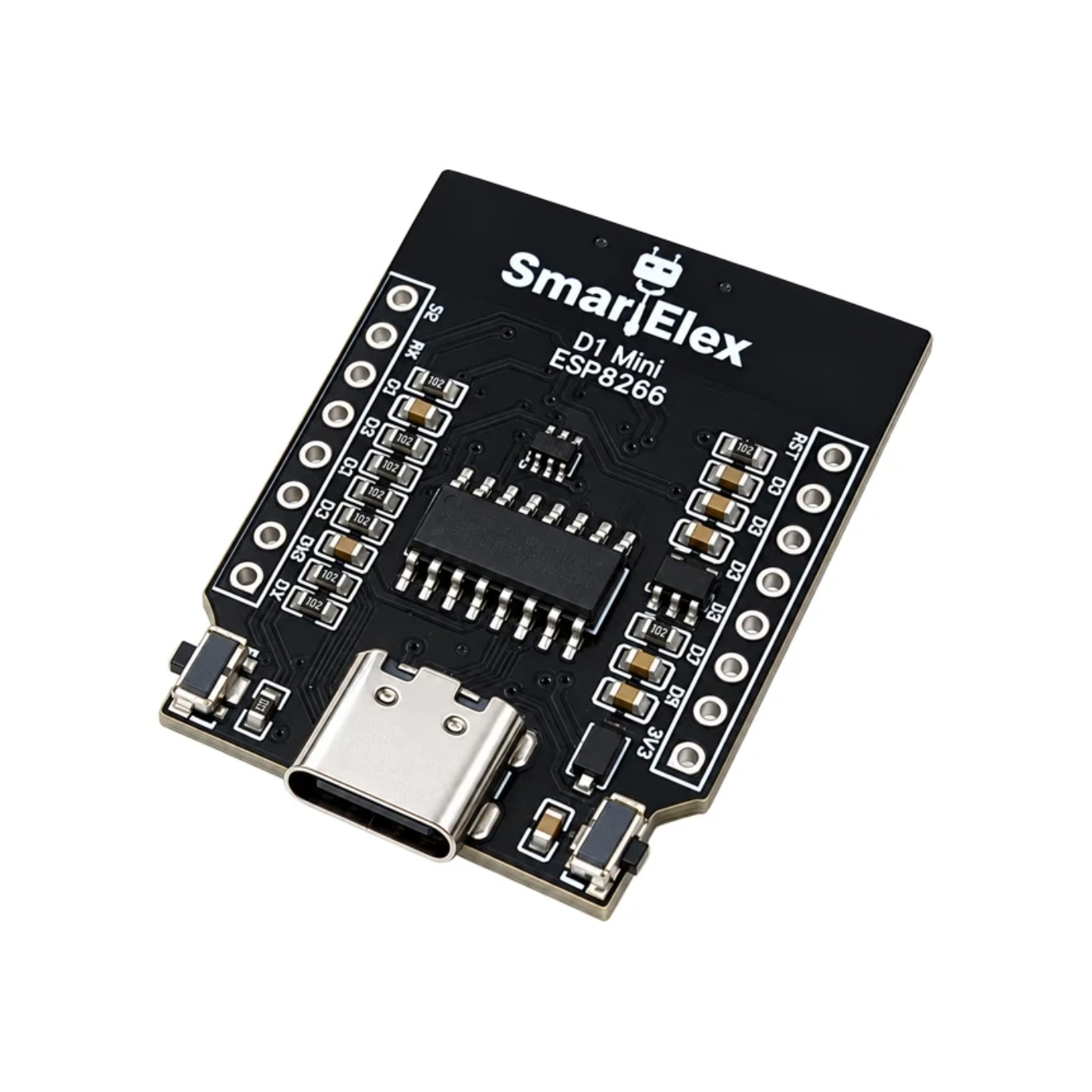

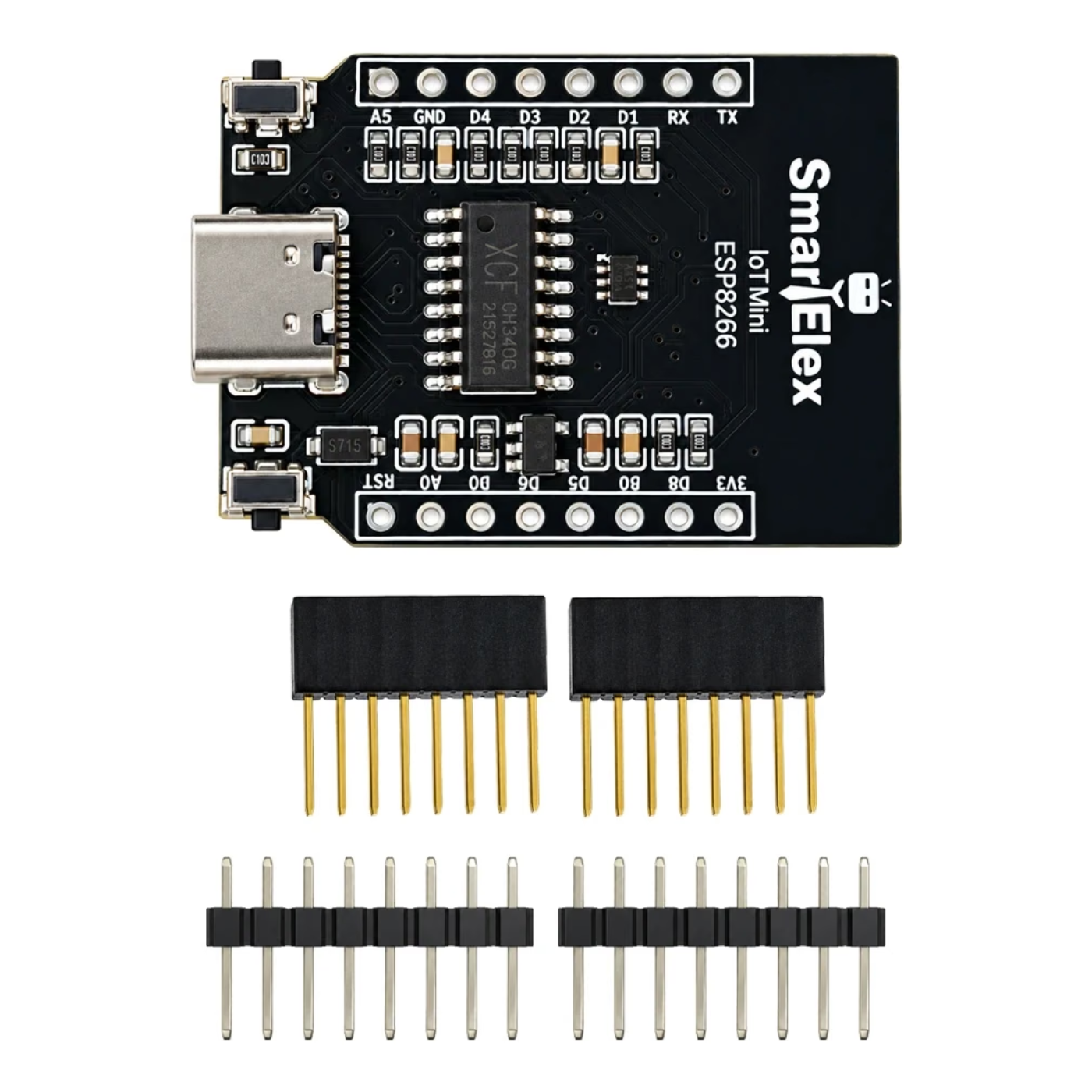

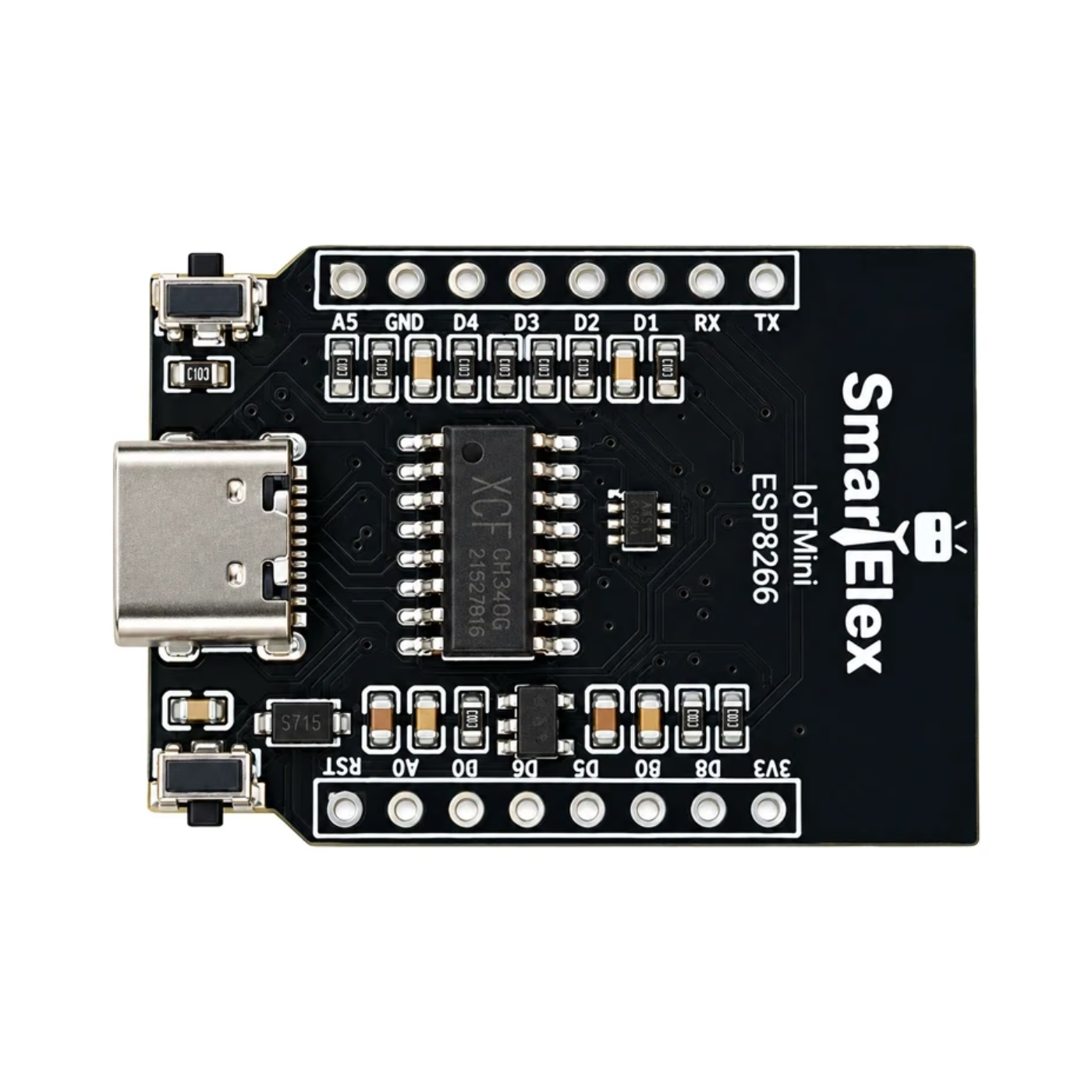

SmartElex D1 Mini V2 NodeMCU ESP8266 Development Board | 4MB WiFi IoT Board
Let us know!
We'll try to match the price for you
For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below
Couldn't load pickup availability
The SmartElex D1 Mini V2 NodeMCU is a compact WiFi development board based on the ESP8266, designed for IoT, automation and wireless electronics projects. It provides 4MB flash memory, multiple GPIO pins and built-in WiFi connectivity in a small, breadboard-friendly form factor. Robu.in lists the board as SKU 51888 and highlights its BRT-based design for easier entry into flash mode and improved wireless stability.
The ESP8266 platform supports WiFi networking and interfaces such as UART, SPI and software-configured I2C, while the D1 Mini form factor provides convenient access to digital and analog I/O for connecting sensors, displays, relays and other peripherals.
| Specification | Details |
|---|---|
| Item Type | ESP8266 Wi-Fi Development Board |
| Microcontroller Chip | ESP8266 |
| Processor | 32-bit Tensilica L106 |
| Clock Speed | Up to 80 MHz |
| Wi-Fi Standard | IEEE 802.11 b/g/n |
| Frequency | 2.4 GHz |
| Flash Memory | 4 MB |
| Operating Voltage | 3.3 V |
| Digital I/O Pins | 11 |
| Analog I/O Pins | 1 |
| ADC Resolution | 10-bit |
| Micro USB | USB-to-Serial Converter |
| Programming Platform | Arduino IDE, Lua/NodeMCU |
| Recommended Power Supply | 5 V via Micro USB |
| Application | IoT Projects, Smart Home Automation, Wi-Fi Sensor Nodes, Remote Monitoring, Wireless Data Logging |
| Length | 35 mm |
| Width | 25 mm |
| Weight | 6 g |
