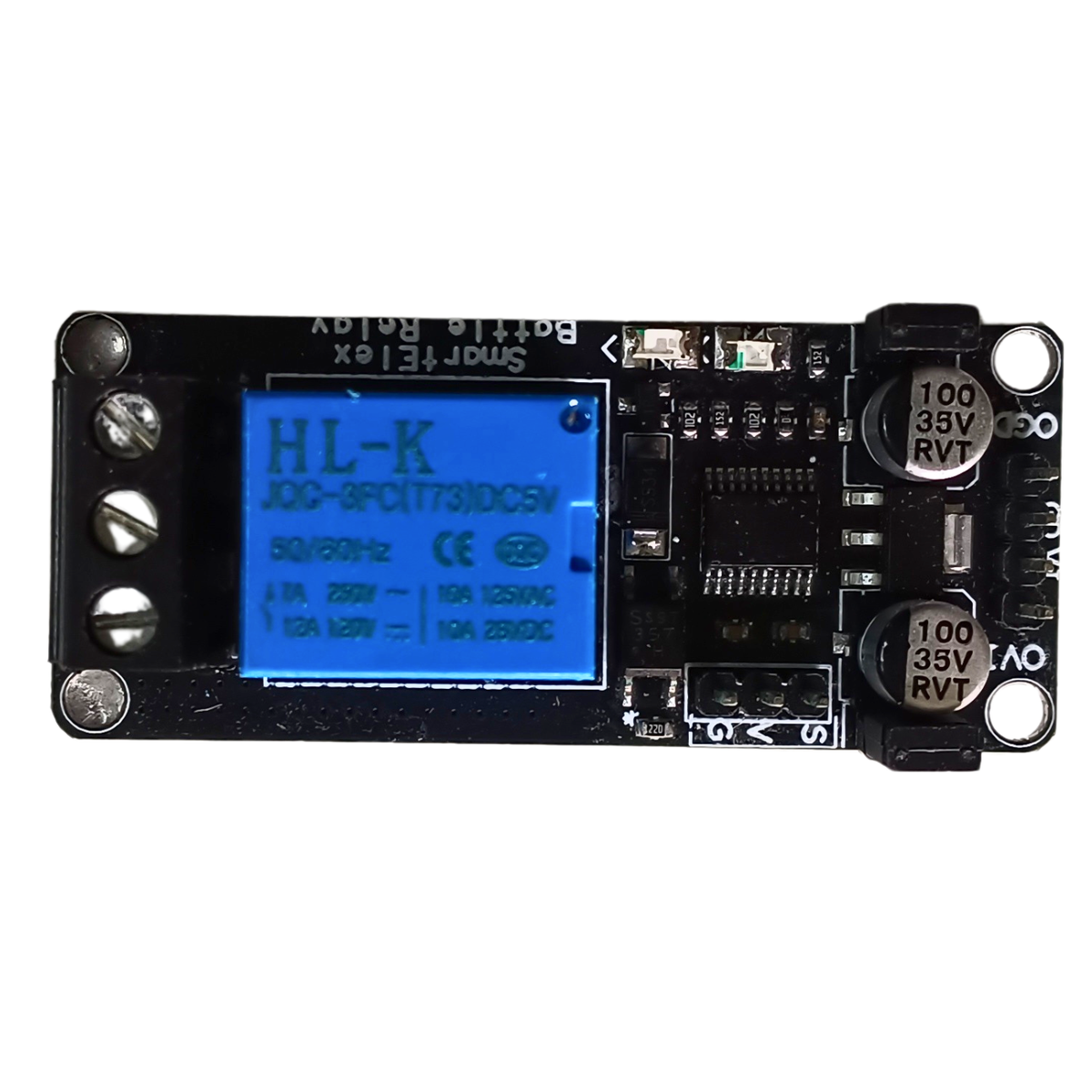

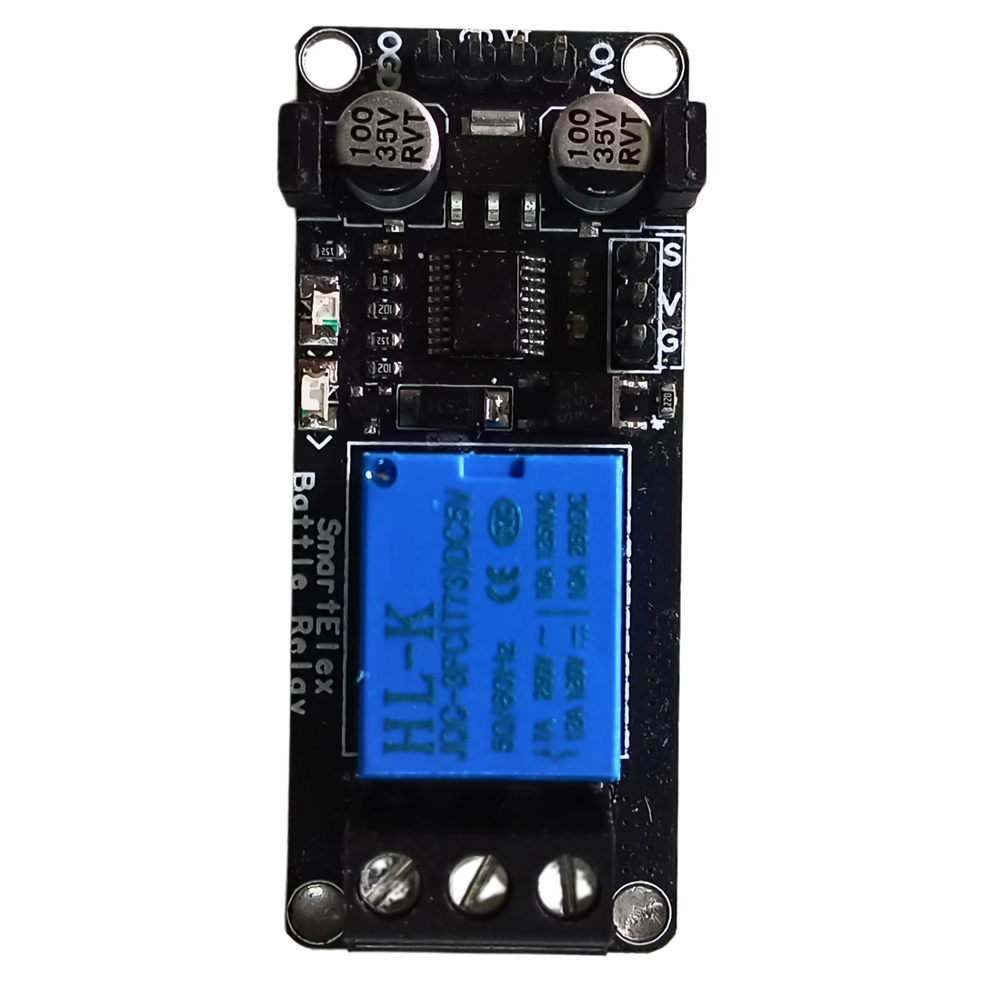

The SmartElex Battle Relay Module is a reliable and high-performance battle relay designed to handle high-current applications up to 10A.
It allows seamless radio-controlled switching for devices like BattleBots, RC aircraft, cars, boats, and lighting systems.
Built for durability and ease of use, this high current relay module features robust screw terminals for secure connections and includes both Status and Power LEDs for better visibility of operation.
With full electrical isolation from receiver electronics, it enables users to control systems with voltage levels as high as 240VAC—no need to worry about microcontroller logic or transistor complexities.
Whether you’re building a combat robot or a custom RC system, the SmartElex Battle Relay ensures dependable performance and smooth control.
| Specification | Details |
|---|---|
| Trigger Voltage (VDC) | 5 |
| Switching Voltage (VAC) | 125V @ 10A, 240V @ 7A |
| Operating Voltage (VDC) | 4.8 ~ 5.2, 4.8 ~ 5.8 |
| Length (mm) | 58 |
| Width (mm) | 25 |
| Height (mm) | 17 |
| Weight (g) | 19 |
