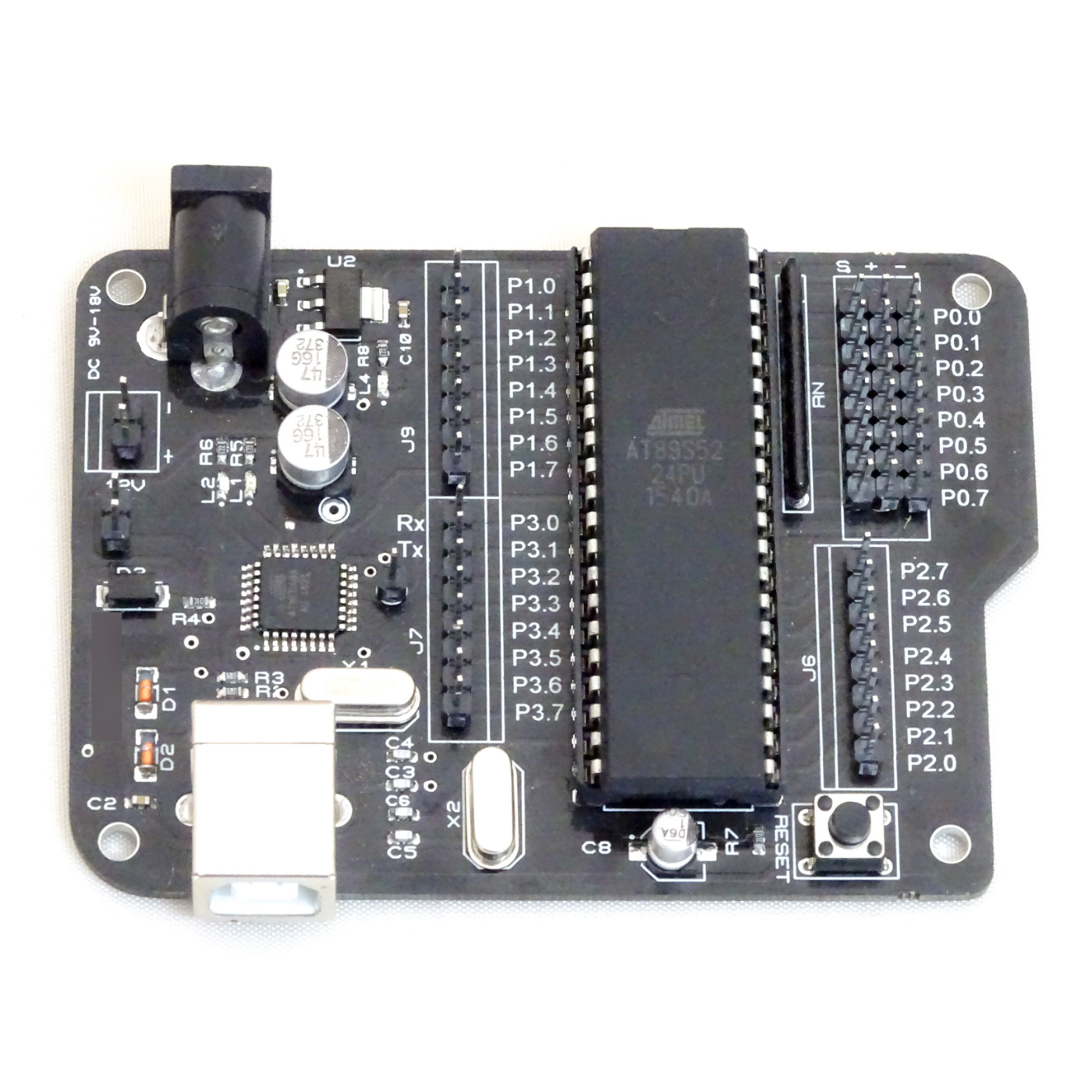

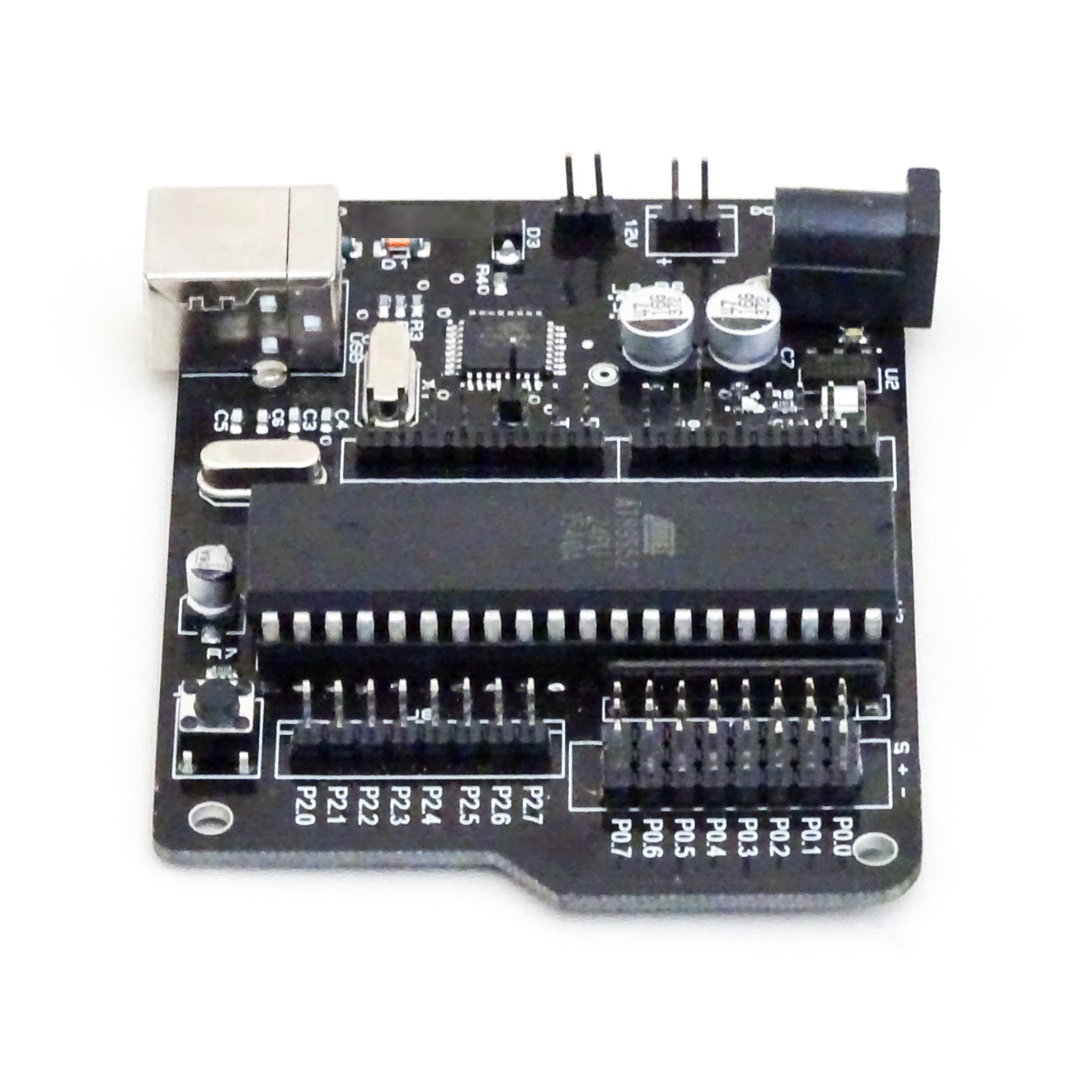

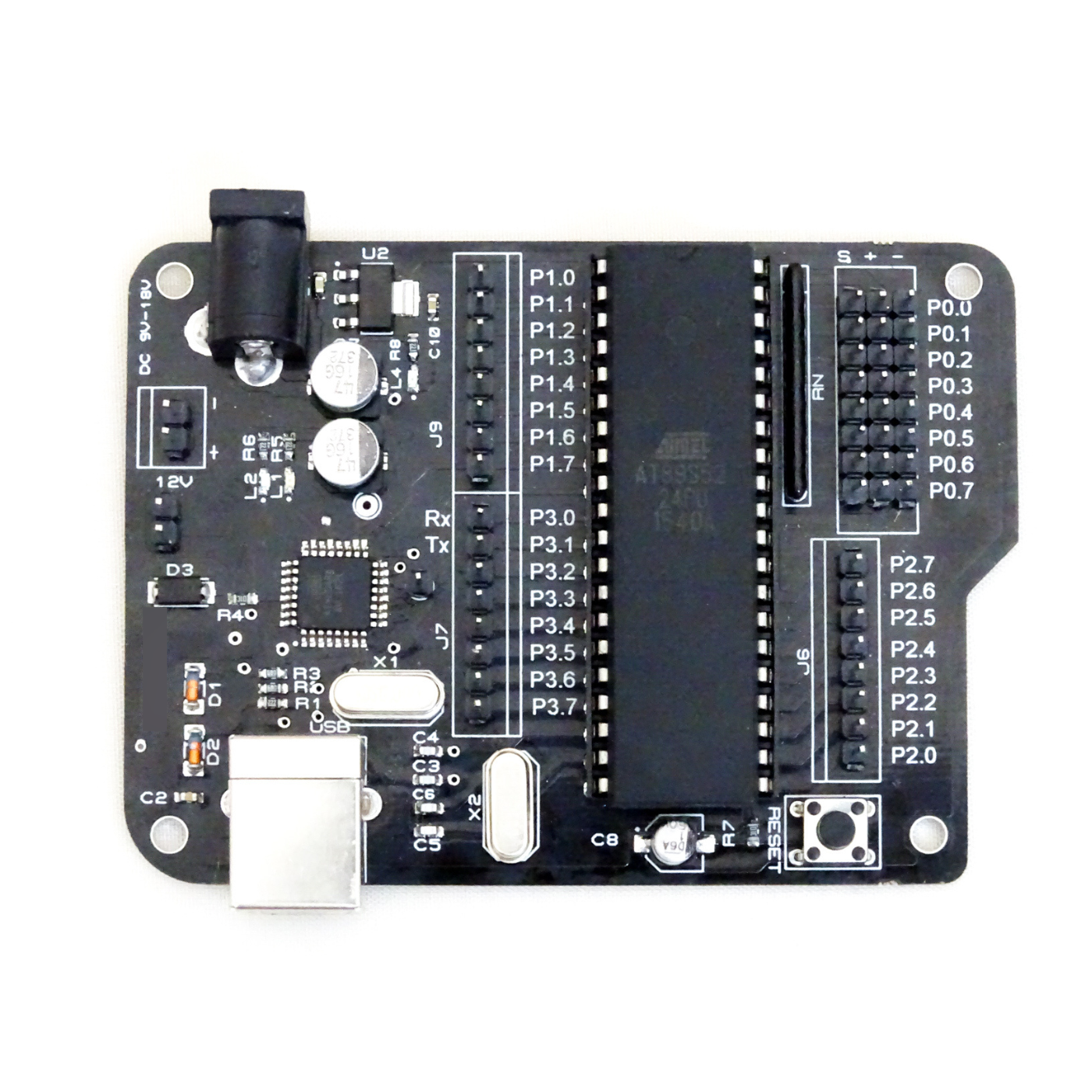

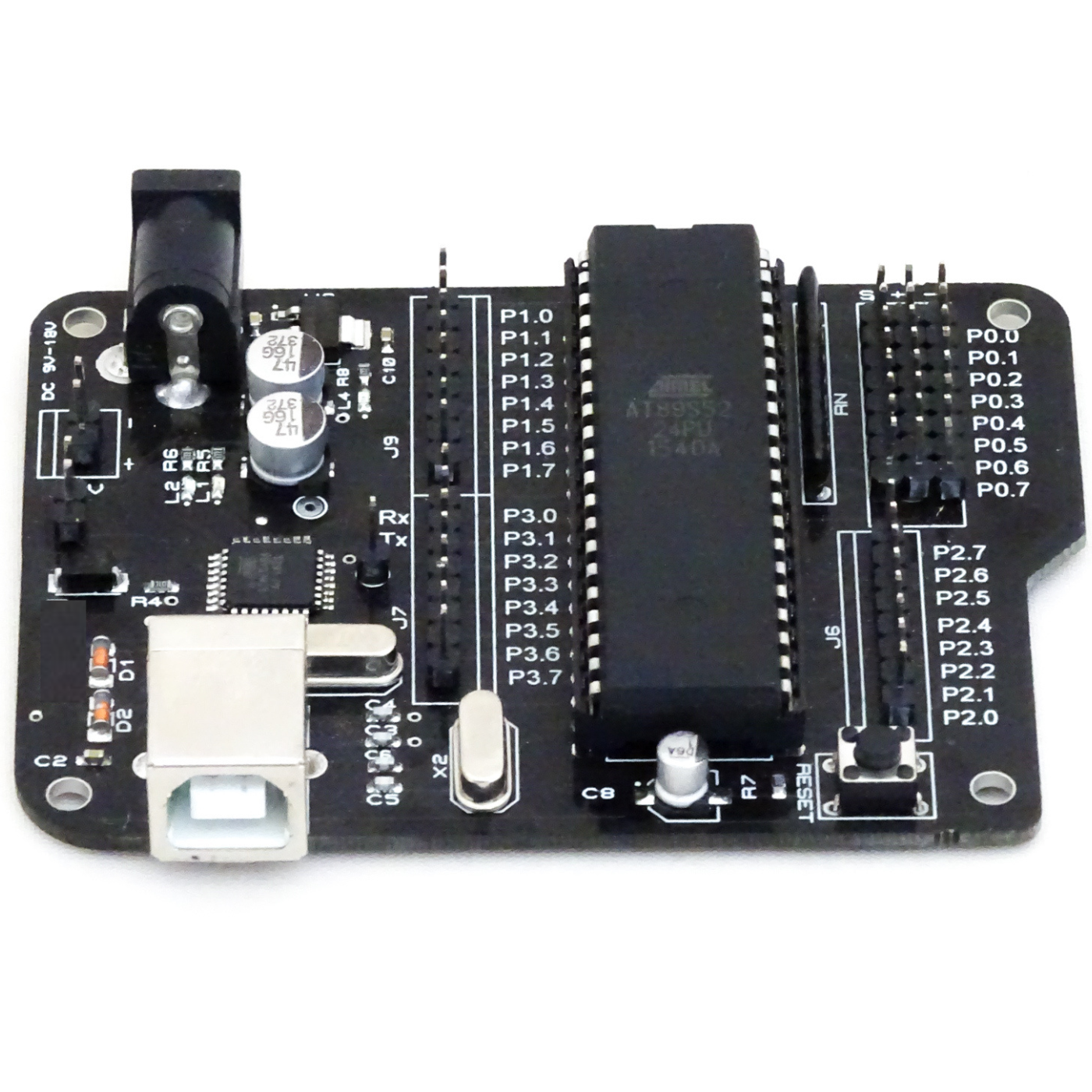

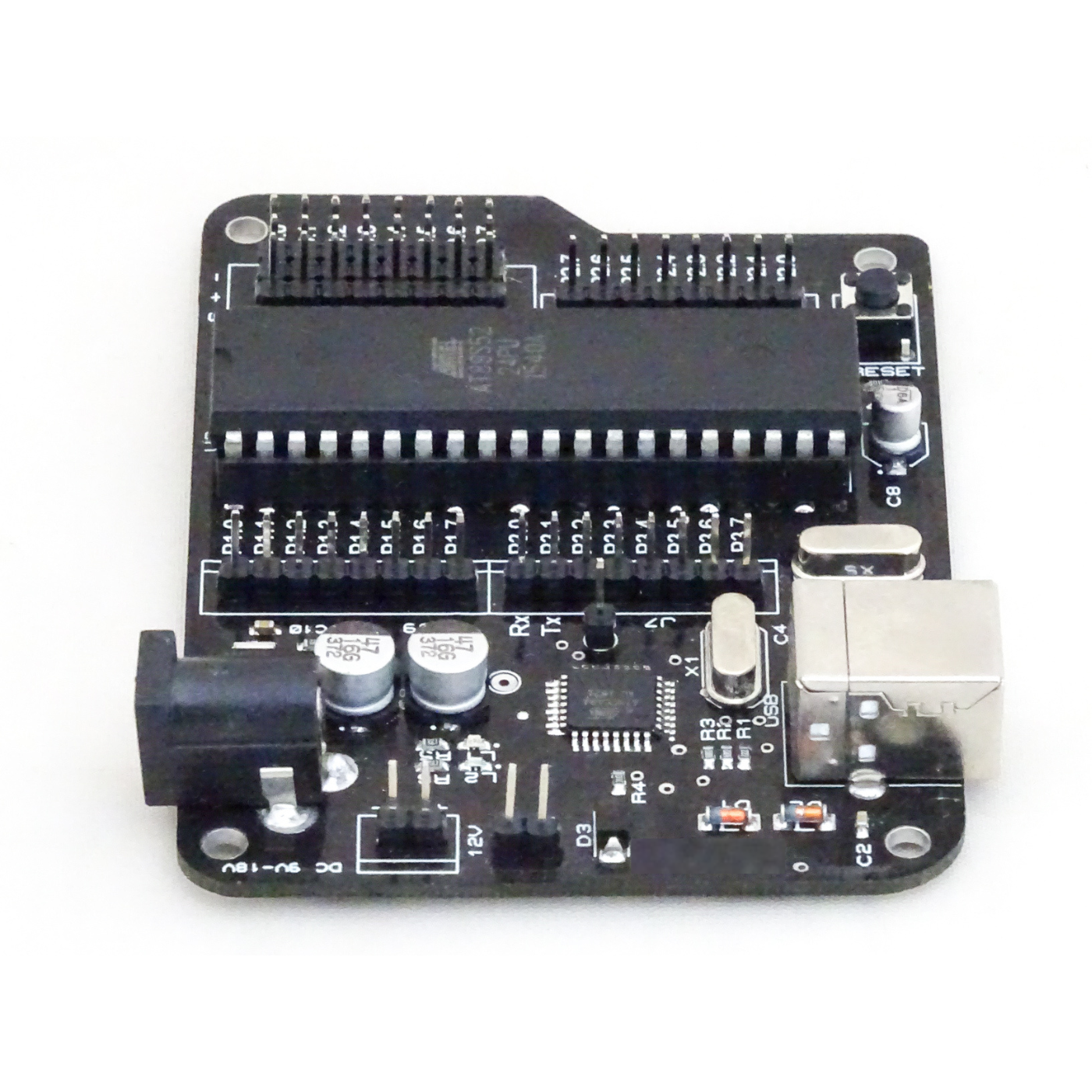

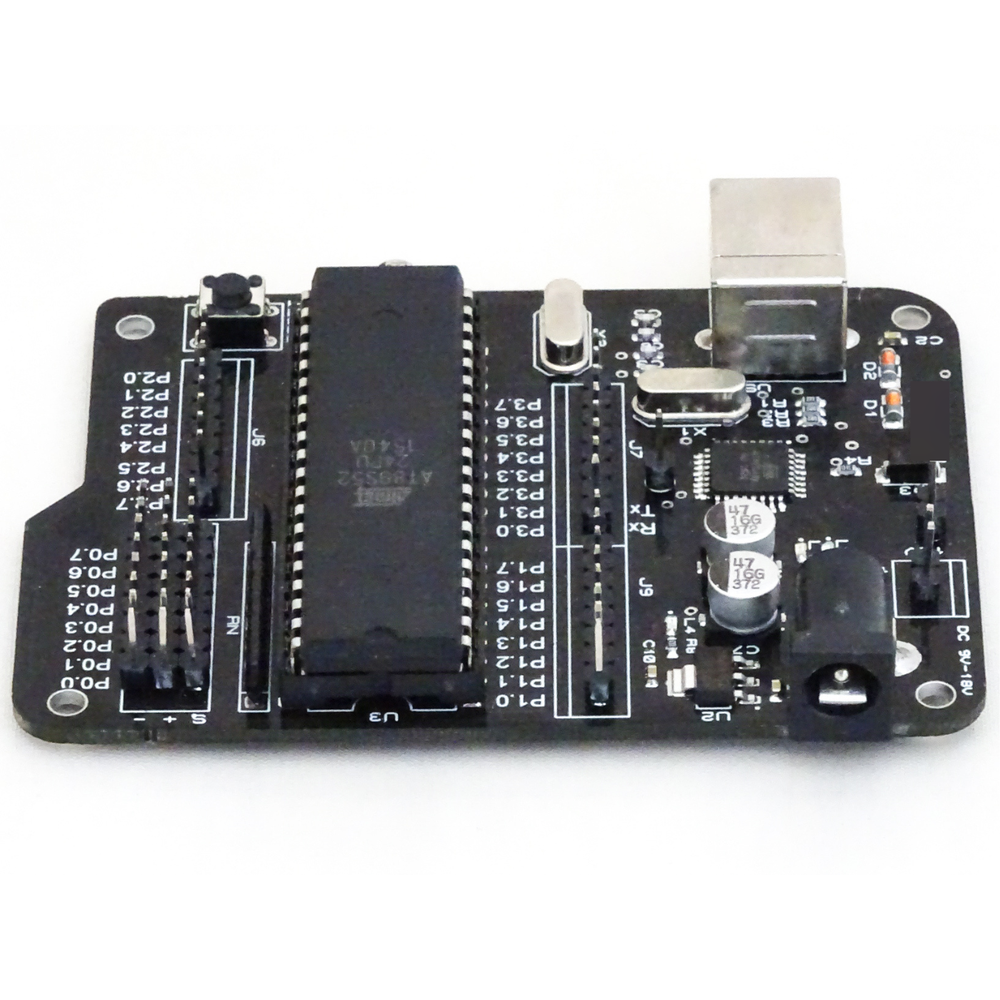

SmartElex Aryabhatta 8051 Microcontroller AT89S52 Development Board with Integrated USB Programmer
Let us know!
We'll try to match the price for you
For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below
Couldn't load pickup availability
The SmartElex Aryabhatta 8051 development board is designed to make embedded system learning simple, affordable, and effective. Equipped with an onboard USB programmer, this 8051 board with USB programmer supports AT89S52 and 89S51 40-pin microcontrollers, allowing users to easily connect to a PC and start programming without additional hardware. Its plug-and-play design, reliable power regulation, and well-labeled ports make it the perfect 8051 microcontroller kit for electronics students, hobbyists, and engineers exploring 8051-based systems.
This AT89S52 development board provides everything required to quickly develop, test, and prototype embedded applications. With built-in 5V and 12V regulated outputs, an 11.0592 MHz quartz crystal oscillator, and onboard reset functionality, it ensures stable performance and smooth operation. The high-quality FR4 PCB design and comprehensive port accessibility make it a dependable tool for mastering microcontroller fundamentals and creating innovative projects.
Equipping a Lab or Institution? Get Bulk Pricing!
Educational institutions, colleges, and training centers frequently purchase this 8051 development board in volume.
[Request a Bulk Quote Today] or contact our education sales team via WhatsApp at +91-8123057137 or email education@robocraze.com for customized institutional pricing and GST invoicing.
Get your 8051 microcontroller kit up and running in minutes:
This AT89S52 development board is perfectly suited for academic curricula and hands-on lab work, including:
| Specification | Details |
|---|---|
| Item Type | Development Board, Programmer |
| Microcontroller | AT89S52 |
| Additional | Programmer |
| Material | FR4 |
| Quartz Crystal | 11.0592 MHz |
| Length (mm) | 85 |
| Width (mm) | 62 |
You can program this board directly via its onboard USB programmer. Simply write your code in Keil uVision, generate a .hex file, and use the included ISP flashing software to upload it to the board via a standard USB cable—no external programmer needed.
This board is designed to support 40-pin DIP microcontrollers from the AT89S series, primarily the AT89S52 and AT89S51.
Yes, it is highly recommended for academic use. It supports fundamental lab experiments (LED, LCD, UART) and we offer special bulk-quote discounts for educational institutions and training centers.
Yes, it features built-in regulated 5V and 12V power outputs, along with GND bus lines, making it easy to power external sensors and modules during prototyping.
The board operates on a 9V to 15V DC input (via a standard DC jack or VIN pins). It features an onboard voltage regulator that safely steps this down to provide stable, regulated 5V and 12V outputs, which can be used to power the AT89S52 microcontroller and external sensors or modules during prototyping.
This 8051 microcontroller kit comes pre-fitted with an 11.0592 MHz quartz crystal oscillator. This specific frequency is the industry standard for 8051-based systems because it allows for precise, error-free baud rate generation when using UART for serial communication with a PC or other devices.
The product includes the AT89S52 development board with its integrated USB programmer. You will need to provide your own standard USB cable (Type-A to Type-B/Micro-USB, depending on the board's port) to connect it to your PC. The Keil uVision IDE and the ISP flashing utility software are free to download from their respective official websites.
This item is covered with a supplier warranty of 1 year from the time of delivery against manufacturing defects only.
In case of manufacturing defects or issues, we will replace the part after warranty confirmation by our technical team, but we won’t offer refunds or replace the entire product.
