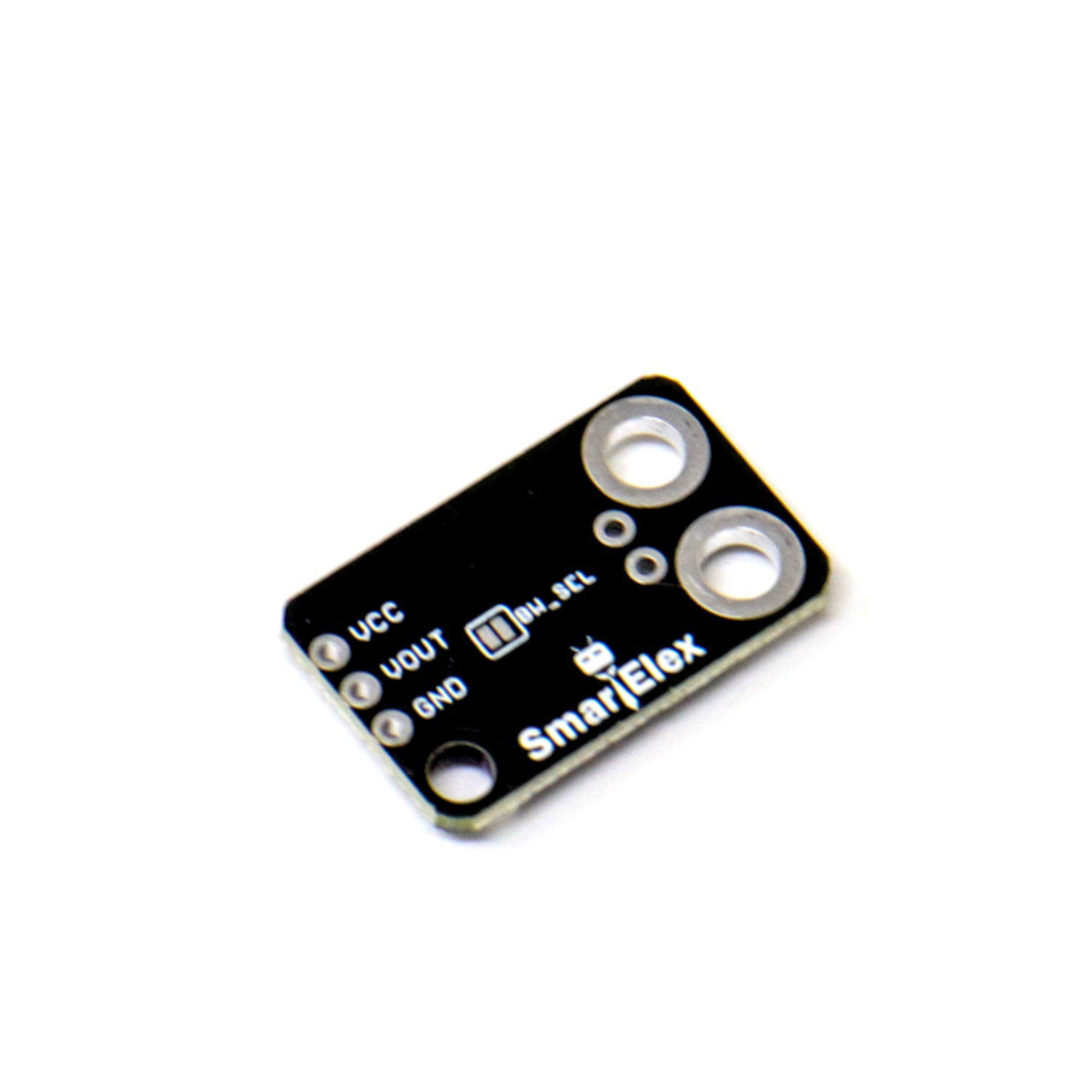

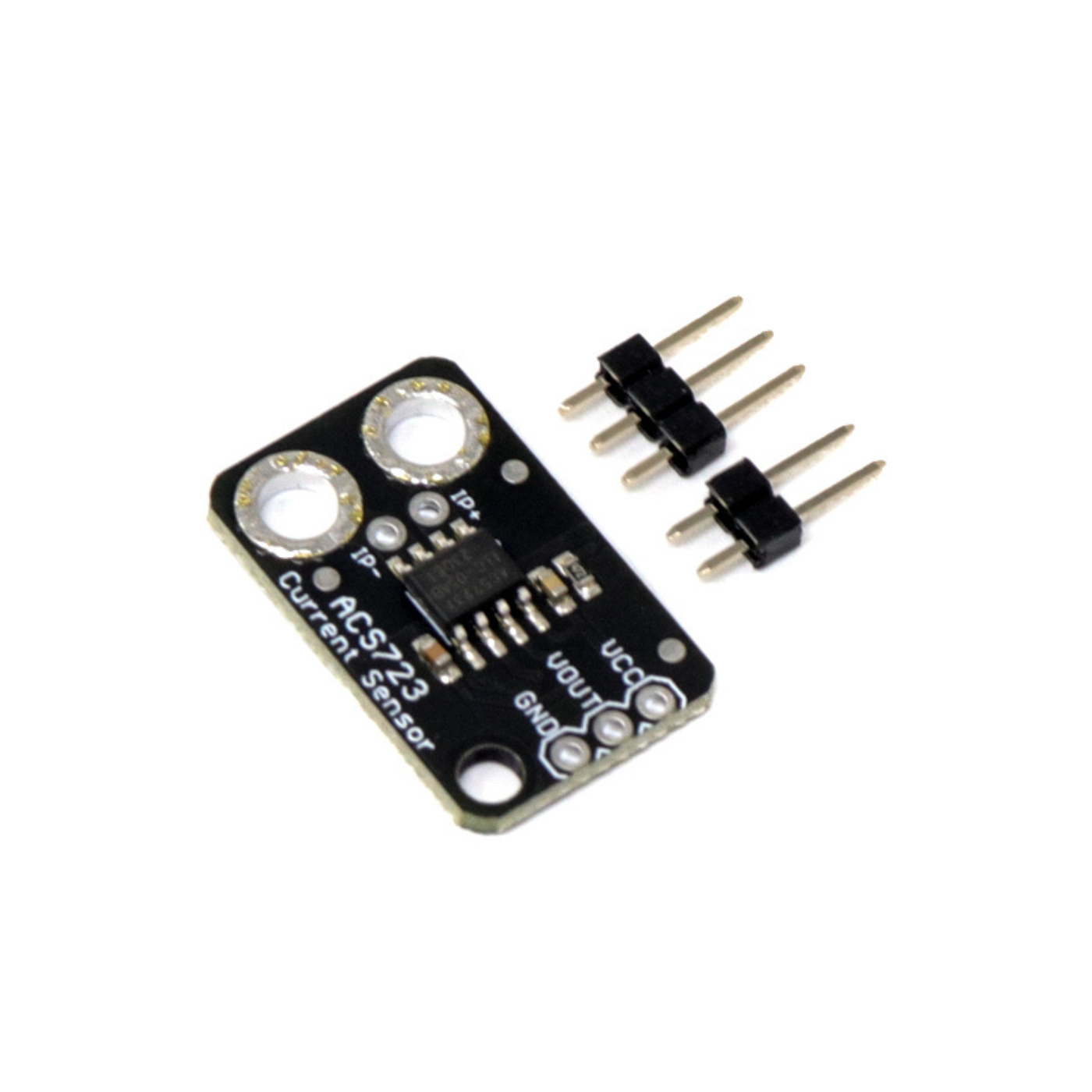

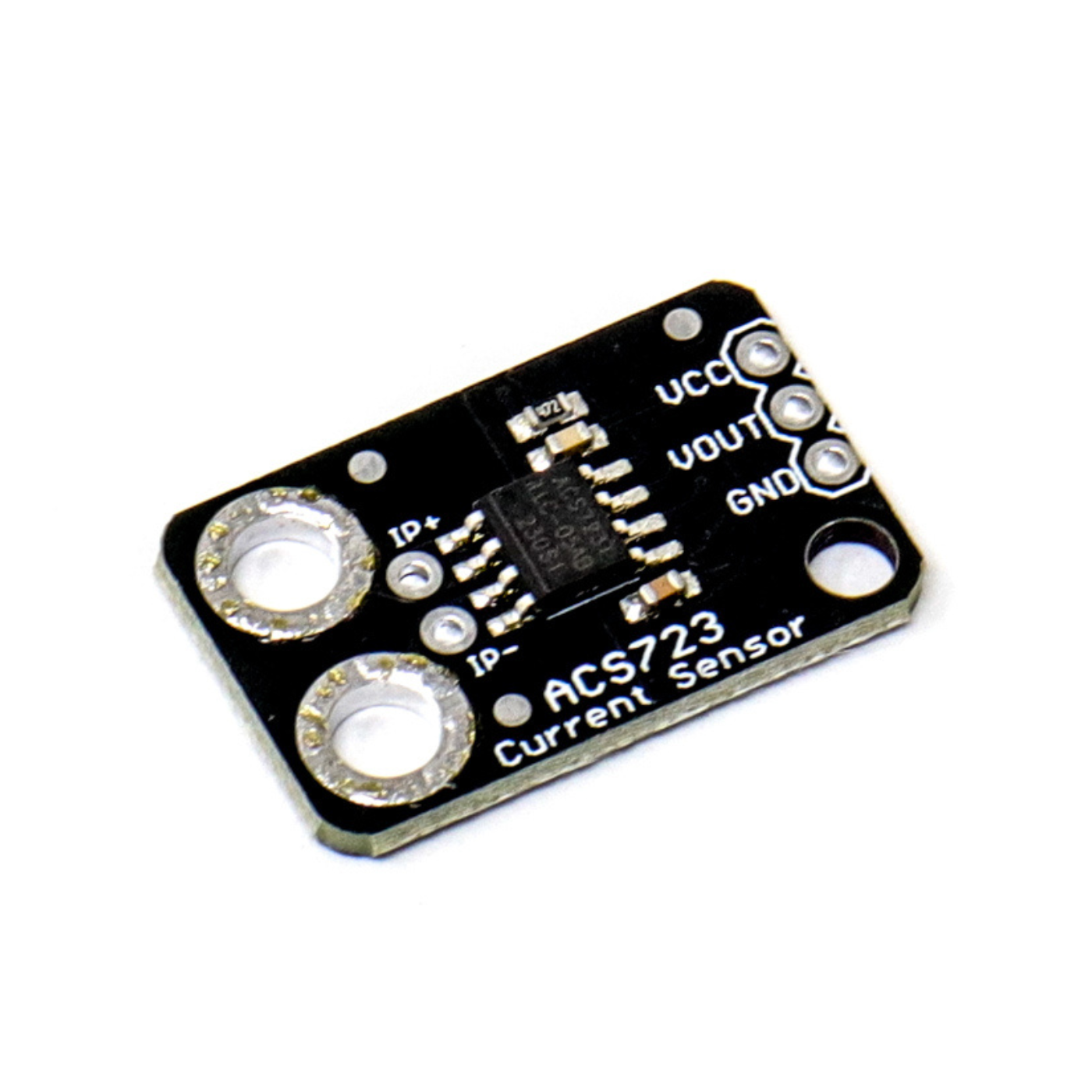

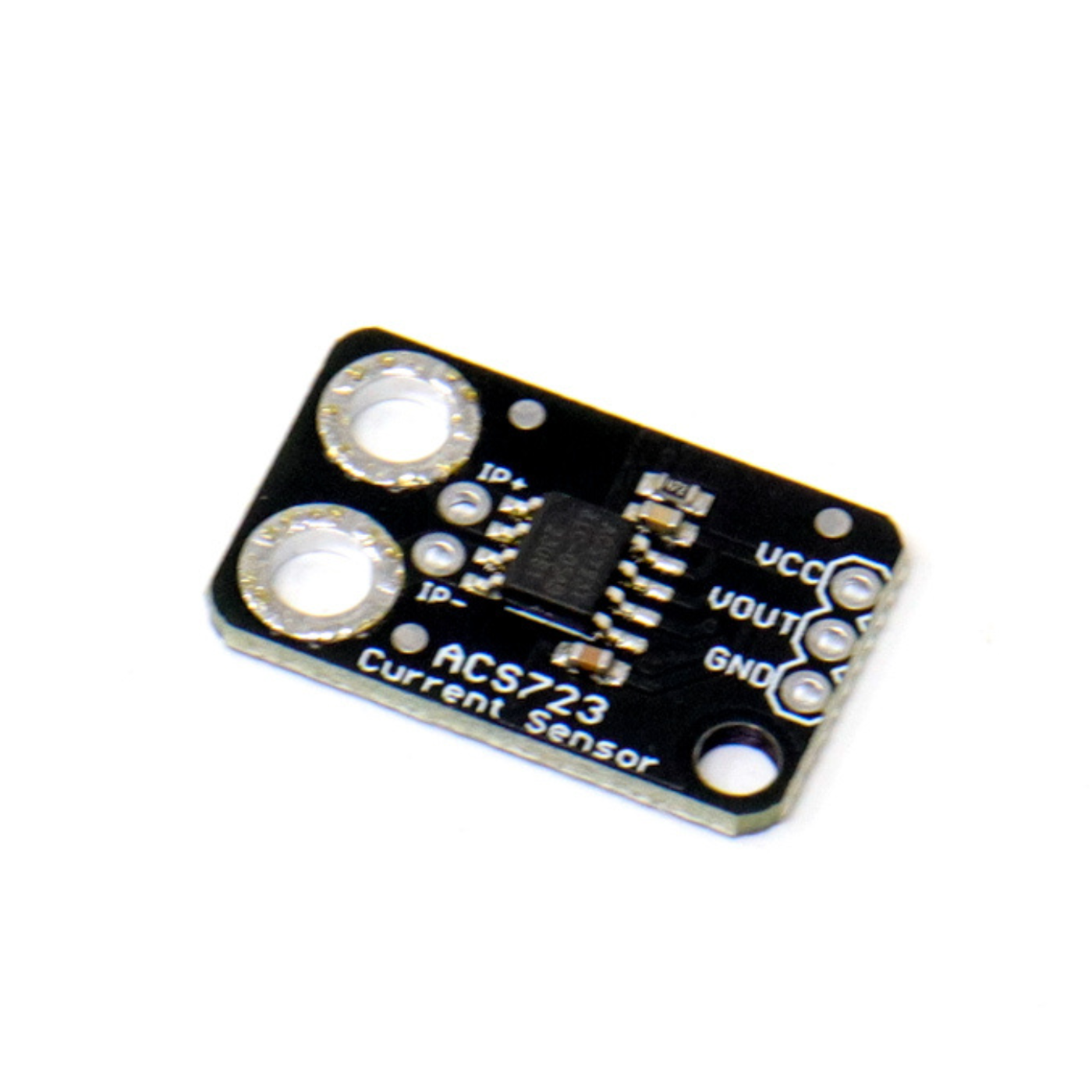

SmartElex ACS723 Current Sensor Breakout Board
Couldn't load pickup availability
The SmartElex ACS723 Current Sensor Breakout is a precise and reliable current sensor module designed to measure both AC and DC currents up to 5A. Powered by the advanced ACS723 Hall effect sensor, it provides an accurate voltage output proportional to the current flowing through the IP+ and IP- pins.
This Hall effect-based isolation ensures safe measurement by keeping the sensing circuit electrically separated from the control system, making it ideal for projects where voltage safety and precision are crucial.
This Hall Effect Current Sensor Module is perfect for Arduino and embedded applications that require accurate current monitoring, such as motor control, battery management, and energy metering.
With adjustable gain and bandwidth selection, the SmartElex ACS723 sensor offers versatility and reduced noise performance, making it a reliable choice for students, engineers, and makers working on electronic or automation projects.
| Specification | Details |
|---|---|
| Model | Current Sensor Breakout |
| Model No. | ACS723 |
| PCB Size (L x W) mm | 24.13 x 15.24 |
| Bandwidth (KHz) | 20 |
| Measuring Current Range | 10mA up to 5A, AC or DC |
| Base Sensitivity | 400mV/A |
| Analog Output | 80kHz |
