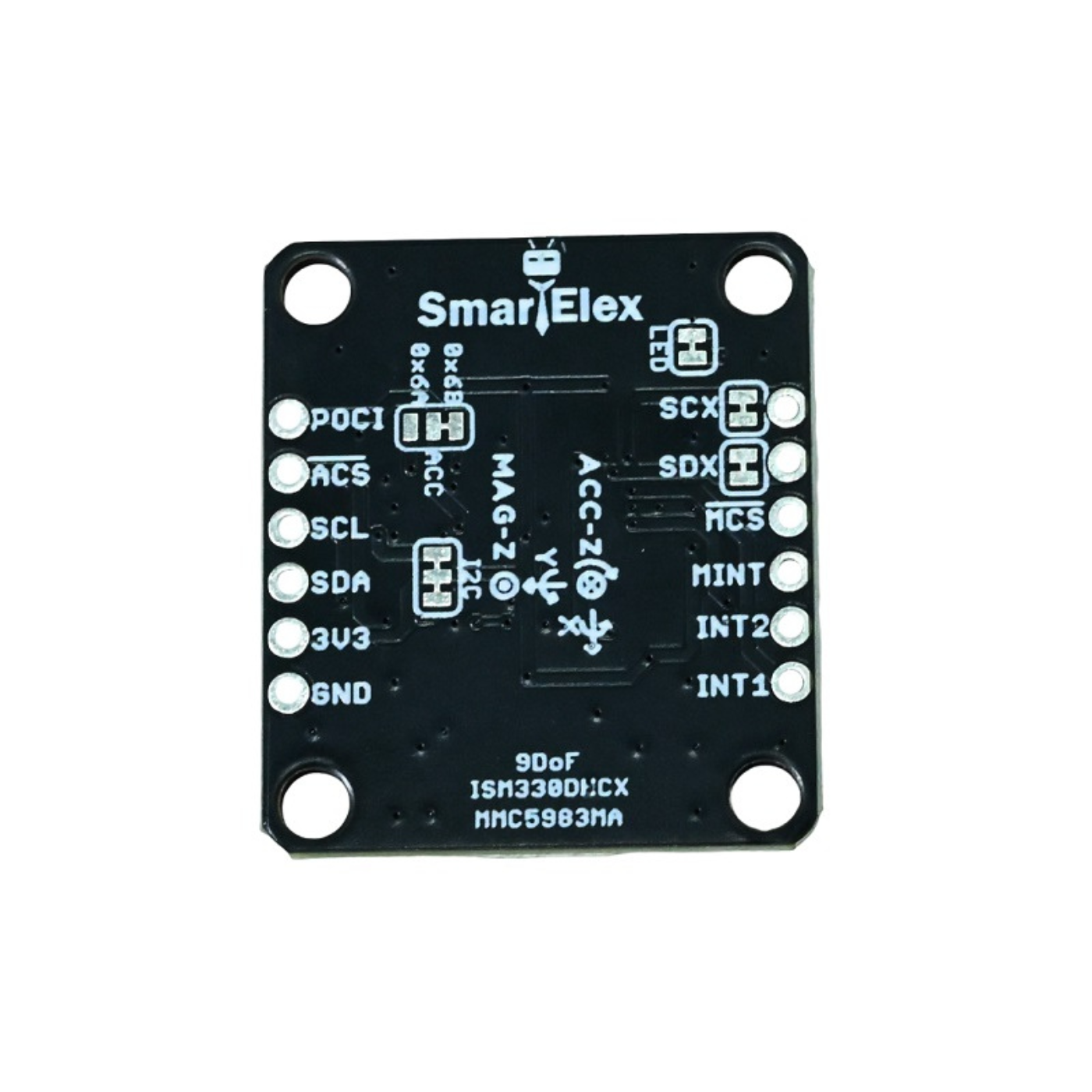

SmartElex 9DoF IMU Breakout Board with 3-Axis ISM330DHCX Accelerometer
Couldn't load pickup availability
The SmartElex 9DoF IMU Breakout is a compact, high-performance sensor board designed for precise motion and orientation detection.
It combines the ISM330DHCX 3D accelerometer and gyroscope with the MMC5983MA magnetometer, giving you accurate readings across nine degrees of freedom. This breakout board helps in tracking motion, direction, and tilt with excellent stability and low power consumption.

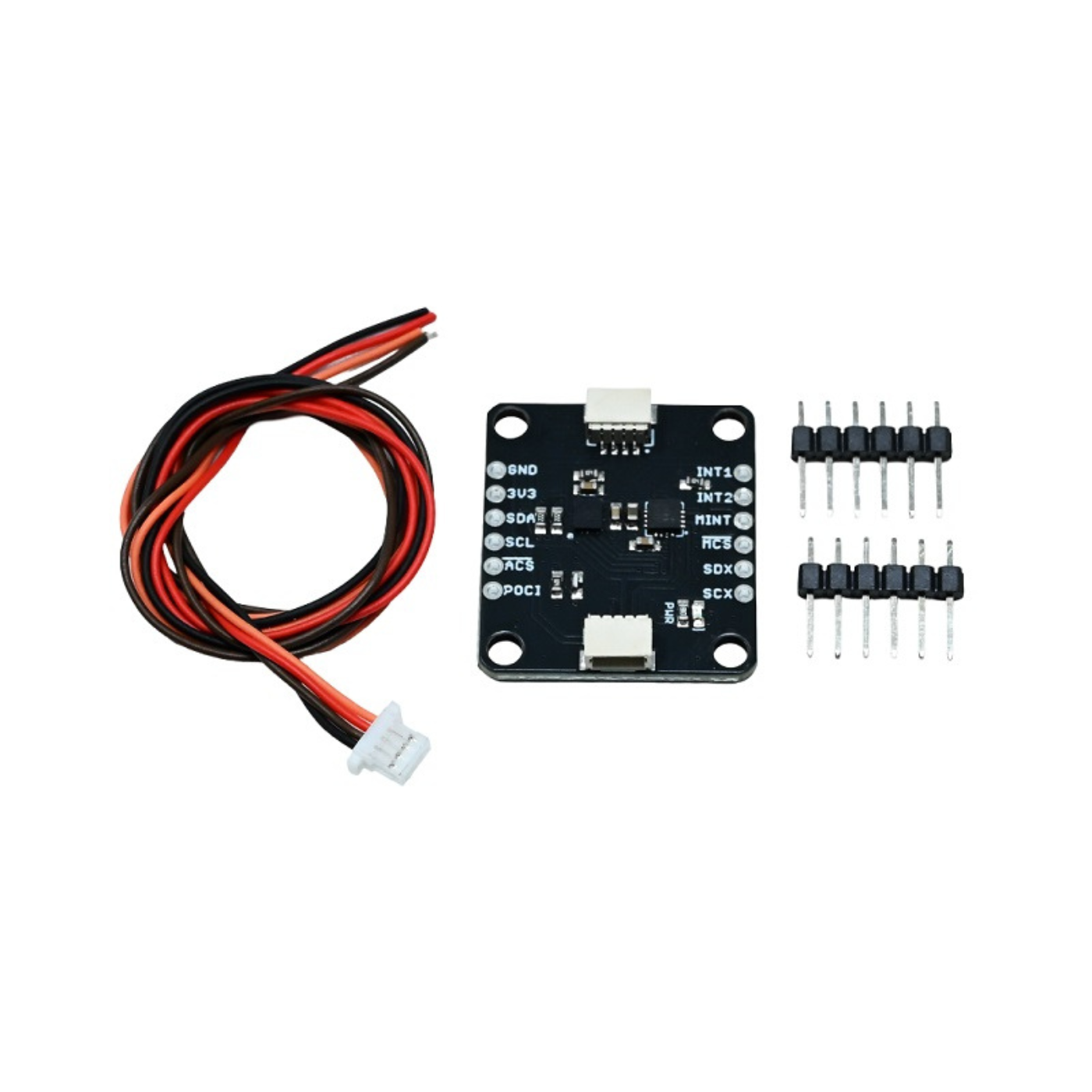

It supports Molex PicoBlade connectors for solder-free connections, while 0.1” pins are available for breadboard use.
Ideal for robotics projects and motion-sensing applications, this IMU breakout delivers smooth and reliable sensor performance for advanced embedded systems.
| Specification | Details |
|---|---|
| Model | Breakout Board |
| Model No. | ISM330DHCX, MMC5983MA |
| Voltage Rating (V) | 1.71 to 3.6, 2.8 to 3.6 |
| Length (mm) | 28.91 |
| Width (mm) | 25.4 |
This item is covered with a supplier warranty of 1 year from the time of delivery against manufacturing defects only.
In case of manufacturing defects or issues, we will replace the part after warranty confirmation by our technical team, but we won’t offer refunds or replace the entire product.
