2 Channel CAN HAT designed specifically for Raspberry Pi 40-pin models
Dual MCP2515 CAN controllers with TJA1050 transceivers for stable communication
Supports CAN bus speed up to 1 Mbps for real-time data transfer
Built-in 120Ω termination resistors with easy configuration
LED indicators for CAN activity and status monitoring
Stackable design with ESD protection for safe and reliable operation
Ideal Raspberry Pi CAN communication interface for automotive, robotics, and industrial systems

BEST COUPON

RC100

COPY CODE

When you shop for ₹ 2,500 required. Applicable at Checkout.
*Coupons are not applicable on Original Boards and Kits

Why Buy From Robocraze

Free shipping on Orders Above Rs 999/-

Technical Support & Easy Returns

Same Day Shipping

Earn RC Coins on Every Purchase

Cash on Delivery Available

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here

First Name *

Last Name *

Email *

Phone *

Company

Materials List

File(s) size limit is 20MB.

Enter the Captcha *

Captcha challenge – enter the characters shown in the image

Reload Captcha

SmartElex 2 Channel CAN HAT

~~Rs 1,249/-~~ Rs 899/-

Quantity:

SmartElex 2 Channel CAN HAT

~~Rs 1,249/-~~ Rs 899/-

Description
Specifications
Additional Resources
Shipping & Return

Description

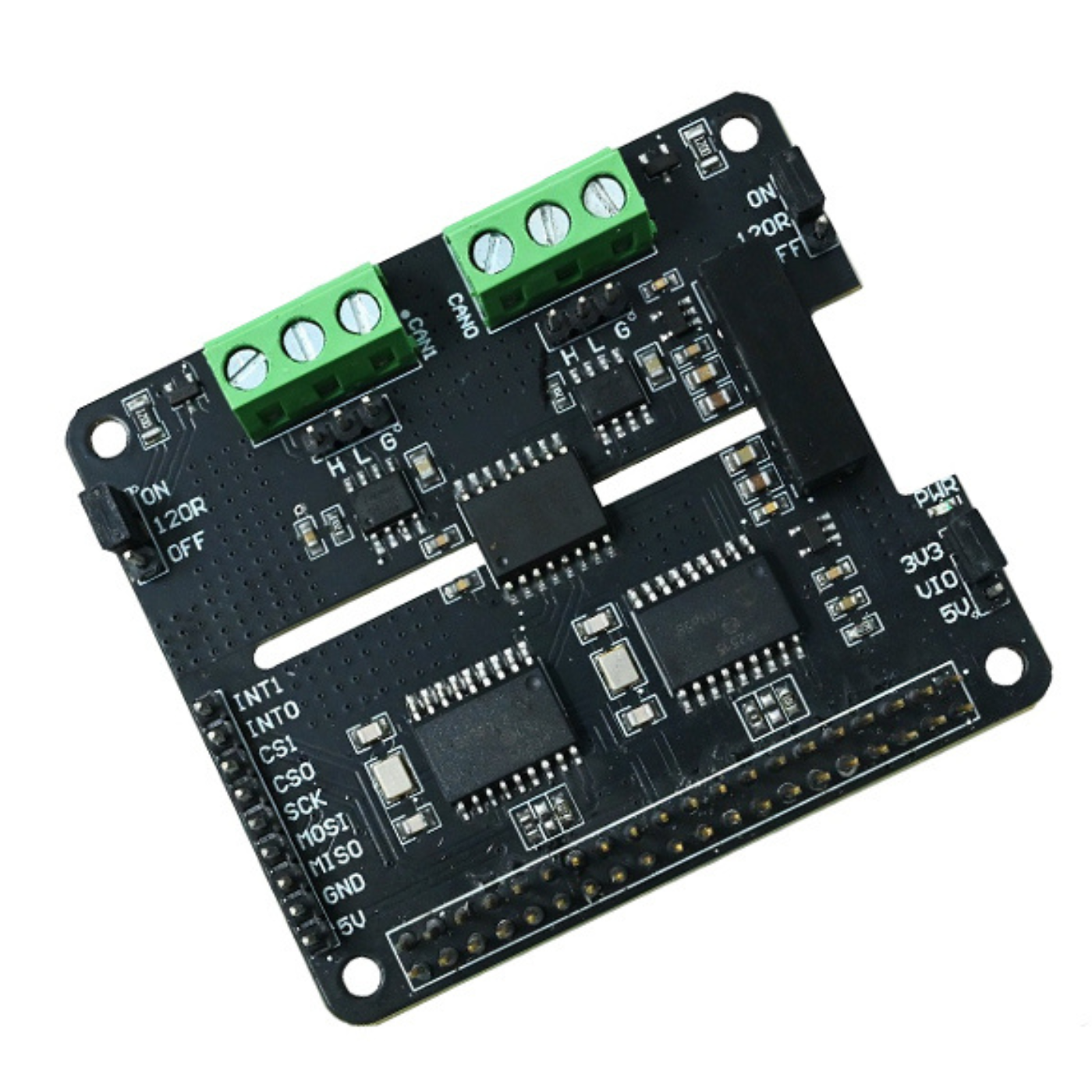

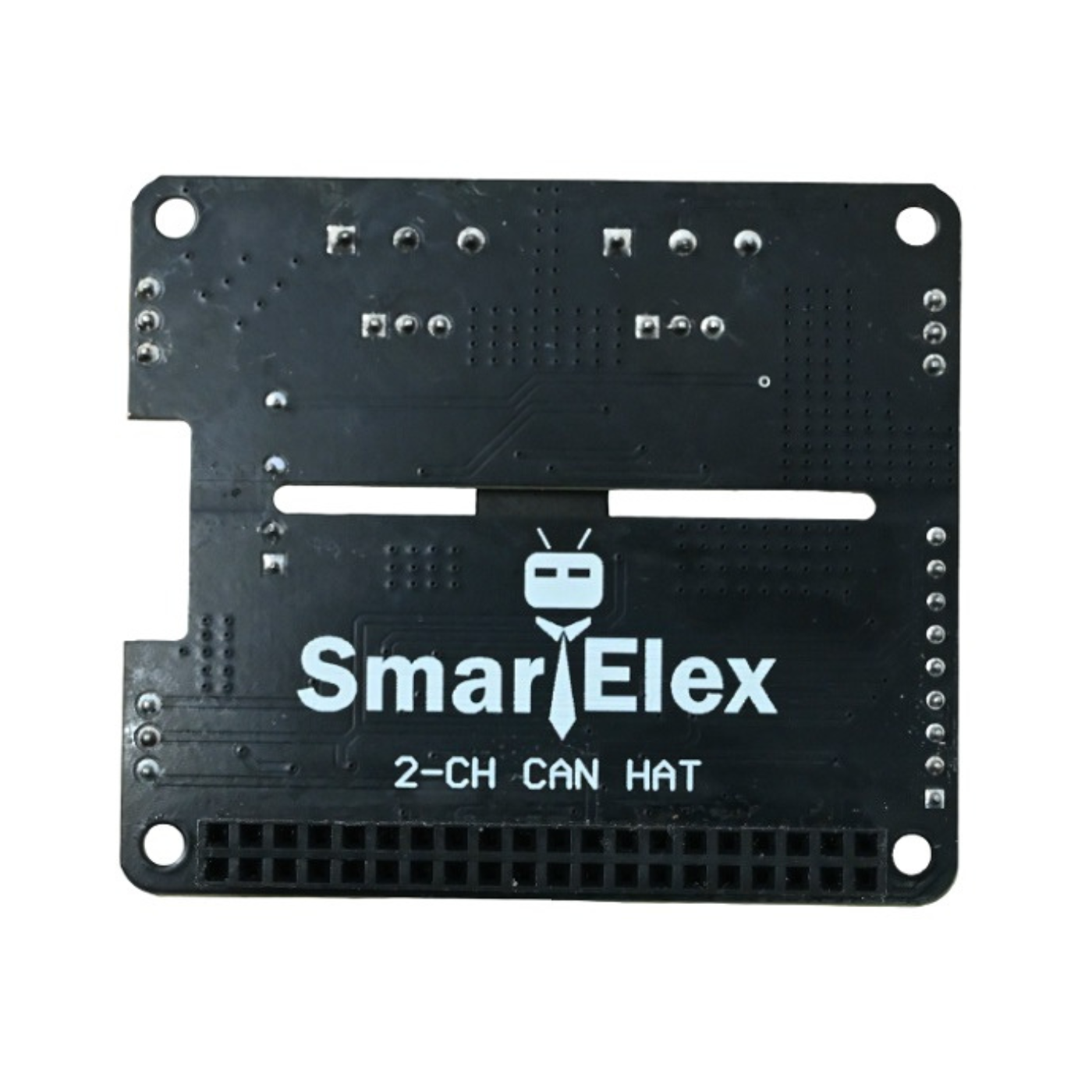

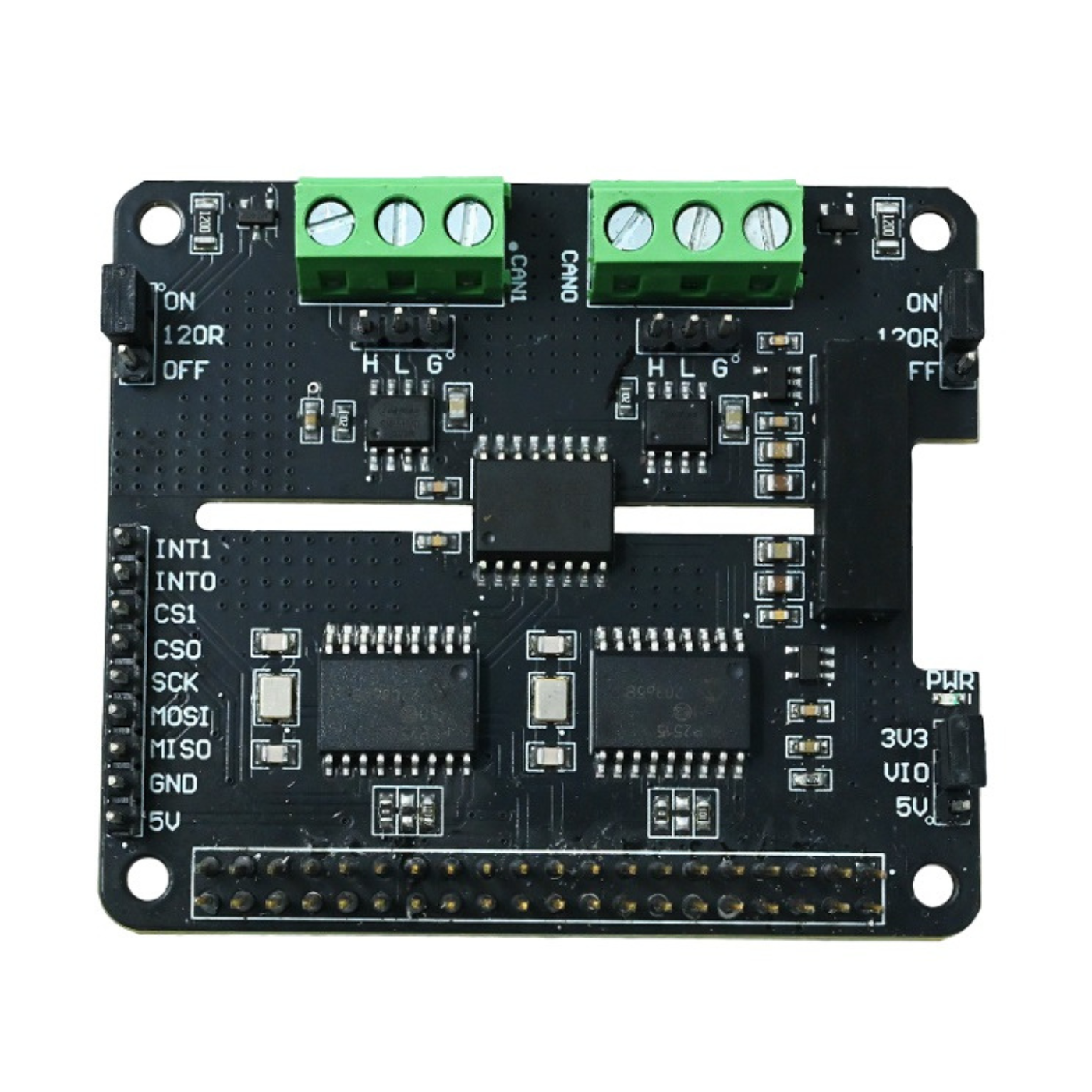

SmartElex 2 Channel CAN HAT

The SmartElex 2 Channel CAN HAT is a high-performance dual-channel CAN bus HAT for Raspberry Pi that enables reliable CAN communication with ECUs, motor controllers, sensors, and industrial devices. Built using two MCP2515 CAN controllers and TJA1050 CAN transceivers, this Raspberry Pi CAN communication interface supports data rates of up to 1 Mbps, ensuring fast and stable message exchange.

The HAT features configurable 120Ω termination resistors, onboard LED indicators, extended temperature support, and built-in ESD protection for dependable operation in rugged environments. Its compact, stackable form factor makes it an ideal 2 Channel CAN HAT solution for automotive diagnostics, robotics control, and industrial automation projects.

Features:

Dual separate CAN channels.
Built-in MCP2515 controller (SPI interface).
TJA1050 CAN transceivers provide robust signal output.
Compatible with all 40-pin Raspberry Pi boards.
120Ω termination resistors (user-configurable).
Onboard TX/RX LEDs for status indication.
Supports up to 1 Mbps signaling rate.
Industrial-grade temperature and ESD protection

Specifications

Package Includes:

1 x SmartElex 2 Channel CAN HAT

Specifications:

Specification	Details
Item Type	HAT
Model	CAN HAT
Number of Channels	2 (Dual CAN Bus)
Compatibility	Raspberry Pi 4 / 3 / 2 / Zero
Standby Current (µA)	370
Operating Temperature (°C)	Up to 85
Length (mm)	65
Width (mm)	56
Height (mm)	23
Weight (g)	29
