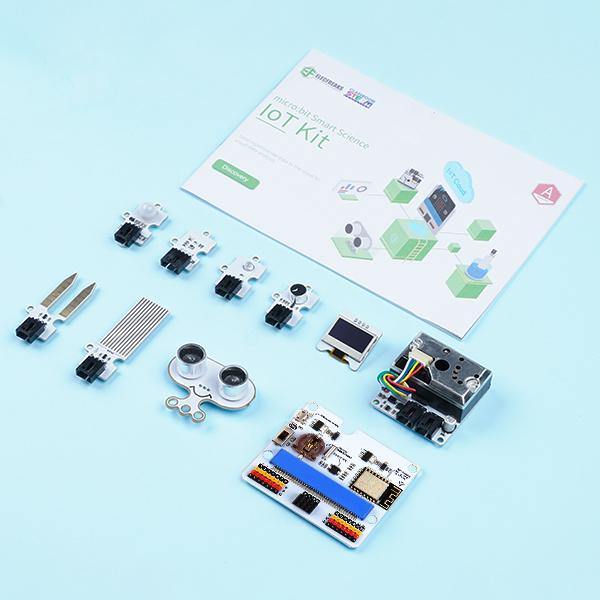

Smart Science IoT Kit compatible with Micro:Bit by Elecfreaks

Smart Science IoT Kit compatible with Micro:Bit

Smart Science IoT Kit is developed based on Micro: Bit, a new breakout board compatible with science sensors such as the ultrasonic sensor, dust sensor, light sensor, and water level sensor, including RTC Timing and WIFI module. You can gather data via the sensors and send data to the cloud with more stable and accurate data analysis.

IoT: bit is an expansion board based on IoT for micro: bit

IoT: bit is an expansion board based on IoT for micro: bit, it can support the sensors in 3-pins, the actuator, and the buzzer, it can also give a specific time telling even the micro: bit powers off with the RTC onboard.

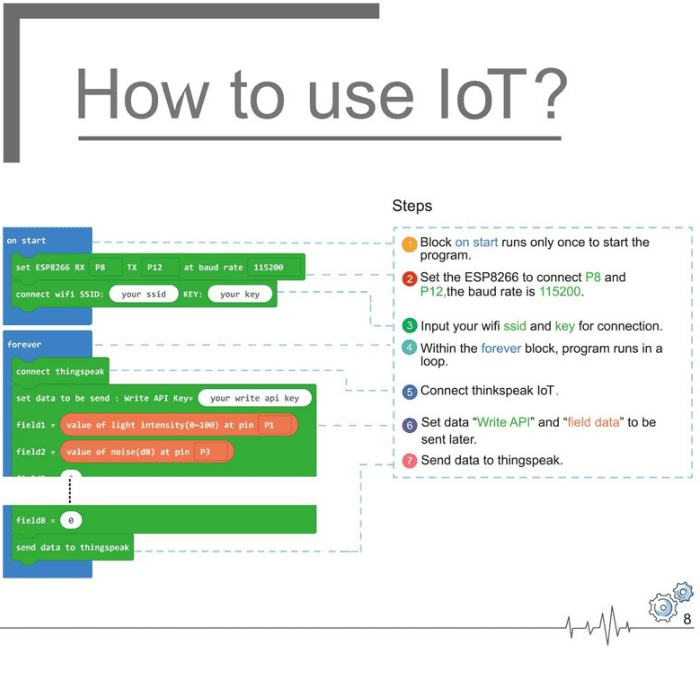

It uses ESP8266 as a WIFI expansion board and serial port to communicate with micro: bit. It also has extended all available IO ports of the micro: bit which is led by GVS and you can extend various 3V E-blocks as LED, photosensitive, and servo by using it. At the same time, the IoT: bit with an onboard buzzer for outside sound and an onboard RTC clock for timing without a power supply. The codebase for makecode can connect to Thingspeak conveniently and create your IoT project quickly.

Micro: bit Smart Science IoT kit: Sensors Introduction

Applications:

• Application Layer: Receiving usage data, after data analysis, reacting, and giving instructions to each device.
• Network Layer: Send messages to the host in the cloud via web technology.
• Perception Layer: Objects detect changes in the external environment and receive various messages through the identification system and sensing technology.

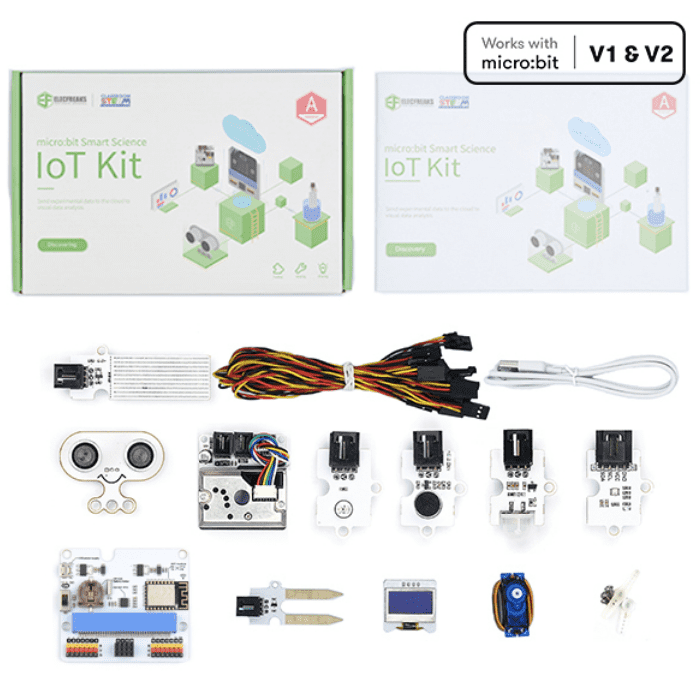

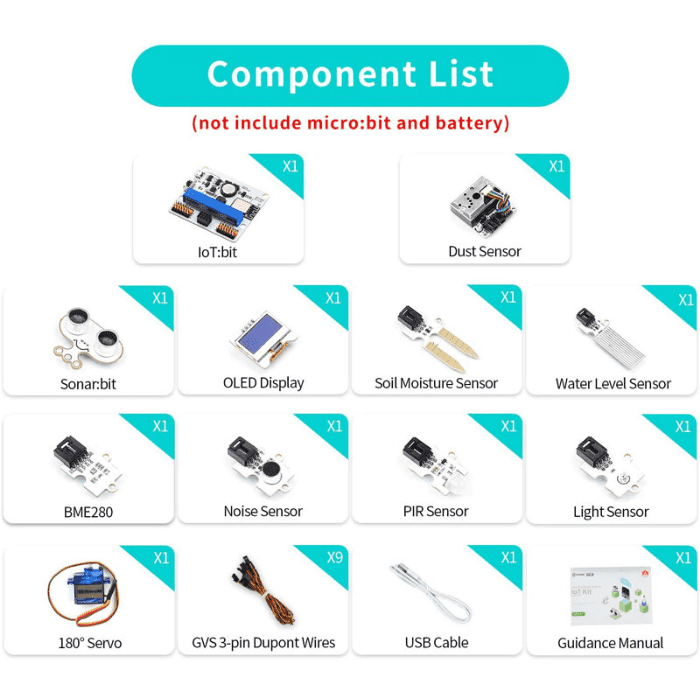

Package Includes:

• IoT Bit x 1
• Dust Sensor x 1
• Sonar: Bit x 1
• OLED Display x 1
• Soil Moisture Sensor x 1
• Water Level Sensor x 1
• BME280 x 1
• Noise Sensor x 1
• PIR Sensor x 1
• Light Sensor x 1
• 180 Servo Motor x 1
• GVS 3-Pin Dupont Wires x 9
• USB Cable x 1
• Guidance Manual x1
