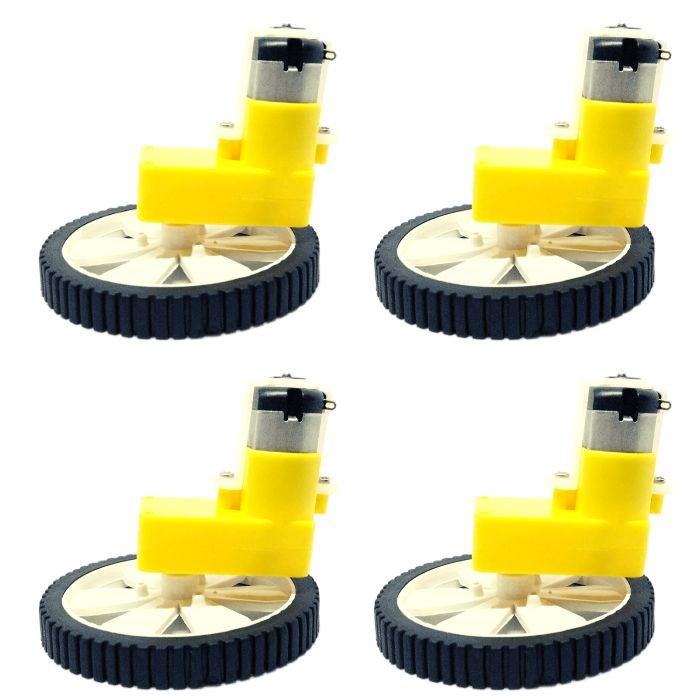

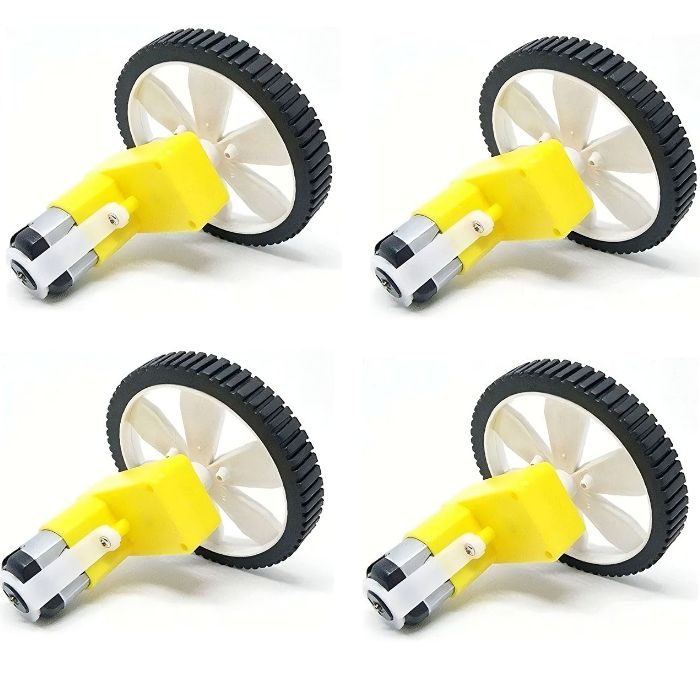

Single Shaft L-Shaped 60 RPM BO Motor with Wheel - (4 sets)

Single Shaft L-Shaped 60 RPM BO Motor with Wheel - (4 sets)

Out of stock

Regular price Rs. 278
Regular price Rs. 420 Sale price Rs. 278
Sale Sold out 34% off Best Price Guaranteed
You save Rs. 142 | Free Shipping on Orders Above ₹ 499/-
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.

BEST COUPON FOR YOU

FLAT ₹ 100/- OFF RC100

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here
  • These are Single Shaft L-Shaped 60 RPM BO Motor with Wheel - 4 Sets(colour of the wheel may vary)
  • These single shaft L shaped BO motors are relatively low coefficient of friction.

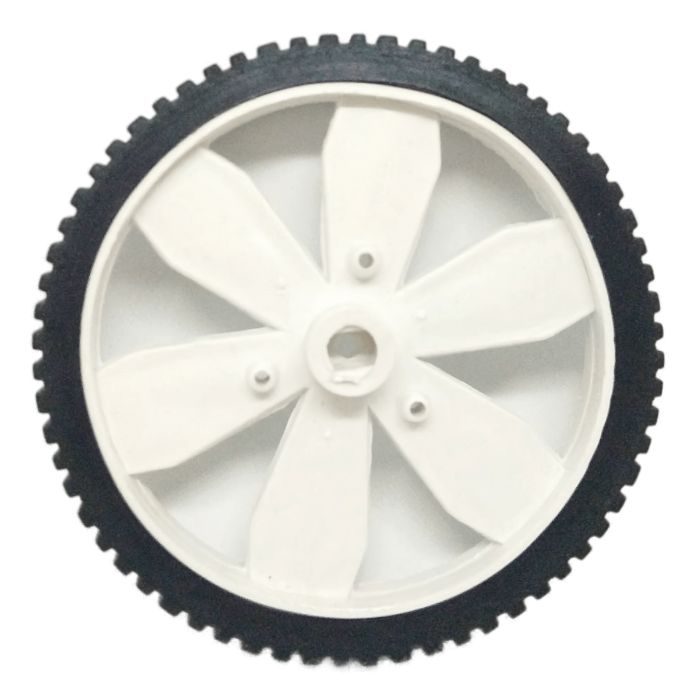

  • The wheels are made up of high-quality rubber
  • The wheels are strong and sturdy
  • These BO motors have a low density and low inertia
  • The Operating Voltage is 3V to 12V
  • Rated Speed(After Reduction): 60 RPM
  • These single-shaft L- shaped BO motors are lightweight
Trust Badge 1 Trust Badge 2 Trust Badge 3

Single Shaft L-Shaped 60 RPM BO Motor with Wheel - (4 sets)

These are Single Shaft L-Shaped 60 RPM BO Motor with Wheel - 4 Sets. The BO Motor gives good torque and rpm at lower operating voltages, which is the biggest advantage of these motors. This BO motor is a Low-cost geared DC Motor. It is an alternative to our metal gear DC motors. It comes with an operating voltage of 3-12V and is perfect for building small and medium robots. The wheels are made up of high-quality rubber which gives maximum traction while operating. The wheels are strong , sturdy and can be coupled with BO motors using a small screw ( screw is not included).

The motors are ideal for DIY enthusiasts. These BO motors are less cost, small, easy to install, and can be used in mobile robot car. If you want to use these Single Shaft L-Shaped 60 RPM BO Motors with Wheels in your DIY projects, for that you will need few essential components like batteries , switches , wires and soldering tools.

Applications:

  • Smart Robot Cars
  • DIY Train
  • Obstacle Avoider robot
  • 2wd Robot

Package Includes:

4 x Single Shaft L-Shaped 60 RPM BO Motor with Wheels

Specifications:

Operating Voltage (VDC) 3V - 12V
Shaft Length (mm) 8.5
Shaft Diameter (mm) 5.5
Rated Torque (Kg-Cm) 0.8
Wheel diameter 70mm
Wheel thickness 10mm

Shipping & Returns

  • All orders confirmed before 3 pm IST are shipped on the
    same day, barring rare pickup delays on holidays or disturbances
  • Delivery time in Metro cities is 1-3 days, Others it is
    3-7 days. It varies based on location, reliant on courier services
  • Return window: 7 days from receipt unless stated
    otherwise. No refunds/replacements after
  • Returns only for non-working/damaged products are accepted
  • Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
  • Refunds are processed within 3-4 working days post inspection and approval.

For more details, please check our Shipping and Return Policy

View full details
Trust Badge 1 Trust Badge 2 Trust Badge 3

People Also Buy

Found a better price?

Let us know!
We'll try to match the price for you

  • ⚡ Dispatched within 24 hours

  • 💰 Earn RC Coins on every purchase

  • 🚚 Free shipping on orders above Rs 500/-

  • 🛠️ Dedicated Technical Support Team

1 of 4

1. What is the rpm of Bo motor?

  • The RPM of this BO motor is 60, this is a single-shaft L-shaped bo motor which gives good torque.

2. What is a Bo motor?

  • Bo motor (Battery Operated) is a lightweight DC geared motor that produces high torque and rpm at low voltages. Excellent for battery-powered lightweight robots.

3. What are the features of the 60RPM BO Motor?

  • The 60RPM BO motor provides good torque and rpm at low operating voltages. The small shaft with matching wheels provides an optimized design for your application or robot. The mounting holes on the body and their light weight make it suitable for in-circuit placement. The motor runs smoothly from 3V to 12V and has a wide range of RPM and torque.
