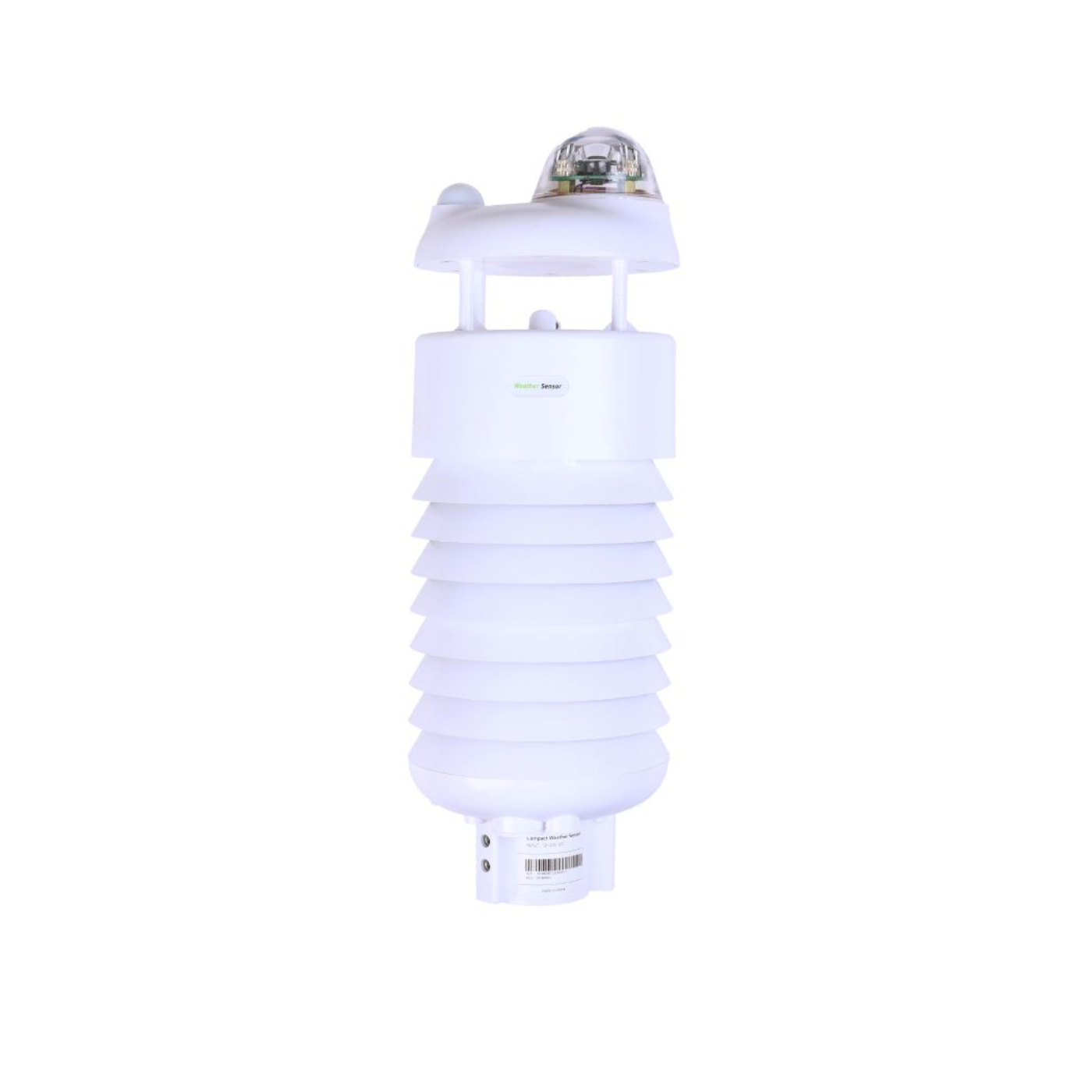

The SenseCAP S1000 V2 10-in-1 environmental sensor delivers precise, real-time monitoring of 10 key parameters in a single, integrated device.

It measures air temperature, humidity, barometric pressure, light intensity, precipitation, wind speed, wind direction, CO₂, PM2.5, and PM10 (air quality), making it a complete solution for outdoor, agricultural, and smart city applications.

With an industrial-grade design, IP66-rated enclosure, and an operating temperature range from -40°C to +85°C, it ensures durability and reliability even in the harshest environments.

Its output interfaces (RS485 MODBUS-RTU / SDI-12) enable seamless integration into existing monitoring systems and IoT platforms.

Engineered for high performance and low maintenance, the S1000 features a thermostatically controlled heating system for cold climates, ultrasonic wind sensors with no moving parts for long-lasting use, and radiation shields for accurate measurements.

It comes with a 3m cable and pole-mount accessories for easy deployment. To guarantee consistent accuracy and performance, the sensor undergoes six rigorous reliability tests, including wind tunnel calibration, high/low temperature trials, vibration, waterproofing, and structural validation.

Compact yet powerful, the SenseCAP S1000 stands as a trusted 10-in-1 environmental sensor that measures CO₂, PM2.5, and PM10 (air quality) with exceptional precision and reliability.

Features:

• 10-in-1 Measurement: Monitors air temperature, relative humidity, barometric pressure, light intensity, precipitation intensity, wind speed, wind direction, CO₂, PM2.5, and PM10 in a single device.
• Industrial-Grade Design: Operating temperature from -40°C to +85°C, IP66-rated waterproof and dustproof housing, built for outdoor environments.
• Multiple Output Interfaces: Supports RS485 (MODBUS-RTU) and SDI-12 for seamless integration with monitoring and IoT systems.
• Heating System for Cold Climates: Thermostatically-controlled independent power supply ensures stable operation in extreme cold.
• Durable Components: Includes a 3m pole-mount cable, radiation shields for accurate measurements, and ultrasonic wind sensors with no moving parts.

Applications:

Smart Agriculture, Smart City, Power Transmission, Renewable Energy, Transportation, and Traffic

Today, data on localized weather, known as microclimates, represents the next frontier in more precise and accurate weather forecasting. As a result, the collection of weather data is becoming smaller and more gridded. In light of this, weather sensors, which are the most convenient way to collect weather data, are becoming increasingly popular.

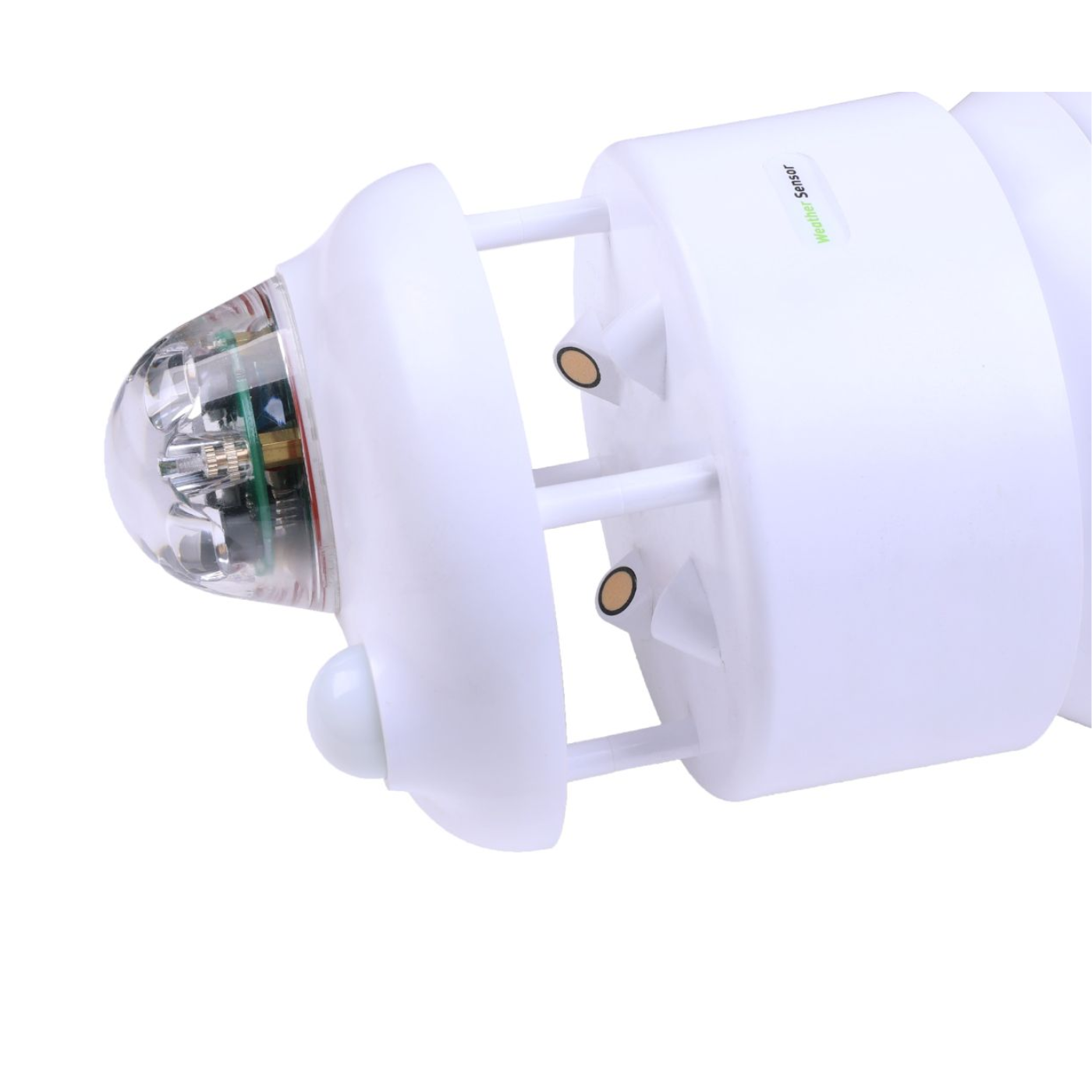

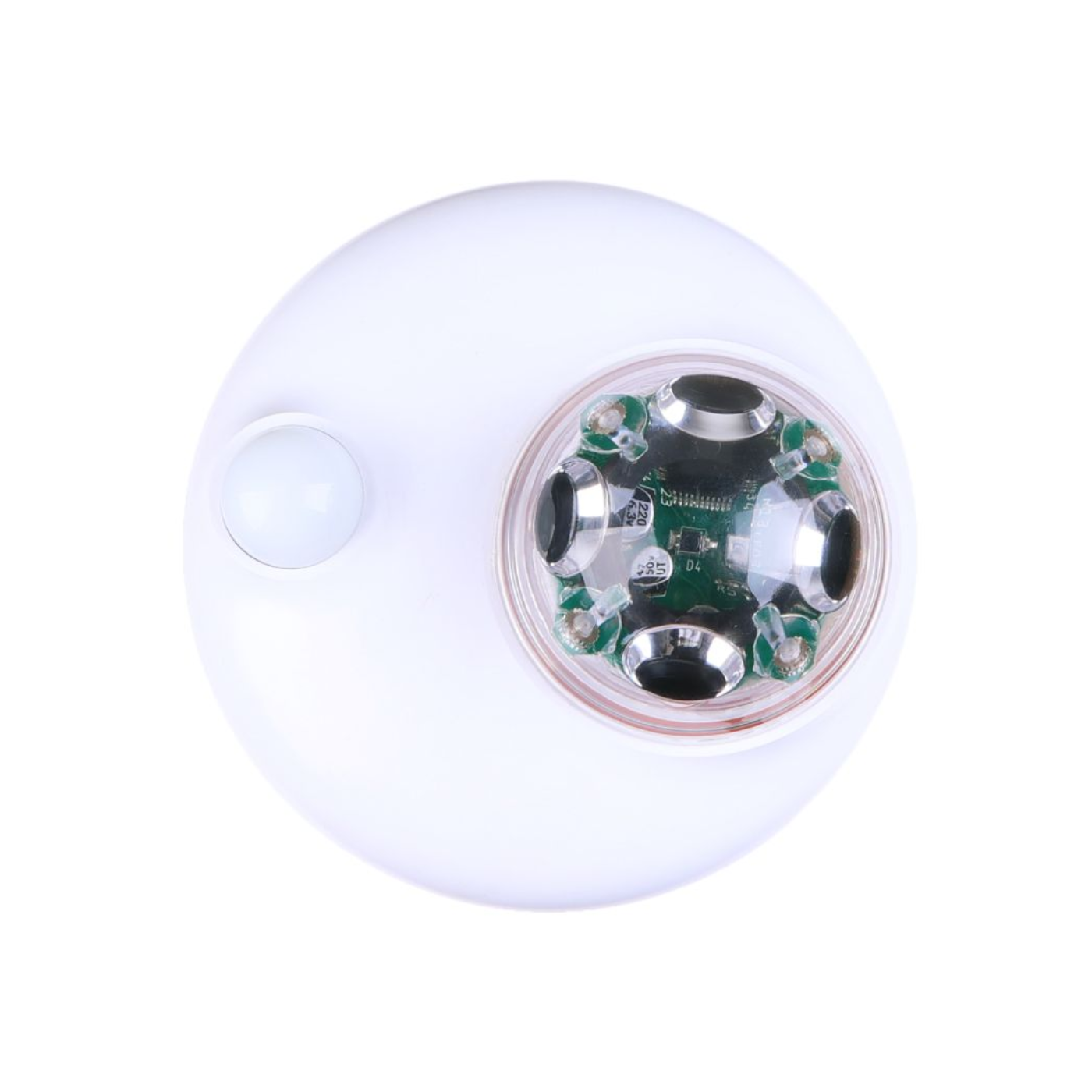

This SenseCAP ONE S1000 10-in-1 Compact Weather Sensor allows you to gather and monitor environmental and weather data, which is important in a variety of application situations, such as smart city projects, among others. It is IP66 rated and has high durability to survive even the harshest outdoor conditions. In place of a standard mechanical 3-cup or vane anemometer, wind speed and direction sensors employ ultrasound. The advantage of employing ultrasonic sensors is that minimizing the number of movable elements makes the sensor less likely to break, making maintenance easier without sacrificing precision or labor.

SenseCAP ONE is a series of all-in-one small weather sensors that measure up to ten weather parameters simultaneously: air temperature, air humidity, atmospheric pressure, light intensity, wind speed, wind direction, precipitation, PM 2.5, PM 10, and CO2.

The SenseCAP ONE series employs the RS485 (MODBUS-RTU) / SDI-12 communication protocol. As a result, the SenseCAP ONE tiny weather sensor is compatible with any data logger that supports RS485 (MODBUS-RTU) or SDI-12.

Hardware Overview
