Seeed Studio reBot Arm B601-RS Assembled Robotic Arm Kit & Gripper – Open-Source Robotics Platform -DIY Kits -Robot Kits -Robocraze

Seeed Studio FREE SHIPPING BEST PRICE GUARANTEED

Seeed Studio reBot Arm B601-RS Assembled Robotic Arm Kit & Gripper

Name: Seeed Studio reBot Arm B601-RS Assembled Robotic Arm Kit & Gripper – Open-Source Robotics Platform
Brand: Robocraze
SKU: TIFMC0340
Price: 244999 INR
Availability: OutOfStock
Rating: 4.46 (13 reviews)

Seeed Studio reBot Arm B601-RS Assembled Robotic Arm Kit & Gripper – Open-Source Robotics Platform

Rs 244,999/-

- 2%

Rs 244,999/-

~~Rs 249,999/-~~

Save Rs 5,000/-

🪙

RC REWARDS Earn 2449 RC Coins on this order

Incl. GST (No Hidden Charges)

Please hurry! Only 0 left in stock

We’ll notify you once the product is back in stock.

Quantity:

Free Delivery Above ₹999

Technical Support & Easy Returns

Same-Day Shipping (Order by 3 PM on Business Days)

Earn RC Coins on Every Prepaid Order

COD Available on Order Value Between ₹500 to ₹3,000

SKU: TIFMC0340

6+1 DOF robotic arm with a dedicated gripper for versatile manipulation and robotics experiments.
Pre-assembled B601-RS design lets you start working with the arm without building the complete mechanical structure from scratch.
2.5 kg rated payload with up to 5 kg maximum load for demanding robotic applications.
±0.1 mm repeatability supports precise positioning and controlled robotic movements.
Powered by RobStride integrated motors and communicates through CAN Bus for responsive motor control.
754.7 mm working radius with the gripper provides a useful workspace for manipulation tasks.
Fully open-source hardware and software, including mechanical files, BOM, Python SDK and robotics software resources.
Compatible with ROS1, ROS2, MoveIt, Python, LeRobot, Isaac Sim and Pinocchio for robotics development and simulation.
Suitable for robotics research, AI/ML experiments, education, physical AI, automation and advanced DIY robotics projects.

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here

First Name *

Last Name *

Email *

Phone *

+91

Company / Client

GST *

Materials List

File(s) size limit is 20MB. Max 3 files.

Choose Categories * (select one or more)

Select Categories

STEM Kits Development Boards Electronic Components Drone 3D Printers/Pens Sensors Batteries & Power Supply Tools & Instruments

Enter the Captcha *

Reload Captcha

Seeed Studio reBot Arm B601-RS Assembled Robotic Arm Kit & Gripper – Open-Source Robotics Platform

~~Rs 249,999/-~~ Rs 244,999/-

Quantity:

Seeed Studio reBot Arm B601-RS Assembled Robotic Arm Kit & Gripper – Open-Source Robotics Platform

~~Rs 249,999/-~~ Rs 244,999/-

Description
Specifications
Additional Resources
Warranty
Shipping & Return

Description

Seeed Studio reBot Arm B601-RS Assembled Robotic Arm Kit & Gripper – Open-Source Robotics Platform

The Seeed Studio reBot Arm B601-RS Assembled Robotic Arm Kit & Gripper is a high-performance, open-source robotic arm platform designed for developers, researchers, educators and robotics enthusiasts exploring real-world robotic manipulation. With 6 degrees of freedom plus a gripper, a 754.7 mm working radius, 2.5 kg rated payload, and ±0.1 mm repeatability, it provides the precision and flexibility needed for a wide range of robotics experiments.

The B601-RS uses RobStride 00 and RobStride 06 motors with CAN Bus communication and operates from a 48V DC supply. Its pre-assembled configuration makes it easier to move from setup to programming and experimentation. One of its biggest advantages is the true open-source robotics ecosystem, with hardware blueprints, 3D-printable and machined-part files, detailed BOM documentation, Python SDK resources, and support for platforms such as ROS1/ROS2, MoveIt, LeRobot, Isaac Sim and Pinocchio.

Whether you are developing a robotic arm project, AI-powered manipulation system, physical AI application, robot control software or advanced STEM robotics setup, the reBot Arm B601-RS provides a flexible platform for moving from simulation and programming to real-world robotic applications.

Features:

Designed for Physical AI: An affordable 6+1-DoF robotic arm for sim-to-real learning.
Completely open: Including hardware, software, CAD, SDK, BOM, and algorithms.
Learn Faster: Comprehensive lessons covering everything from assembly to deployment.
Always improving: Free algorithm updates, demos, and learning resources.
RobStride Dynamics: Motors provide precise motion with a repeatability of ±0.1mm.
Robotics Ecosystem: Compatible with ROS, NVIDIA Isaac Sim, LeRobot, and Pinocchio.
More Robotics for Less: Professional capabilities at a reasonable cost.

Applications:

Learn and Build Robotics Easily

Step-by-step lessons make robotics more accessible. With the reBot Arm B601-RS, you can rapidly and confidently transition from assembly to intelligent robot control.

Research and Laboratory Automation

Precision robotics for liquid handling, sample transfer, and laboratory processes. Designed for repeatability, delicacy, and quick experimentation.

Teleoperation and Physical AI

Leading robotics frameworks such as LeRobot and Isaac Sim enable real-time control, data collecting, and simulation-to-real learning. A capable "hand" for embodied AI.

Industrial Automation and Logistics

Precision is ±0.1 mm, with a payload capacity of up to 5 kg. The reBot Arm B601-RS allows for precise assembly, inspection, sorting, and material handling in industrial and warehouse applications. Compact and easily integrated into current production lines and workcells.

Hardware Overview:

Product Dimensions:

Specifications

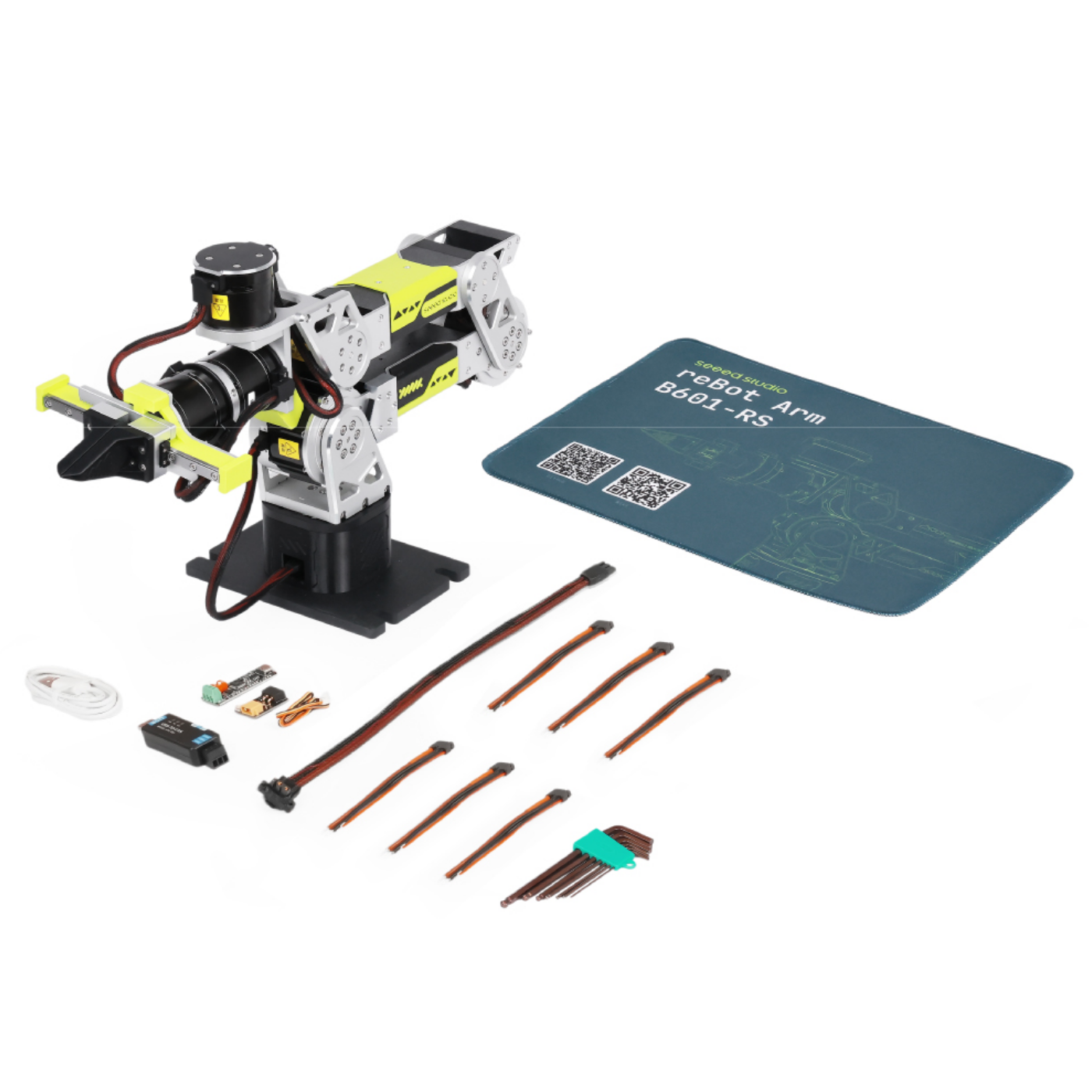

Package Includes:

1 x Assembled Robotic Arm (with gripper)
1 x RobStride USB-CAN Driver Board
1 x CANABLE
1 x XT30 2+2 Power Separation Board
1 x Hex key wrench set
1 x Mouse pad
1 x Wire kits

Specifications:

Specification	Details
Degrees of Freedom	6+1
Reach	754 mm
Joint Range of Motion	J1: ±150°; J2: 220°–0°; J3: 220°–0°; J4: ±90°; J5: ±90°; J6: ±180°; Gripper: 345°–0°
Payload	2.5 kg
Maximum Load	5 kg
Repeatability	±0.1 mm
Weight	6.5 kg
Servos	ROBSTRIDE 06 × 3; ROBSTRIDE 00 × 4
Operating Temperature	-20°C to 50°C
Power	48V, 15A
ROS1	Supported
MoveIt1	Supported
ROS2	Supported
MoveIt2	Supported
Python	Supported
LeRobot	Supported
Isaac Sim	Supported
Pinocchio	Supported
Open Source	Yes
