Seeed Studio Grove Base Expansion Board for XIAO - Buy Online in India

Seeed Studio Grove Base Expansion Board for XIAO

Rs 379/-
- 31%
Rs 379/-
Rs 549/-
Save Rs 170/-
🪙
RC REWARDS Earn 3 RC Coins on this order
Incl. GST (No Hidden Charges)
Please hurry! Only 0 left in stock

We’ll notify you once the product is back in stock.

Free Delivery Above ₹999

Technical Support & Easy Returns

Same-Day Shipping (Order by 3 PM on Business Days)

Earn RC Coins on Every Prepaid Order

COD Available on Order Value Between ₹500 to ₹3,000
SKU: TIFEC0395
  • Plug-and-play expansion board designed for the Seeed Studio XIAO series.
  • Includes multiple Grove interfaces, including 2 I2C and 1 UART connectors for easy sensor and module integration.
  • Built-in battery management chip and battery bonding pad allow the XIAO board to be powered and recharged using a lithium battery.
  • Flash SPI bonding pads provide an option to add external Flash memory and expand storage capabilities.
  • Provides a convenient bridge between the XIAO development board and Seeed Studio's Grove ecosystem.
  • A useful Grove expansion board for prototyping, IoT projects, embedded applications, and DIY electronics.

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here
+91

File(s) size limit is 20MB. Max 3 files.

Select Categories
CAPTCHA
Reload Captcha
Robocraze Academy Limited Time Offer
Seeed Studio Grove Base Expansion Board for XIAO
Seeed Studio Grove Base Expansion Board for XIAO
Rs 549/- Rs 379/-
Seeed Studio Grove Base Expansion Board for XIAO
Seeed Studio Grove Base Expansion Board for XIAO
Seeed Studio Grove Base Expansion Board for XIAO
Seeed Studio Grove Base Expansion Board for XIAO
Seeed Studio Grove Base Expansion Board for XIAO

Seeed Studio Grove Base Expansion Board for XIAO

Rs 549/- Rs 379/-
Description

Seeed Studio Grove Base Expansion Board for XIAO

The Seeed Studio Grove Base Expansion Board for XIAO is a compact and convenient Grove expansion board designed to extend the capabilities of Seeed Studio XIAO development boards. It offers a plug-and-play way to connect Grove sensors, modules, and peripherals without complicated wiring, with 8 Grove connectors including two I2C interfaces and one UART interface.

The board also features an integrated battery management chip and battery bonding pad, making it possible to power and recharge a compatible XIAO board using a lithium battery. In addition, the Flash SPI bonding pad allows external Flash memory to be added for expanded memory capacity.

Acting as a bridge between the XIAO development board and the Grove ecosystem, this Seeed Studio Grove Base Expansion Board for XIAO is well suited for IoT projects, sensor-based applications, wearable electronics, rapid prototyping, and DIY development.

Features:

  • Features integrated lithium battery charging and management, allowing you to easily power and recharge your Seeed Studio XIAO using a standard 3.7V LiPo battery.
  • Equipped with two Grove I2C and one Grove UART connector, with all 14 GPIO pins fully broken out.
  • Ultra-small form factor designed for easy integration into your projects.
  • Includes dedicated PCB pads for adding an external SPI Flash memory chip.
  • Features an onboard power switch and an LED charging status indicator.

Hardware Overview:

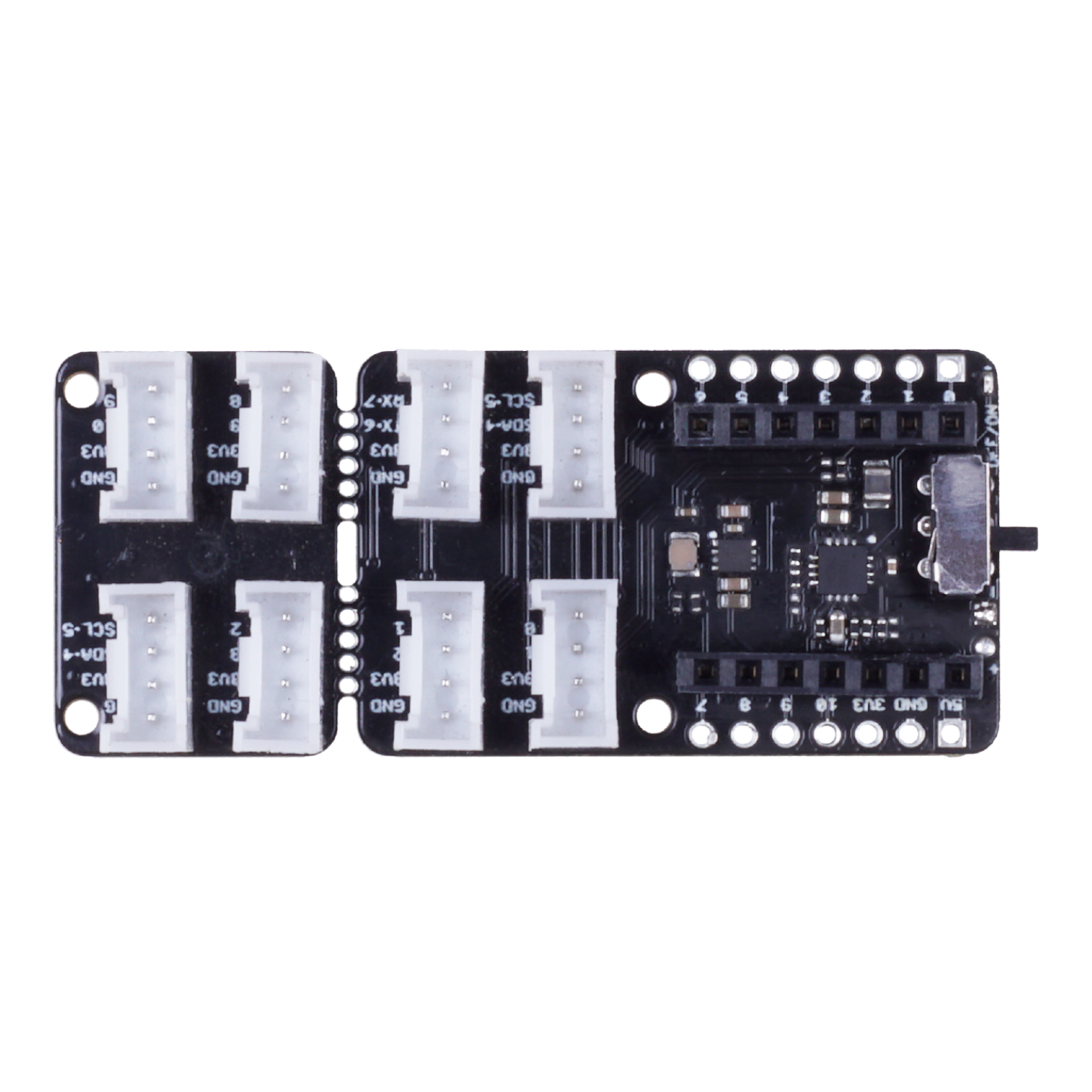

Hardware Overview of Grove Base Expansion Board for XIAO

Applications:

  • Wearable devices
  • Rapid prototyping
  • Grove modules testing
  • Projects require small size
Specifications

Package Includes:

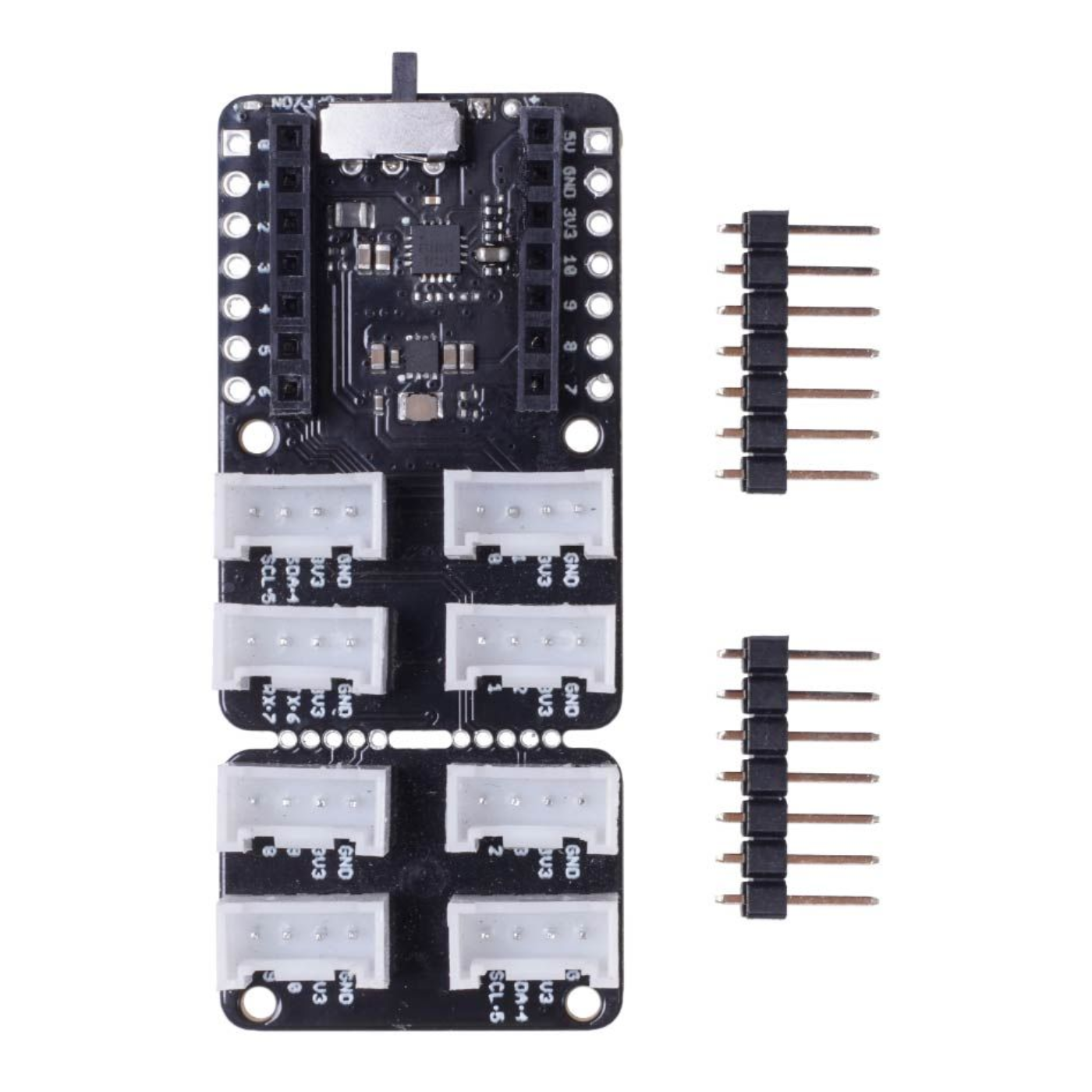

  • 1 x Grove Shield for Seeed Studio XIAO
  • 2 x 1*7pins male header

Specifications:

Parameter Value
Power Supply 5V / 3.7V Lithium Battery
Load Capacity 800 mA
Charging Current 400 mA (Max)
Operating Temperature -40°C to 85°C
Storage Temperature -55°C to 150°C
Grove Interface Grove × 8 (I2C × 2 / UART × 1)
