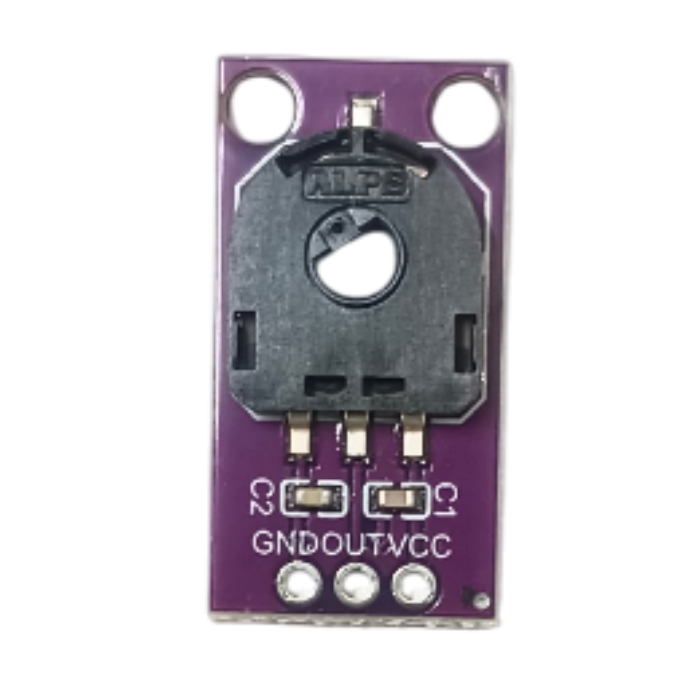

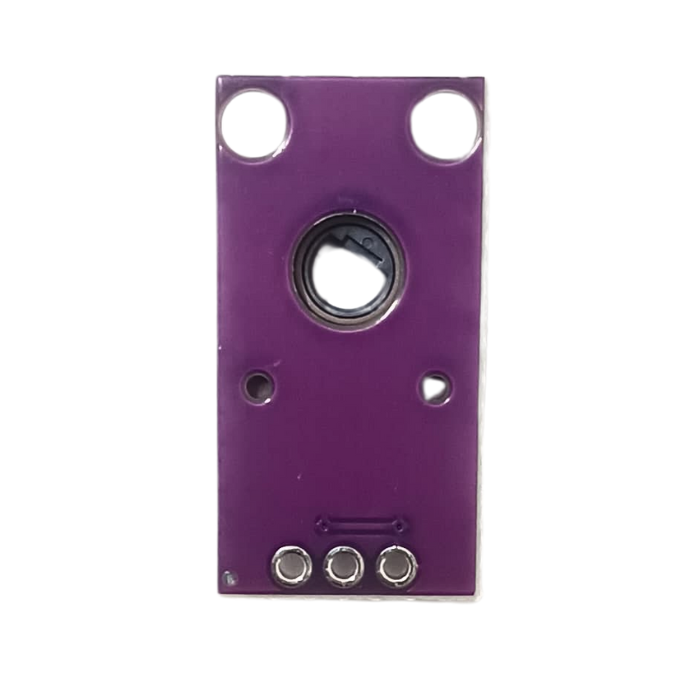

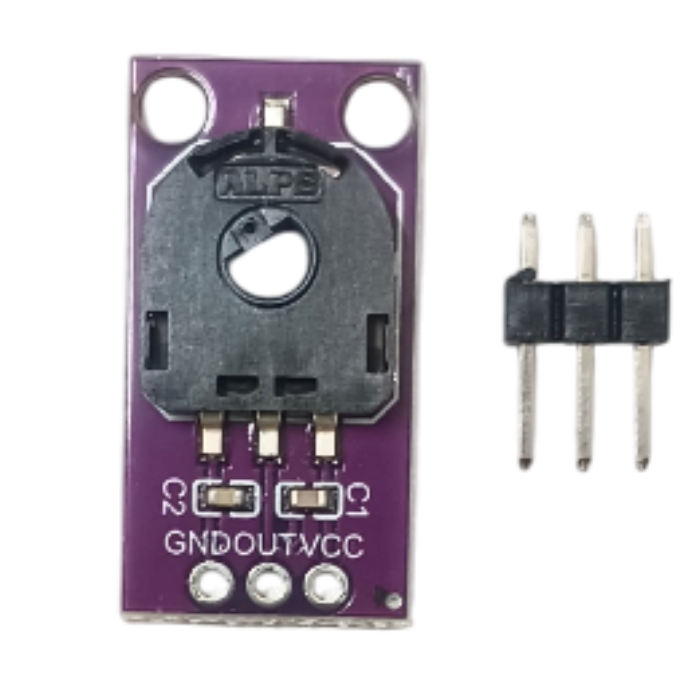

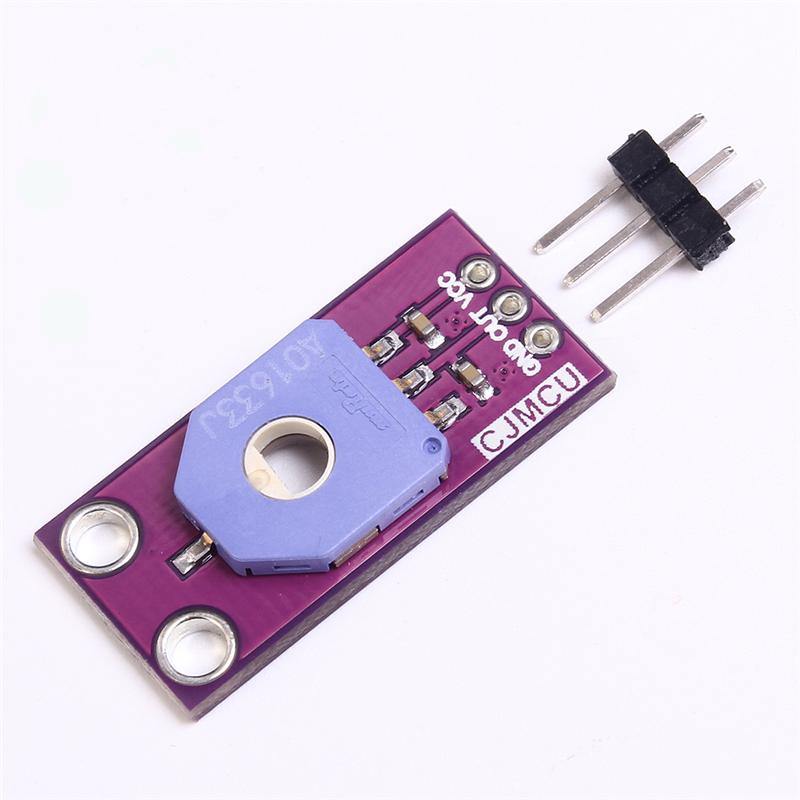

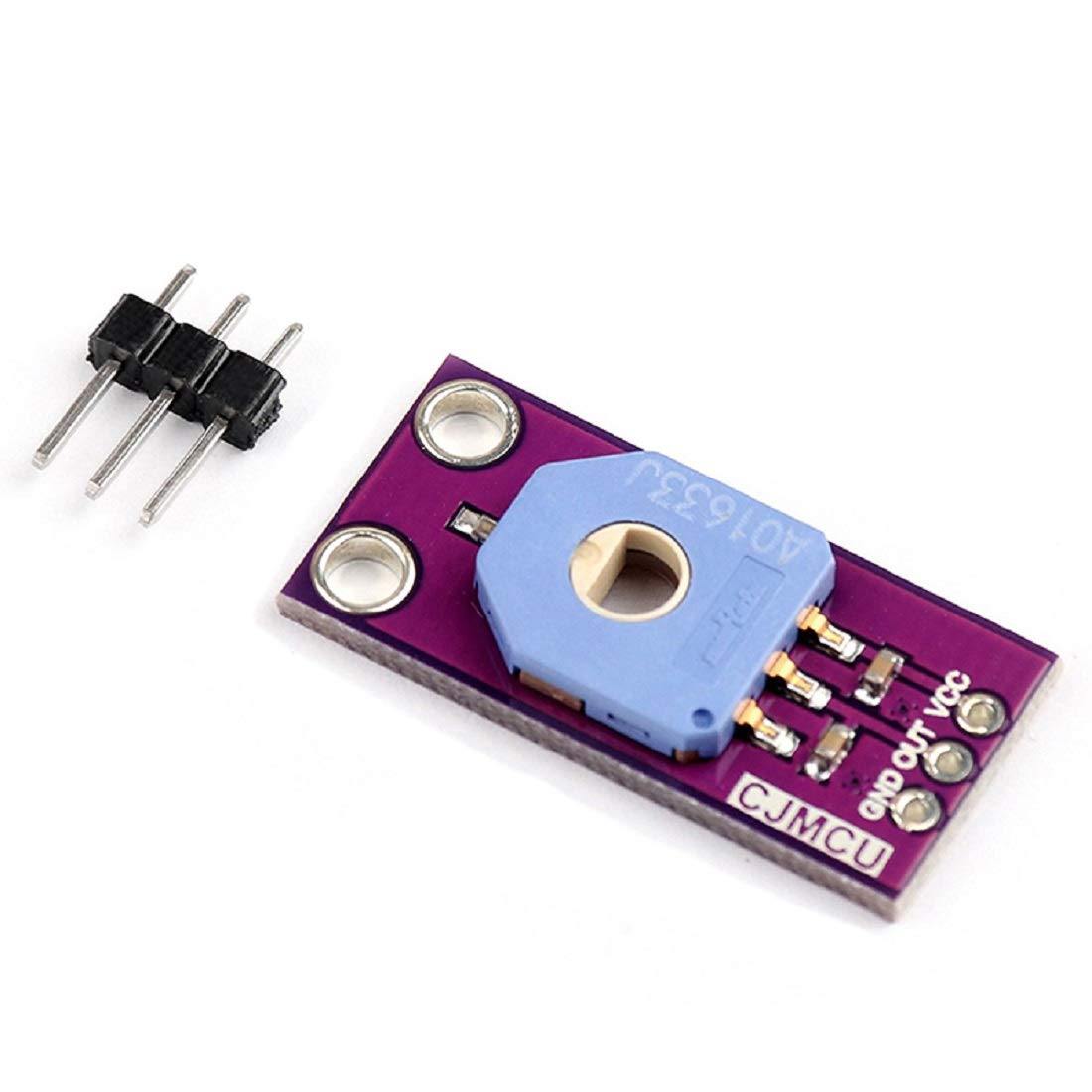

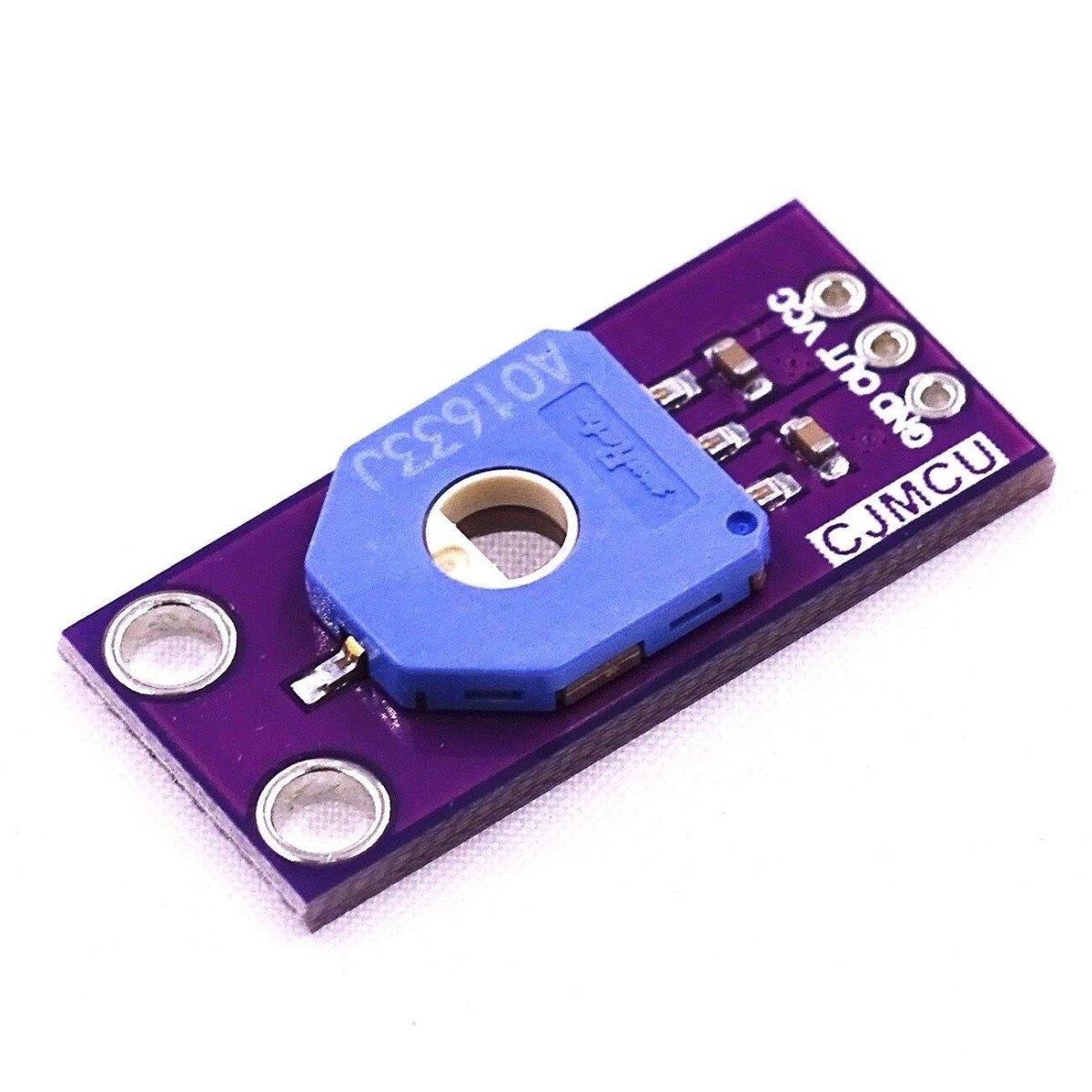

CJMCU-103 Rotary Angle Sensor Potentiometer Module

CJMCU-103 Rotary Angle Sensor Potentiometer Module

Regular price Rs. 96
Regular price Rs. 154 Sale price Rs. 96
Sale Sold out 38% off Best Price Guaranteed
You save Rs. 58
Incl. GST (No Hidden Charges)
Currently, people are actively checking out this product.
Submit your Bulk Enquiry Here

Contact form

  • Excellent materials of resistance and high reliability wiper reaches m 1 m cycles.
  • D shaping through the hole of the rotor allows you to choose any kind of gear shape.
  • The rotation sensor is made of fine material, durable and has long service life.
  • Wide range of working temperature ,the sensor can work normally between -40~85℃.
  • Small size and light weight, portable and convenient to carry.
  • The installation is easy ,you just need to paste it on the surface.

CJMCU-103 Rotary Angle Sensor Potentiometer Module

The CJMCU-103 is a rotary angle sensor module that measures the angular position of a shaft or other rotating object using a potentiometer. A potentiometer is a sort of variable resistor that can be used to measure a shaft's location by altering the resistance as the shaft rotates. A potentiometer is commonly attached to the shaft, and an integrated circuit (IC) turns the potentiometer's resistance into a voltage or digital signal that can be read by a microcontroller or other device.
The CJMCU-103 is a low-power, compact device with a wide range of system integration options. It can be used to calculate the angle of a steering wheel, regulate the movement of a robot arm, or detect the angular location of a motor shaft.
MCU-103 Rotation Angle Sensor has a dustproof design that protects the interior from dust, which maintains stable performance. It is compatible with high peak lead-free soldering. temperatures.

Applications:

  • Used in Switch for automotive, Motor drive unit, Radio control equipment, Electric motor-driven bicycle, etc

Package Includes:

  • 1 x Rotary Angle Sensor

Specifications

Resistance (Ohms) 10k
Resistance Tolerance ±30%
Mounting Type Surface Mount
Mechanical 0° ~ 333.3°
Dimensions  3 x 2 x 1cms
Weight  5 grams
