- Perfect combination of ATmega328 and MAX7456.
- Flight control OS functions
- Supports MAVLink protocol.
- Uses MAVLink OSD
- Standard 6-pin ISP header
- +5V 500mA regulator for up to +12V supply input
- If you use with 3DR Radio Telemetry, only need to connect the RX Connector, don't need the TX.
Mini OSD Module For 2.6 APM PIX Pixhawk Flight Control Board
APM has an companion OSD board called MinimOSD. It reads all the MAVLink data in the APM telemetry stream and overlays it on the video stream if you’re using an on-board camera and wireless video transmitter. This is useful if you’re flying in First Person View (FPV) mode or don’t want to use a laptop at the field to see your telemetry data in the Mission Planner. Instructions on connecting and using the MinimOSD board via the APM telemetry port are here. Important note: You cannot connect use the OSD when your APM 2 is also connected via USB (they share the same port). Make sure you disconnect your USB cable from the APM 2 board before attempting to use the OSD. Features: Perfect combination of ATmega328 and MAX7456. Flight control OS functions Supports MAVLink protocol. Uses MAVLink OSD. Supports pirate APM2.52 APM 2.6 flight model Specifications: Material: Plastic Metal Item Name: MinimOSD MAVLink OSD APM APM2 Flight Control Board
Perfect combination of ATmega328 and MAX7456. Flight control OS functions Supports MAVLink protocol. Uses MAVLink OSD. Supports pirate APM2.52 APM 2.6 flight model.
Features:
- Compatibility: Designed for APM 2.6 and APM 2.52 flight control boards.

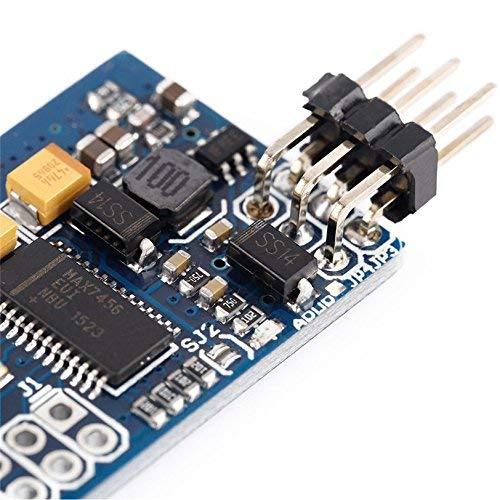

- Processor: Combines the ATmega328 microcontroller with the MAX7456 on-screen display (OSD) chip.
- Functionality: Provides real-time video data overlay, displaying important flight information directly on your FPV (First Person View) feed.
- Protocol: Supports MAVLink protocol for communication with the flight controller.
- Operating Voltage: 5V to 12V.
- Applications: Ideal for quadcopters, drones, and other DIY flight control projects.
Applications:
- DIY flight control projects
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
Share



People Also Buy

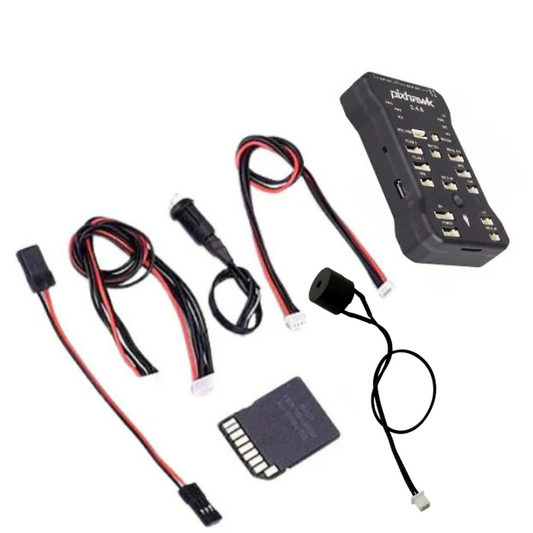

Pixhawk 2.4.8 Drone Flight Controller PX4 32 Bit Autopilot

KK board 2.1.5 Multi-Rotor LCD Flight Control Board

APM 2.8 Flight Controller (Without Compass)
Found a better price?
Let us know!
We'll try to match the price for you
-
⚡ Dispatched within 24 hours
-
💰 Earn RC Coins on every purchase
-
🚚 Free shipping on orders above Rs 500/-
-
🛠️ Dedicated Technical Support Team
Package Includes:

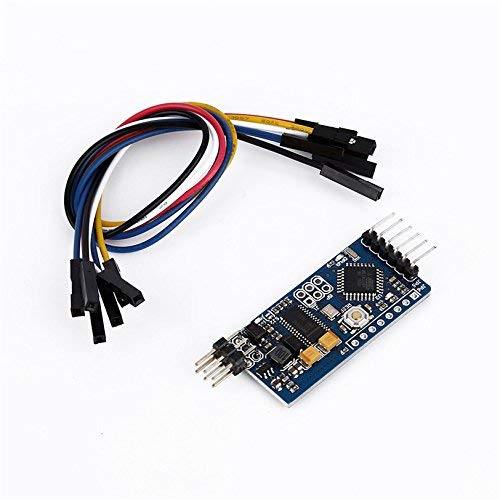

- Mini OSD Module For 2.6 APM PIX Pixhawk Flight Control Board with Jumper wire
Specifications:
Item | Mini OSD Module |
Pins | 6 |
Voltage | 5V-12V DC |
1. What is the primary function of the MinimOSD MAVLink OSD?
- The MinimOSD MAVLink OSD reads all the MAVLink data in the APM telemetry stream and overlays it on the video stream. This is particularly useful for First Person View (FPV) flying, providing real-time telemetry data directly on your video feed.
2. Which flight control boards are compatible with this module?
- This module is compatible with APM 2.6 and APM 2.52 flight control boards.
3. What components are included in the MinimOSD MAVLink OSD module?
- The module combines the ATmega328 microcontroller and the MAX7456 monochrome on-screen display driver.
4. What is the operating voltage range for this module?
- The MinimOSD MAVLink OSD operates within a voltage range of 5V to 12V.
5. Is this module suitable for DIY drone projects?
- Yes, this module is ideal for DIY flight control projects, enhancing your drone’s capabilities by providing real-time telemetry data on your video feed.
