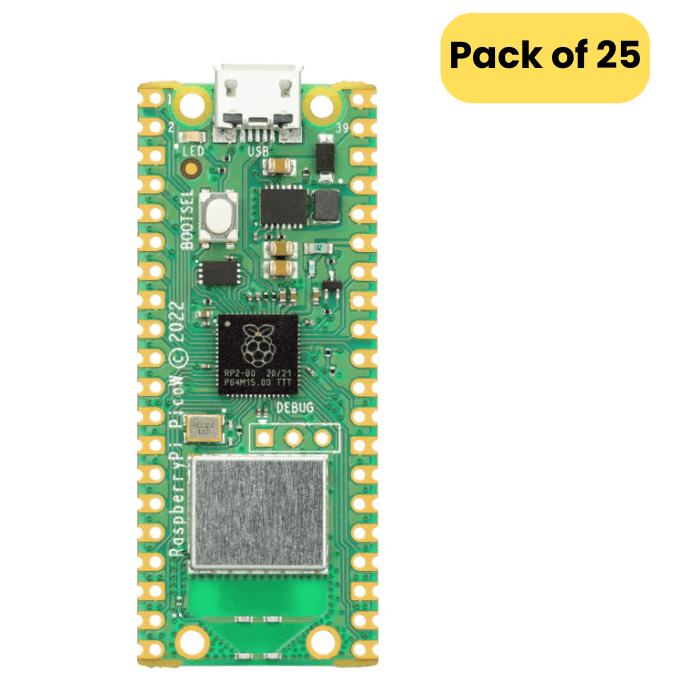

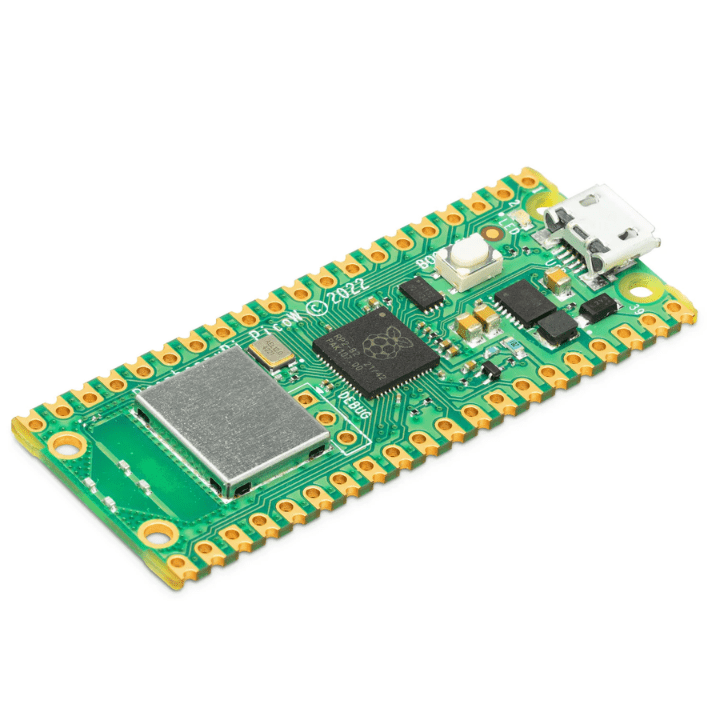

Raspberry Pi Pico W

Raspberry Pi Pico W brings wireless connectivity to the best-selling Raspberry Pi Pico product line. Built around our RP2040 silicon platform, Pico products bring our signature values of high performance, low cost, and ease of use to the microcontroller space. With a large on-chip memory, symmetric dual-core processor complex, deterministic bus fabric, and rich peripheral set augmented with our unique Programmable I/O (PIO) subsystem, RP2040 provide professional users with unrivaled power and flexibility.

Offering detailed documentation, a polished MicroPython port, and a UF2 bootloader in ROM, it has the lowest possible barrier to entry for beginner and hobbyist users. RP2040 is manufactured on a modern 40nm process node, delivering high performance, low dynamic power consumption, and low leakage, with a variety of low power modes to support extended-duration operation on battery power.

Raspberry Pi Pico W offers 2.4GHz 802.11 b/g/n wireless LAN support, with an onboard antenna, and modular compliance certification. It is able to operate in both station and access-point modes. Full access to network functionality is available to both C and MicroPython developers.

Raspberry Pi Pico W pairs RP2040 with 2MB of flash memory, and a power supply chip supporting input voltages from 1.8–5.5V. It provides 26 GPIO pins, three of which can function as analog inputs, on 0.1”-pitch through-hole pads with castellated edges. Raspberry Pi Pico W is available as an individual unit, or in 480-unit reels for automated assembly.

Key Features:

Raspberry Pi Pico W has been designed to be a low-cost yet flexible development platform for RP2040, with a 2.4GHz wireless interface and the following key features:

• RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
• Dual-core ARM Cortex M0+ processor, flexible clock running up to 133 MHz
• 264kB of SRAM, and 2MB of onboard Flash memory
• On-board single-band 2.4GHz wireless interfaces (802.11n)
• Castellated module allows soldering direct to carrier boards
• USB 1.1 Host and Device support
• Low-power sleep and dormant modes
• Drag & drop programming using mass storage over USB
• 26 multi-function GPIO pins
• 2×SPI, 2×I2C, 2×UART, 3×12-bit ADC, 16×controllable PWM channels
• Accurate clock and timer on-chip
• Temperature sensor
• Accelerated floating-point libraries on-chip
• 8×Programmable IO (PIO) state machines for custom peripheral support

Raspberry Pi Pico W and Pico WH incorporate an Infineon CYW43439 wireless chip. CYW43439 supports IEEE 802.11 b/g/n wireless LAN, and Bluetooth 5.2; of these, only wireless LAN is supported at launch

Pinout:

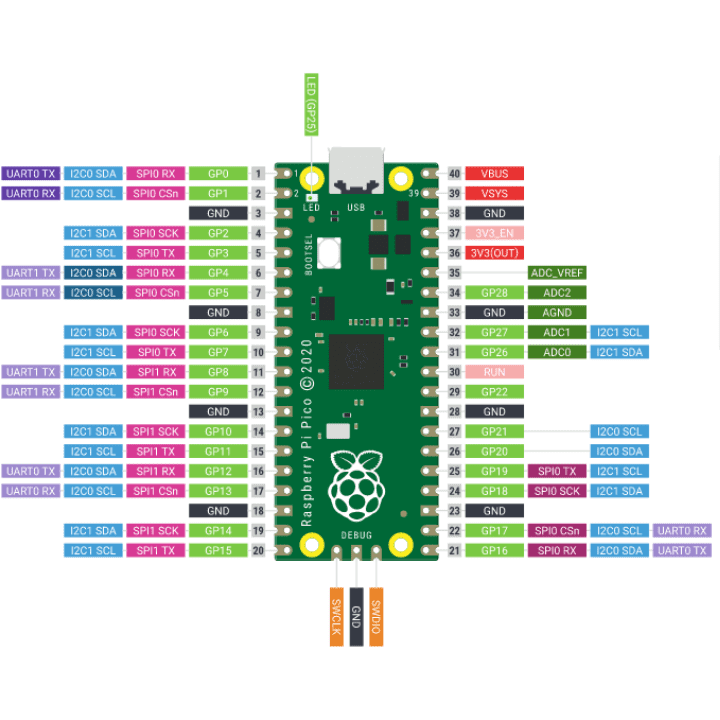

Pinout of Raspberry Pi Pico W

Applications:

• Learning IoT and Prototyping
• Home Automation Projects
• Can be used to create Web Servers
